Raster Art and KiCad: Hand Draw Your Circuit!
Meg G
Long talk
Time
June 21, 2025 4:00-4:50 PM
Location
Talk Track One

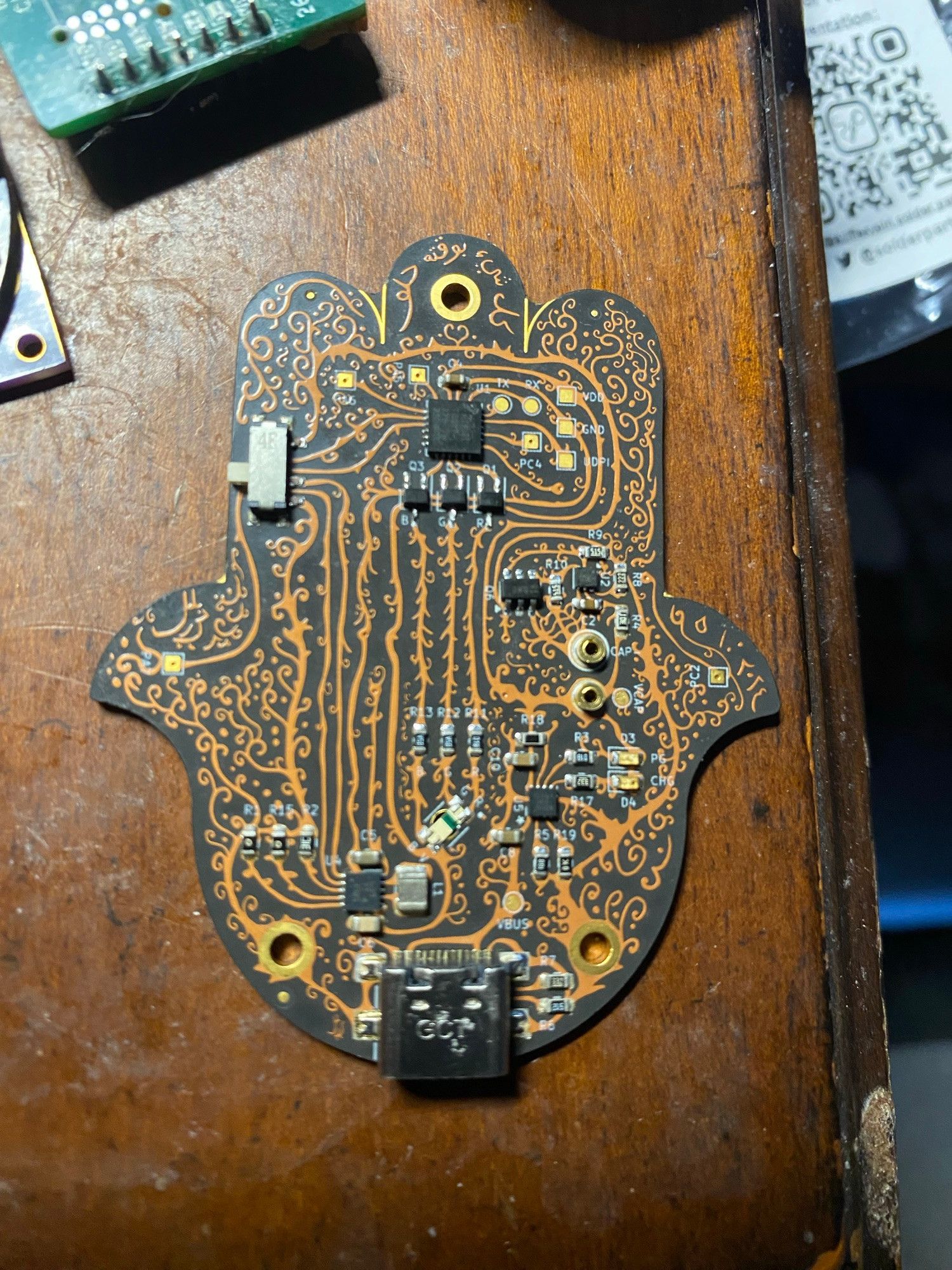

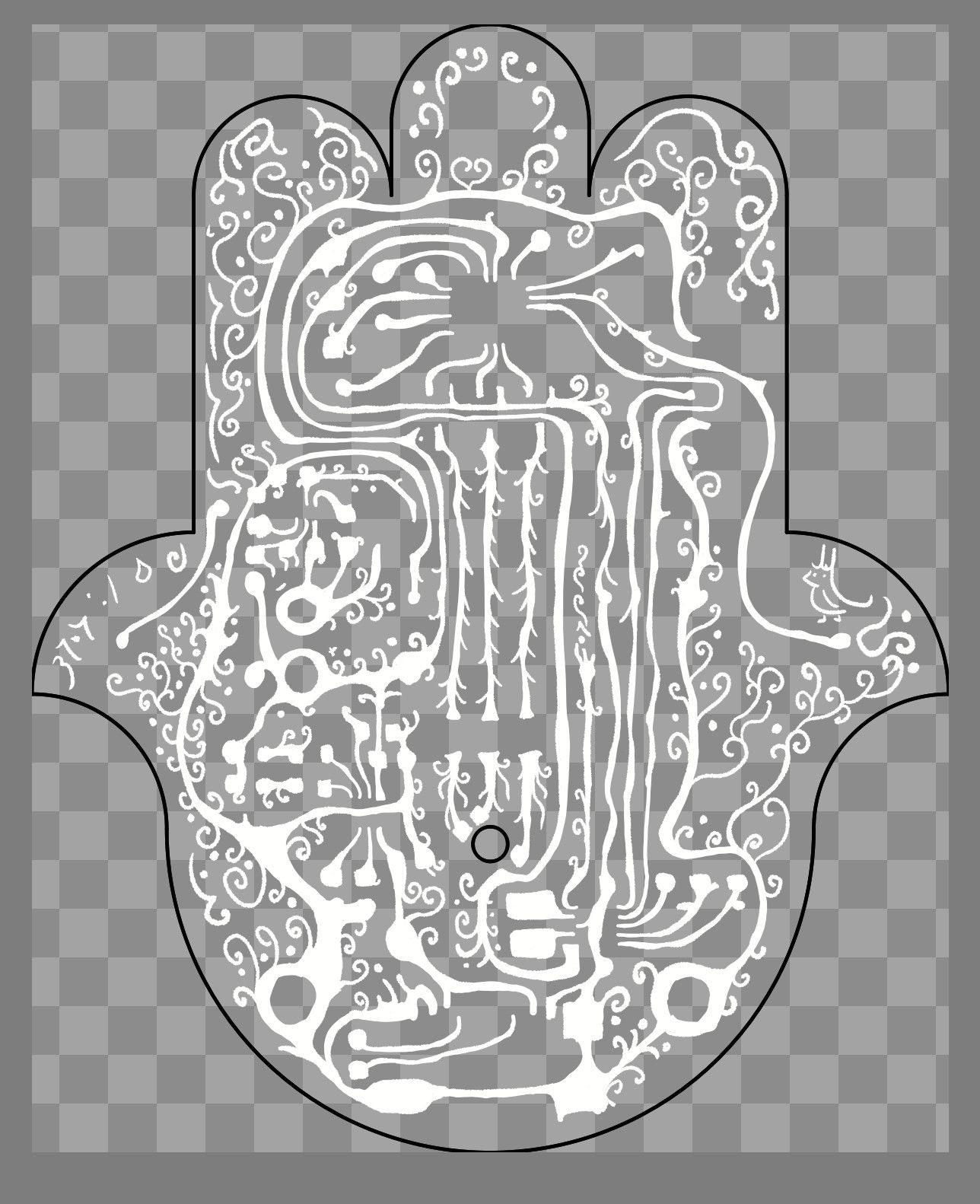

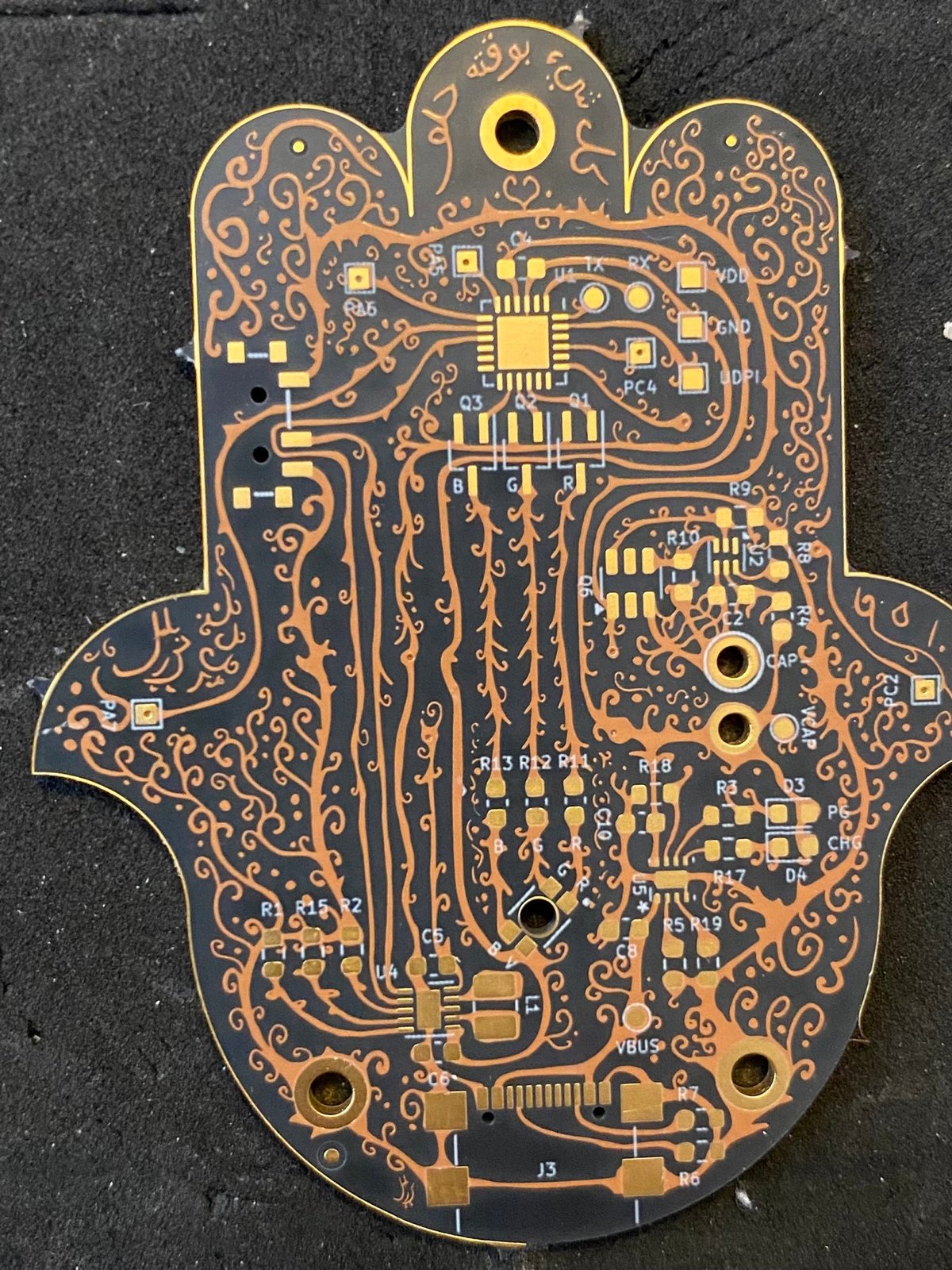

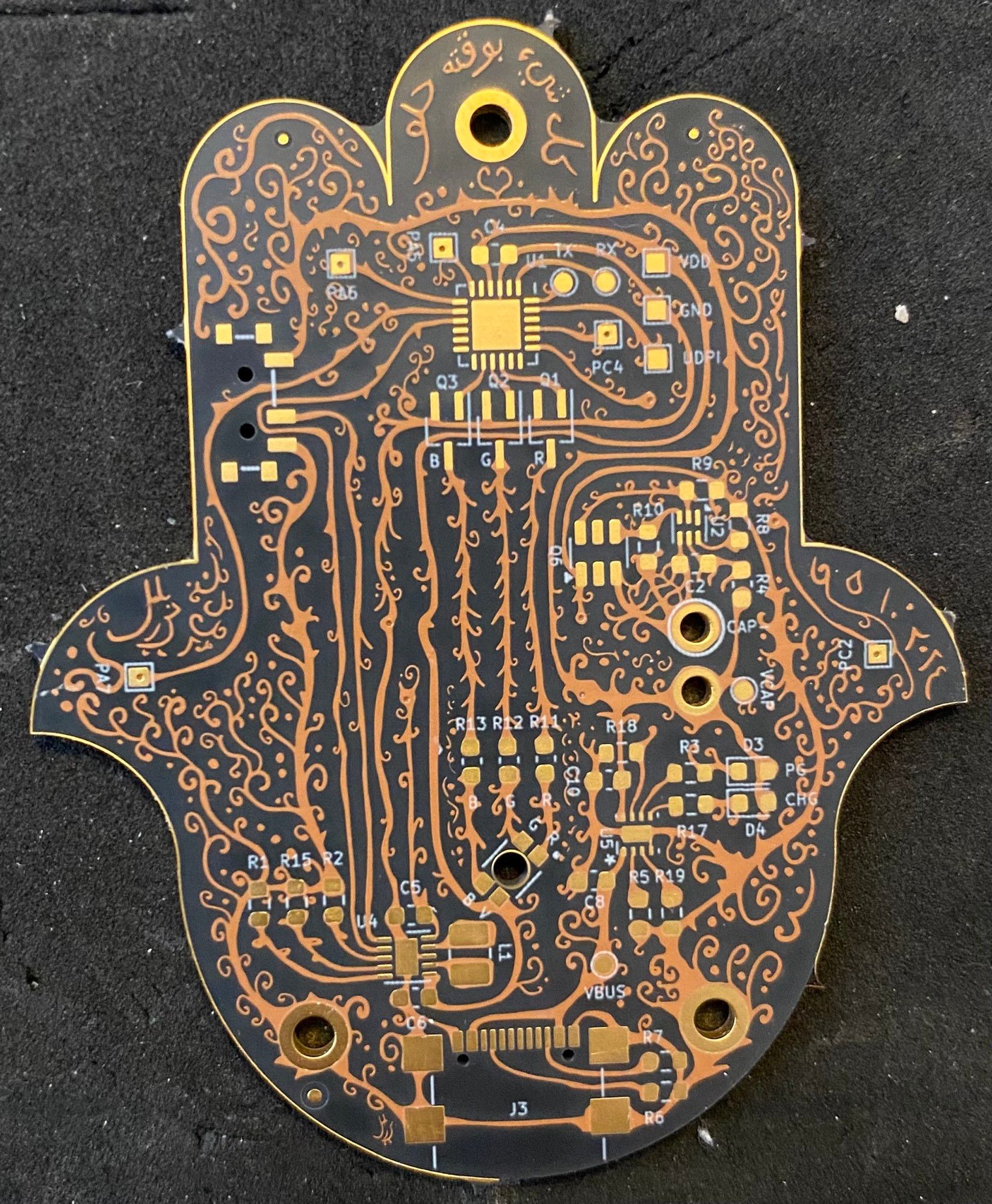

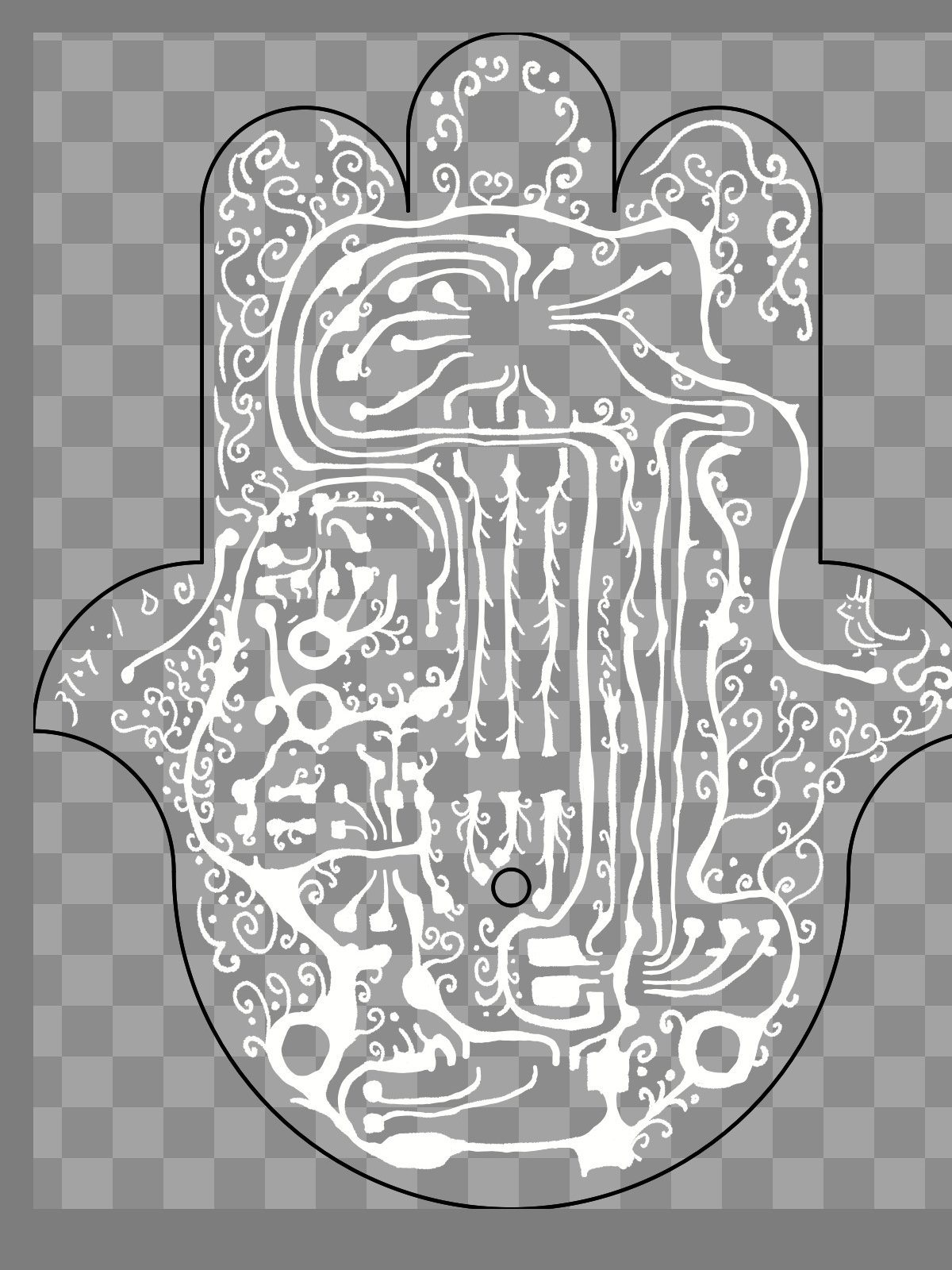

I’ve been turning raster art into copper footprints in KiCad for a while, but recently I took the jump to digitally draw the entire circuit by hand and turn it into KiCad footprints. Follow me as I walk you through my workflow to turn digital raster art into KiCad footprints.
