ANAVI Miracle Emitter is an open-source hardware development board powered by the ESP32-C3 microcontroller based on RISC-V architecture. It is designed for controlling an addressable NeoPixel LED strip or 2D panels.

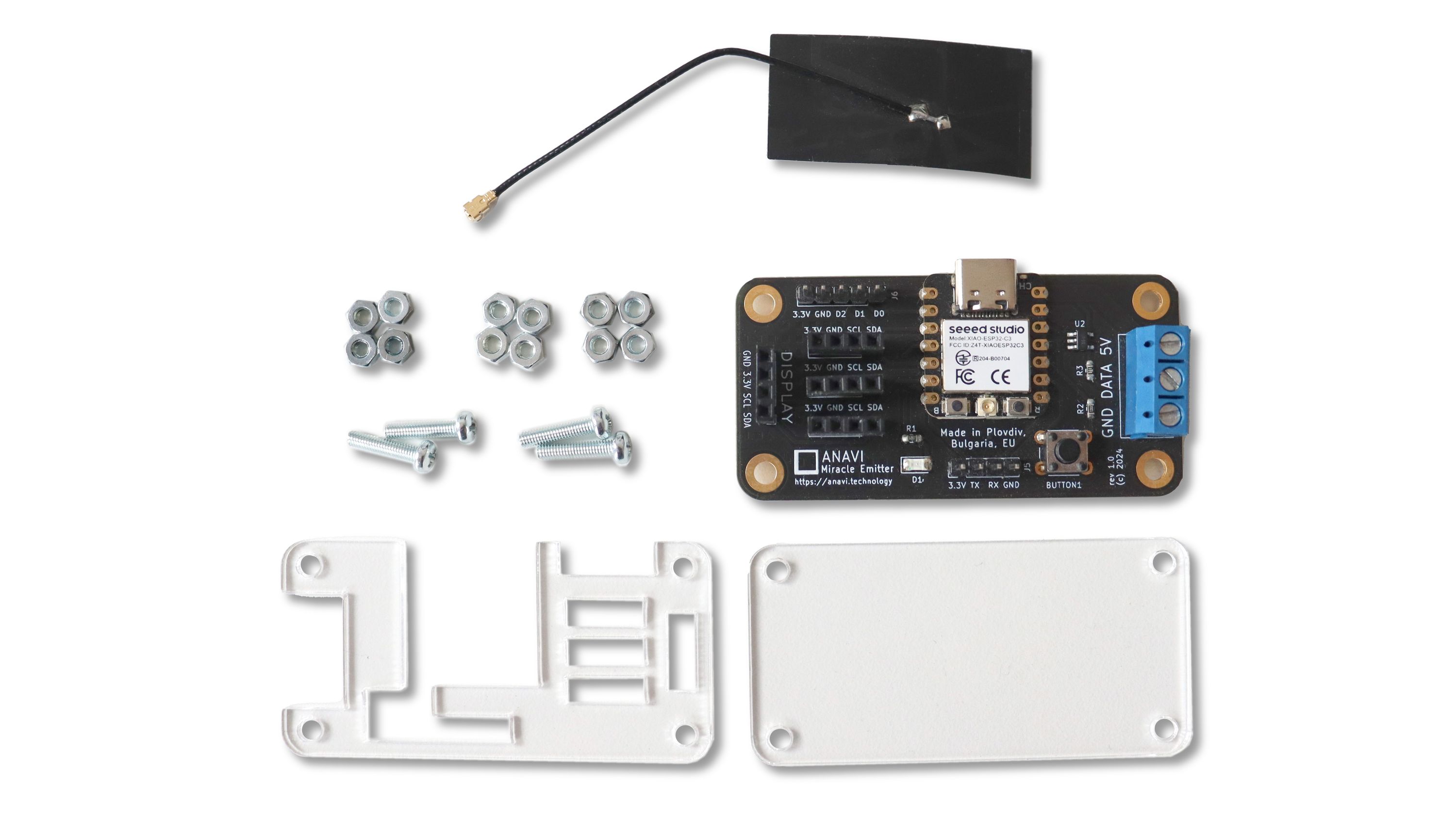

ANAVI Technology traditionally offers kits for makers and engineers packaged in recyclable cardboard boxes. These kits are designed to require no soldering, just simple assembly, much like building with LEGO or assembling IKEA furniture. ANAVI Miracle Emitter is no exception. Every kit comes with a sleek acrylic enclosure that protects the board while maintaining a compact and stylish design. Each kit includes the following components:

• ANAVI Miracle Emitter
• 2 x Acrylic enclosure plates (top and bottom)
• 4 x Screws
• 12 x Nuts
• Optional: External antenna for enhanced Wi-Fi signal

Step-by-Step Assembly Instructions

Follow these steps to assemble the enclosure of ANAVI Miracle Emitter:

Step 1: Remove the Protective Film

• Each acrylic piece has a protective film on both sides (four in total).
• Carefully peel off all the protective films. This may take a bit of effort, but it will make the acrylic crystal clear.

Step 2: Prepare the Top Enclosure

• Take the top acrylic plate and insert the four screws through the mounting holes.
• Secure each screw with a nut underneath. This forms a mounting frame for the PCB.

Step 3: Mount the PCB

• Place the ANAVI Miracle Emitter PCB onto the screws under the top plate.
• Align the screw holes on the PCB with the screws.
• Add four more nuts below the PCB to secure it in place.

Step 4: Attach the Bottom Enclosure

• Take the bottom acrylic plate and position it below the PCB.
• Fasten it to the screws using the remaining four nuts.
• Optionally, use a screwdriver to tighten all screws and nuts for better stability.

Step 5 (Optional): Connect the External Antenna

• If needed, attach the included external antenna to the dedicated u.FL connector.
• This can help improve Wi-Fi range, but you can skip this step if the signal is already strong.

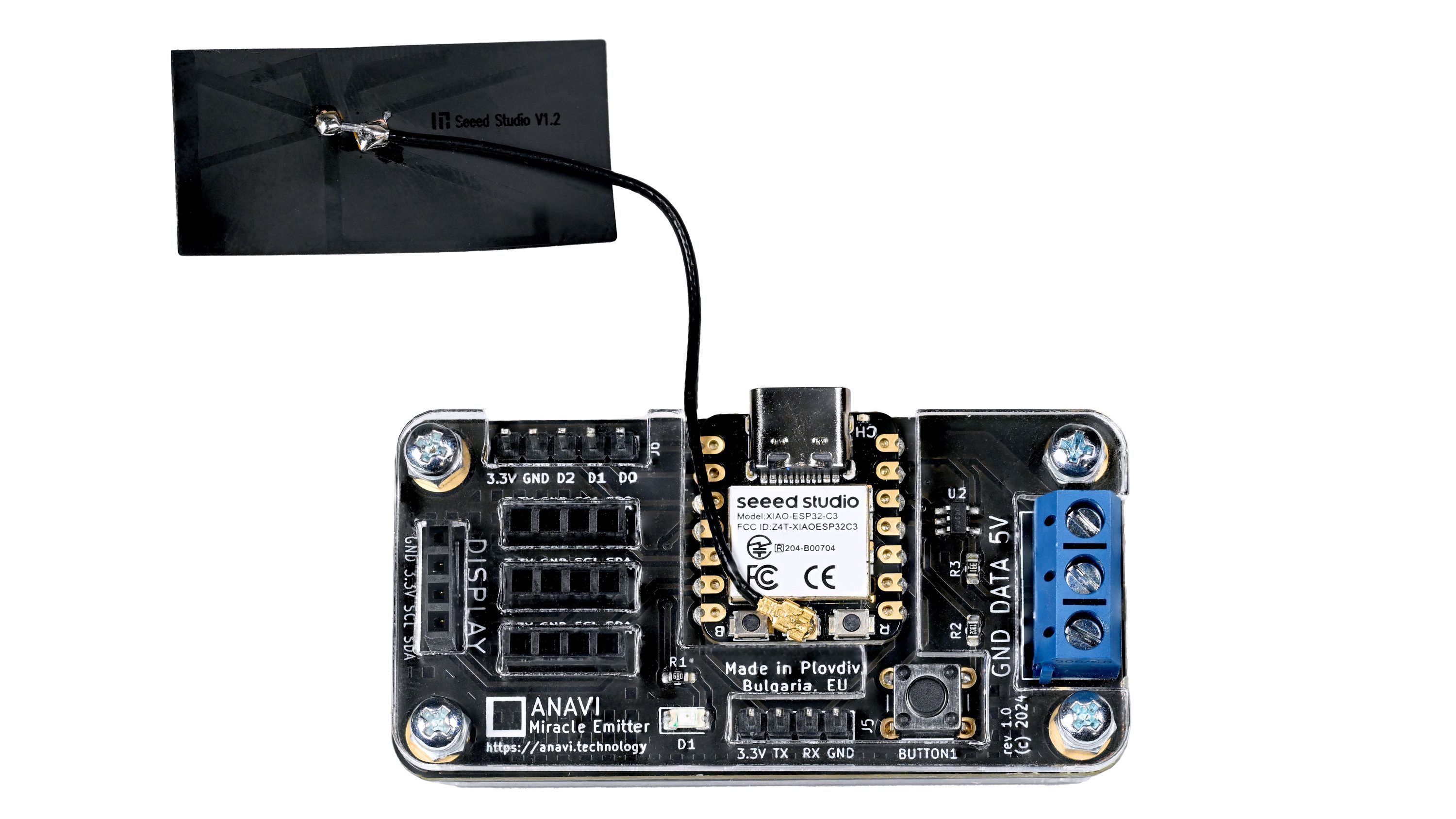

Assembly Complete!

With the acrylic case assembled, your ANAVI Miracle Emitter is securely enclosed and ready for use. If you have the starter or developer kit, you can now connect the LED strip and any additional peripheral devices.
