snapVCC

Crowdfunding Page History

This page is an archive of the original crowdfunding campaign for this project. It may not be up-to-date with the latest updates and product availability. Return to the current project page.

$5,744 raised

of $3,000 goal

Funded! Order Now

Dec 14 2015

funded on

191%

funded

330

pledges

Pledge Now

$13

snapVCC

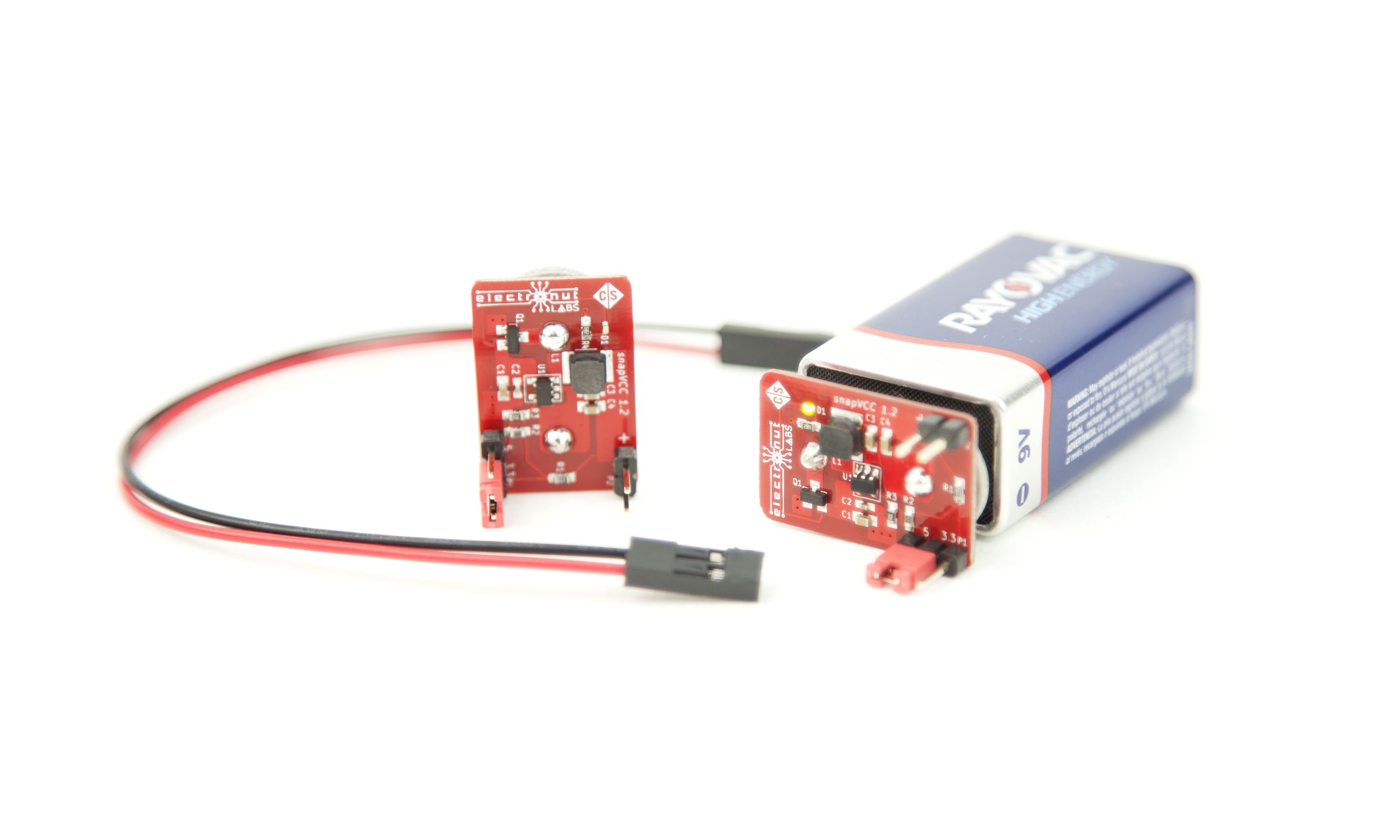

Your breadboard's best friend. Includes one snapVCC regulator and jumper cable set. 9V battery not included.

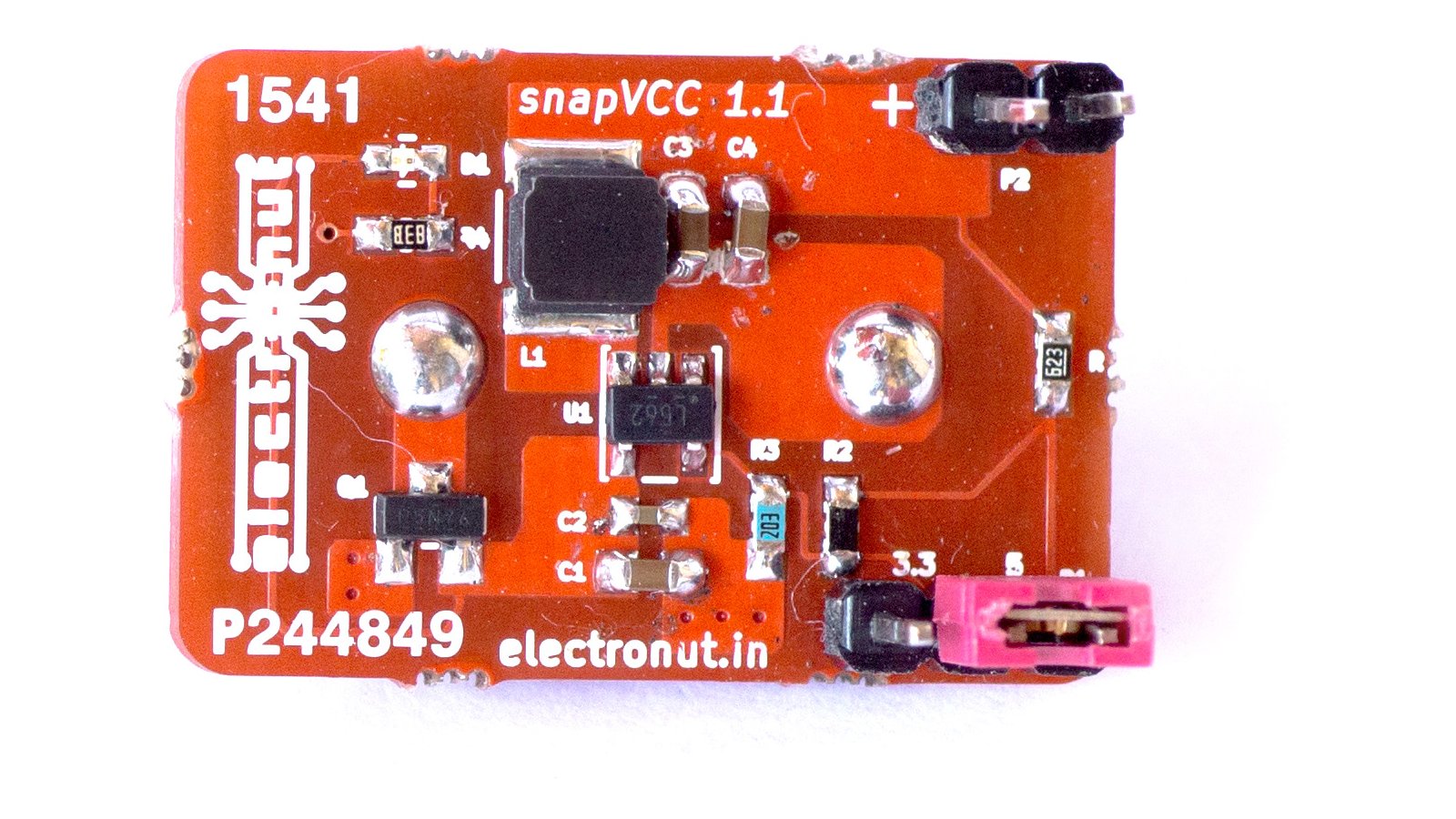

snapVCC Stand Alone

$24

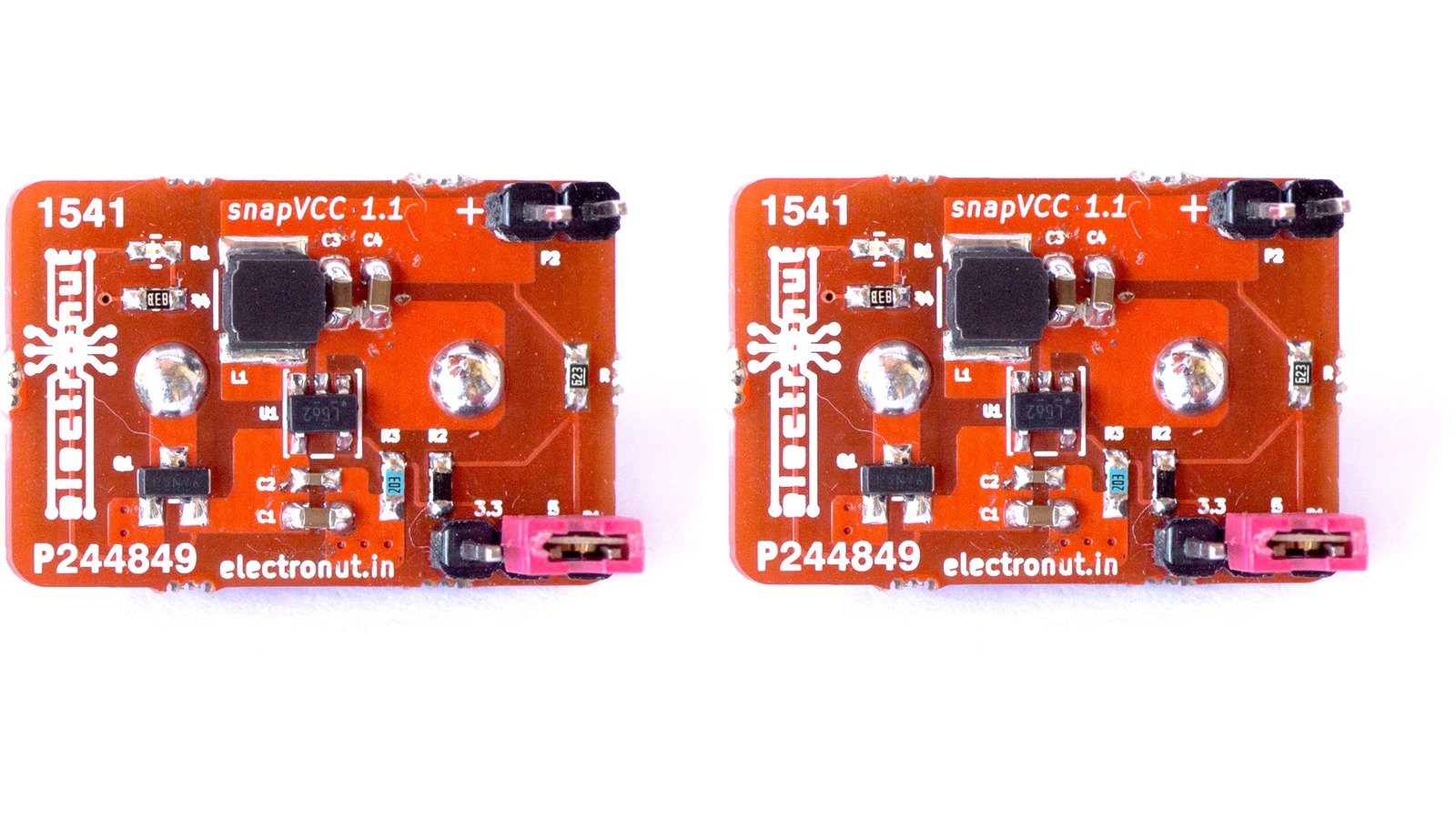

snapVCC Two-pack


$59

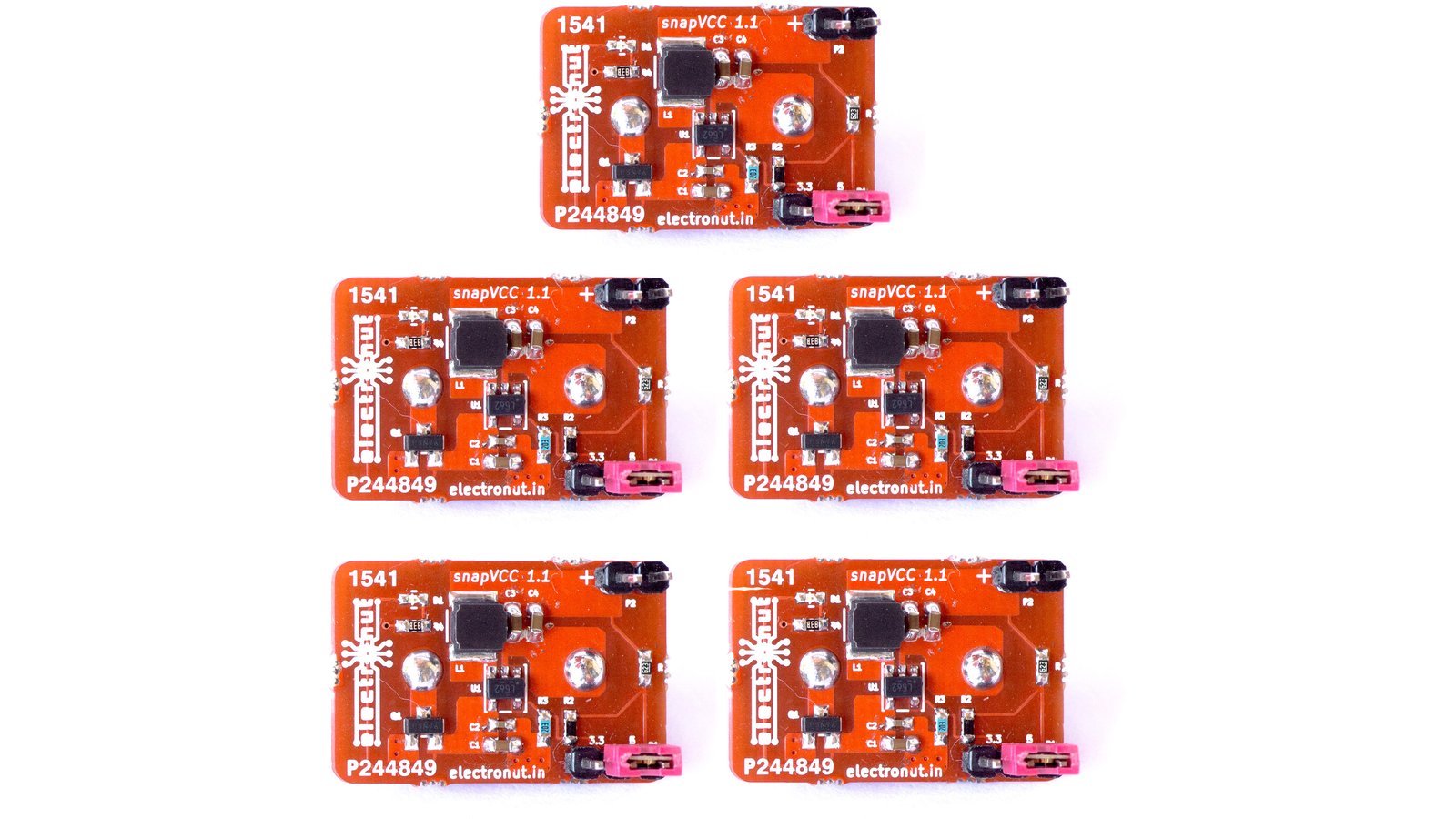

snapVCC Five-pack

Details

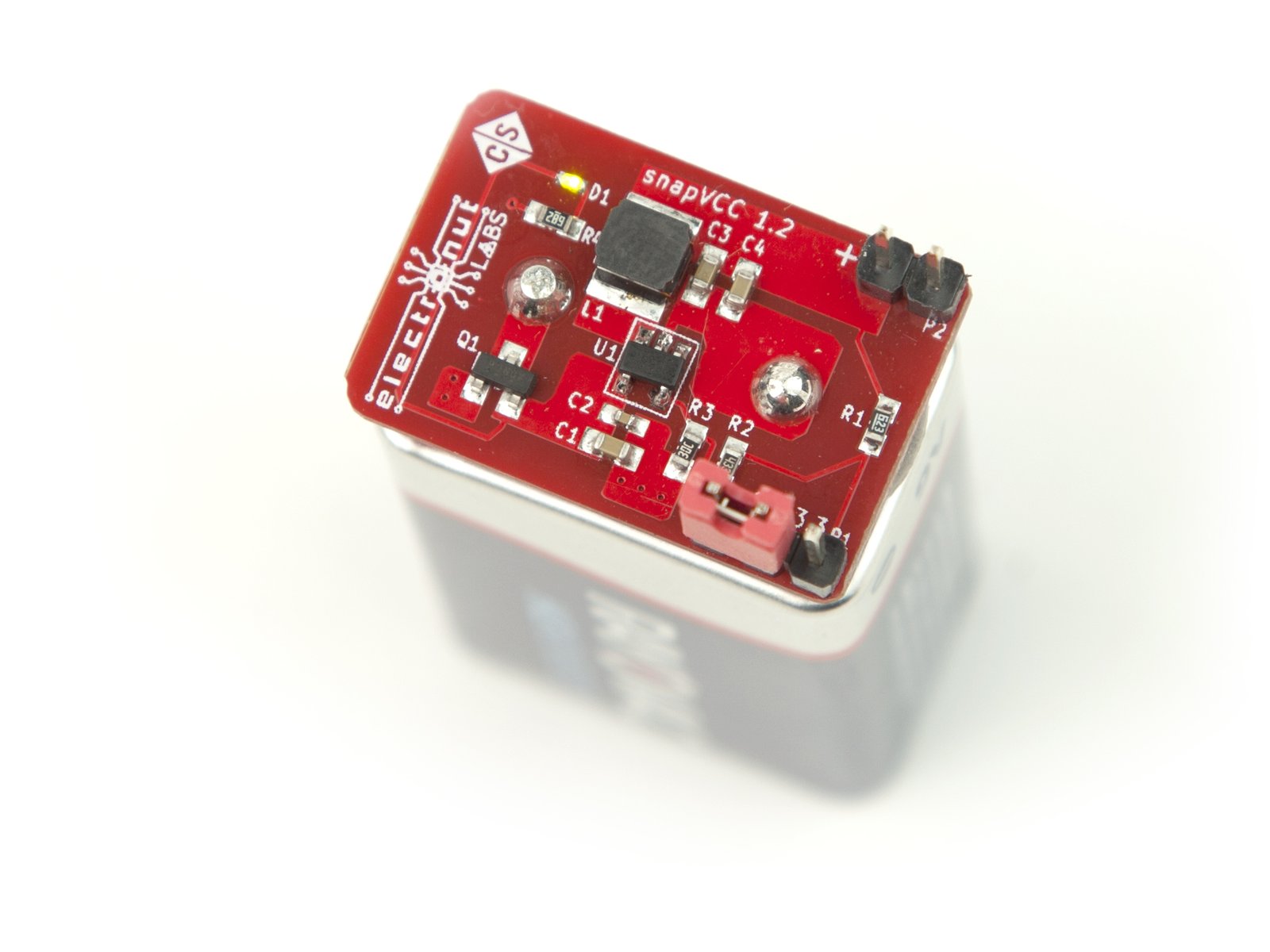

The 3.3/5 V super-efficient regulator that snaps right on your 9V battery.

What is snapVCC?

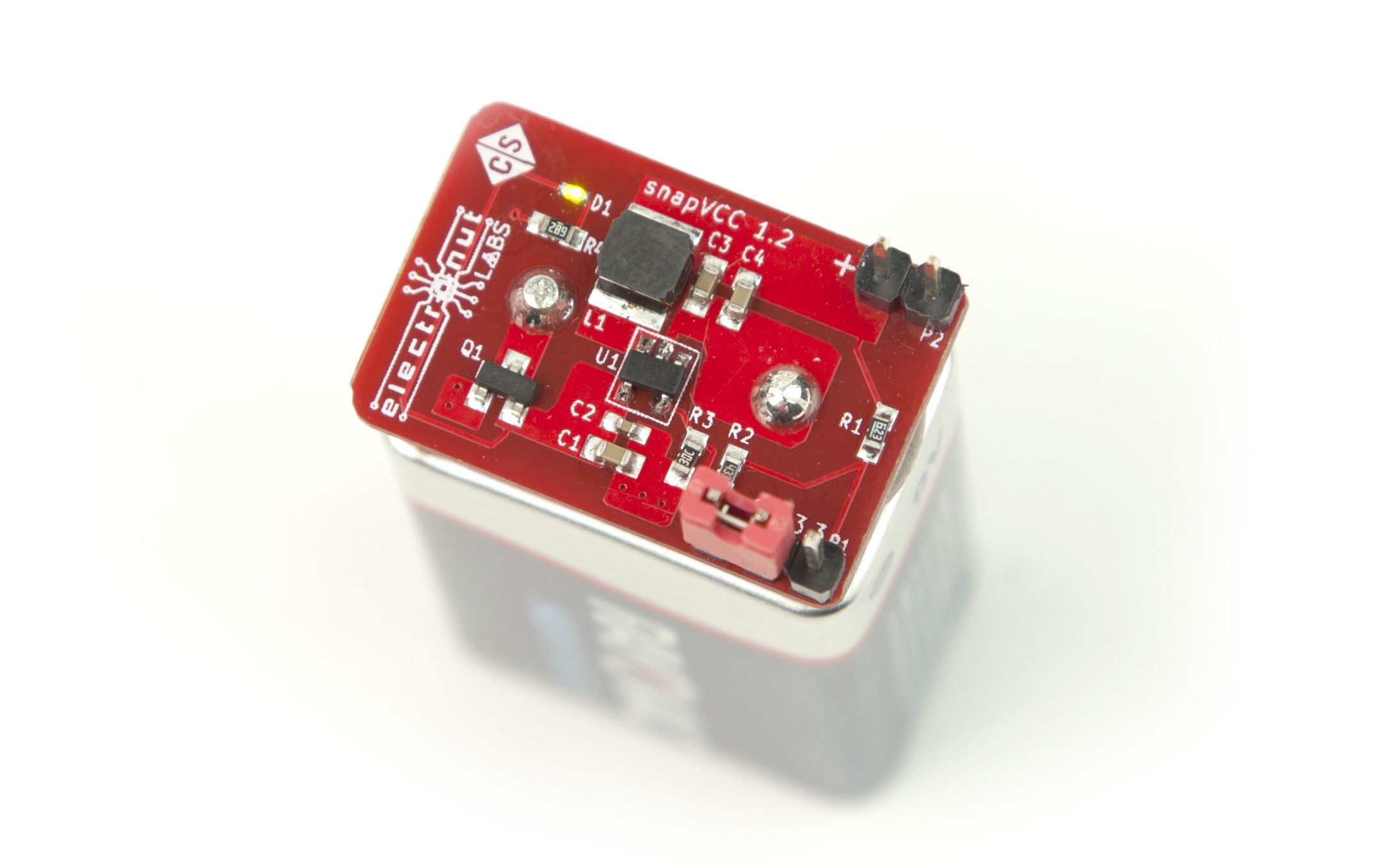

snapVCC is a highly portable and convenient power supply for your electronics projects. It’s designed to fit right on a 9V battery and give you 3.3V or 5V power wherever you need it.

What can you do with snapVCC?

Many circuits require a regulated 3.3 or 5 volt power supply. The 9V battery is an easily available power supply option. A common way to power circuits using a 9V battery is to use a Linear regulator IC circuit to drop the voltage down, as shown below.

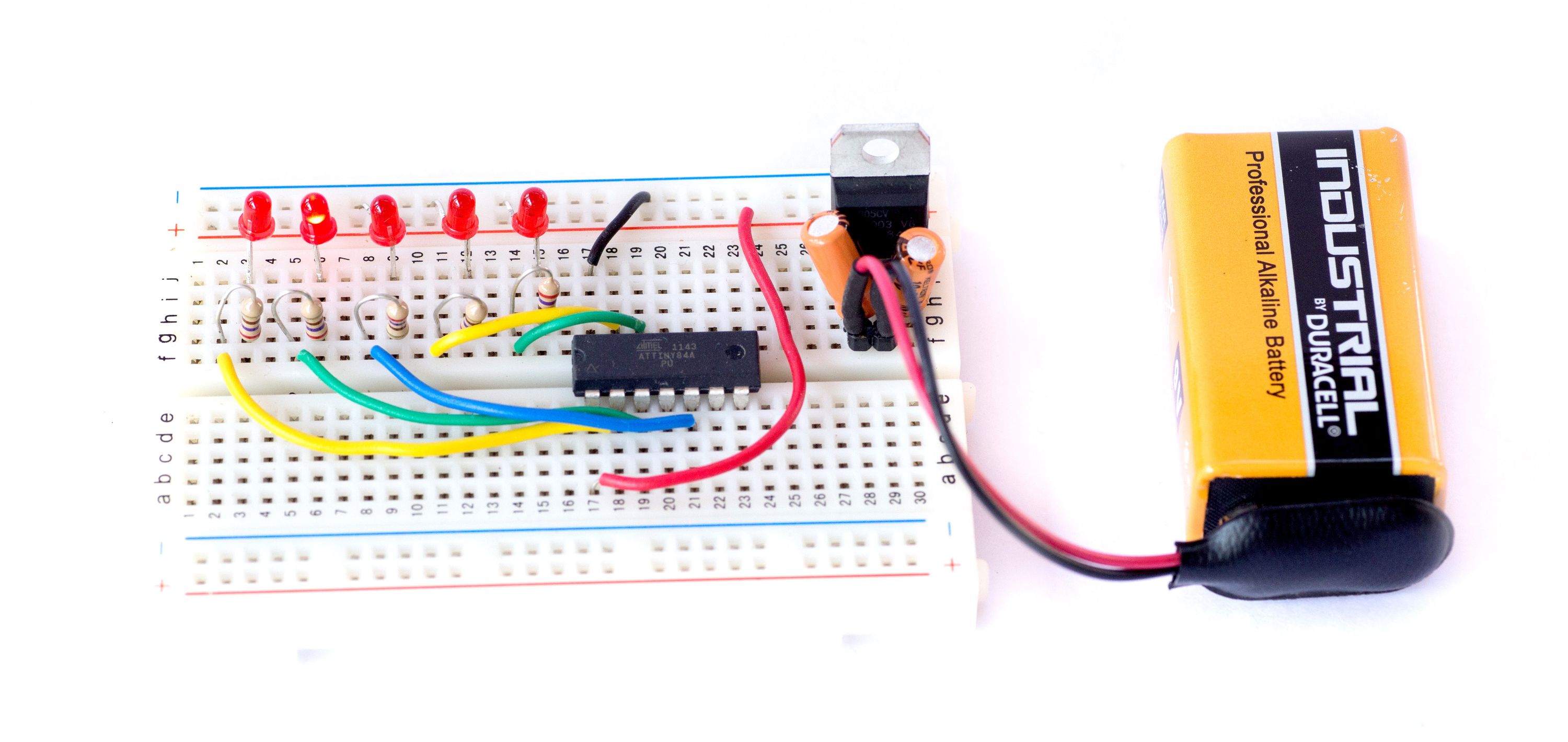

Regulator Circuit

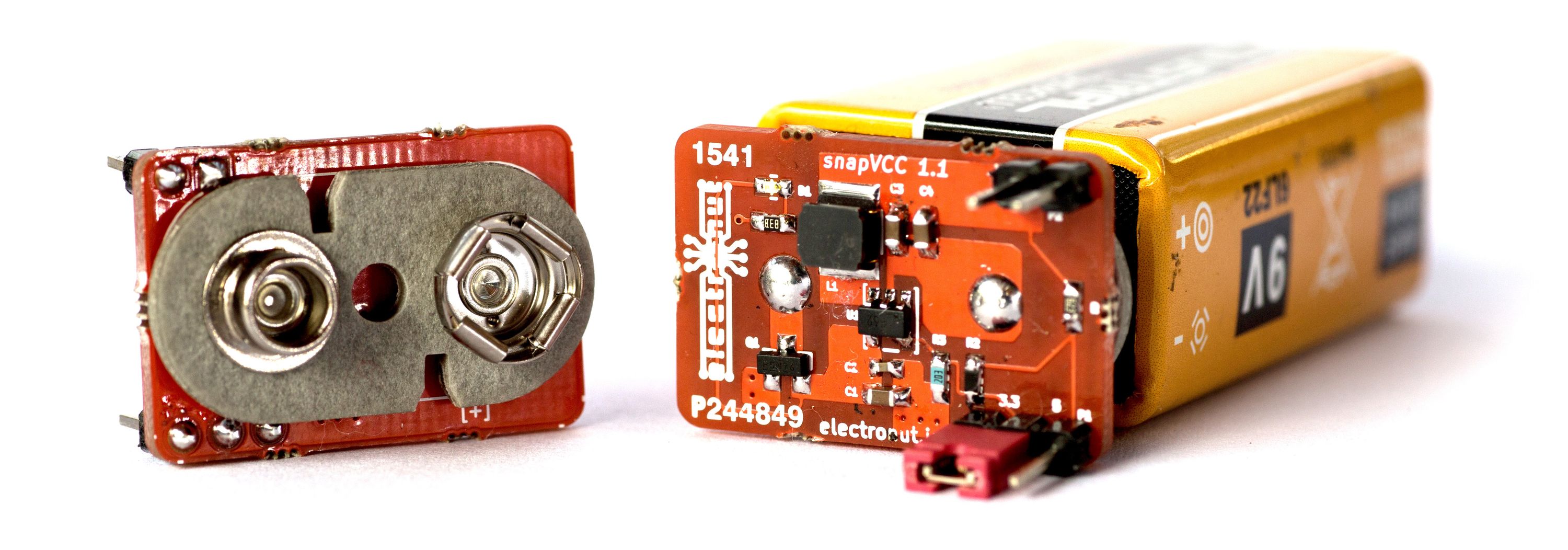

snapVCC eliminates this additional circuit by putting the regulator right on top of the 9V battery.

Also, since snapVCC uses a buck converter, it’s more efficient than using a linear regulator.

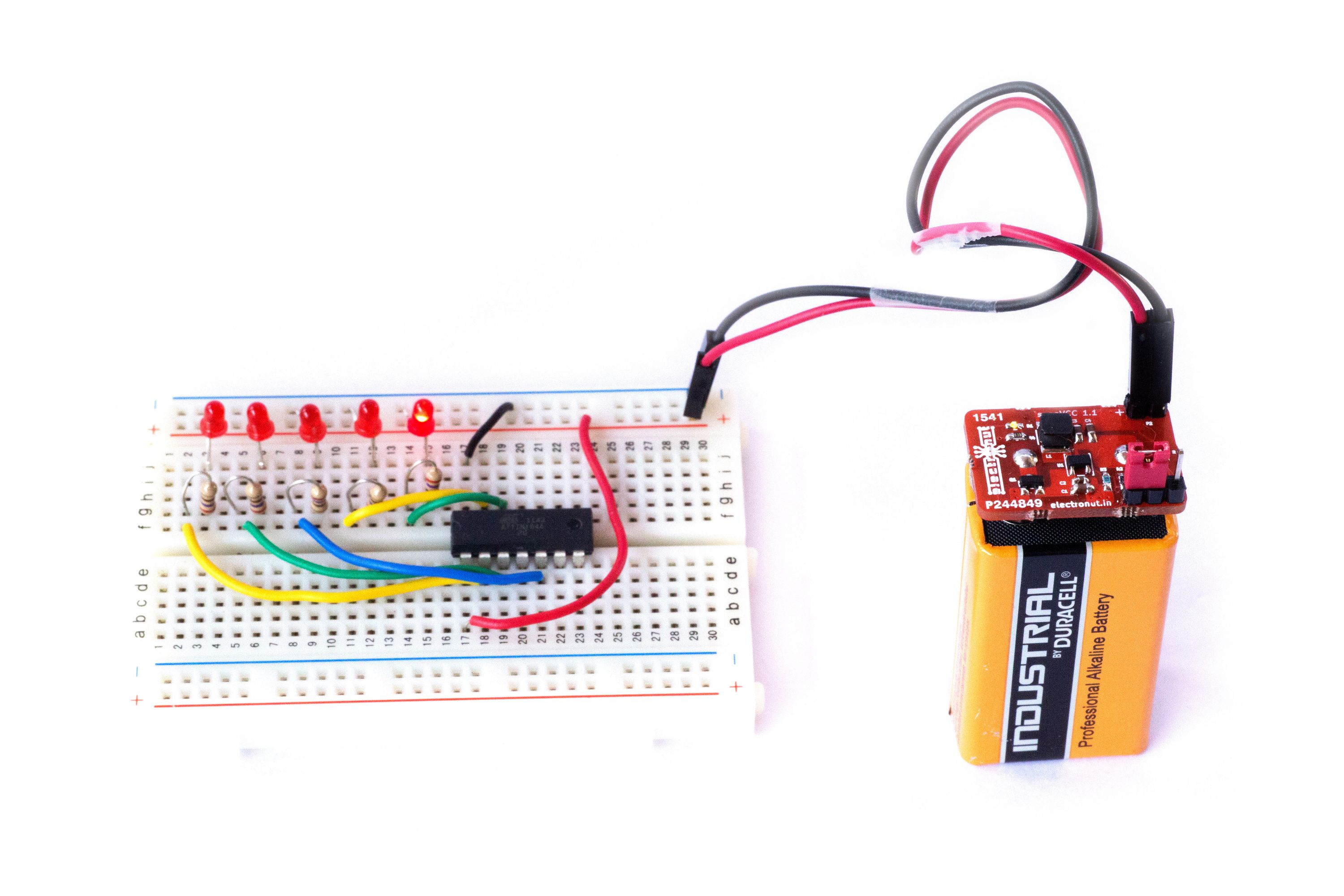

snapVCC Breadboard

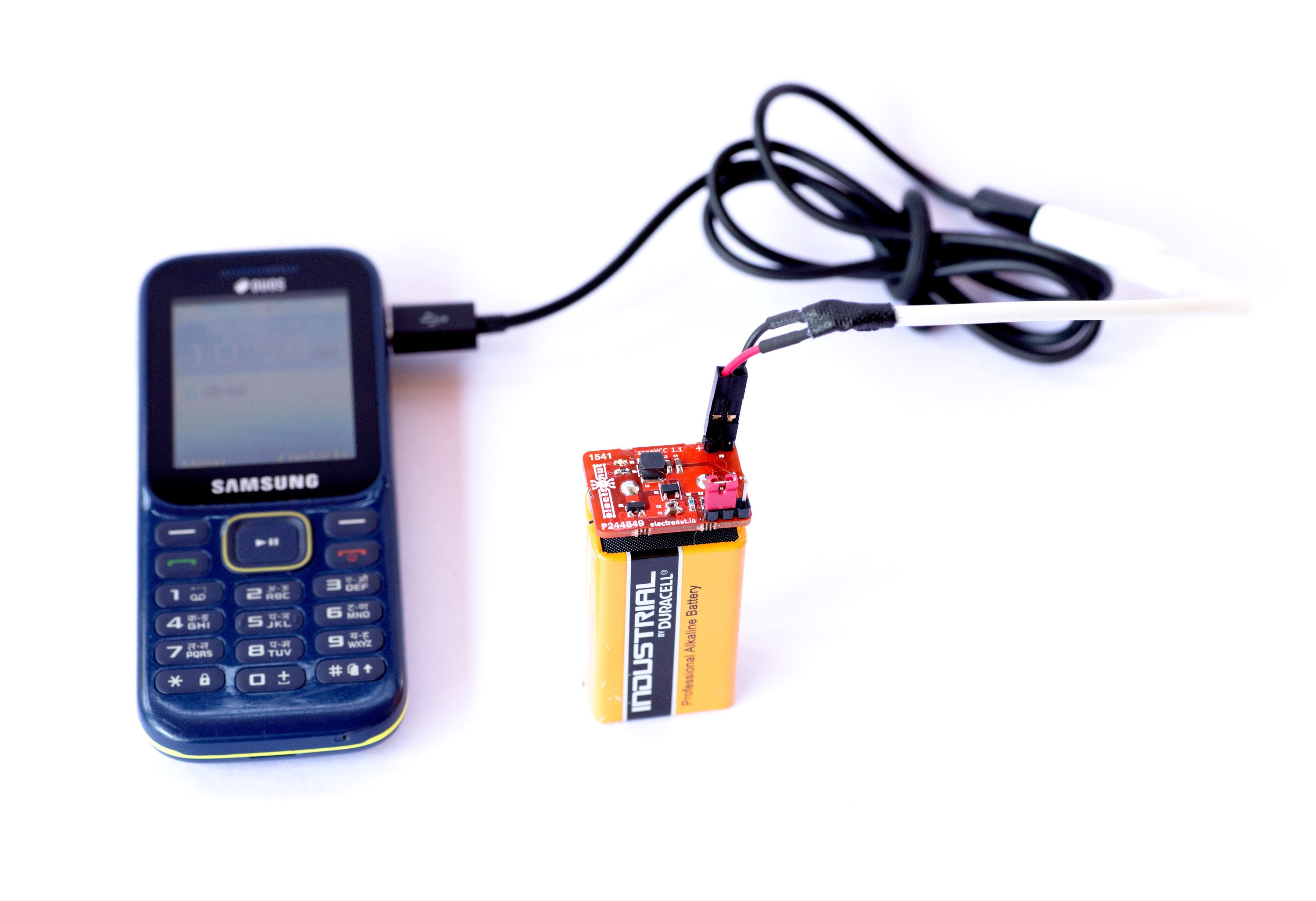

In an emergency you could even charge a simple (non-smart) phone with snapVCC.

(The above uses a home-made USB adapter cable.)

Specifications

  • Texas Instruments TPS560200 buck converter with 500 mA output current
  • 3.3 V / 5 V output, switchable via jumper
  • P-MOSFET for reverse polarity protection
  • Power indicator low power LED
  • Tiny form factor, sits on top of a 9V battery
  • Power headers are standard .1” pitch

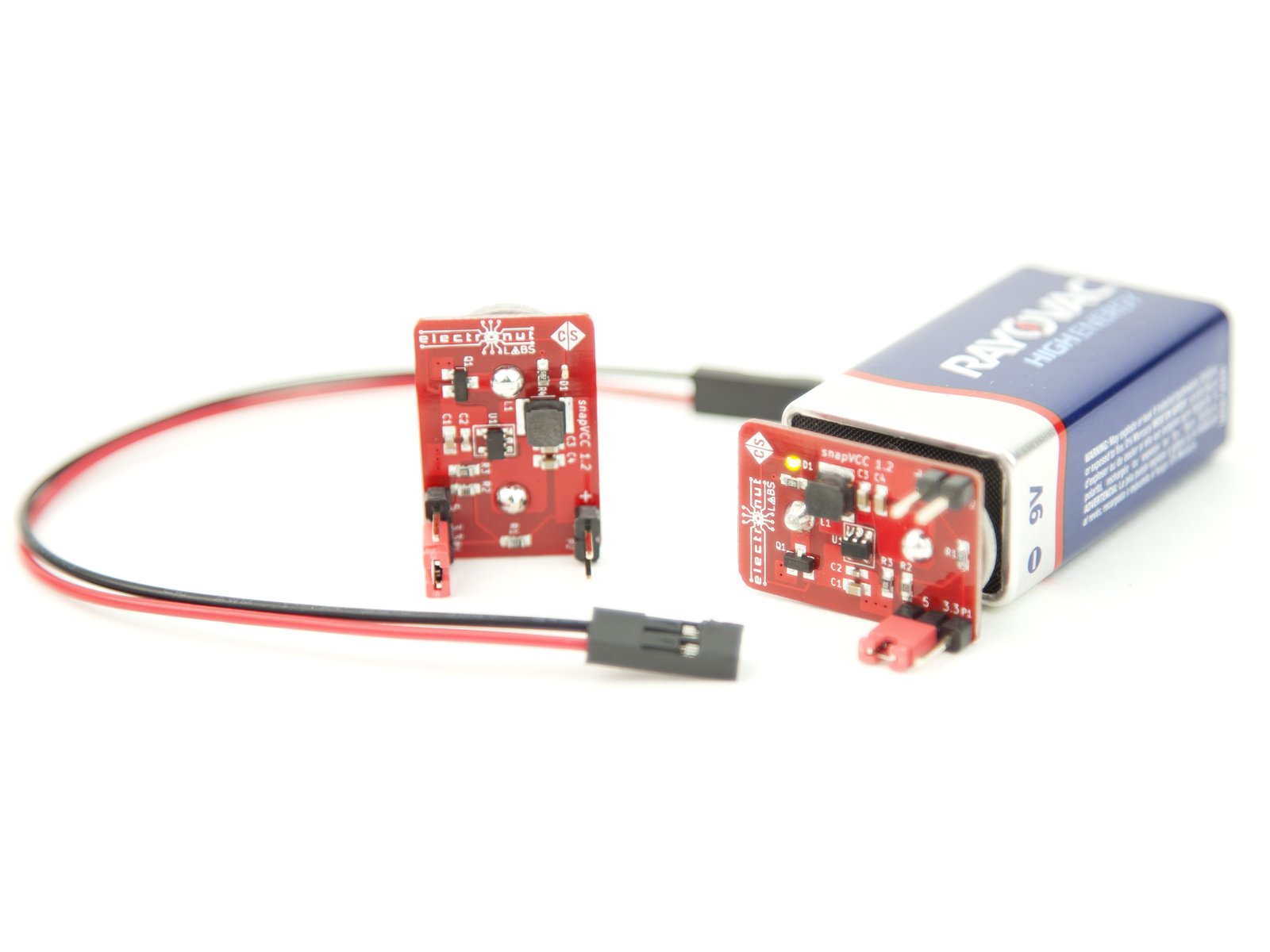

  • Comes with a jumper cable for plugging into a breadboard

Features

snapVCC uses a buck converter for efficient regulation of battery voltage. snapVCC has an LED power indicator, reverse polarity protection, and you can switch between 3.3V and 5V by just switching a jumper.

Your breadboard's new best friend. Available as singles, and in packs of two and five for extra savings - in case you need one for every toolbox, or if you want to have extras to share. Free shipping to US and India.

Python Playground Book

Mahesh’s new book Python Playground: “… a collection of imaginative programming projects that will inspire you to use Python to make art and music, build simulations of real-world phenomena, and interact with hardware like the Arduino and Raspberry Pi”. Free shipping to US and India.

Shipping

If shipping to India, please place the order with the international shipping surcharge, and your order total will be adjusted to free shipping after the order is placed.

Open Source

snapVCC is an Open Source hardware project. All design files for this project can be found on the electronut GitHub repository.

Manufacturing Plan

snapVCC has gone through several rounds of prototyping that has improved the design and efficiency of the product.

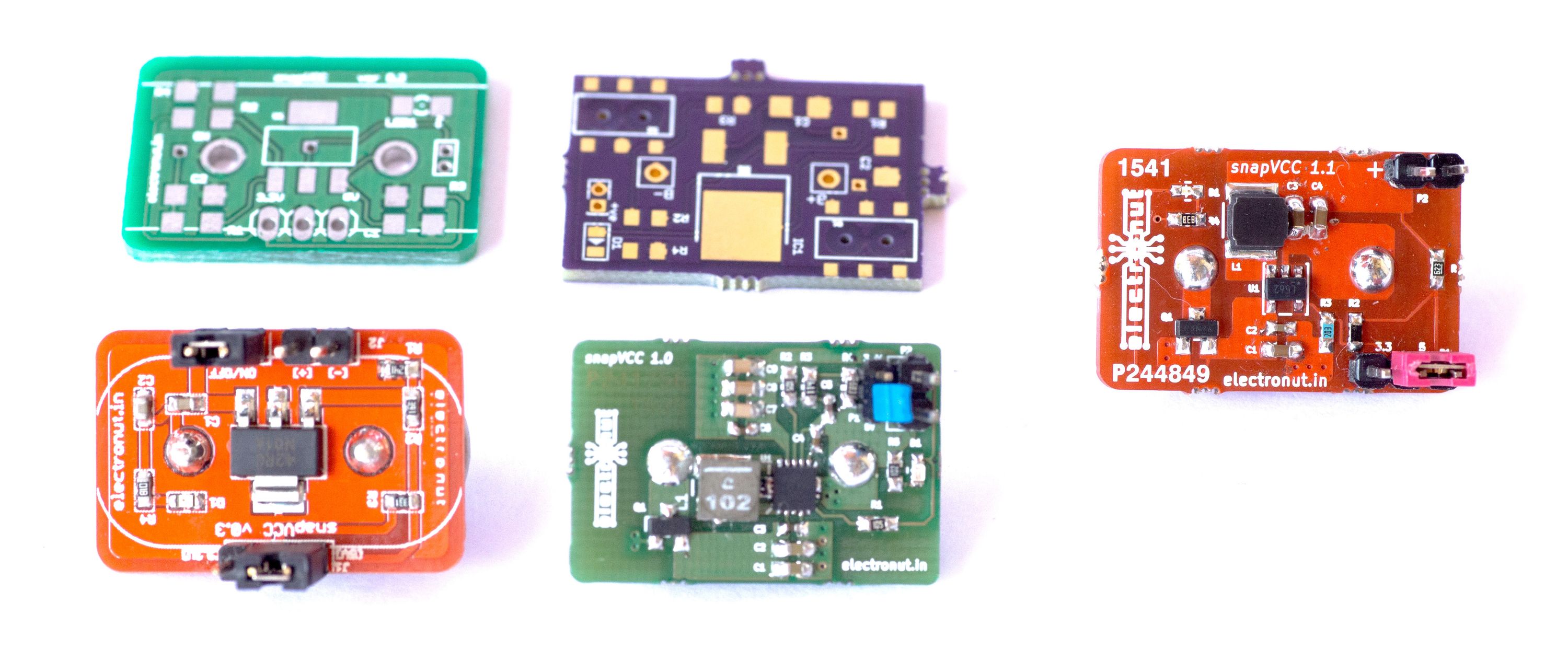

SnapVCC Prototype Versions

And now, snapVCC is ready for production.

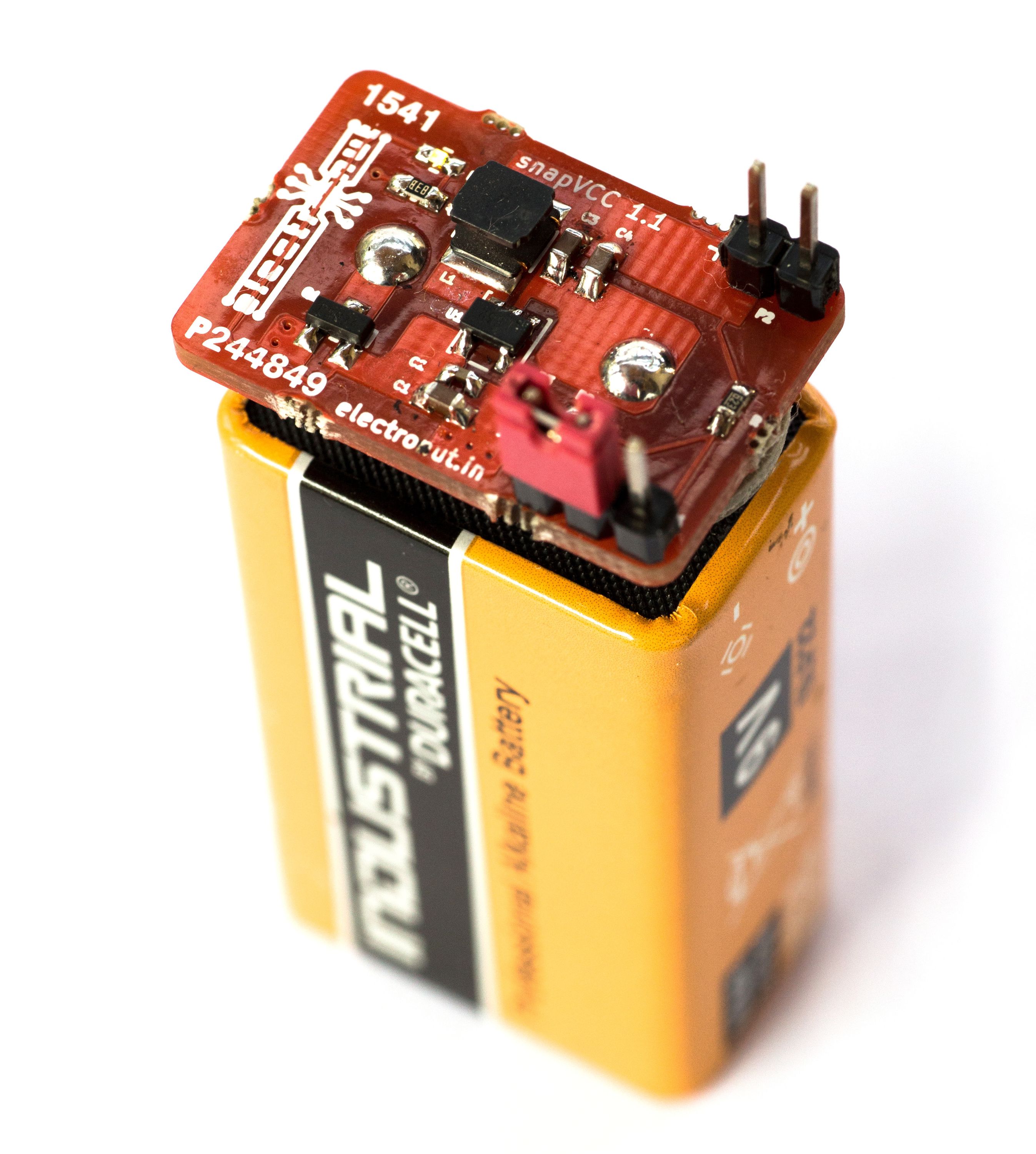

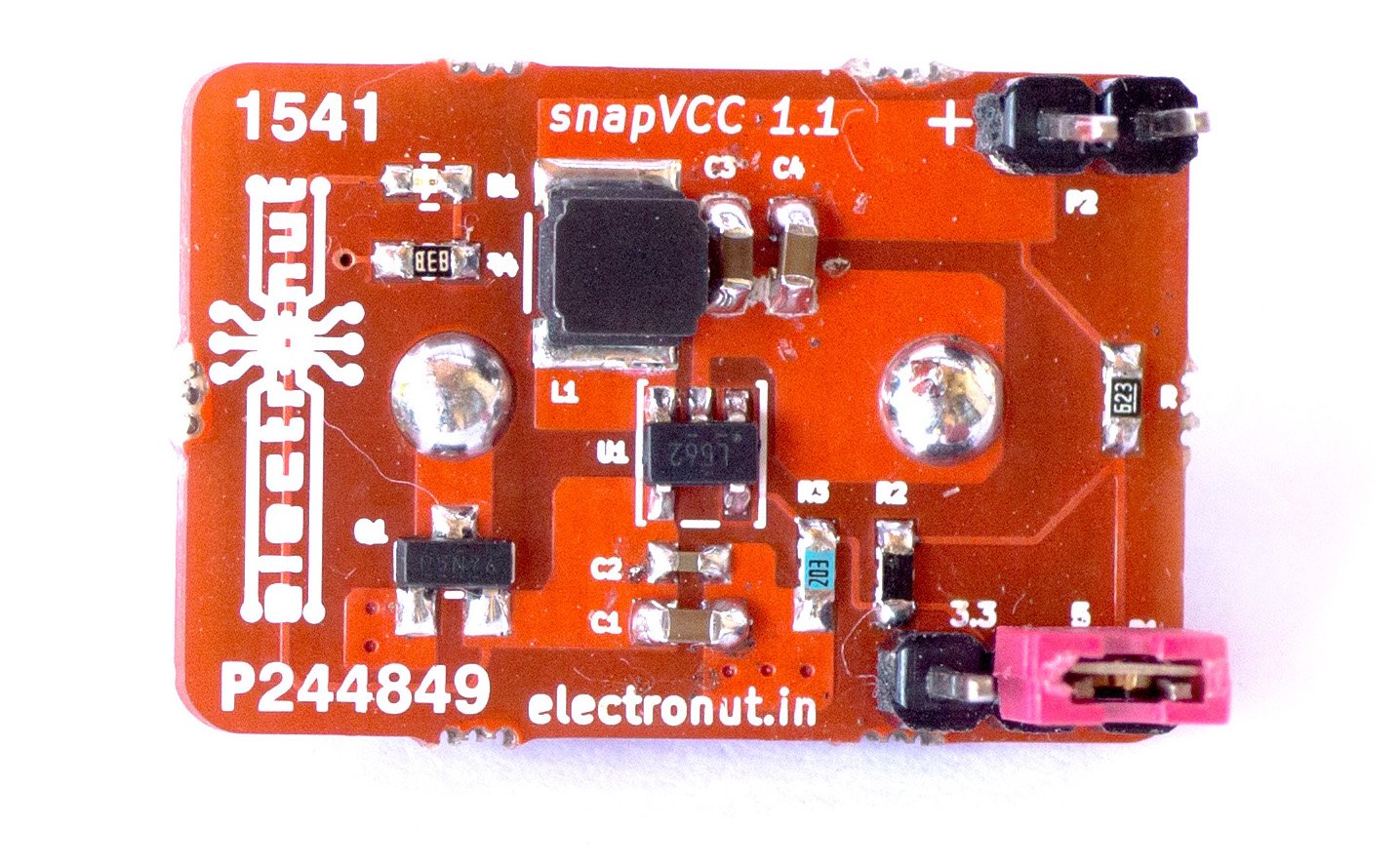

snapVCC on 9V

The research on components and pricing is done, and production quotes are in from Seeed Studio in Shenzen. The groundwork for manufacturing is over. All that’s needed now to bring snapVCC to life is your support!

Free shipping to the US and India

If shipping to India, please place the order with the international shipping surcharge, and your order total will be adjusted to free shipping after the order is placed.

Creator

snapVCC is the creation of Mahesh Venkitachalam, Indie hardware maker, electronics hacker, and author of Python Playground (No Starch Press, USA). He maintains electronut.in, a popular blog on electronics and programming.

Ask a Question

Have a question not answered in the description above or in the Updates?

Ask Electronut Labs a Question or Browse the Crowd Supply Guide

Credits

Electronut Labs

Electronut Labs is a small business focused on creating interesting and useful products for the Maker community. The founder, Mahesh Venkitachalam, is a programmer and electronics hacker, and the author of Python Playground (No Starch Press, USA) - a best selling book of Python projects.


Mahesh Venkitachalam


OSH Park

Prototype PCB Manufacturer

Seeed Studio

PCBA Manufacturer
