Omega2+ Expansion Dock

by Factorial Group

Easily connect modules, sensors, and USB devices to your Omega2+

View all updates Jun 16, 2020

A Real-Time Clock & Other New Features

by Igor Levkov

Use Omega2+ Expansion Dock for Real-Time Applications

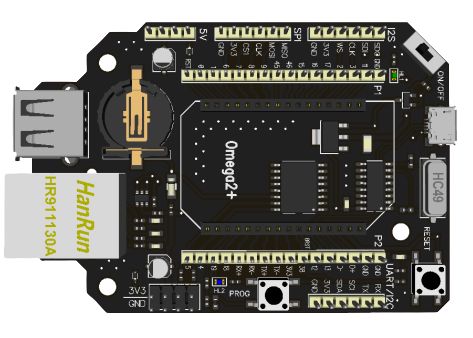

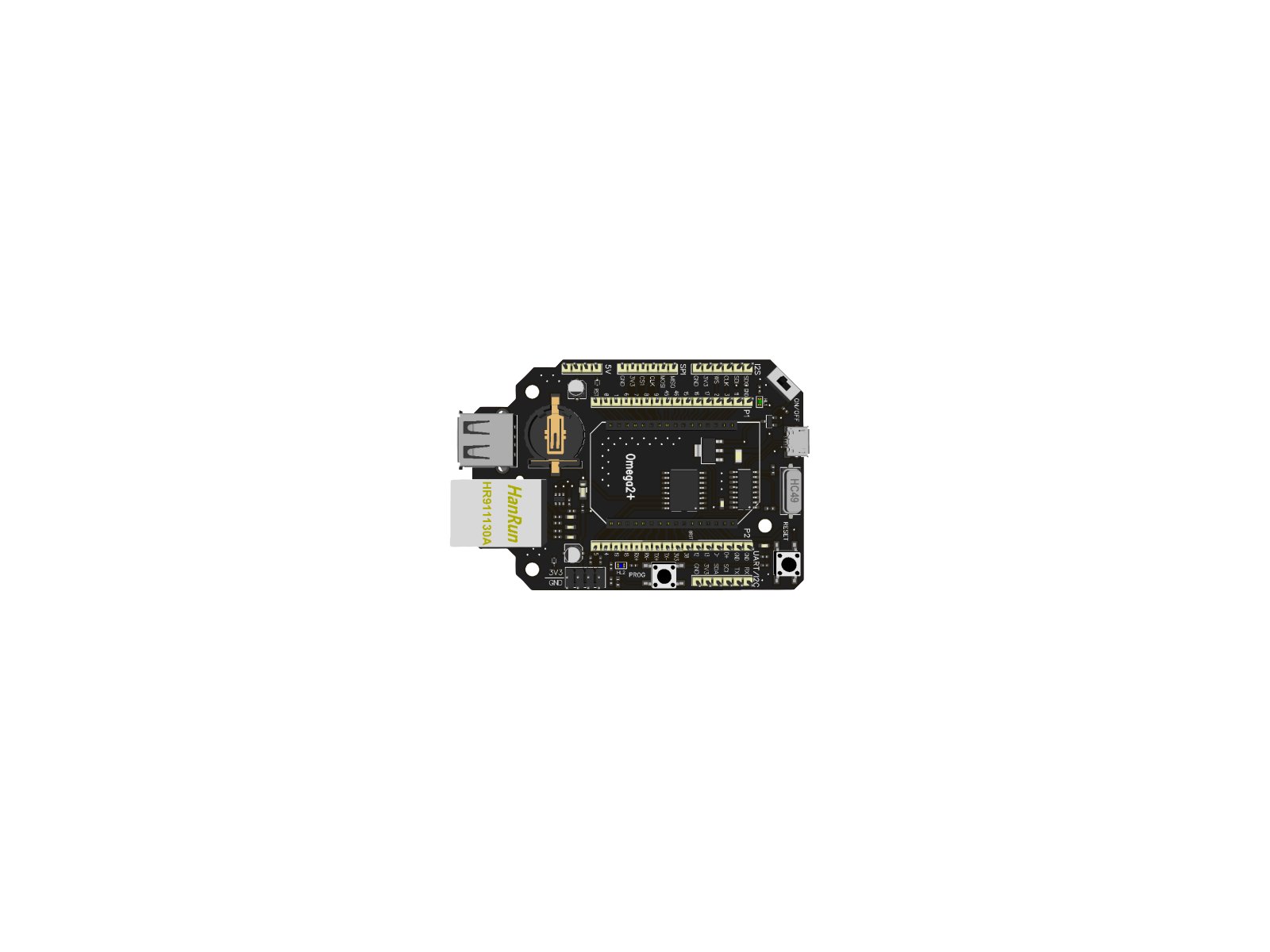

We have added a precise real-time clock (DS3231) and a battery holder (for CR1220 batteries). Most single-board computers lack a built-in real-time clock (RTC) module with independent power, which makes them difficult to use for scheduled tasks without constant access to current and an Internet connection.

You can find an example of how to use the real-time clock with Python on GitHub.

Improved Reliability & Convenience

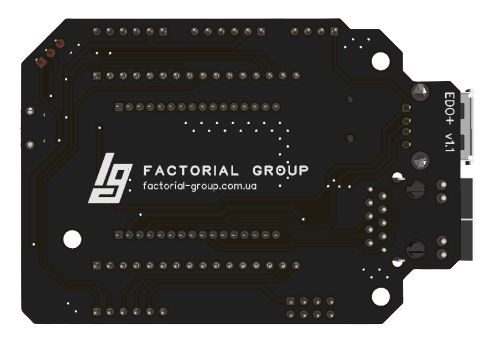

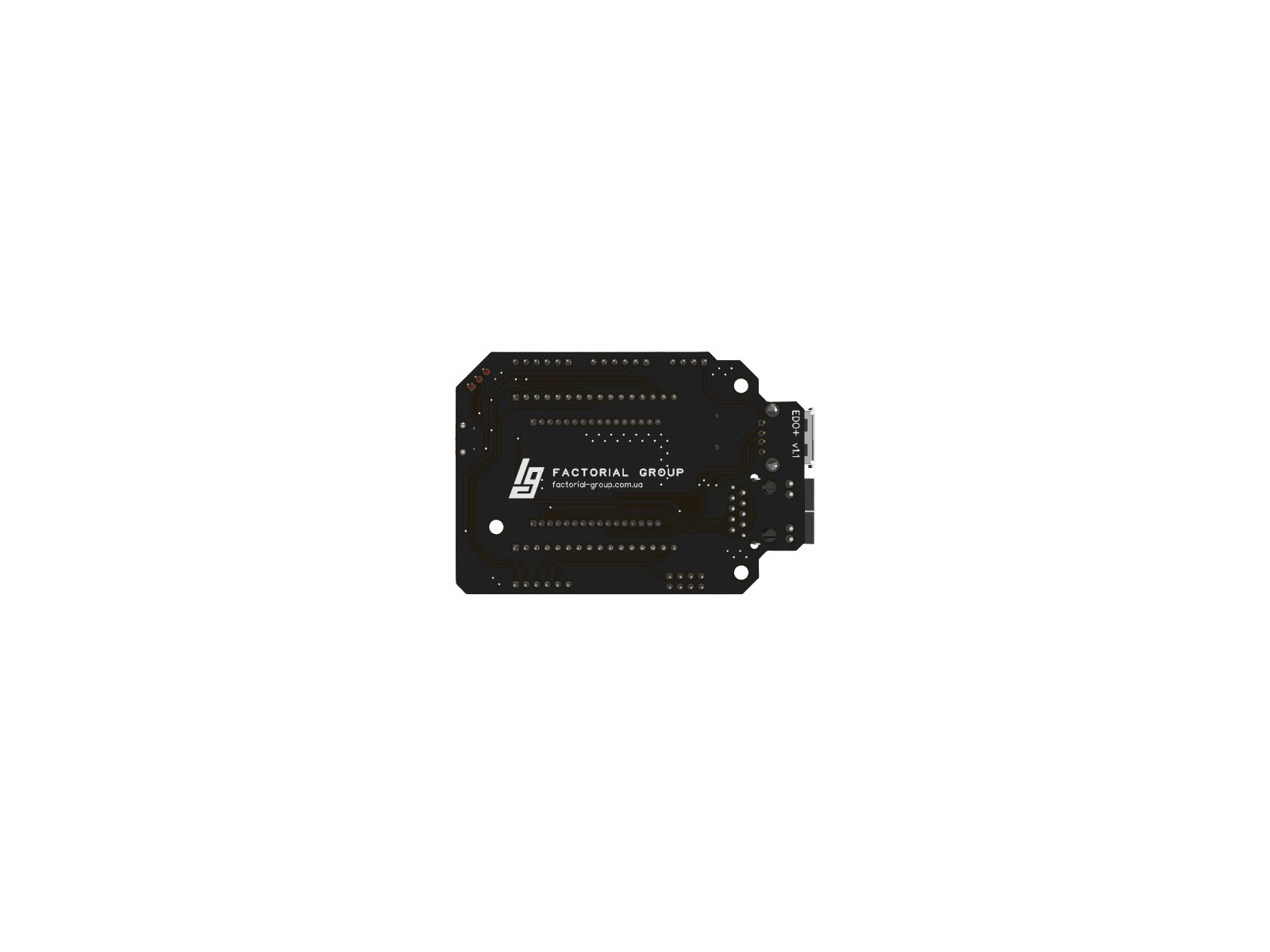

In addition, we have improved the board’s ESD protection, added mounting holes, and replaced the on/off jumper with a power switch that should be easier to use.

The PCB’s updated dimensions are: 5.9 x 8.4 cm

We are planning additional improvements, as well, including the addition of a USB Type C connector in place of the micro-USB port!

About the Author

Igor Levkov

levkovigor


$2,128 raised

of $2,000 goal

106% Funded! Order Below

Product Choices

$35

Omega2+ Expansion Dock

An expansion board that gives the Omega2+ IoT board access to various modules, sensors, and USB devices through SPI, I²S, I²C, UART, USB 2.0, and Ethernet. Also provides a real-time clock with dedicated battery power.


$48

Expansion Dock Complete With Omega2+

Includes one Onion Omega2+ IoT Computer Module along with your Omega2+ Expansion Dock

Credits

Factorial Group

We are an embedded-development company focused on various electronic devices, from IoT to industrial automation & robotics.


Vitalii Kaminskyi

Igor Levkov


PCBWay

PCBA Manufacturer

JLCPCB

PCB Manufacturer
