PD Micro

by Ryan Ma

Arduino Pro Micro functionality and pinout with 5-20 V power delivery through USB-C

View all updates Jan 26, 2021

Campaign Ending Soon + Open Source Design Files and Packet Logging!

by Ma Ho Yuen

We are thrilled to see how far this project has progressed by having your support all the way.

Only a few more days before this campaign comes to an end. If you like it and know someone who may need an Arduino board with USB Type-C power delivery in their design projects, please share this with them.

For those of you who have already backed this project, THANK YOU, and happy developing!

Read on for KiCad design files and packet logging.

KiCad design files

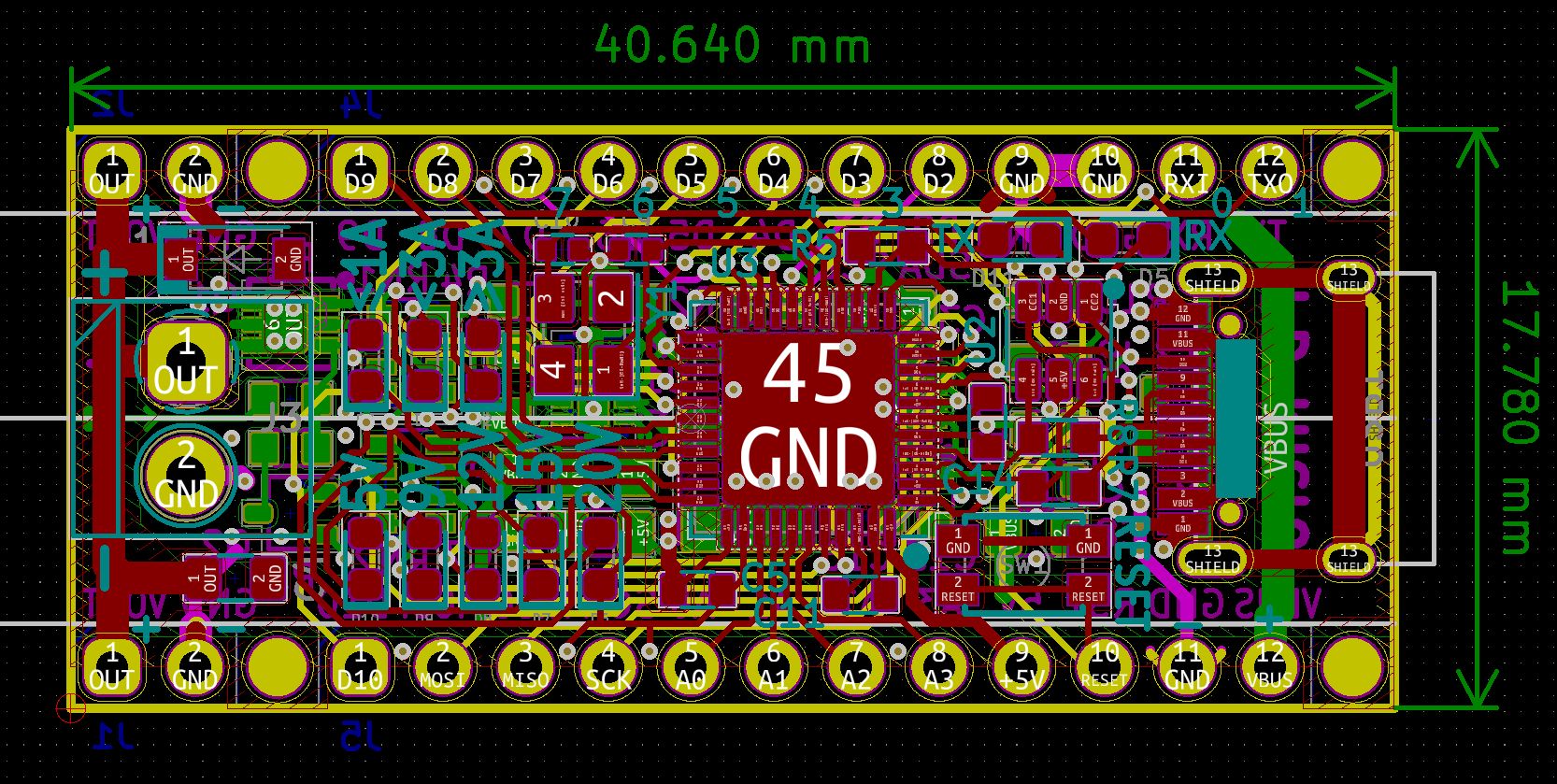

Kicad PCB

We have uploaded all KiCad design files to: https://github.com/ryan-ma/PD_Micro/tree/master/hardware

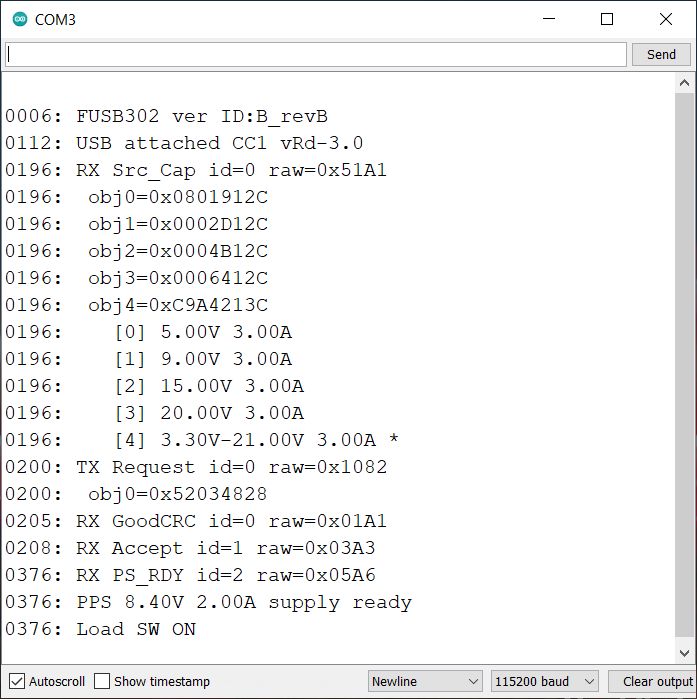

Raw packet logging

https://github.com/ryan-ma/PD_Micro/tree/master/hardware

The PD Micro library supports verbose logging now. More information: https://github.com/ryan-ma/PD_Micro#debug-raw-packets
