2nd UHK post-campaign update

Time flies! We promised to touch base every month - so let’s get right into what we’ve been working on!

The mechanical design is being sent to manufacturing

András has been having his fair share of CAD-filled days lately, and as a result we’re days away from sending the design of the case off to manufacturing. He’s made a million little tweaks and a couple of more significant changes.

Foot design - adjustability and portability

The fixation mechanism of the feet is definitely a major one. We brainstormed foot design ideas for a while, and finally found the best option. To keep the UHK as compact as possible, it will feature adjustable (flip open) feet that are entirely removable in addition to the small, flat rubber feet. This way if you decide not to use the adjustable feet, they won’t occupy any extra space. And if you do want them, they can be easily installed with 3 screws per foot. Once you do, you’re able to flip them open in a moment. The current design allows for positive tiling, negative tilting, and tenting - The best of every world! András has yet to finish the design of the adjustable feet so stay tuned for more news.

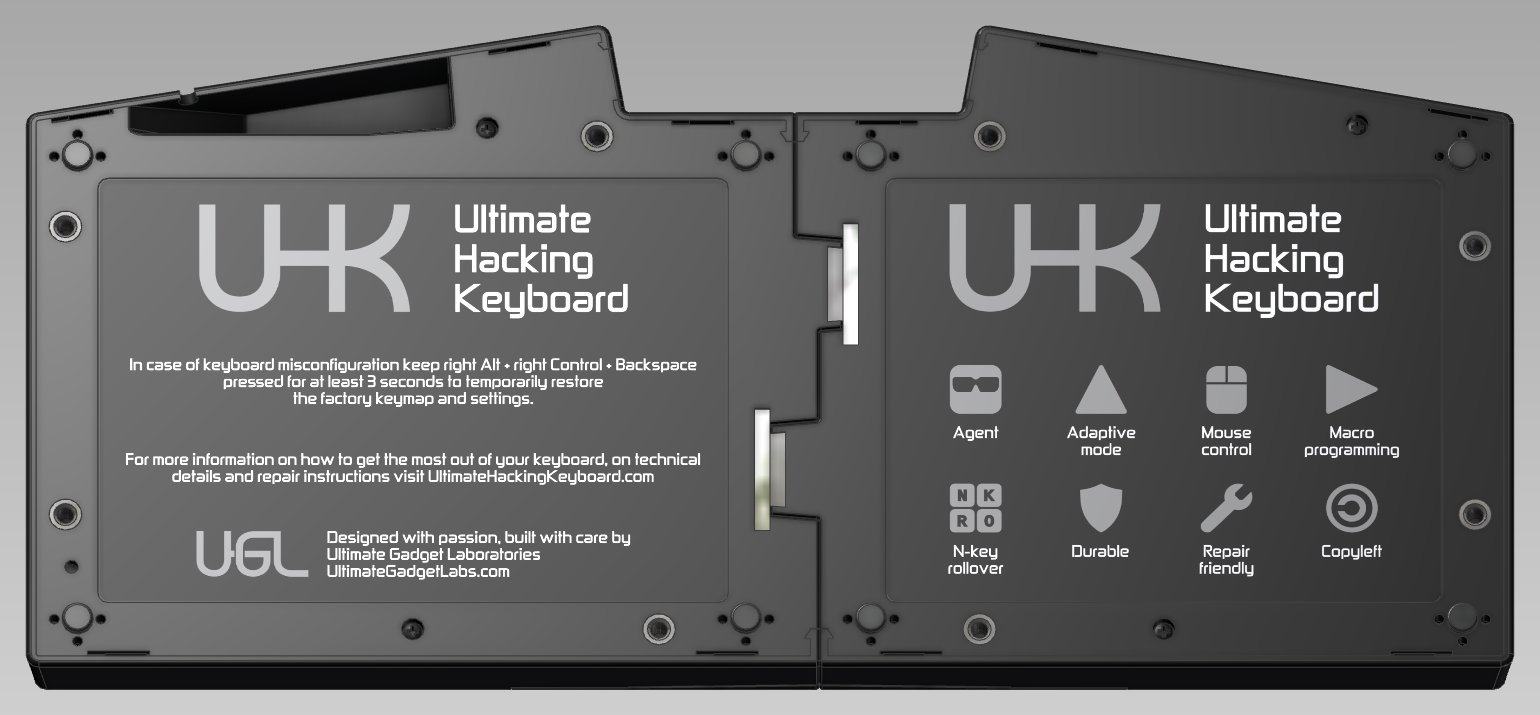

8 feet in total, 3 mounting holes around individual rubber feet

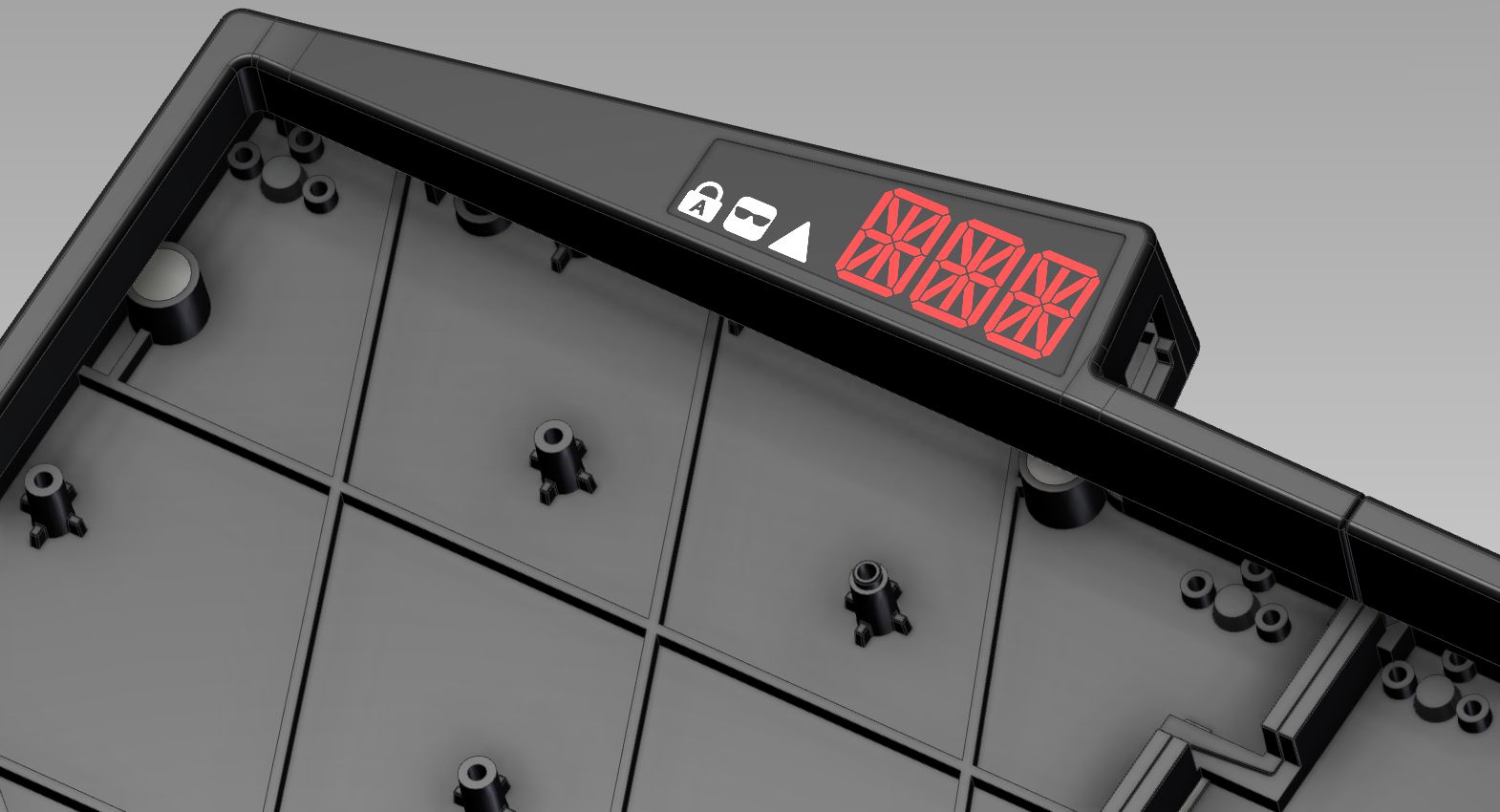

Mounting bosses - 3 per foot, as seen from inside the case

PCB design - LED’s and Matias switches

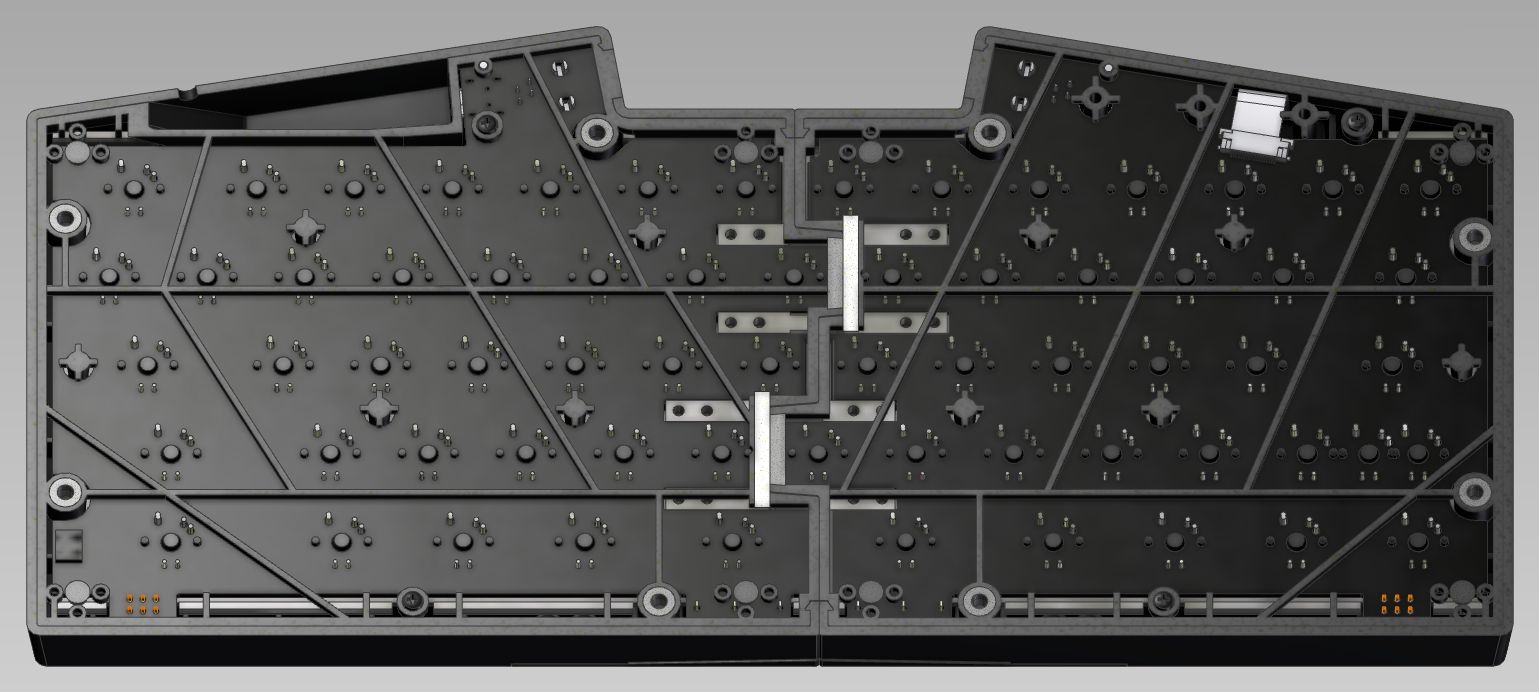

We’re also stoked about having added pins for LEDs and Matias switches! We use universal switch footprints that combine the pins of Cherry switches (optionally with fixation pins), Matias switches, and LEDs. We designed the stiffening ribs of the bottom case in a future proof manner by routing them around the hybrid switch footprints to avoid mechanical interference. Please note that we won’t be able provide either an LED, or a Matias UHK version for a while, but the opportunity will be there for modders. You can see the pins on the following section view.

Physical layout - finalized

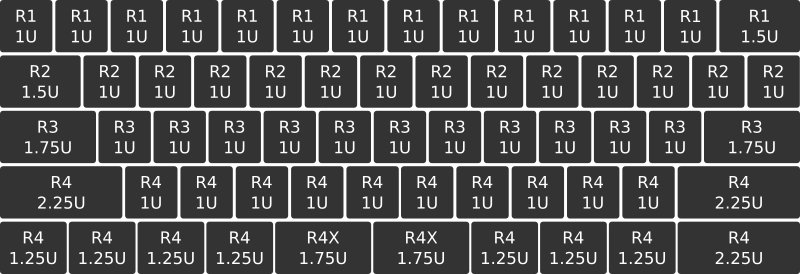

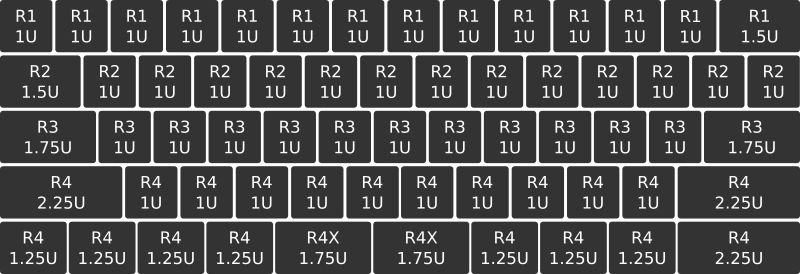

Another major change is the finalization of the physical layout. Fear not, you shouldn’t even notice the subtleties if you aren’t watching very closely. Space and Mod has been split right where the G and H keys meet. This is the best option ergonomically, as it’s right between the hands of touch typists. This gave us an opportunity to use more standard keycaps so those of you who want to replace keycaps will be in a better situation. Lo and behold, our final ANSI physical layout:

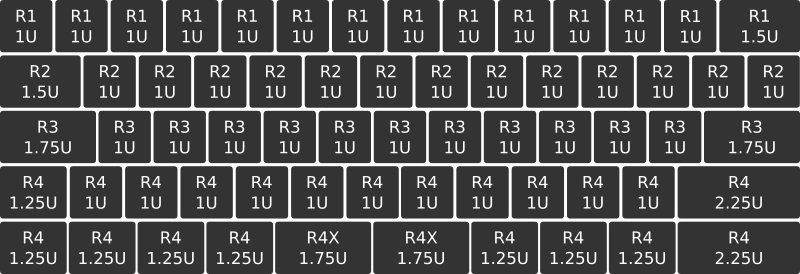

And the ISO version:

Funny thing is, poor András has been working day and night to implement this seemingly small change, as it affected the geometry of the CAD model in major ways. He definitely deserves a day off… only to work even harder as we march towards manufacturing!

Speaking of the above, I’ve created a dedicated layouts and keycaps FAQ page on our site lately, and while being there also spruced up the main FAQ quite a bit to satisfy your endless curiosity.

The state of the ARM port

In our previous update we were looking for a firmware developer to port our existing firmware to NXP’s Kinetis platform and develop it further. We’ve been getting quite a few impressive applications and suggestions.

Say hi to Mr. Jan Rychter, who has been eager to help us, and offer his very valuable advice. Since first contact we’ve been exchanging emails full of geek talk. And did I mention that he’s also a most esteemed backer of the UHK?

Jan got me up to speed in no time. As it turned out, Teensyduino is not the best foundation for a serious firmware application. It’s nice for prototyping purposes but NXP’s sophisticated Kinetis SDK is a much better platform for this purpose.

Unfortunately, the MK20DX256VLH7 processor that we originally planned to use is not a good choice because KSDK won’t ever target it. As crazy as it might seem, there’s a more powerful, fully supported, and cheaper alternative on the market: the MK22FN512VLH12.

How powerful and cheap, you ask? Let’s compare!

Processor name ATmega32U4 MK20DX256VLH7 MK22FN512VLH12
Processor core AVR8 ARM Cortex-M4 ARM Cortex-M4
Rated speed 16 72 120 Mhz
Flash memory 32 256 512 kbytes
RAM 2.5 64 128 kbytes
Price 3.6 4.55 4.04 US Dollars

Mind blown. Twice the power for less price? I’ll take that on any day of the week!

Right now, there are a couple FRDM development boards on my table, one of which running our Kinetis firmware port which enumerates as a keyboard + mouse USB device. This is already looking great, and you can expect further major progress shortly, so the port is definitely within reach, and I’m happy taking this direction.

Agent is coming along nicely

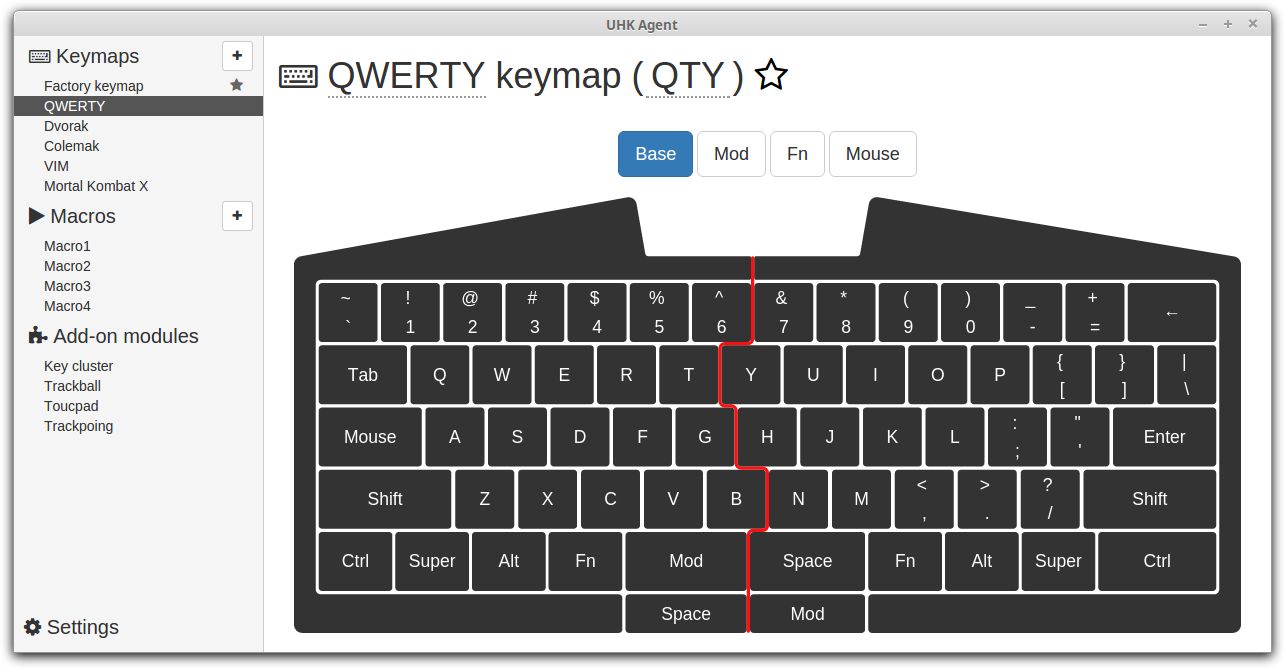

Árpi is on a mission to make Agent the most beautiful keyboard configurator application ever crafted. He never ceases to amaze me as he massively cleans up the UI of my original mockup while keeping the original functionality intact. This is the most up-to-date screenshot of Agent:

You’re welcome to check out Agent in the browser. Please note that there’s only a minimal UX code behind the UI, but it should give you a good idea about the final interface.

Thanks for reading, and talk to you on 2016-03-17!
