Project update 71 of 76

Key cluster molds and PCBs are almost ready

Hi there, and welcome to the monthly UHK status update!

TL;DR: The molds of the key cluster module are almost ready. The PCBs are finalized and being panelized. Module parts are pouring in from our suppliers.

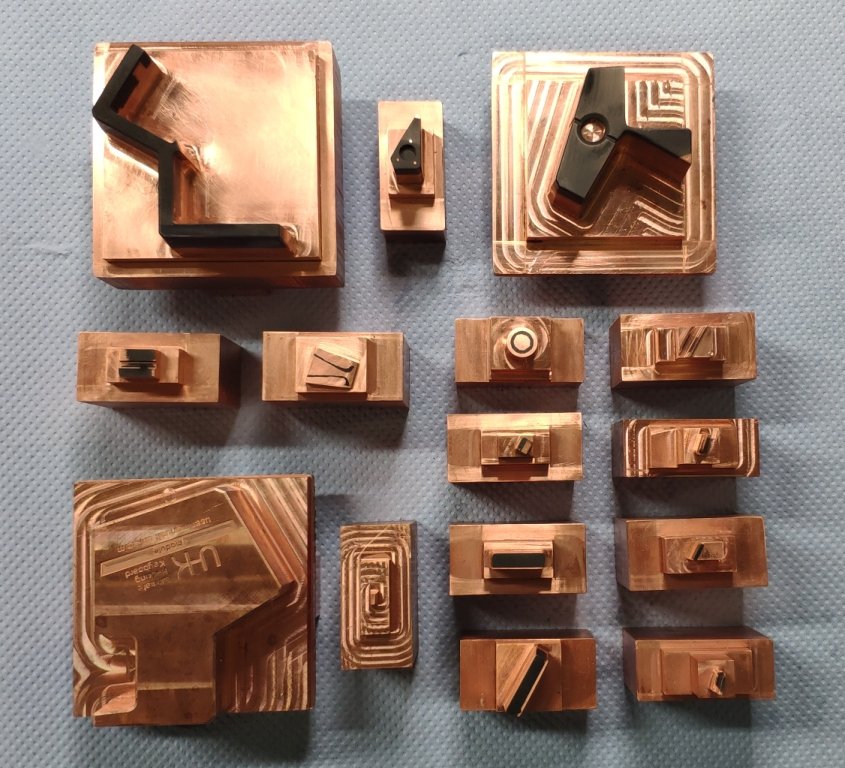

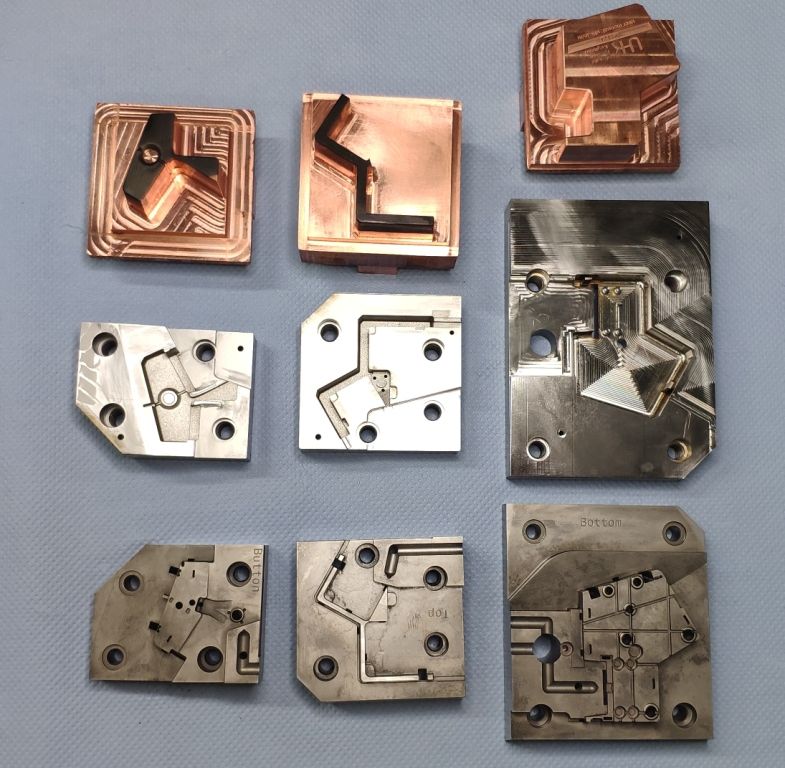

Our contractor is almost ready with the key cluster molds. This is how they look:

The testing of these molds is slated for the end of June, meaning that we’ll soon have key cluster plastic pieces to show you.

As for the right-side modules, András approved the design of the latest 3D-printed parts, and injection molding simulations have been made.

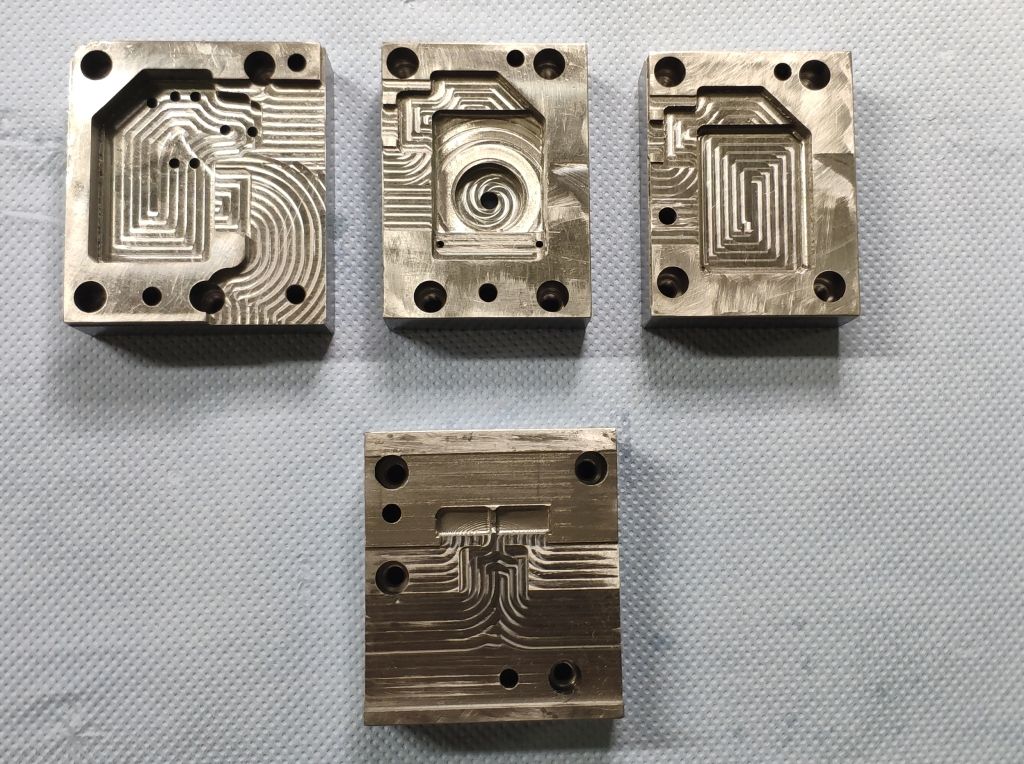

Even more importantly, our contractor started fabricating the right-side module molds:

As for the module PCBs, I’ve been making some small improvements to them. Their shape and layout have been finalized, and I don’t expect any more changes, so we’re in the process of panelizing them.

I’m very pleased with the overall design of the modules, as they do their job well, they are as simple as possible, and they’re highly optimized for production. In my book, this is good design.

Parts have been pouring in from our suppliers, and most have arrived - including the mini trackballs of the key cluster, the balls, optical sensors, and lenses of the trackball module, FPC cables, and FFCs (flexible printed circuits).

We’ll be keeping you updated about the modules. Feel free to change your shipping address any time.

Your tweets

You guys keep sending your awesome tweets, and we’re always eager to read and feature them! If you got your UHK, please share your love!

We’ll be keeping you updated on all things UHK, and are looking forward to talking to you on 2020-07-14.
