BioAmp EXG Pill

by Upside Down Labs

Professional-grade analog front-end amplification for ECG, EMG, EOG, and EEG biosensing on one tiny board

View all updates Oct 07, 2021

Your Last Chance to Back Our Campaign!

by Deepak Khatri


As Greg Gage explained in his TED talk, DIY neuroscience at an affordable price is something we need to change the world for the better. At Upside Down Labs, we strive to provide fully open source hardware and software solutions to help us all move in that direction.


In short, countless hours and dozens of prototypes. Our work on BioAmp technology started in 2016, and our designs have been improving ever since. BioAmp EXG Pill alone took almost a year to mature into its current state, and it will continue to evolve moving forward!

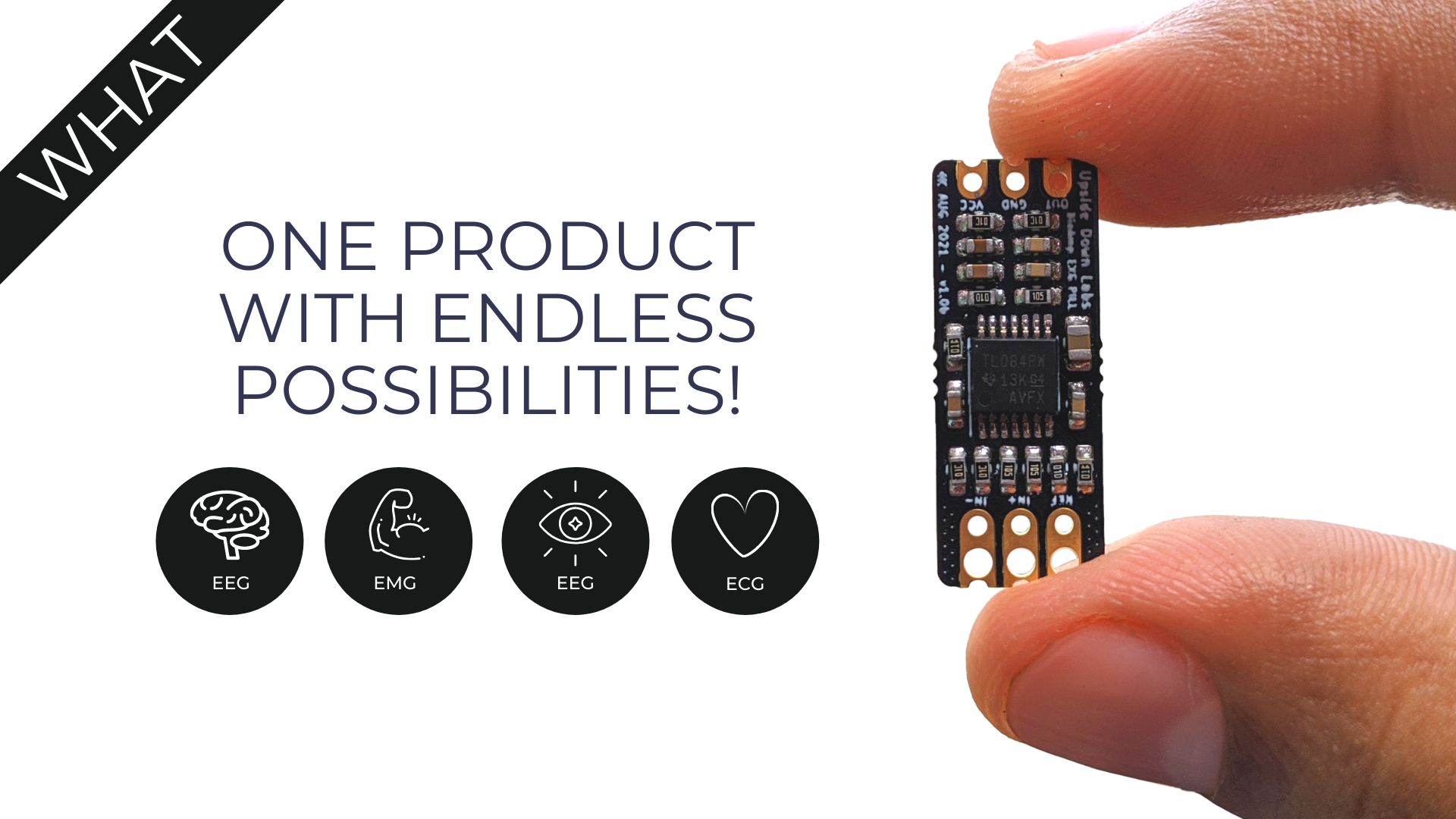

BioAmp EXG Pill is a one-stop shop for all of your biopotential signal acquisition projects. If you need to monitor or record ECG, EMG, EOG, or EEG signals, it’s got what you need. Check out our campaign updates to get a better idea of its capabilities and to learn how you can integrate it into your own projects.

This is your last chance to support our initiative to provide a fully open source hardware and software solution for DIY Neuroscience!

About the Author

Deepak Khatri


$7,279 raised

of $1 goal

Funded! Order Below

Product Choices


EXG Explorer Pack

Two BioAmp EXG Pill boards, 15 gel electrodes, four 3-pin angled pin headers, four 3-pin straight pin headers, six alligator clips, and two 1.5 mm electrode cables


Neuroscience Ninja Pack

Eight BioAmp EXG Pill boards, 100 gel electrodes, 16 3-pin angled pin headers, 16 3-pin straight pin headers, 24 alligator clips, and eight 1.5 mm electrode cables


100 Gel Electrodes

100 gel electrodes
