View all updates May 06, 2019

RA1 Antenna Field Test

Hello to Everyone!

First of all, many thanks to the people who have already backed the campaign!

As you know, any digital navigation begins with satellites and receivers, and the basis of high-quality signal reception is the antenna.

We are always working on updating our technologies so that you can get a quality product with excellent parameters.

Each antenna undergoes rigorous monitoring and testing in the laboratory and in the field.

We evaluate our achievements by comparing ourselves with such giants as Novatel.

Below are the results of measurements of Novatel Pinwheel and RA1. The L1 band was compared:

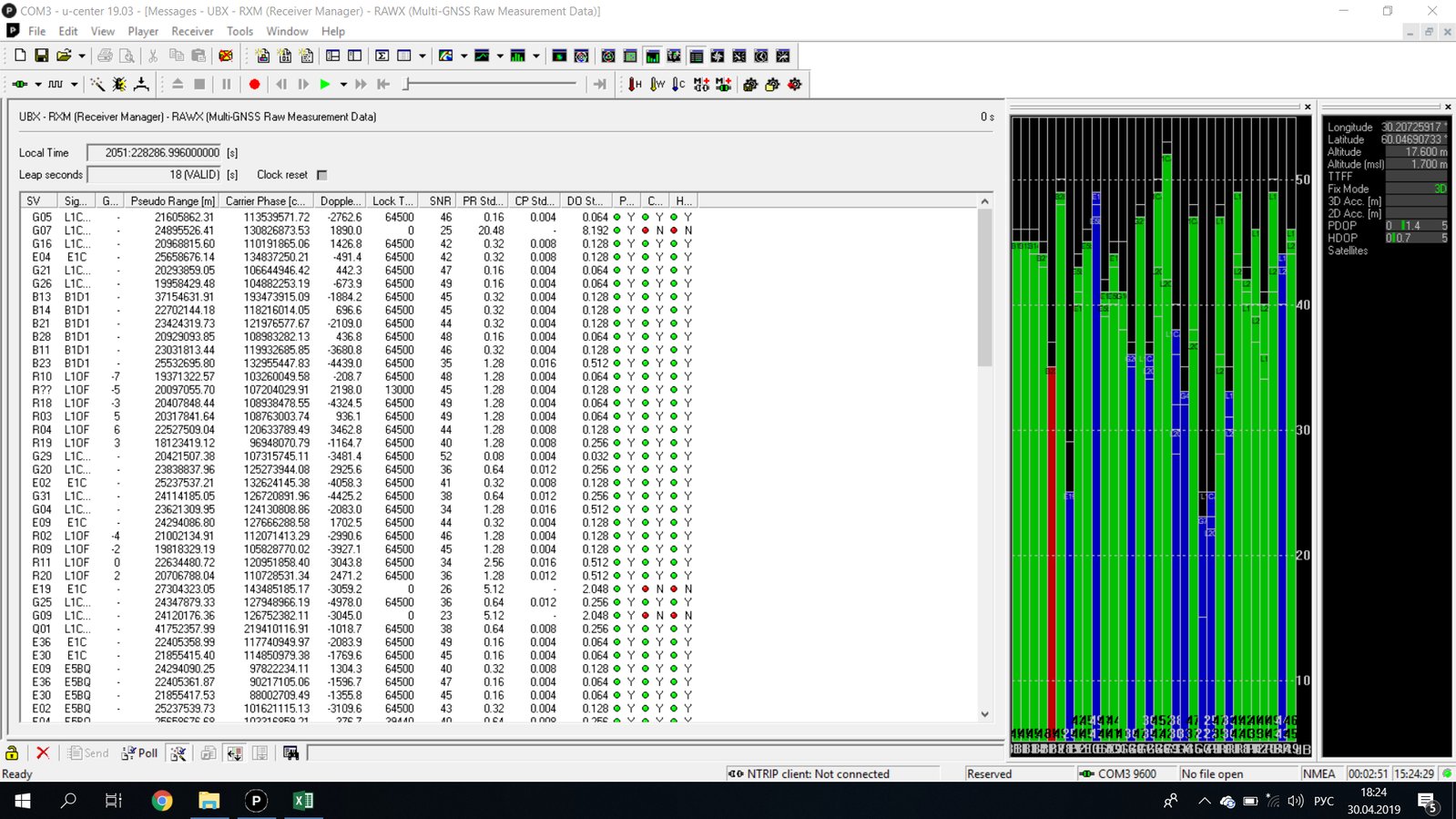

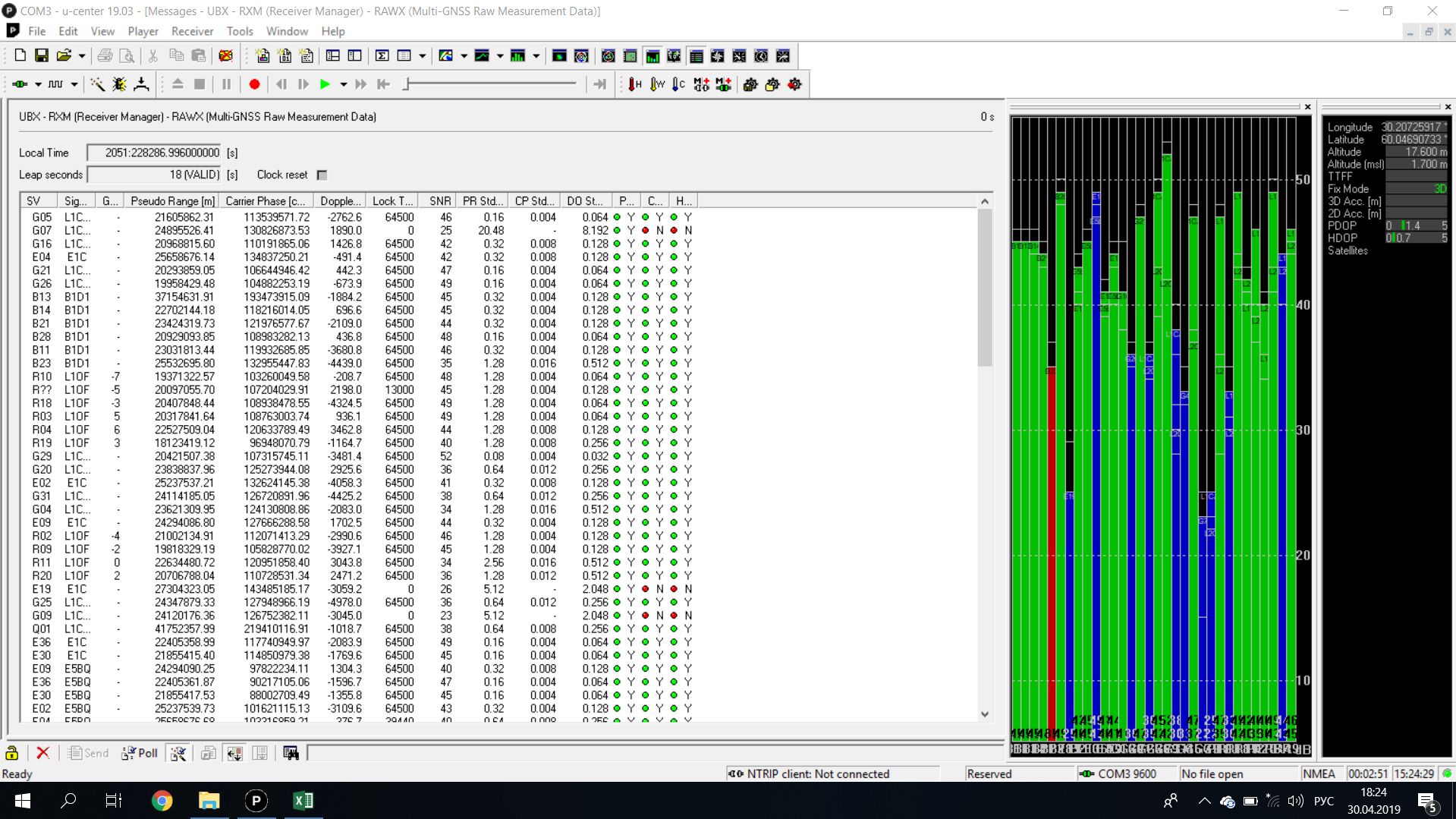

Fig.1 Novatel results

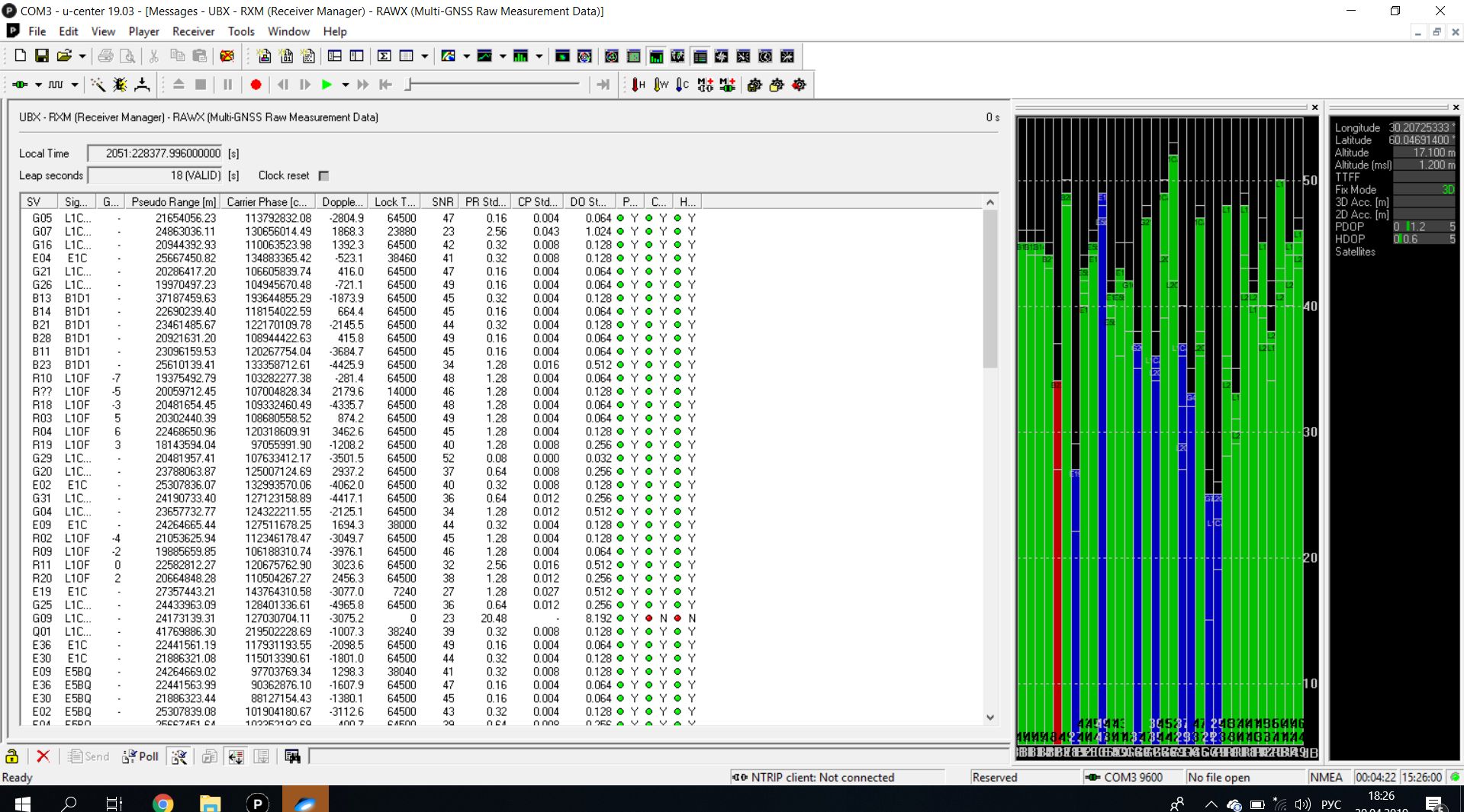

Fig.2 RA1 results

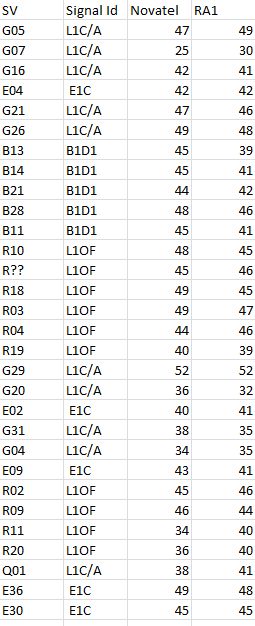

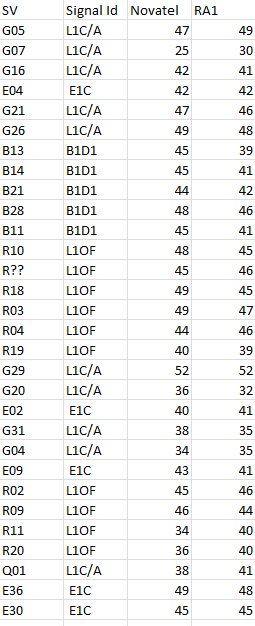

Tab.1 Comparison table

These tests were conducted in open area, with the complete absence of sky shading.

In first seconds of this video you can see the place of field tests.

Simeon Voropaev,

Amungo Navigation
