ANAVI Macro Pad 8

by ANAVI Technology

Open source, programmable, eight-key keypad with backlighting, underlighting, and OLED screen

View all updates Dec 04, 2020

Manufacturing Progress

by ANAVI Technology

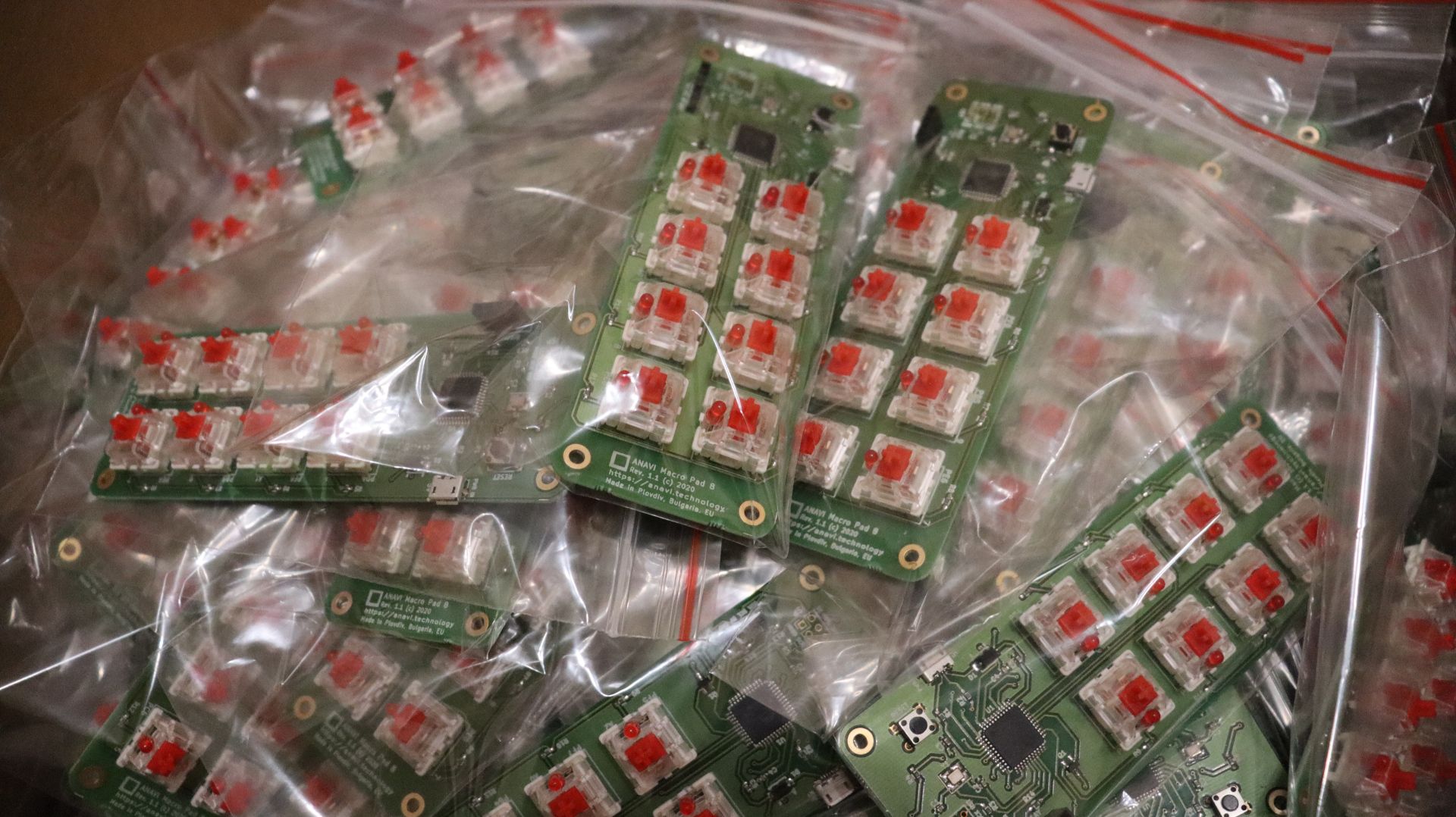

We received all of the boards for ANAVI Macro Pad 8 from the local factory in my hometown Plovdiv, Bulgaria, EU. We flashed the open source QMK firmware with the default keymap and tested all developer kits. The next steps are to package them with bubble wrap in our recyclable cardboard boxes, then to prepare the mini OLED displays and to process the maker kits.

Once again, thank you for supporting ANAVI Macro Pad 8. Stay safe and we will keep you updated with all progress.

Thanks,
Leon

About the Author

ANAVI Technology

AnaviTechnology  ·  AnaviTechnology  ·   Plovdiv, Bulgaria


$11,726 raised

of $1 goal

Funded! Order Below

Product Choices

$36

Maker Kit

A kit for anyone interested in using their own mechanical switches and keycaps. Requires soldering. Includes ANAVI Macro Pad 8 printed circuit board with Microchip ATmega32U4 (1) and WS2812B LED strip (1).


$44

Developer Kit

The ultimate solution! No soldering required. Includes ANAVI Macro Pad 8 printed circuit board with Microchip ATmega32U4 (1) and WS2812B LED strip (1), Gateron red mechanical switches (8), transparent keycaps (8).


$8

OLED Display

Mini 0.96" OLED I2C display, yellow-blue. For use with ANAVI Macro Pad 8.


$7

Acrylic Enclosure

Acrylic enclosure for ANAVI Macro Pad 8.


$10

Accessories: Switches, keycaps and red LEDs

Accessories for the ANAVI Macro Pad 8 Maker Kit: Switches, keycaps and red LEDs. (These accessories come included and pre-soldered for the Developer Kit.)
