ANAVI Macro Pad 8

by Anavi Technology

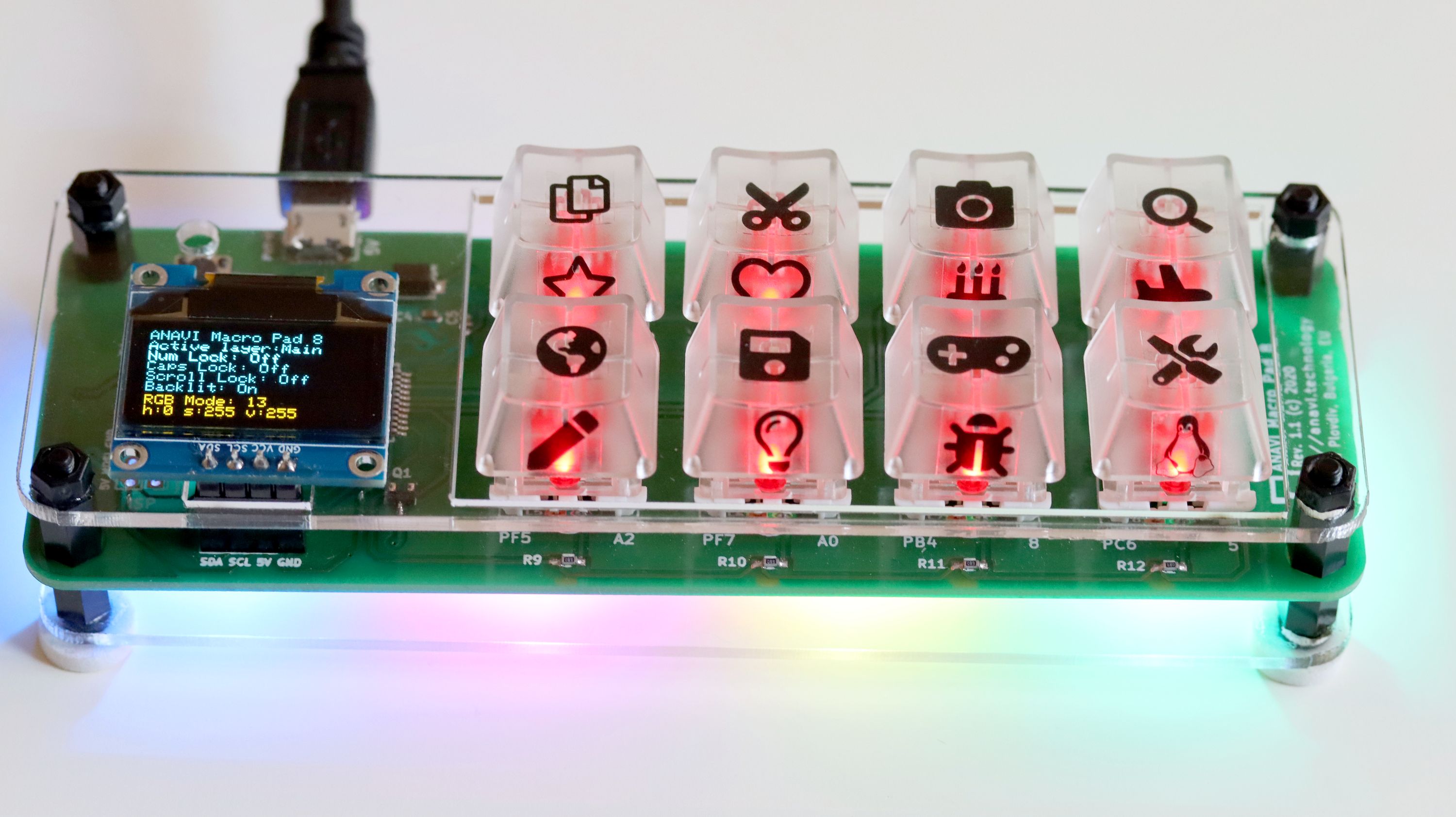

Open source, programmable, eight-key keypad with backlighting, underlighting, and OLED screen

View all updates Oct 13, 2020

Thank You!

by ANAVI Technology

The crowdfunding campaign for ANAVI Macro Pad 8 has ended successfully. All stretch goals were met. More than 100 kits were ordered by 86 backers from 19 countries all around the world. Thank you very much for supporting this entire open source project!

Today we made the first steps for the manufacturing of the printed circuit boards, and sourcing components. Next steps include printing stickers and laser-cutting of the acrylic enclosures. Stay tuned for updates and thank you again!

Best regards,
Leon

About the Author

ANAVI Technology

AnaviTechnology  ·  AnaviTechnology  ·   Plovdiv, Bulgaria


$10,582 raised

of $1 goal

Funded! Order Below

Product Choices

$36

Maker Kit

A kit for anyone interested in using their own mechanical switches and keycaps. Requires soldering. Includes ANAVI Macro Pad 8 printed circuit board with Microchip ATmega32U4 (1) and WS2812B LED strip (1).


$44

Developer Kit

The ultimate solution! No soldering required. Includes ANAVI Macro Pad 8 printed circuit board with Microchip ATmega32U4 (1) and WS2812B LED strip (1), Gateron red mechanical switches (8), transparent keycaps (8).


$8

OLED Display

Mini 0.96" OLED I2C display, yellow-blue. For use with ANAVI Macro Pad 8.


$7

Acrylic Enclosure

Acrylic enclosure for ANAVI Macro Pad 8.


$10

Accessories: Switches, keycaps and red LEDs

Accessories for the ANAVI Macro Pad 8 Maker Kit: Switches, keycaps and red LEDs. (These accessories come included and pre-soldered for the Developer Kit.)
