SimplePnP

by Citrus CNC

Your personal open hardware PCB assembly machine

View all updates Oct 04, 2021

Assembly Progress and New Delivery Date

by Gino Magarotto

First, I want to offer my apologies for keeping everybody waiting several months without news.

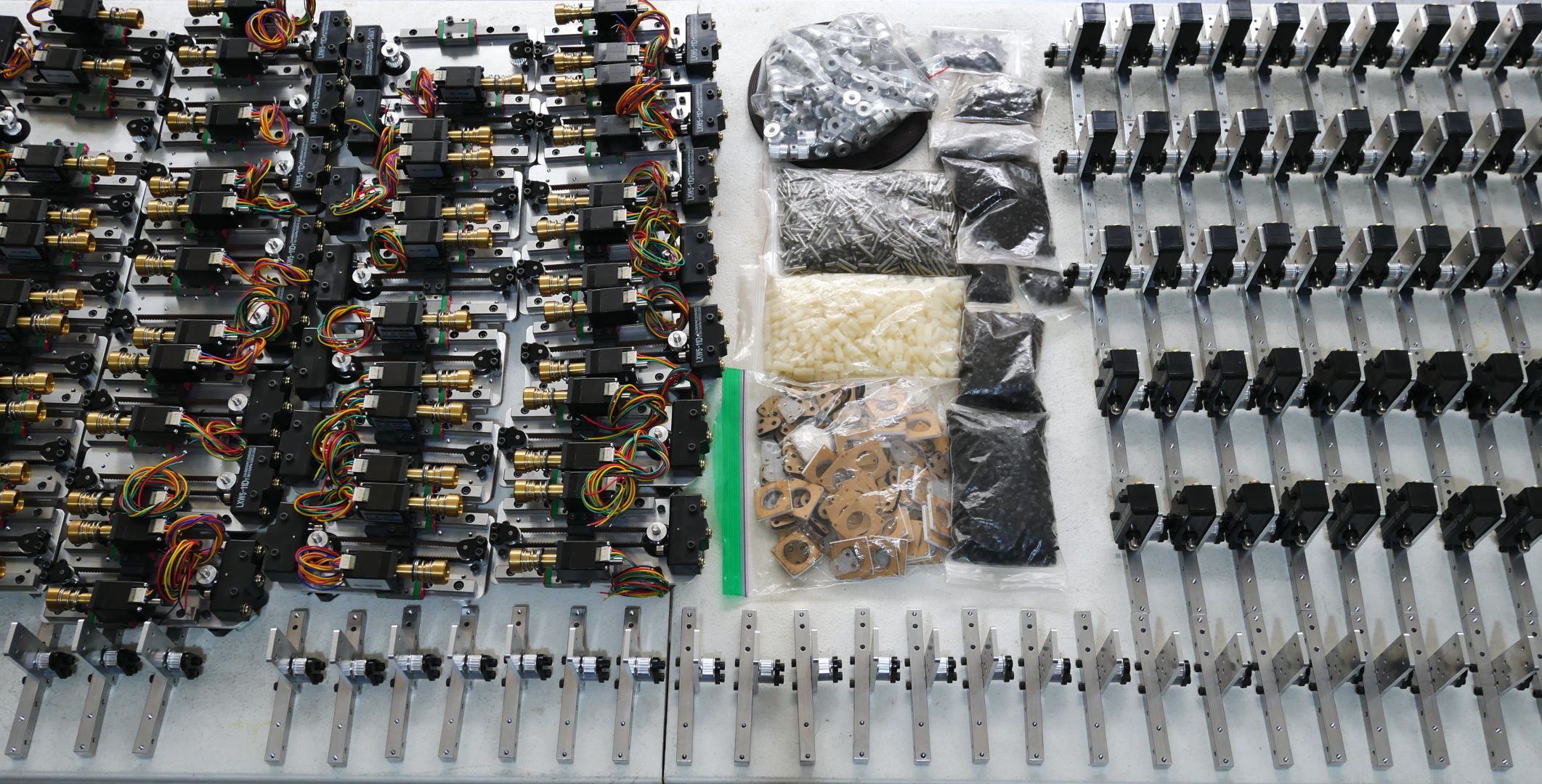

I did make more progress. The vacuum heads, aluminum motor, and idler pulley mounts are now assembled. The feeder trays are 90% ready too, thy’re just missing some threads for some optional SMD tape clamping screws.

As expected, I’ll have to change the delivery date yet again to February 2022.

Thanks for your patience, Gino

About the Author

Gino Magarotto

citruscnc  ·  ottoragam  ·   Mexico City


$46,171 raised

of $6,500 goal

710% Funded! Order Below

Product Choices

$800

Dual Head SimplePnP with Bottom Vision

A partially assembled Cartesian frame with extrusions, motors, rails, mounting hardware, pulleys, and belts. An assembled vacuum head with one nozzle holder, a top-vision camera, a bottom-vision camera (including mounting hardware and a USB cable), one rotation motor, one linear rail, and pneumatic components. Adds an additional nozzle holder, rotation motor, and linear rail (including mounting hardware). Includes a vacuum pump, a power supply, motion control electronics, and three Juki nozzles (sizes 503, 504, and 505).


$26

Strip Feeder
