SimplePnP

by Citrus CNC

Your personal open hardware PCB assembly machine

View all updates Jan 04, 2020

New nozzle option for all models

by Gino Magarotto

View previous update
View next update

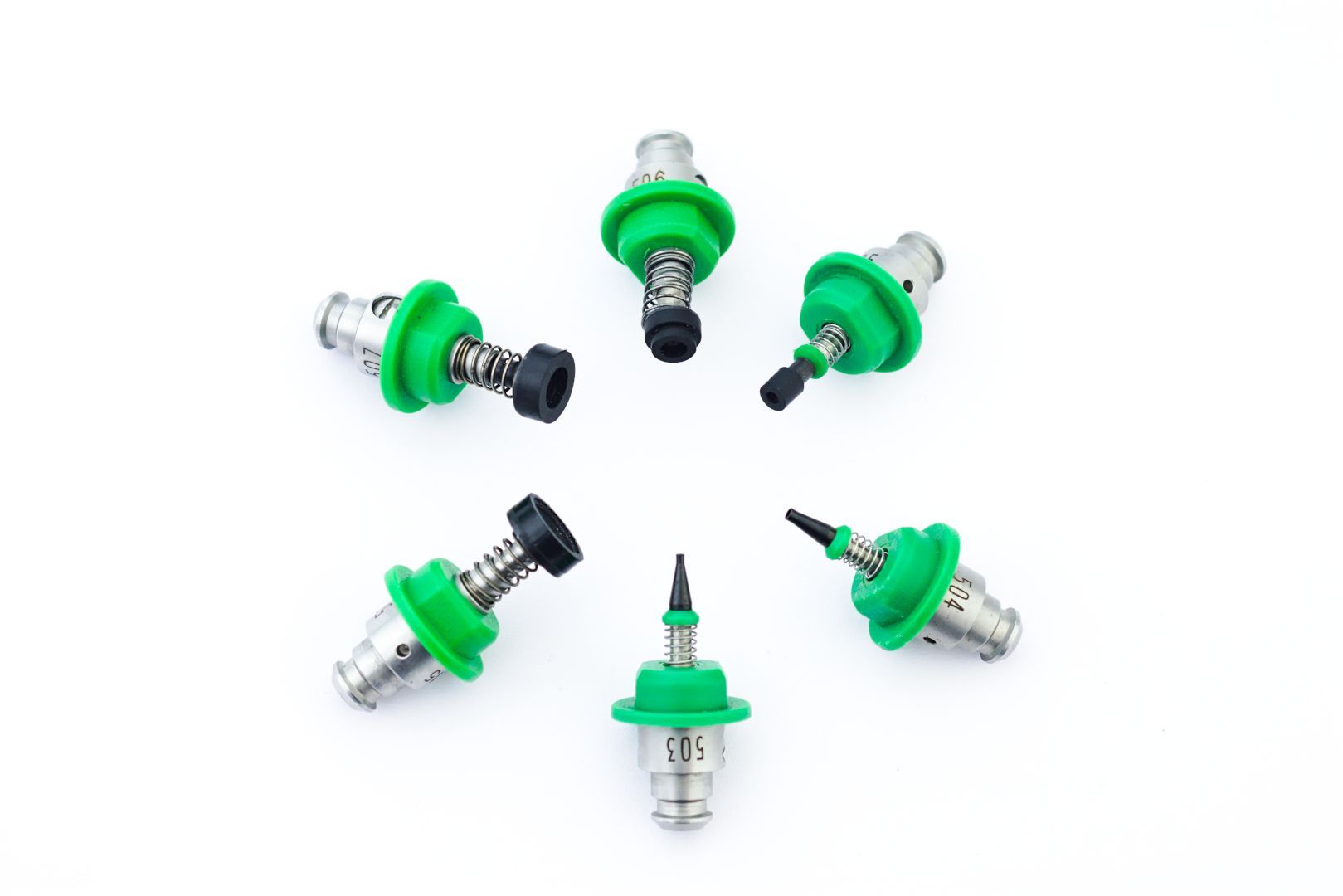

Quick update! We just added the option to purchase two full sets of nozzles for each machine model. You can now get a pair of each nozzle – sizes 503 to 508 – with your SimplePnP. (That’s 12 nozzles in total.)

About the Author

Gino Magarotto

citruscnc  ·  ottoragam  ·   Mexico City

Ask a Question

$17,847 raised

of $6,500 goal

274% Funded!
6
updates
9
days left
21
backers

Pledge Now

$630

SimplePnP Base Model

A partially assembled Cartesian frame with extrusions, motors, rails, mounting hardware, pulleys, and belts. An assembled vacuum head with one nozzle holder, a top-vision camera, one rotation motor, one linear rail, and pneumatic components. Includes a vacuum pump, a power supply, motion control electronics, and three Juki nozzles (sizes 503, 504, and 505).

Orders placed now ship May 22, 2020.

Free US Shipping / $84 Worldwide

$675

SimplePnP with Bottom Vision

A partially assembled Cartesian frame with extrusions, motors, rails, mounting hardware, pulleys, and belts. An assembled vacuum head with one nozzle holder, a top-vision camera, a bottom-vision camera (including mounting hardware and a USB cable), one rotation motor, one linear rail, and pneumatic components. Includes a vacuum pump, a power supply, motion control electronics, and three Juki nozzles (sizes 503, 504, and 505).

Orders placed now ship May 22, 2020.

Free US Shipping / $84 Worldwide

4 claimed

$725

Dual Head SimplePnP

A partially assembled Cartesian frame with extrusions, motors, rails, mounting hardware, pulleys, and belts. An assembled vacuum head with one nozzle holder, a top-vision camera, one rotation motor, one linear rail, and pneumatic components. Adds an additional nozzle holder, rotation motor, and linear rail (including mounting hardware). Includes a vacuum pump, a power supply, motion control electronics, and three Juki nozzles (sizes 503, 504, and 505).

Orders placed now ship May 22, 2020.

Free US Shipping / $84 Worldwide

1 claimed

$770

Dual Head SimplePnP with Bottom Vision

A partially assembled Cartesian frame with extrusions, motors, rails, mounting hardware, pulleys, and belts. An assembled vacuum head with one nozzle holder, a top-vision camera, a bottom-vision camera (including mounting hardware and a USB cable), one rotation motor, one linear rail, and pneumatic components. Adds an additional nozzle holder, rotation motor, and linear rail (including mounting hardware). Includes a vacuum pump, a power supply, motion control electronics, and three Juki nozzles (sizes 503, 504, and 505).

Orders placed now ship May 22, 2020.

Free US Shipping / $84 Worldwide

16 claimed

$22

Strip Feeder

Orders placed now ship May 22, 2020.

Free US Shipping / $5 Worldwide

41 claimed
