Special Items

The products listed here might not be for general use, but each of them plays a supporting role of some sort to another Crowd Supply project.

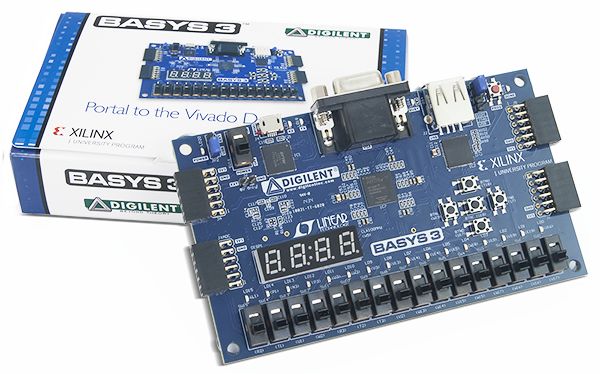

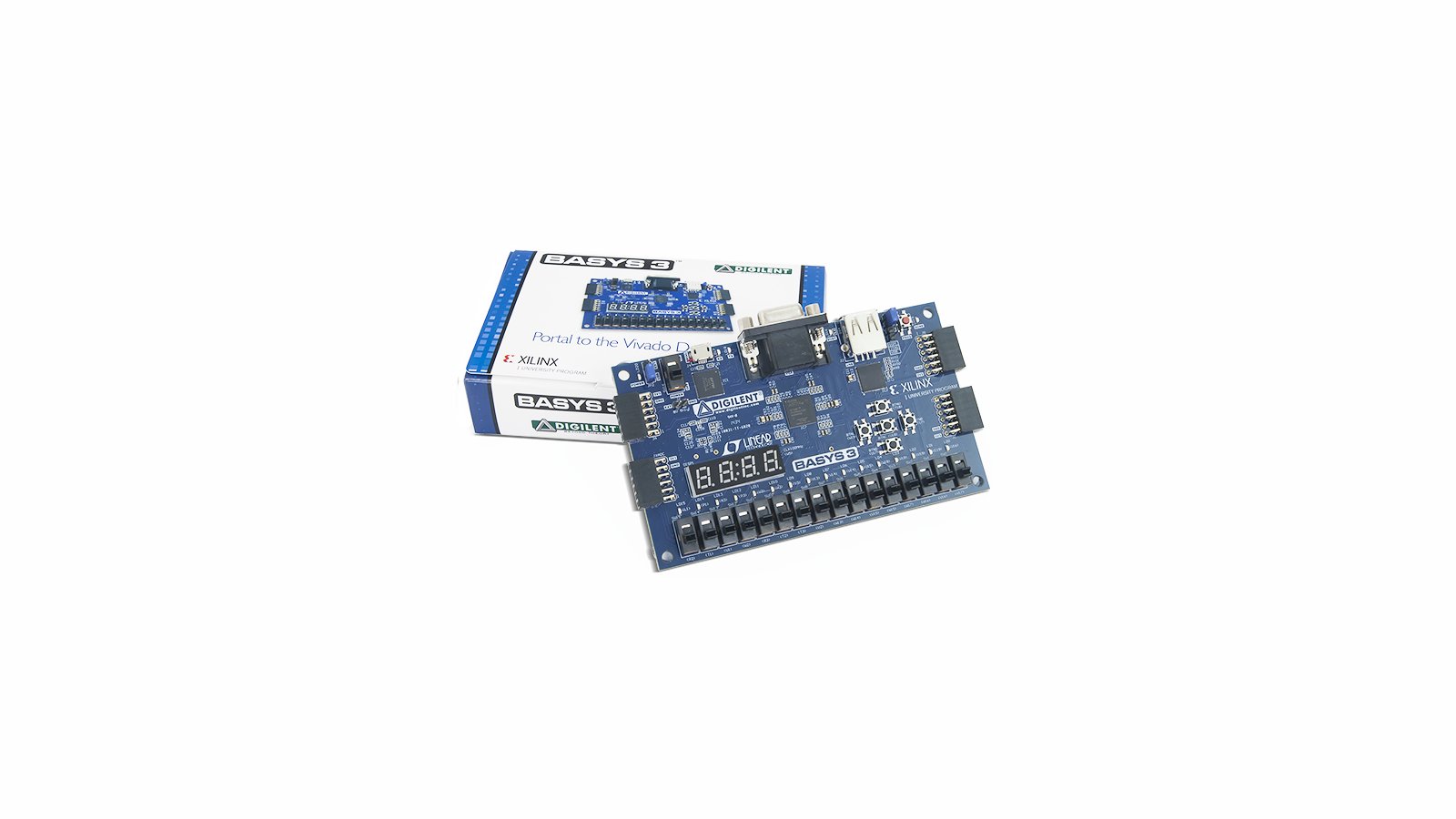

Basys 3 Trainer Board

Used as part of the FPGA Playground, Digilent’s Basys 3 trainer board is an entry-level FPGA development board with the following features:

• Xilinx Artix-7 FPGA (XC7A35T-1CPG236C)
  • 33,280 logic cells in 5200 slices (each slice contains four 6-input LUTs and 8 flip-flops)
  • 1,800 Kbits of fast block RAM
  • Five clock management tiles, each with a phase-locked loop (PLL)
  • 90 DSP slices
  • Internal clock speeds exceeding 450 MHz
  • On-chip analog-to-digital converter (XADC)
• Programming
  • Designed exclusively for the Vivado Design Suite
  • Free WebPACK™ download for standard use
  • Digilent USB-JTAG port
  • Serial flash
• Connectivity
  • USB A HID Host for mice, keyboards, and memory sticks
  • USB micro-B
  • Four 12-pin Pmod ports
  • 12-bit VGA output
  • USB-UART bridge
• User Interfaces
  • 16 x user switch
  • 16 x user LED
  • 5 x user pushbutton
  • 1 x four-digit seven-segment display
• Pmod Expandability
  • 3 x standard 12-pin Pmod port
  • 1 x dual purpose XADC signal / standard Pmod port
