Artificial Intelligence Radio - Transceiver (AIR-T)

A high-performance SDR seamlessly integrated with state-of-the-art deep learning hardware

Jul 16, 2018

Project update 7 of 20

Functional Schematic Released

Many have asked for a functional schematic drawing. Now seems like the perfect time to release it.

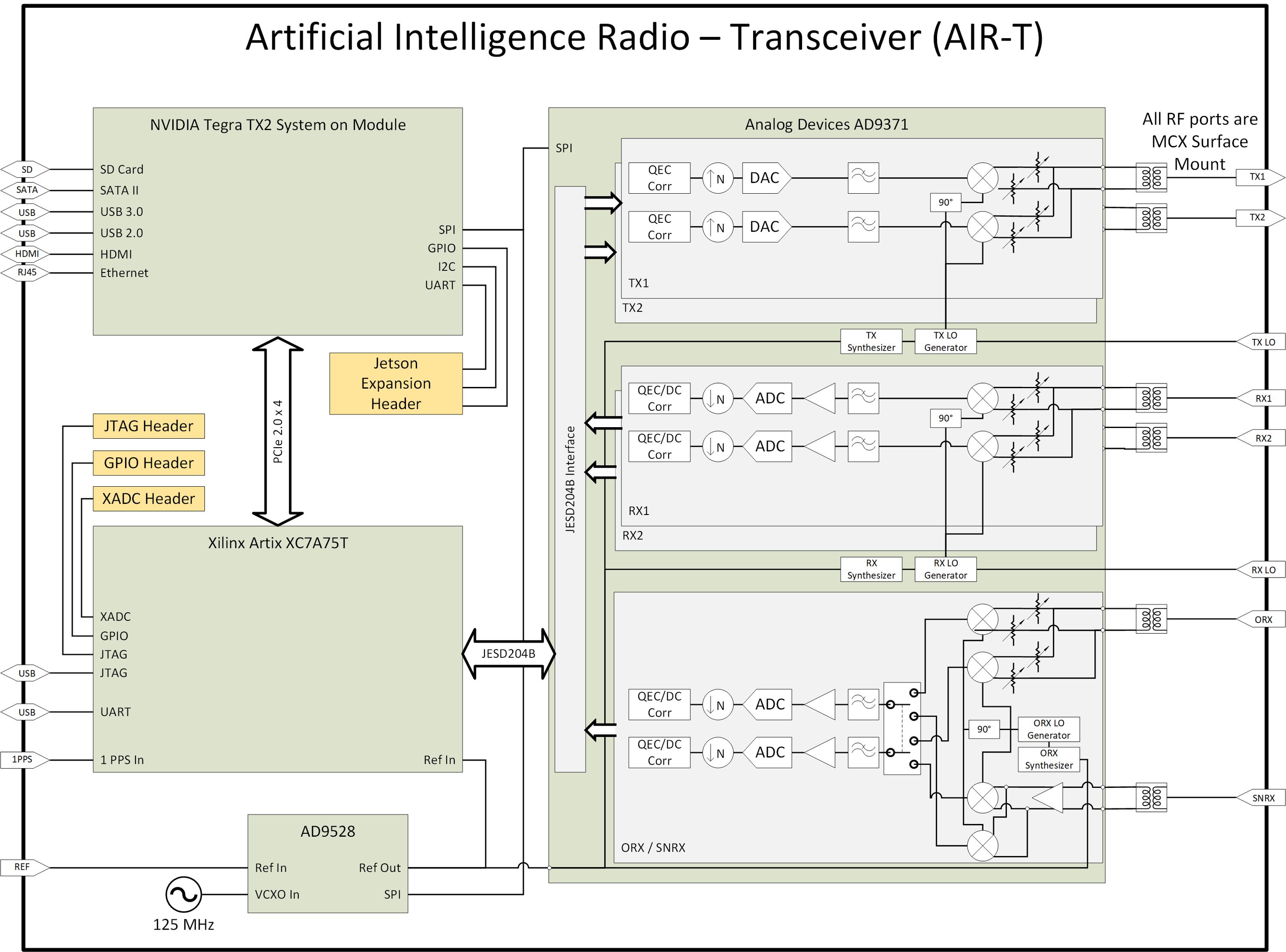

AIR-T functional schematic drawing.
High-quality image here.

Low Noise Amplifier

The AIR-T was designed assuming that the user requires tight frequency selectors and gain control. Instead of creating a pre-selector and LNA subsystem that is not ideal for a specific applications, the Deepwave team believes that placing your own frequency selector and LNA gives you the most flexibility. The AIR-T has plenty of digital I/O to allow for control of these components via the FPGA, RFIC, or Tegra module. If you have any questions, please reach out to us.
