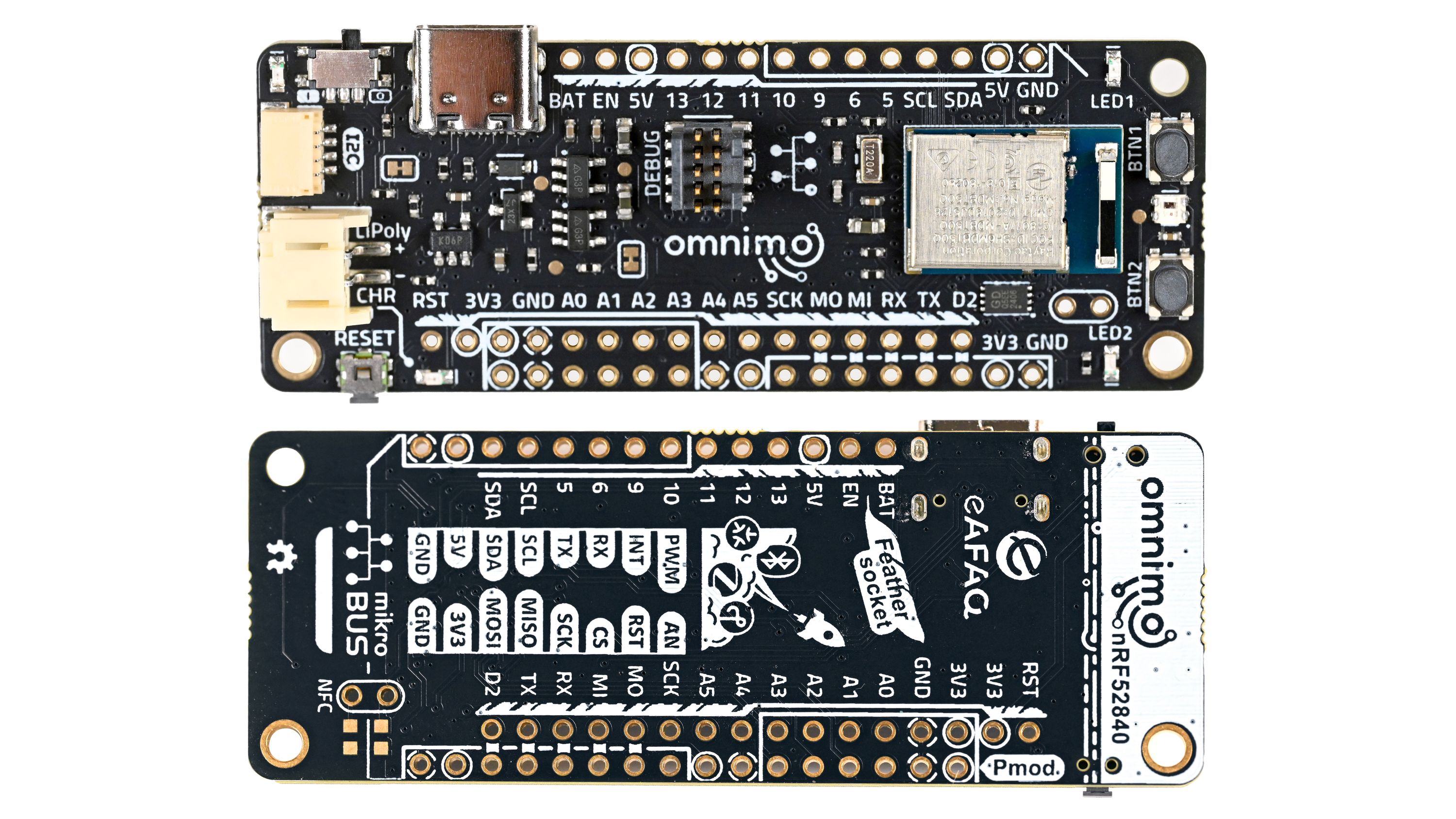

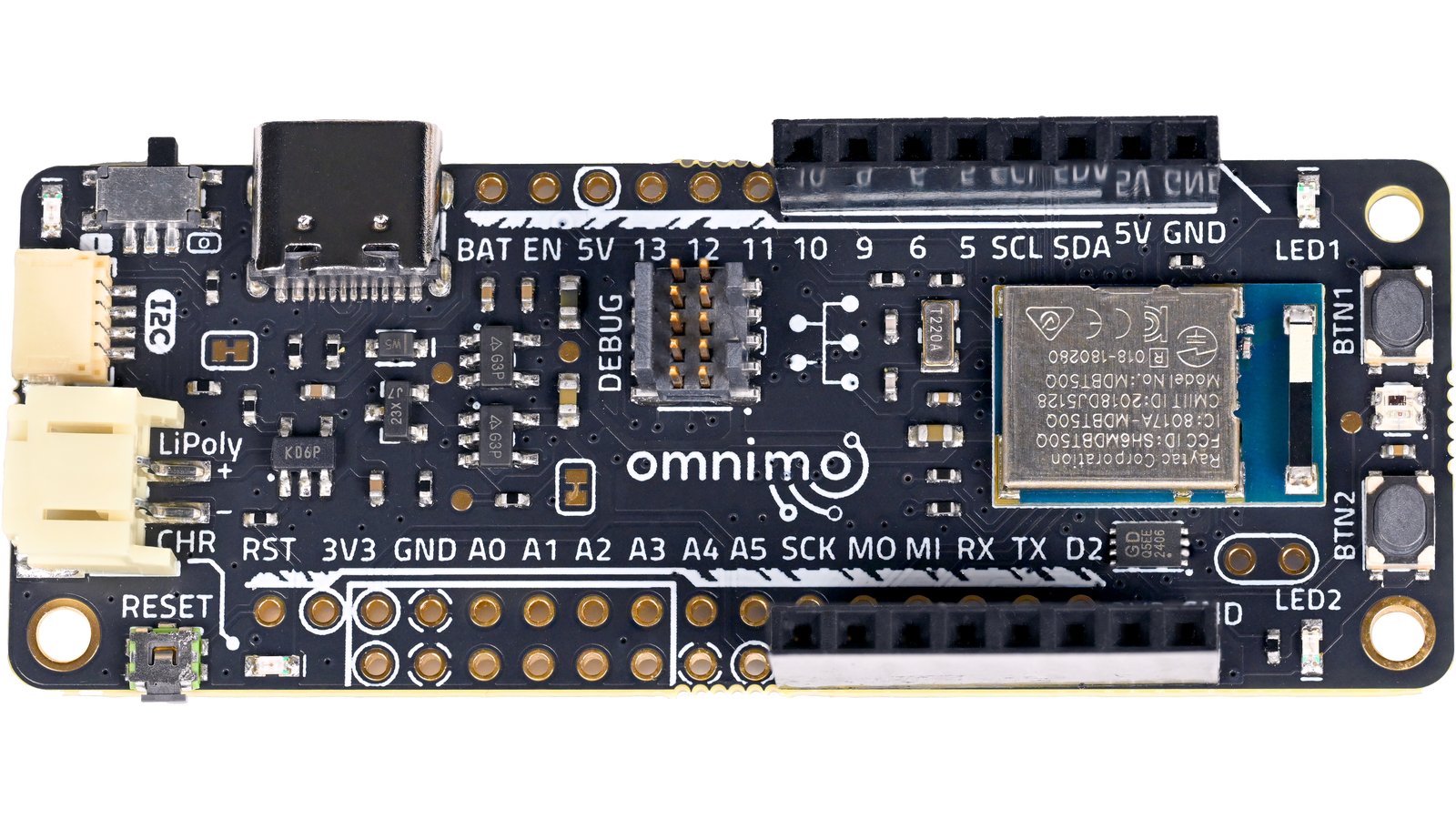

Omnimo nRF52840 is a compact development board that features the latest version of Nordic’s powerful nRF52840 multiprotocol SoC. This chip supports a wide array of wireless protocols, including Bluetooth Low Energy, Bluetooth mesh, NFC, Thread, Matter, and Zigbee. It is compatible with over 2,000 add-on boards from the Feather, Qwiic, mikroBUS, and Pmod ecosystems.

With its robust wired and wireless capabilities and user-friendly design, Omnimo nRF52840 is ideal for projects centered around mobile applications. It is also suitable for a wide range of electronic and IoT projects and is compatible with beginner-friendly environments like CircuitPython and the industrial SDK, nRF Connect.

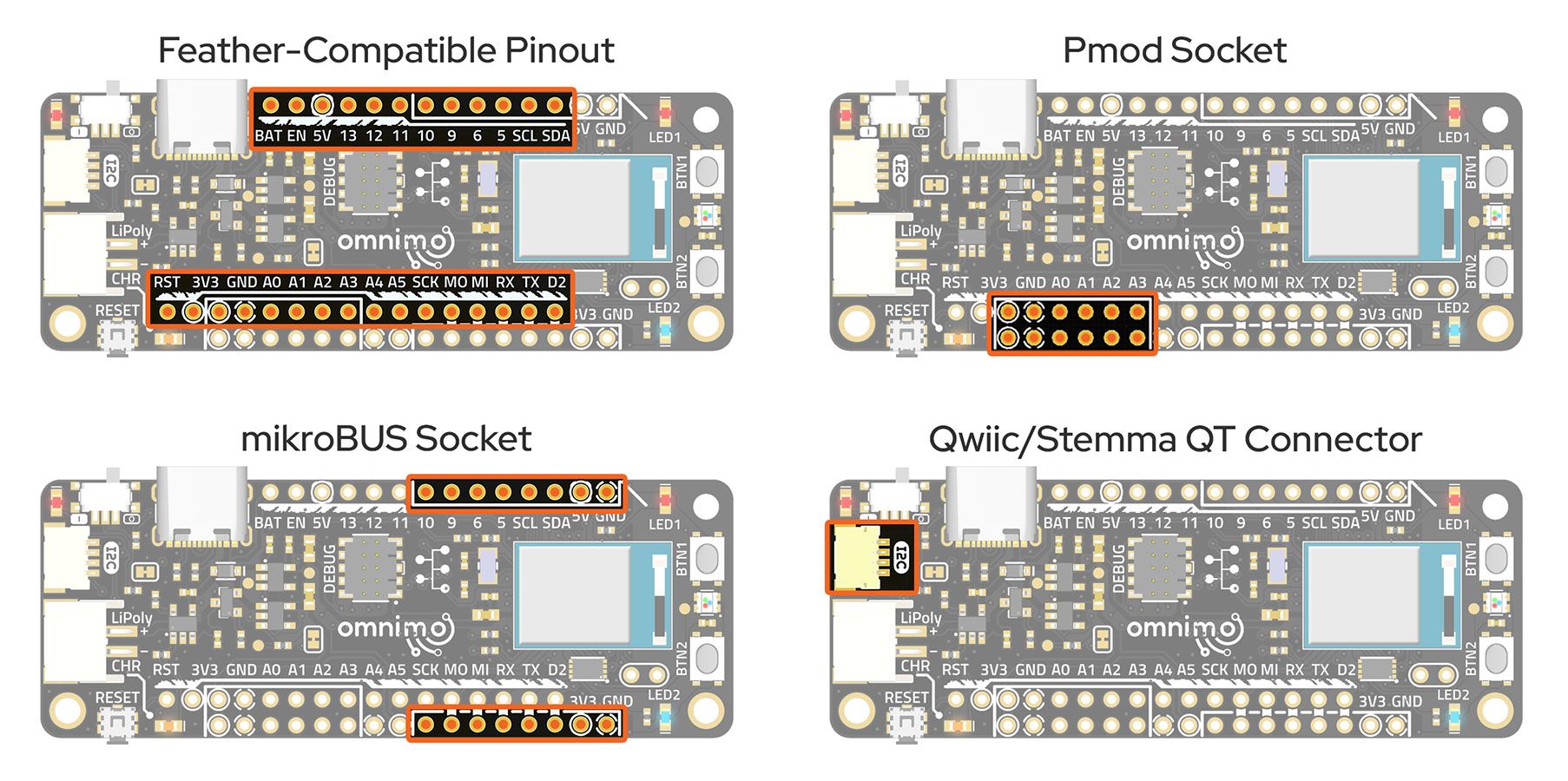

Adafruit Feather-compatible Pinout

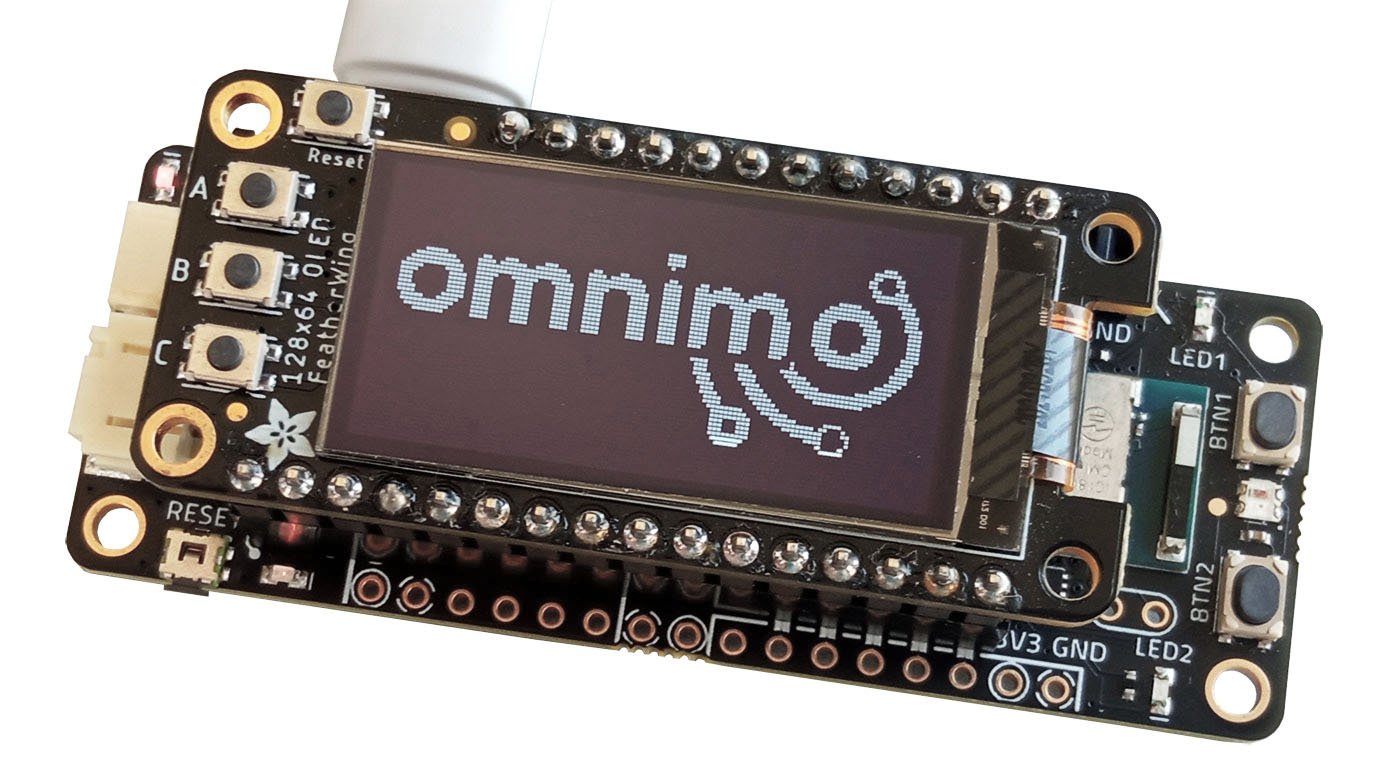

Omnimo features a Feather socket, allowing you to choose from dozens of useful FeatherWing modules to meet your needs. It also supports Adafruit’s Feather pinout, so programs that work on other boards like the Feather nRF52840 Express can be used with Omnimo nRF52840.

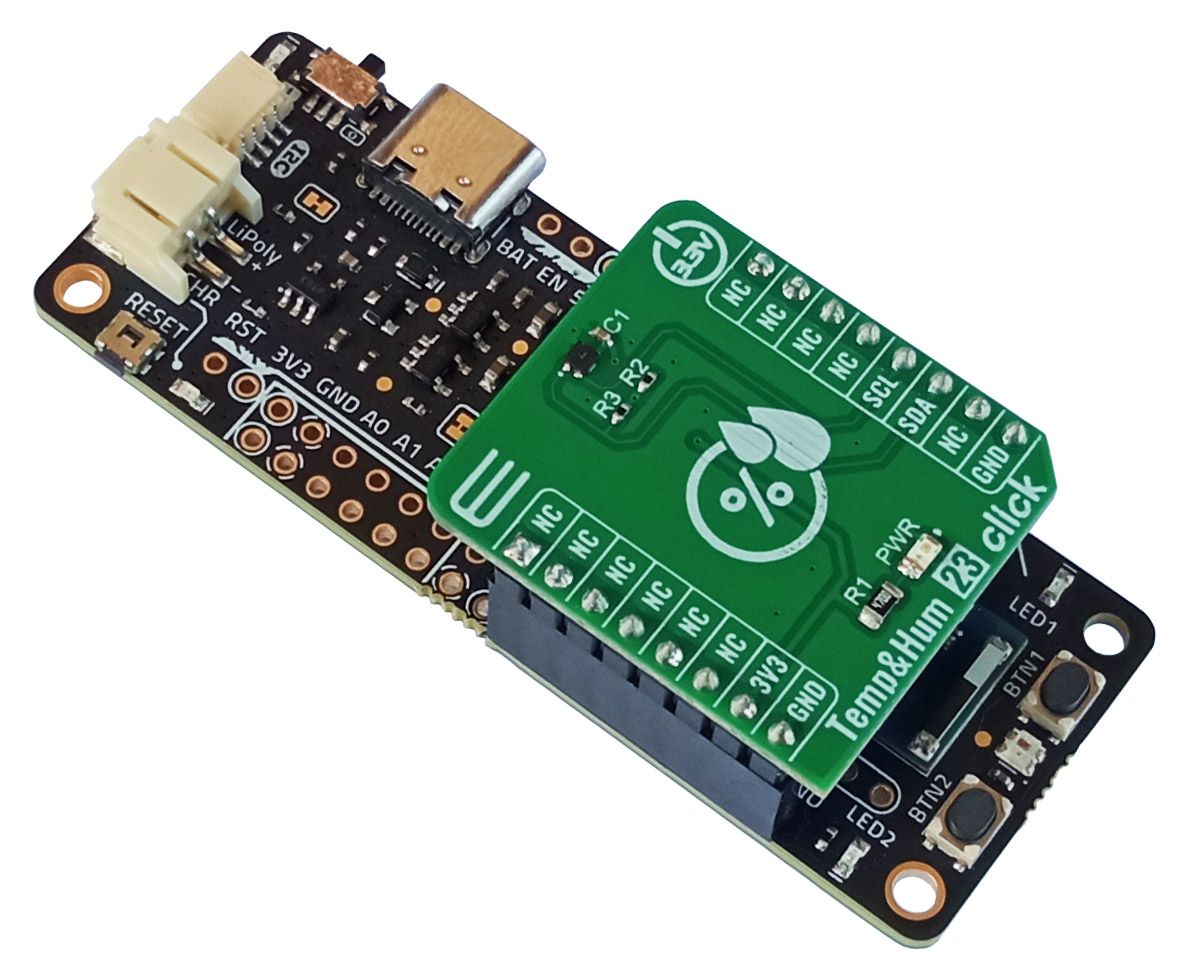

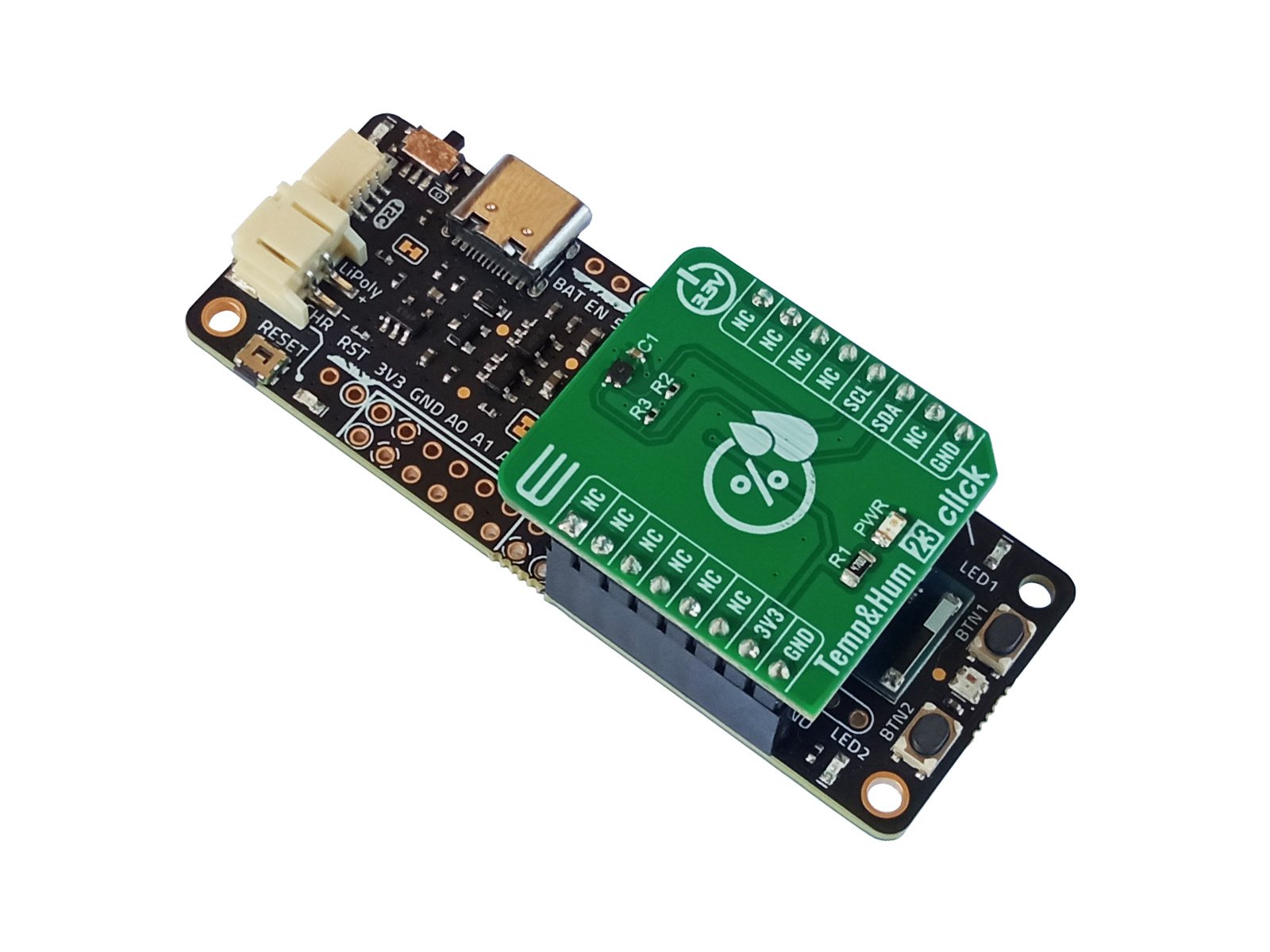

Compatible With a Wide Array of Add-On Boards

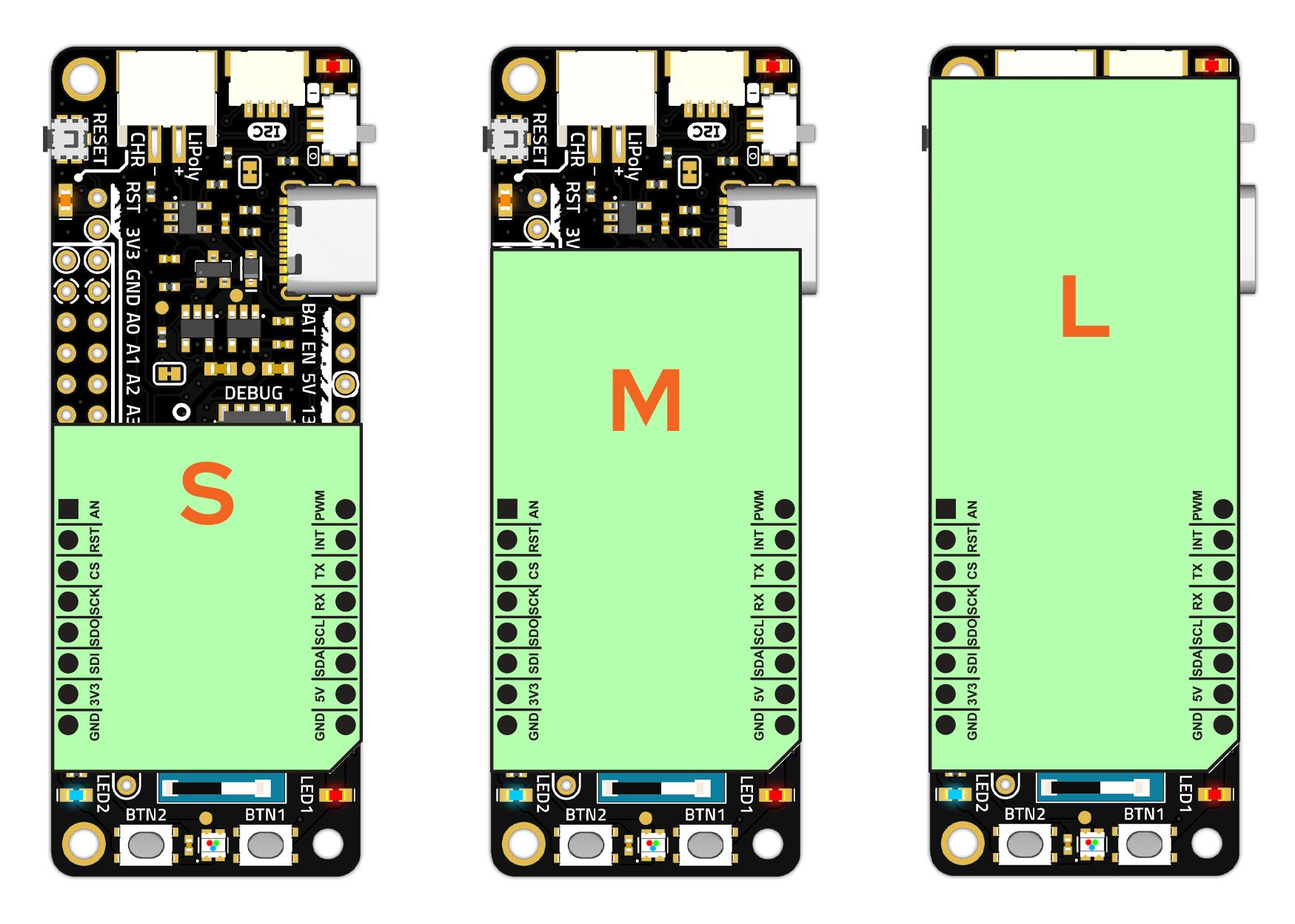

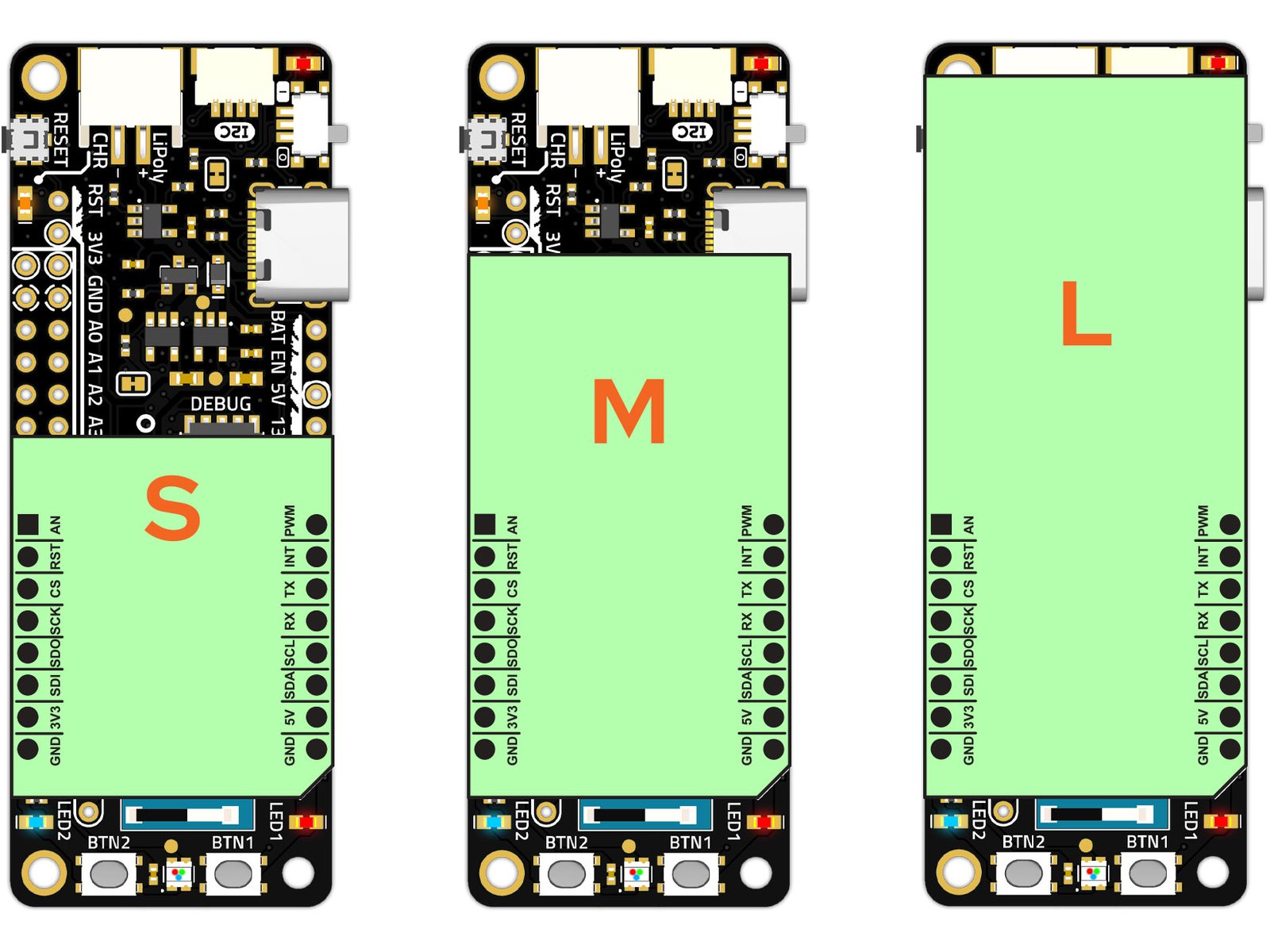

You will undoubtedly find add-on boards suited to your project among the wide range of Click modules. Omnimo nRF52840 is one of the smallest possible boards, regardless of module type.

Qwiic and Pmod-friendly

Omnimo nRF52840 is equipped with a JST 4-position 1mm connector linked to the I2C port, also known as Qwiic or Stemma QT. With over 300 compatible modules available on the market, you can quickly connect one or more of them to the board in series. Additionally, you can use dozens of Grove (I2C) modules through this connector with an adapter cable (e.g. PRT-15109).

Digilent Pmods can also be connected directly to Omnimo nRF52840, allowing you to benefit from a wide range of available modules.

Develop Your Application with Ease

You can develop programs for the board using Arduino IDE or CircuitPython and load compiled code via USB serial or by dragging and dropping firmware files using the mass storage interface. If you prefer, you can also use the over-the-air (OTA) programming capability.

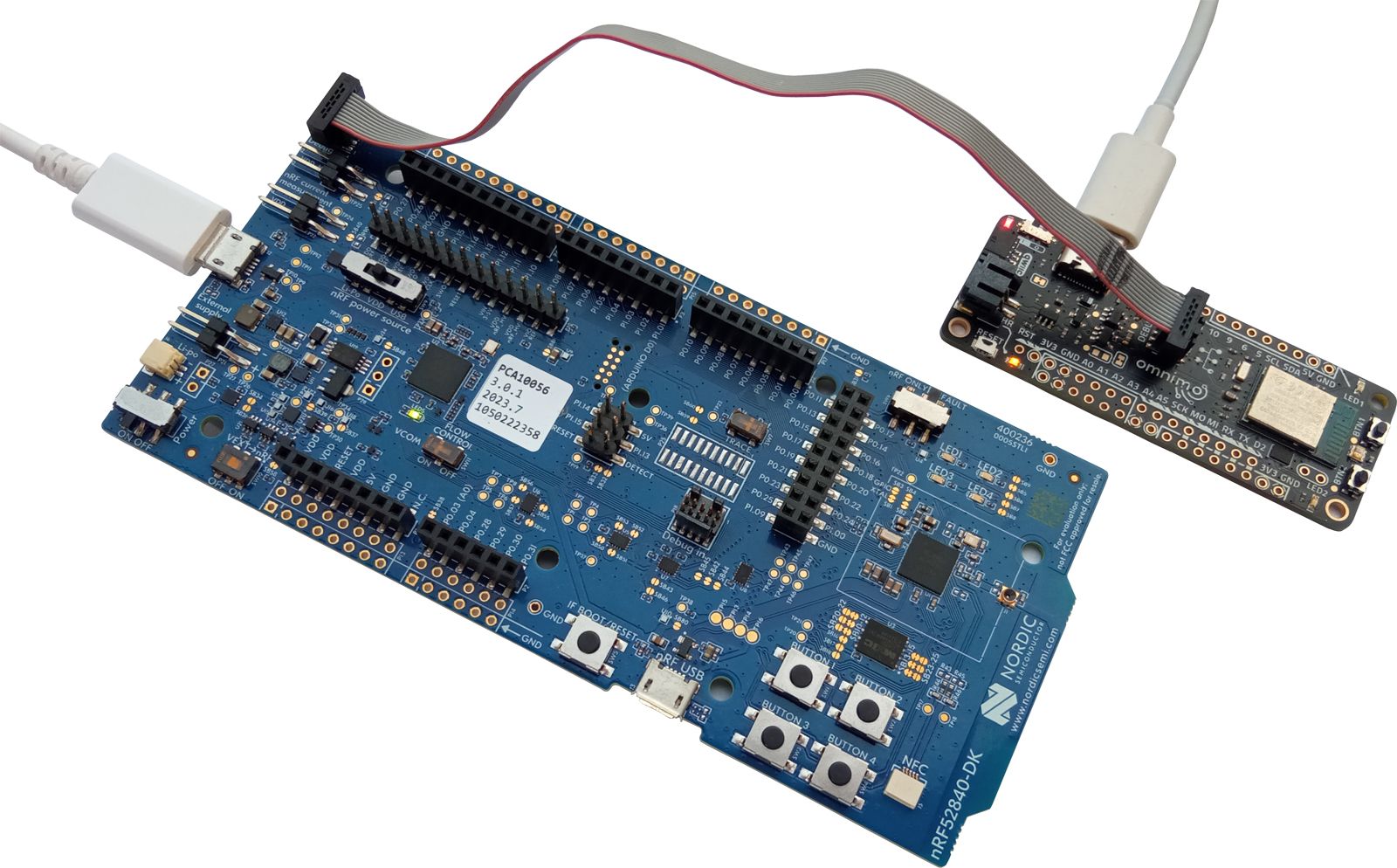

Advanced programming and debugging is possible through the SWD port (standard 2x5 1.27 mm connector), allowing you to take advantage of many features of the Nordic nRF Connect SDK to build your project.

Optimized for Home Assistant

Omnimo nRF52840 is perfect for Home Assistant due to its support for multiple protocols, including BTHome, and extensive compatibility with add-on boards, particularly those equipped with sensors. Its low power consumption allows for long-term battery-powered operation, where wall power can’t reach.

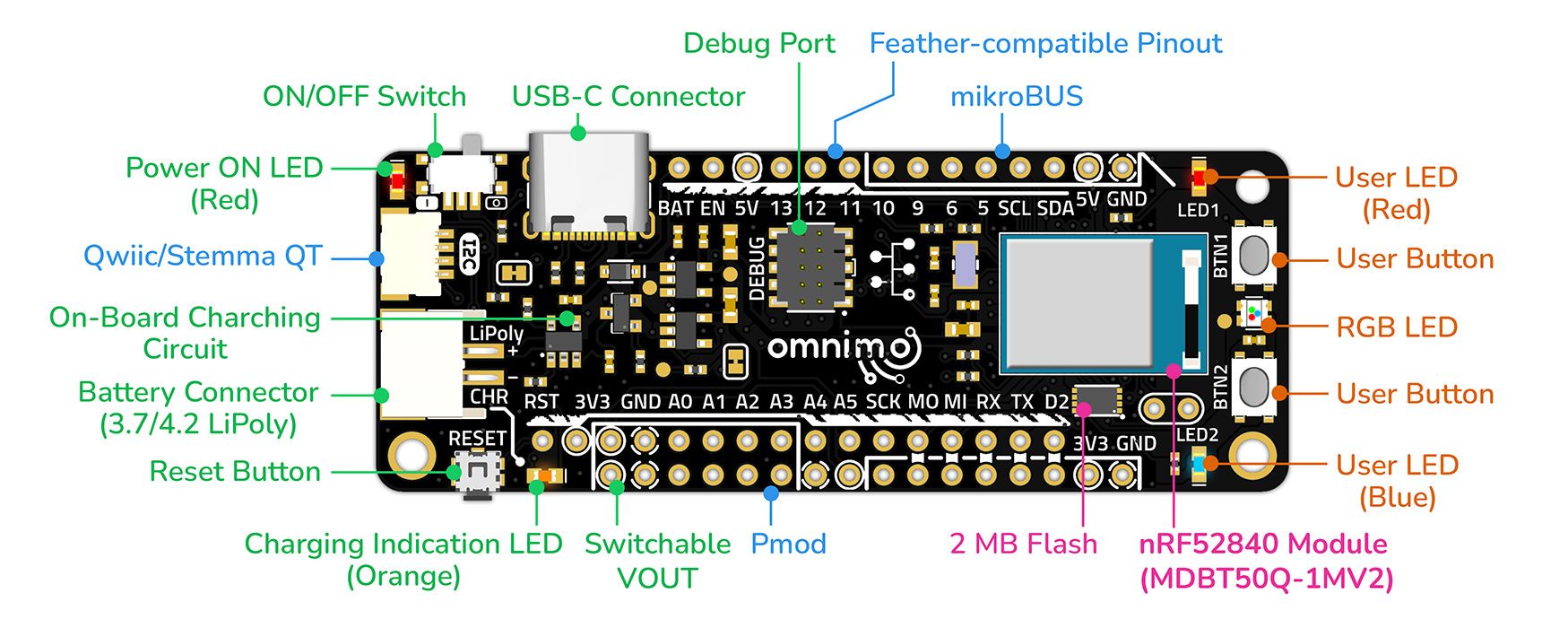

Features & Specifications

• Based on Nordic Semiconductor's nRF52840 (MDBT50Q-1MV2)
  • Multi-protocol: Bluetooth v5.4, Bluetooth Mesh, Thread, Matter, Zigbee, and 2.4 GHz proprietary protocols
  • 1 MB Flash and 256KB RAM
  • 2 MB of QSPI Flash for storing CircuitPython files
  • Interfaces: SPI, UART, I2C, I2S and USB
  • 12-bit, 200 KSPS ADC - 8 channels
  • 4 PWM channels
  • On-chip NFC-A tag for simplified pairing and payment solutions
  • 1.8 V to 3.3 V regulated supply for external components

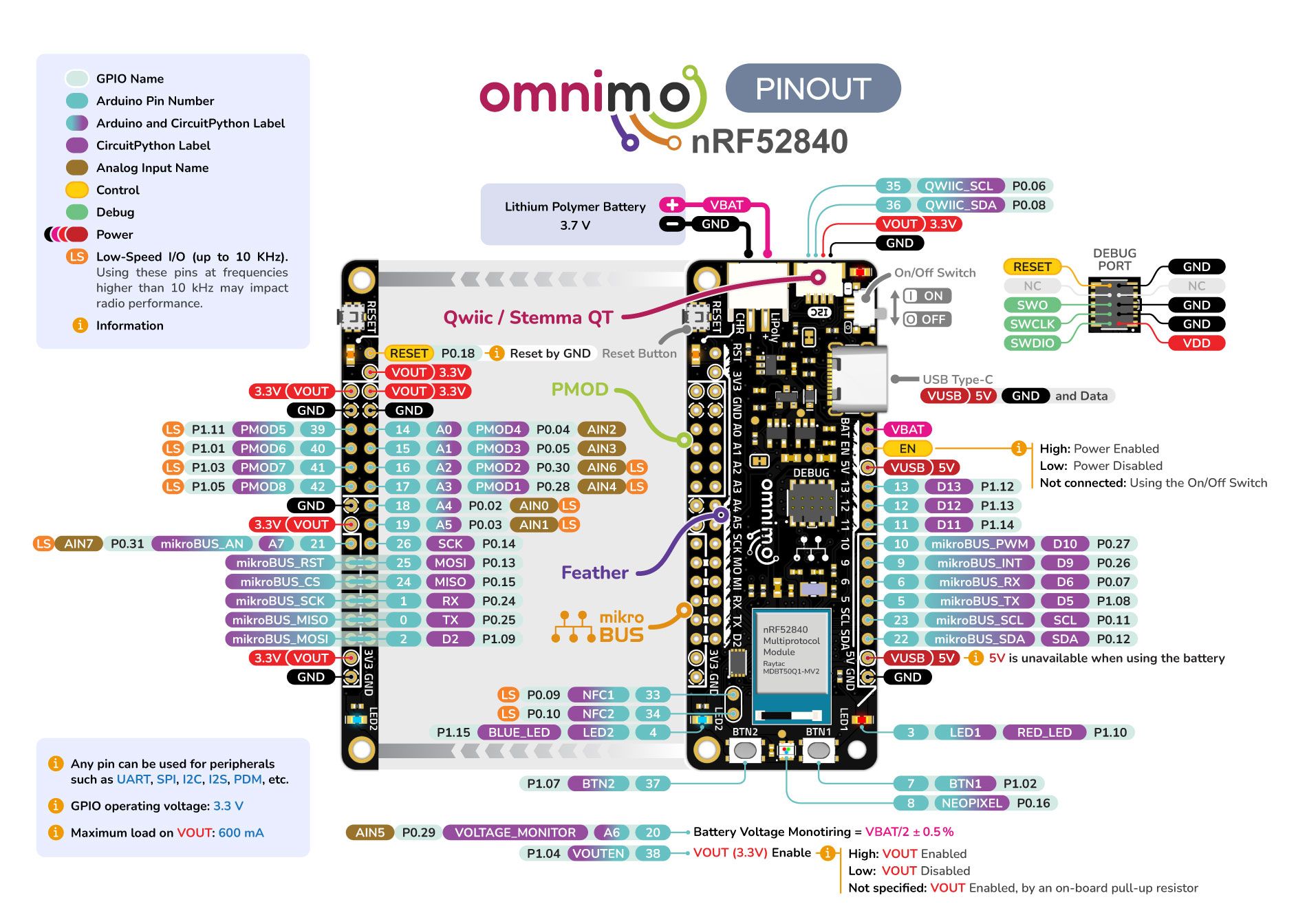

Interfaces

• mikroBUS
• 26 GPIO pins, Feather-compatible layout
• Pmod
• Qwiic/Stemma QT
• Three programming options: USB, SWD debug connector, or OTA
• Supported programming tools: Arduino IDE, CircuitPython, and Nordic nRF Connect SDK

Power

• Battery connector to connect 3.7-4.2 V Lithium-polymer battery
• On-board 3.3 V LDO regulator
• An additional controllable LDO regulator for powering modules to turn off modules when not in use

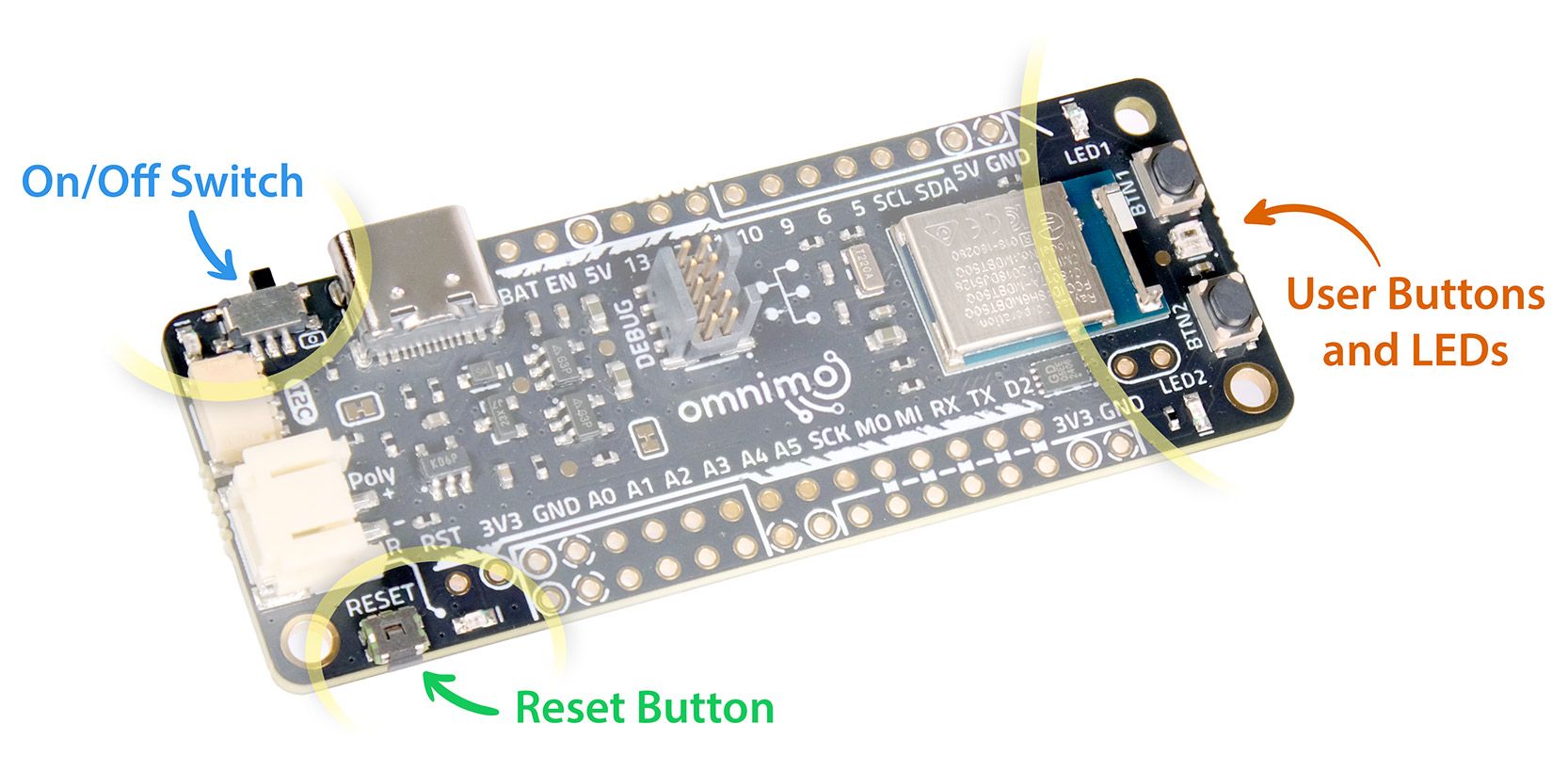

Buttons and Indicators

• Side on/off switch
• 2 user-programmable LEDs, 1 NeoPixel RGB LED
• 2 user-programmable buttons
• Side reset button

Open Source

Omnimo nRF52840 is a fully open-source project. Documentation about the board and information on how to use it will be available online soon. Design files, coding examples, and everything related to the project will be available by the end of this campaign.
