XTRX

by Fairwaves

The first ever truly embedded SDR

View all updates Sep 04, 2018

First 100 Units

The fab started shipping XTRX units to us

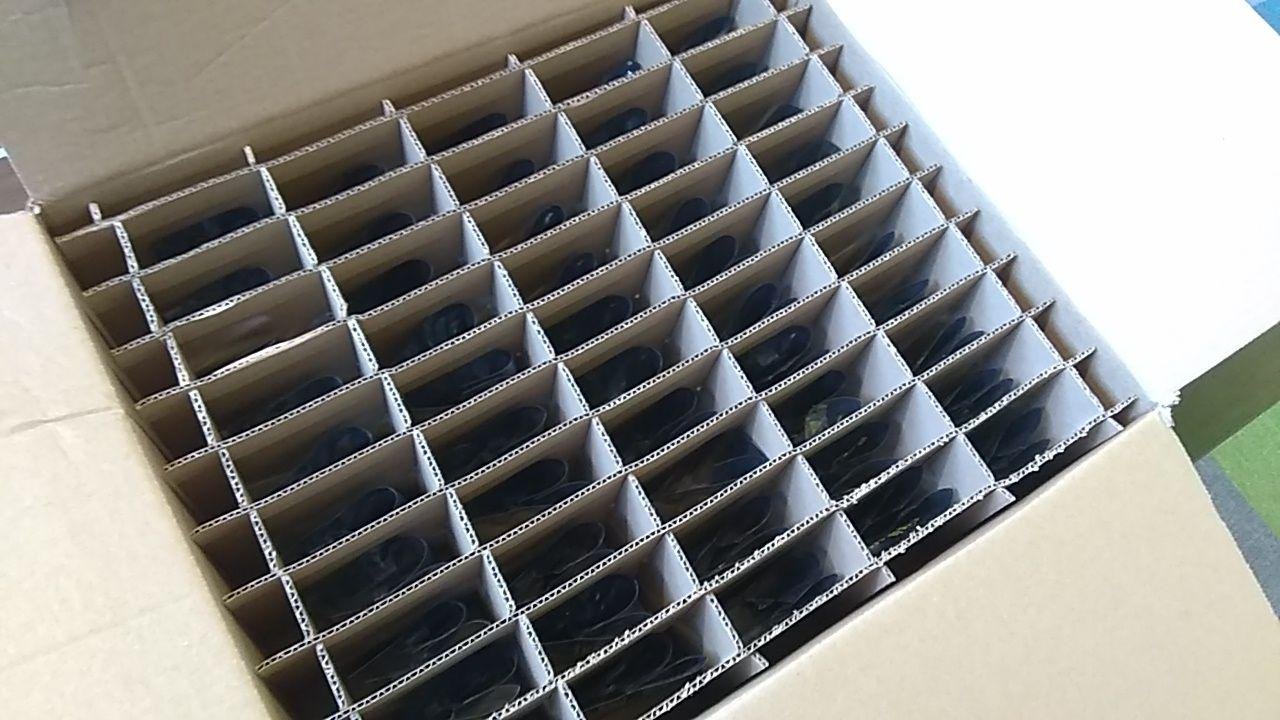

The most exciting picture of today:

This is a box with the first 100 units of XTRX we’ve received from the fab in our Boston office yesterday! Sergey and Andy are now busy preparing everything for automated testing so we can be ready to test hundreds of units quickly.

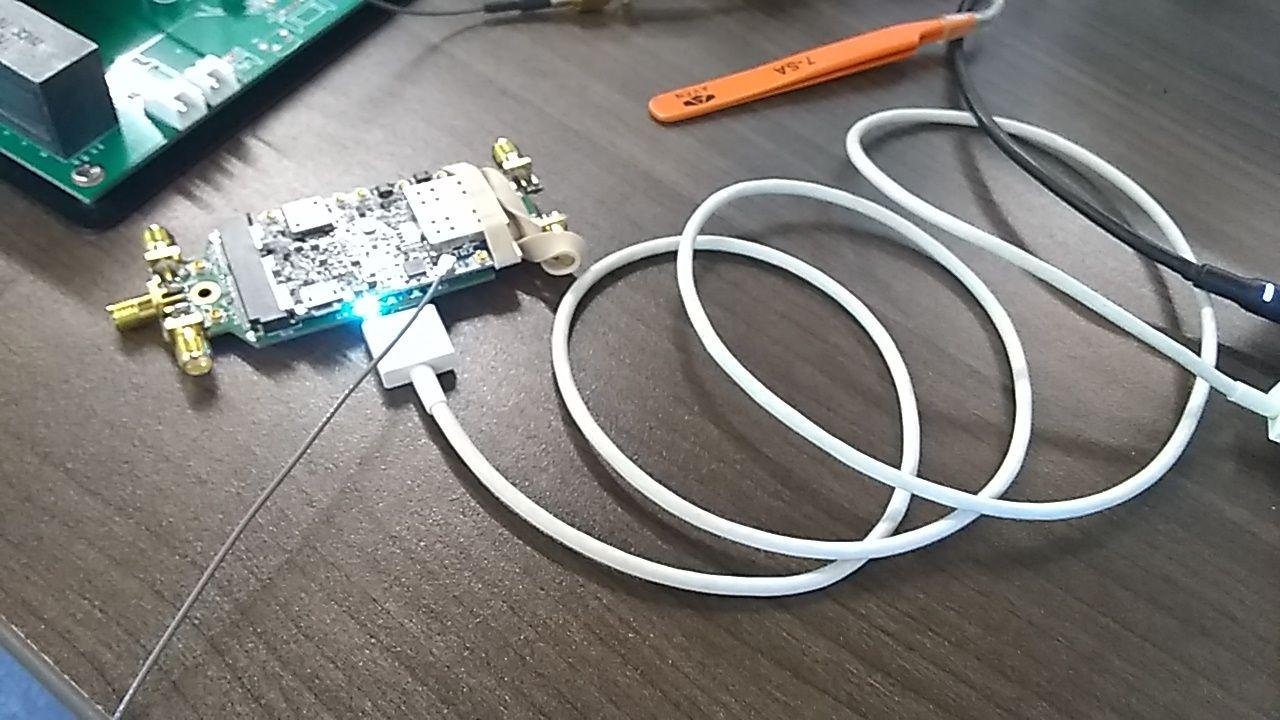

They’ve also completed manual testing of the essential functionality of one random unit from that batch to ensure that the fab didn’t make any mistakes when programming their assembly line. With no issues found so far, we can give the fab the green light to continue manufacturing the rest of the batch.

USB3 enclosure manufacturing timeline

We’ve just received an update from the fab we’re using for the USB3 enclosure manufacturing and it looks like shipping for orders with USB3 adapter will slip by a month (tentatively). Here is the timeline provided by the fab:

This means the fab will ship the enclosures to us no earlier than September 21st in the optimistic scenario. We will continue working with the fab to expedite the process but with the timeline, it looks like we’ll be able to start shipping orders with USB3 adapters (including the XTRX Delux Bundle) by the end of September or early October. We’ll keep everyone posted about the progress and any changes in this estimate. If you ordered an XTRX with a USB3 adapter and you need it urgently, please write to us and we’ll ship the XTRX to you first and ship the USB3 adapter later. If we don’t hear from you, we’ll ship everything together.


$264,478 raised

of $90,000 goal

293% Funded! Order Below

Product Choices

$550

XTRX Pro

Get an XTRX Pro board. Does not include any cables, antennas, or adapter boards.


$799

XTRX Pro Deluxe Bundle

Get an XTRX Pro board as well as an Antennas + Cables set, a PCIe x2 + Front End Adapter, and a USB 3 Adapter with Aluminum Enclosure (see below for details). Also comes with four extra U.FL-to-U.FL cables and four extra U.FL-to-SMA-male cables.


$59

Antennas + Cables

A full complement of cables and antennas for your XTRX, including four RF antennas (95 mm, 2 dBi, SMA male, GSM/3G/LTE 880 - 960 MHz, 1710 - 1990 MHz), one GPS antenna, and five cables.


$79

USB 3 Adapter with Aluminum Enclosure

This adapter converts your XTRX from Mini PCIe to USB 3 and comes with an aluminum enclosure designed specifically for XTRX. The adapter has three status LEDs, a micro USB 3 port, one SMA connector for the GPS antenna, four SMA connectors for the MIMO Tx/Rx antenna pairs, a micro SIM card slot, and a slot for a GPIO FPC cable. Comes with a USB cable and all RF cables for internally connecting an XTRX to the SMA connectors. Does not include an XTRX, antennas, or FPC cable.


$99

PCIe x2 + Front End Adapter

This PCIe card securely holds an XTRX board (not included) so it can be used in a standard PCIe x4 slot. It includes an RF front end with a LNA and PA for up to 100 mW output on each channel. A TDD switch is incorporated for applications like TDD LTE. You can bypass the front end by attaching cables directly to XTRX. This adapter achieves the full 10 Gbit/s raw bus bandwidth and can be plugged into x4/x8/x16 PCIe slots. A six-pin JTAG connector makes it easy to program and debug the FPGA. A micro SIM card slot is also present.


$5,999

XTRX Pro PCIe Octopack

This single PCIe card comes loaded with eight (8!) removable XTRX Pro boards, metal installation brackets, enough cables for all GPS and MIMO Tx/Rx ports, and a special board for synchronizing all eight XTRX Pro boards.


$2,500

XTRX Pro Early Access

Here's your chance to get an XTRX Pro board right away. We'll send you an XTRX Pro prototype board within two weeks of you placing your order and we'll follow up with a production version as soon as they come off the assembly line. Only a handful available.
