XTRX

by Fairwaves

The first ever truly embedded SDR

View all updates Jun 14, 2016

First Post! It’s Tiny!

Now that Umtrx 2.3.1 is out, we wanted to give you a sneak peak at the next SDR board we’ve been working on. We’re calling it XTRX.

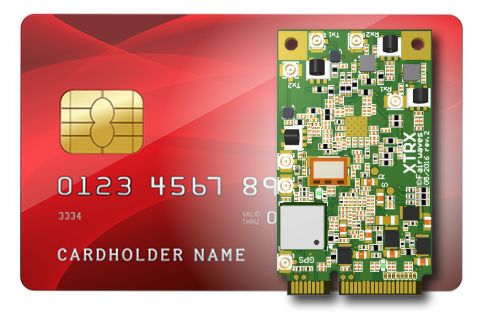

Andrey Sviyazov just finished the design and here is a render against a credit card to give you an idea of size.

Yes it’s really that small! The XTRX is a high performance/high bandwidth software defined radio (SDR) board that is specifically designed to support innovations around high data rate applications like 4G/5G and massive MIMO.

We also think the networks of the future will be more agile, flexible, programmable and distributed. This needs a foundation in great hardware. XTRX is our attempt to solve for that and make such hardware accessible.

Watch this blog/twitter for more updates as we make this real. Feel free to send feedback, early comments/interests to xtrx@fairwaves.co.


$248,596 raised

of $90,000 goal

276% Funded! Order Below

Product Choices

$550

XTRX Pro

Get an XTRX Pro board. Does not include any cables, antennas, or adapter boards.


$799

XTRX Pro Deluxe Bundle

Get an XTRX Pro board as well as an Antennas + Cables set, a PCIe x2 + Front End Adapter, and a USB 3 Adapter with Aluminum Enclosure (see below for details). Also comes with four extra U.FL-to-U.FL cables and four extra U.FL-to-SMA-male cables.


$59

Antennas + Cables

A full complement of cables and antennas for your XTRX, including four RF antennas (95 mm, 2 dBi, SMA male, GSM/3G/LTE 880 - 960 MHz, 1710 - 1990 MHz), one GPS antenna, and five cables.


$79

USB 3 Adapter with Aluminum Enclosure

This adapter converts your XTRX from Mini PCIe to USB 3 and comes with an aluminum enclosure designed specifically for XTRX. The adapter has three status LEDs, a micro USB 3 port, one SMA connector for the GPS antenna, four SMA connectors for the MIMO Tx/Rx antenna pairs, a micro SIM card slot, and a slot for a GPIO FPC cable. Comes with a USB cable and all RF cables for internally connecting an XTRX to the SMA connectors. Does not include an XTRX, antennas, or FPC cable.


$99

PCIe x2 + Front End Adapter

This PCIe card securely holds an XTRX board (not included) so it can be used in a standard PCIe x4 slot. It includes an RF front end with a LNA and PA for up to 100 mW output on each channel. A TDD switch is incorporated for applications like TDD LTE. You can bypass the front end by attaching cables directly to XTRX. This adapter achieves the full 10 Gbit/s raw bus bandwidth and can be plugged into x4/x8/x16 PCIe slots. A six-pin JTAG connector makes it easy to program and debug the FPGA. A micro SIM card slot is also present.


$5,999

XTRX Pro PCIe Octopack

This single PCIe card comes loaded with eight (8!) removable XTRX Pro boards, metal installation brackets, enough cables for all GPS and MIMO Tx/Rx ports, and a special board for synchronizing all eight XTRX Pro boards.


$2,500

XTRX Pro Early Access

Here's your chance to get an XTRX Pro board right away. We'll send you an XTRX Pro prototype board within two weeks of you placing your order and we'll follow up with a production version as soon as they come off the assembly line. Only a handful available.

Credits

Fairwaves

We are a vertically integrated vendor of cellular equipment focused on the needs of emerging markets. We are developing, manufacturing, deploying, and operating turn-key cellular network solutions including radio equipment, towers, power and backhaul all the way to a core network and SS7 interconnect. Our team has been building software-defined radios and systems based on them since 2009 and is well known for its ClockTamer, UmTRX, and UmSITE products.


Alexander Chemeris

CTO

Sergey Kostanbaev

Software & Firmware Development

Andrey Sviyazov

Hardware Design

Albert Gardiner

CEO

Andrey Bakhmat

Marketing

Andy Avtushenko

Manufacturing
