NRFICE enables dongle-free debugging with an officially licensed, built-in SEGGER JLink-OB. JLink-OB ("OB" standing for "On-Board") is a professional debugging solution running on a dedicated MCU. The JLink-OB implementation on NRFICE includes SWD debugging, a VCOM virtual COM port over USB, and target MCU flash memory downloading.

Typically, JLink-OB is designed into MCU evaluation boards by the chip maker. For instance, the nRF5340 Audio DK from Nordic Semiconductor features a JLink-OB hosted on a second nRF5340.

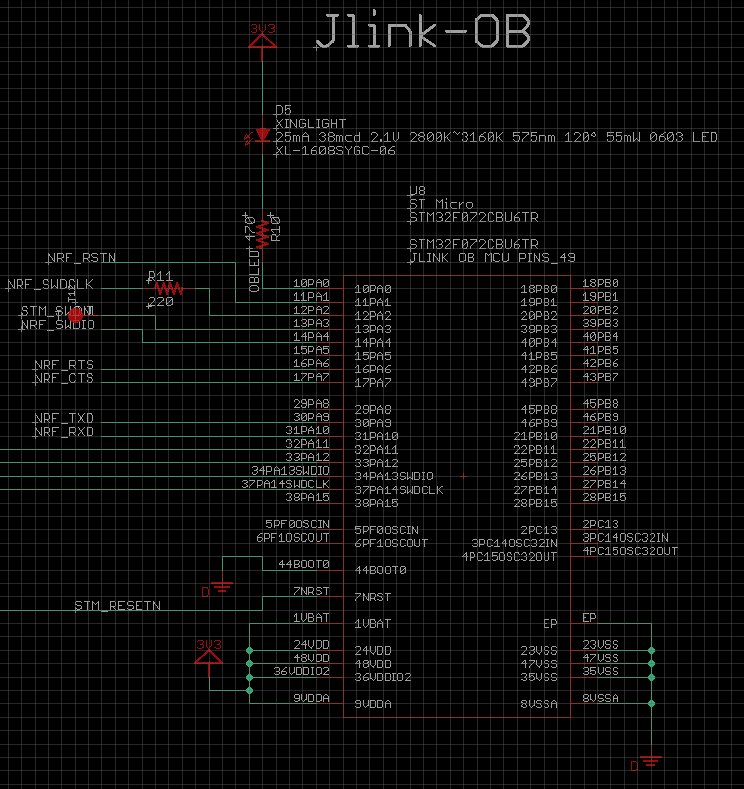

The NRFICE JLink-OB is similarly hosted on an ST Micro STM32F072CBU6.

Let’s see how we can configure NRFICE to operate using a single USB-C cable to provide all:

• Board power
• SWD Debugging
• VCOM communications

The power routing header allows configuration of the board power source from any of these:

• 9V-12V AC adapter
• USB-C connected to nRF5340
• USB-C connected to STM8 (JLink-OB)

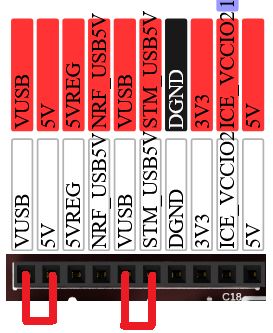

In order to simultaneously power the board, debug, and communicate via the VCOM port, apply shunts to the power header as follows:

1. Connect the VUSB net to STM_USB5V to source USB power from the JLink-OB port.

2. Connect the VUSB Net to 5 V so that the five-volt net is sourced from USB, rather than the AC adapter.

With this configuration, the NRFICE board is ready for development on-the-go with no other cabling or tools needed than a single USB-C cable.
