IQ Fortiq BLS42

by IQ Motion Control

Compact, high-performance servo motors for industrial and robotics applications

View all updates Jun 17, 2021

IQ Fortiq Modules are now compatible with NEMA mounting standards!

by Jon B

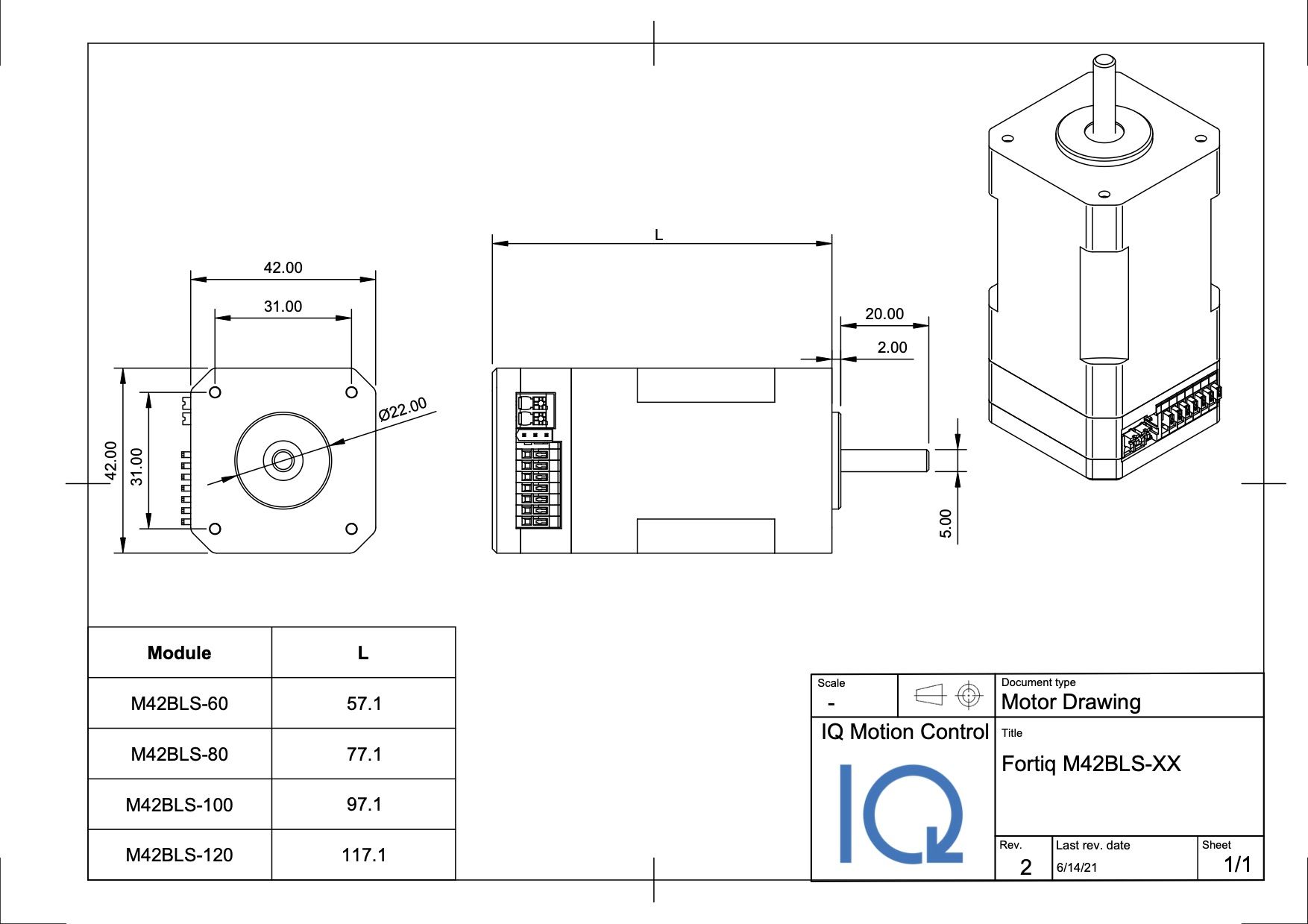

Due to a number of requests, IQ is redesigning the Fortiq’s mounting holes to match the NEMA 17 standard. Please see the updated drawing below. This new drawing will be reflected in IQ’s datasheets in the next week.

NEMA is a US-based association that sets manufacturing standards based on a consensus from manufacturers. Industrial standards are in place to give mechanical designers confidence they’ll be able to use off-the-shelf parts without the need for significant customization.

NEMA 17 motors have a 31 mm hole pattern, while the Fortiq BLS42s previously had a 25.4 mm hole pattern, which is the standard for BLDC servomotors in certain parts of the world. In order to achieve our goal of replacing both stepper and servo motors with the Fortiqs, we decided it was best to change to the more common NEMA standards.

We greatly appreciate feedback from our backers that helps us make this product a better drop-in replacement for NEMA 17 stepper motors. If you were planning around the previous hole pattern and this change will be a problem for you, please reach out to us as soon as possible. We will work with you to deliver a product that works for your application.

About the Author

Jon B

 Philadelphia, PA


$14,280 raised

of $10,000 goal

142% Funded! Order Below

Product Choices

$150

IQ Fortiq M42BLS-60

This IQ Fortiq BLS42 module is designed for industrial and robotic applications that require maximum torque, precision, and efficiency with minimal vibration. The M42BLS-60 is the smallest member of IQ’s Fortiq BLS42 line and has a rated torque of 0.063 Nm.


$164

IQ Fortiq M42BLS-80

This IQ Fortiq BLS42 module is designed for industrial and robotic applications that require maximum torque, precision, and efficiency with minimal vibration. The M42BLS-80 has a rated torque of 0.125 Nm.


$178

IQ Fortiq M42BLS-100

This IQ Fortiq BLS42 module is designed for industrial and robotic applications that require maximum torque, precision, and efficiency with minimal vibration. The M42BLS-100 has a rated torque of 0.185 Nm.


$192

IQ Fortiq M42BLS-120

This IQ Fortiq BLS42 module is designed for industrial and robotic applications that require maximum torque, precision, and efficiency with minimal vibration. The M42BLS-120 is the largest member of IQ’s Fortiq BLS42 line and has a rated torque of 0.25 Nm.

Credits

IQ Motion Control

Born out of the University of Pennsylvania’s robotics lab, IQ Motion Control is a tech startup that delivers the ultimate drone motor module for versatility and performance.


Jon Broome

Matt Piccoli

Sarah Baig
