A Software-Definable RF Front End Module for LimeSDR Platforms

View all updates Jul 12, 2019

Schematics Published

by Andrew Back

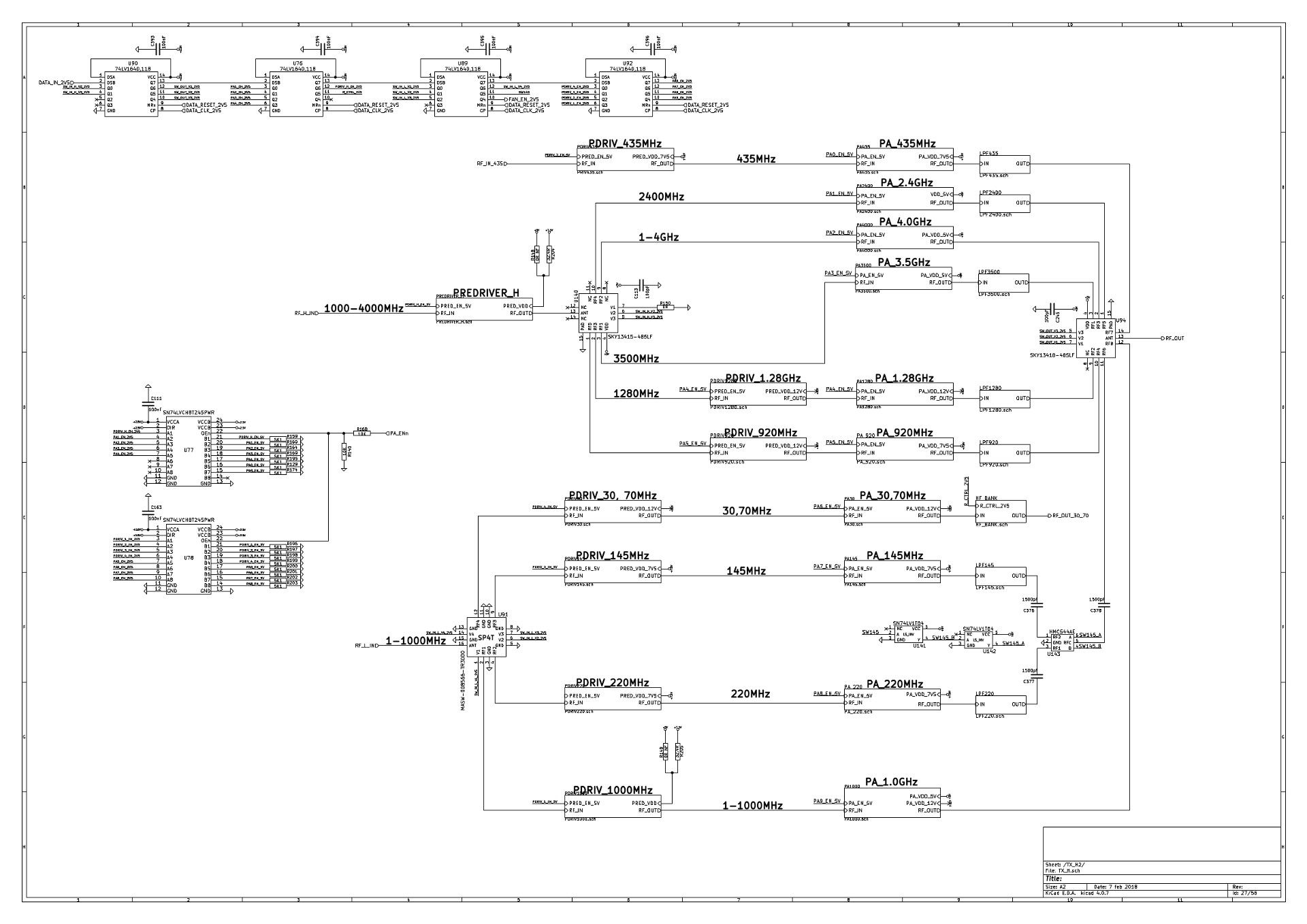

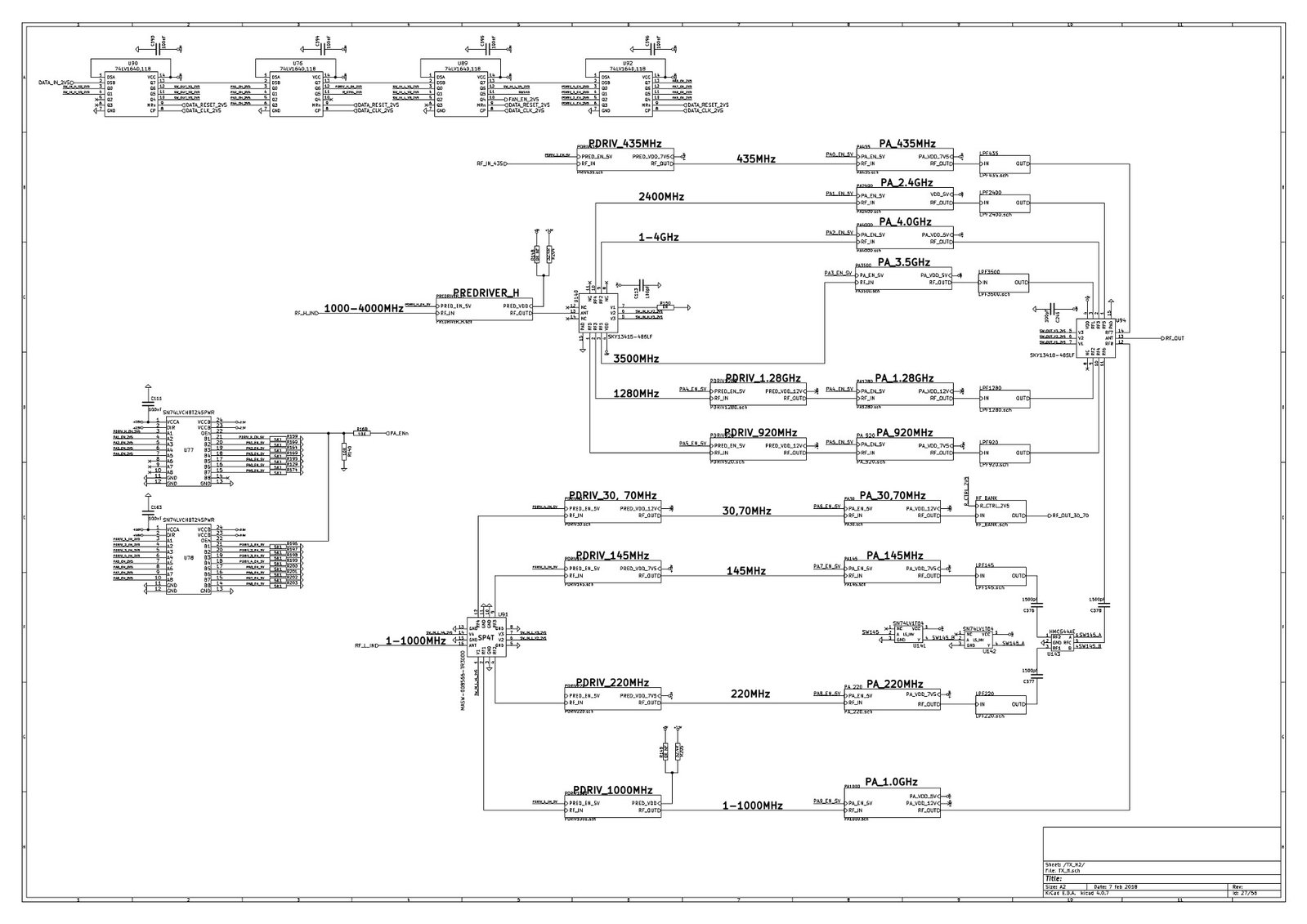

We’ve had a number of requests to share the LimeRFE schematic diagrams, and we’re pleased to report that they are now available on our new LimeRFE hardware design repository. As with all MyriadRF projects, LimeRFE will be fully open hardware. In due course, we will publish our full design database, which will include the board layout, the Bill of Materials, etc.

In the meantime we encourage you to take a look at the schematics, which are provided both in PDF form and as a KiCAD project. We would appreciate any feedback you might have. You can send us your thoughts and recommendations through the campaign page or via the GitHub issue tracker.

Finally, as noted on the campaign page, these specifications are preliminary. Should we receive further suggestions from the community, we will do our very best to incorporate them.
