View all updates Jul 06, 2021

FreeEEG32's early history and a cool demo

by Joshua Brewster

Hello once again.

First off, thank you all so much who’ve backed our project already. You’re awesome and your support goes a very long way.

We wanted to show you some of the 19 channel headset data live streaming this week, but we are still waiting on some more footage. Instead, we are going to show you some of the process that went into creating the FreeEEG32.

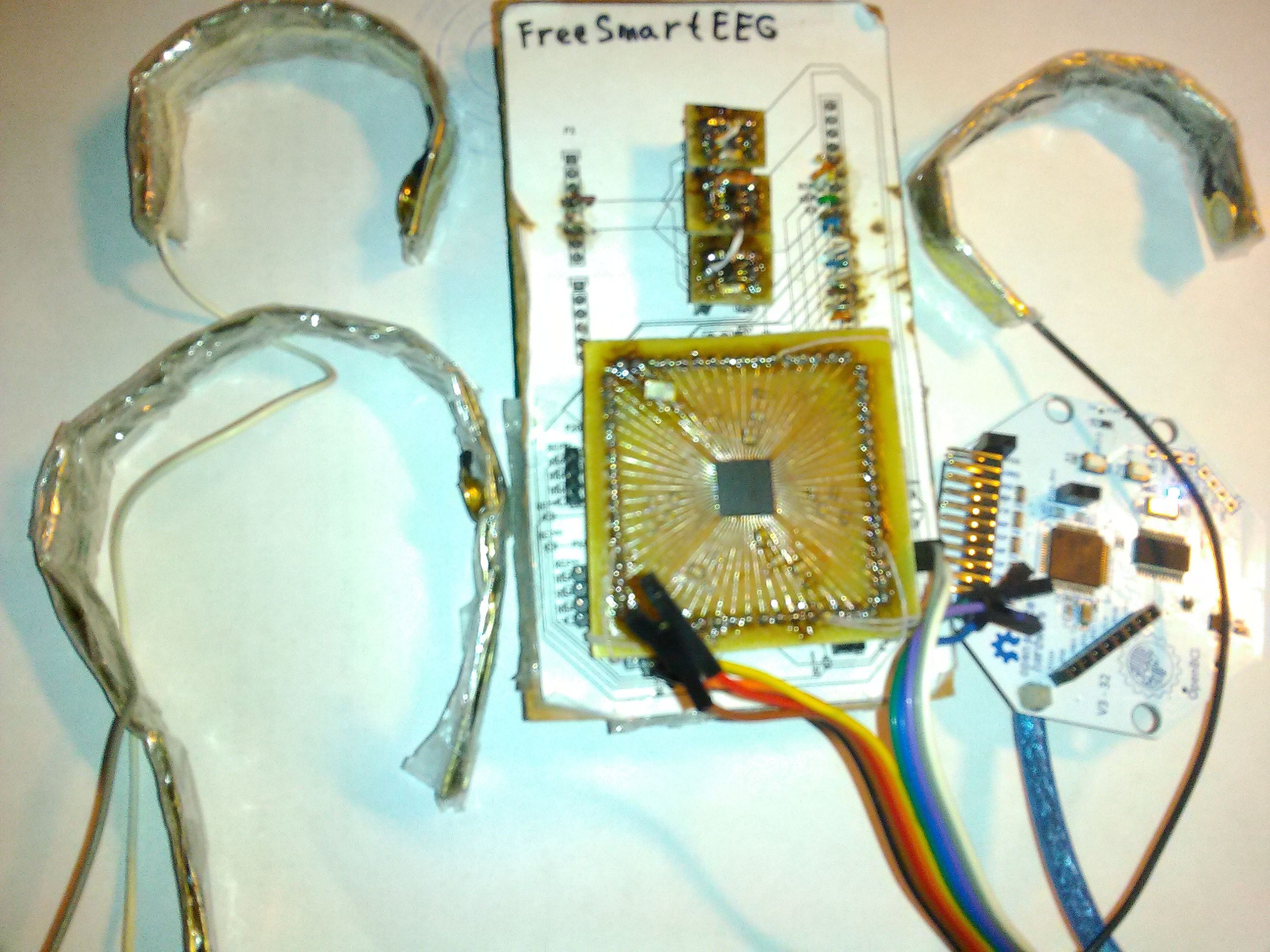

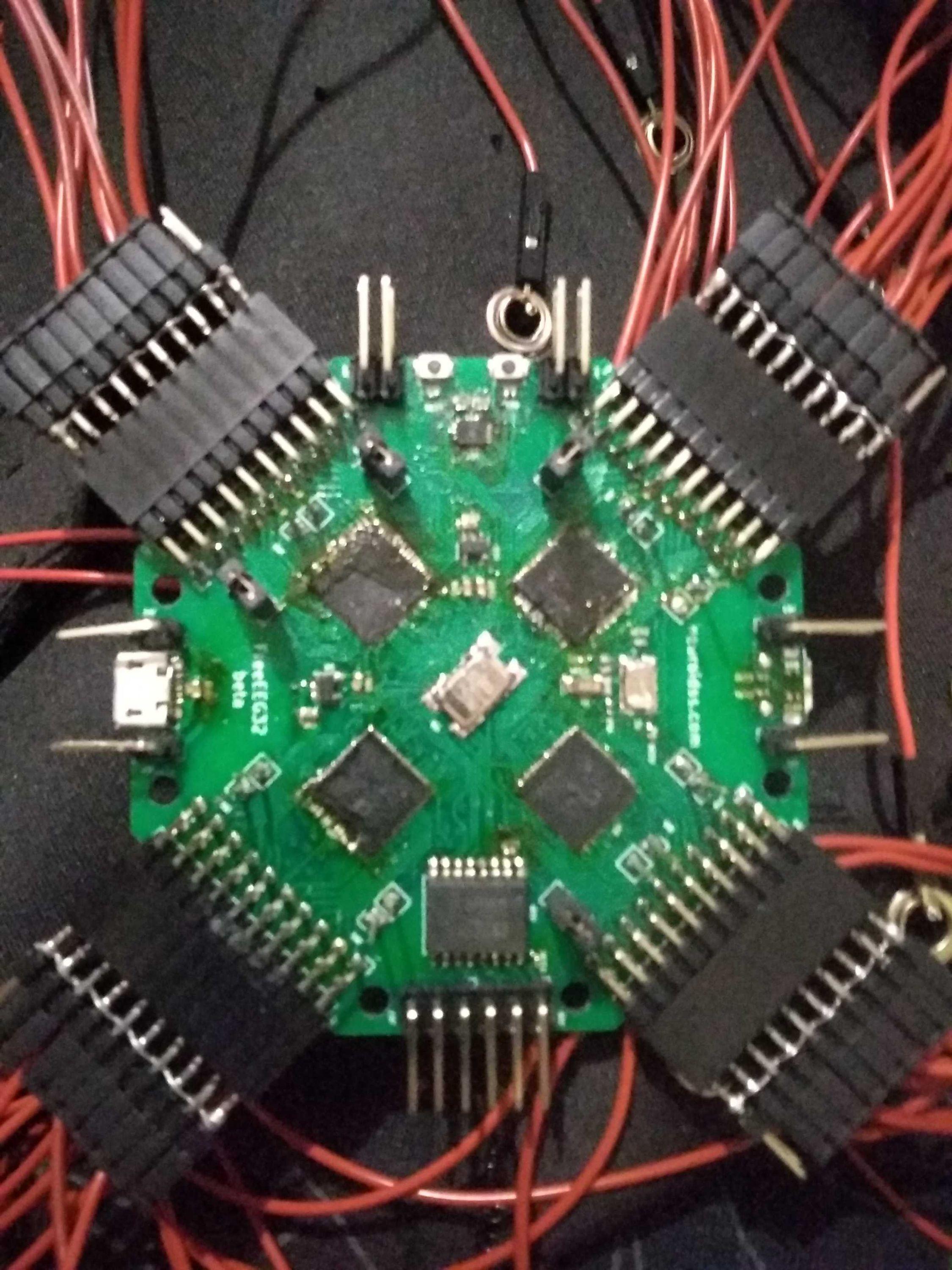

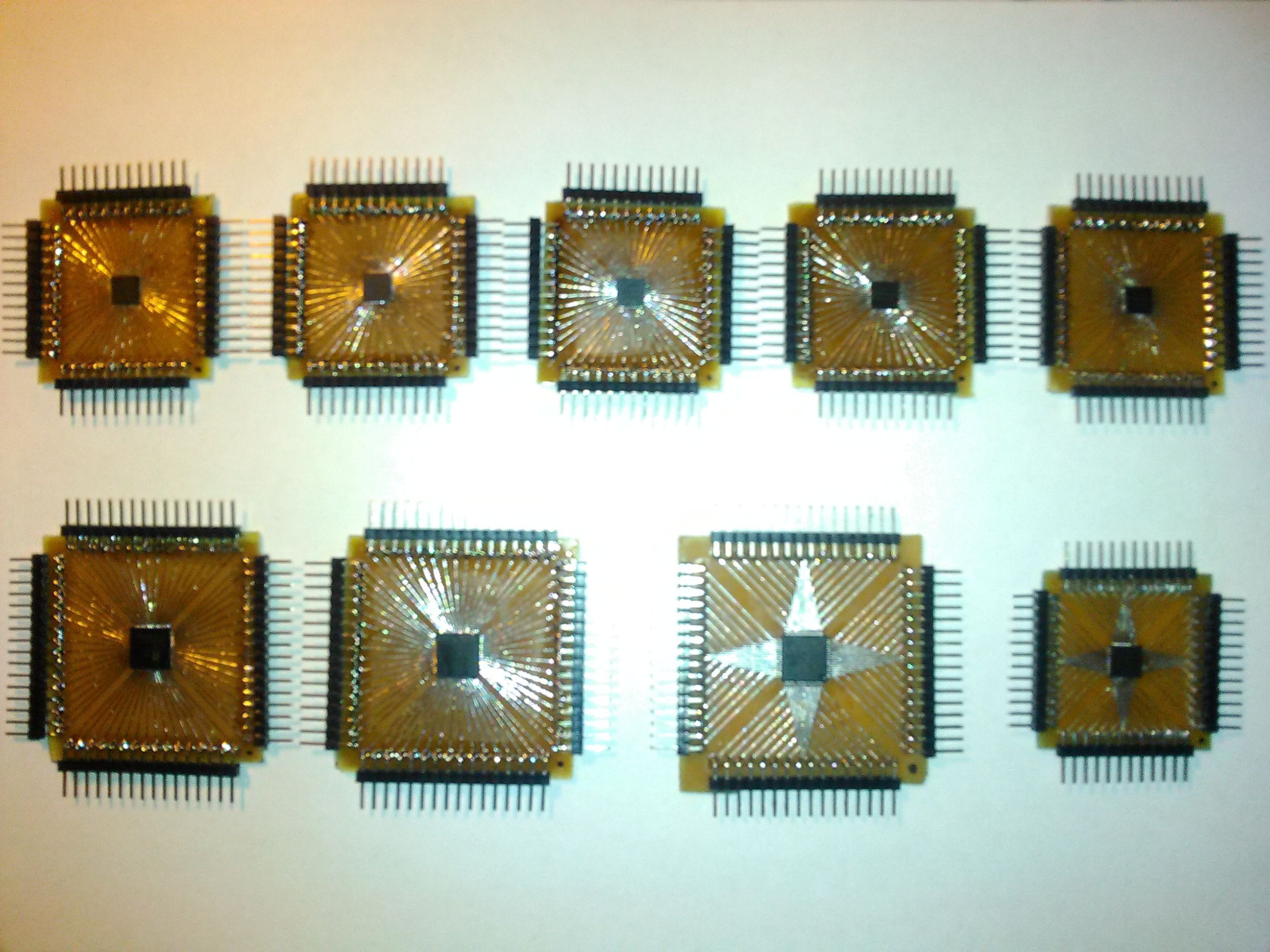

Dmitry designed this project all by hand in Russia by himself. Since 2016, he’s been working on the project by hand-etching his own PCBs (including hand-soldering the first several of the boards you see advertised), using free samples from manufacturers, and developing experimental but functional setups including ECG, 64-channel Linux boards, and tACS (transcranial Alternating Current Stimulation) - which has since turned into a formal undertaking to help a group of developers in India.

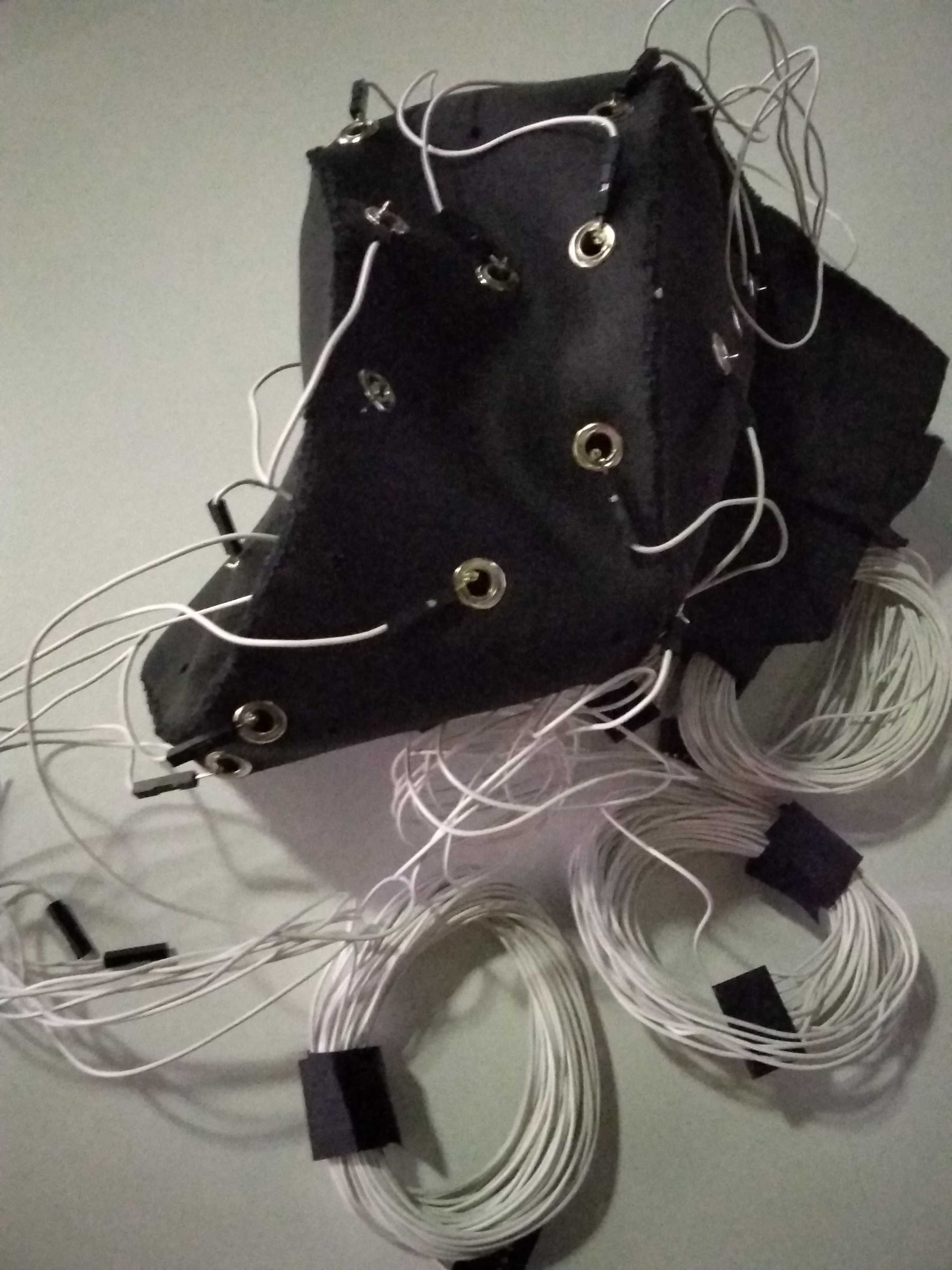

You can see he even came up with his own handmade 32-channel headset design using pogo-pins soldered to grommets sewn into neoprene, which you can ask Dmitry about as a potential low-cost headset option.

Lastly, here’s another video by Dmitry showing off 32-channel, 8-12 Hz coherence being used to modulate an abstract art neural network:

About the Author

Joshua Brewster

moothyknight  ·   Fairbanks, AK


$10,415 raised

of $10,000 goal

104% Funded! Order Below

Product Choices

$250

FreeEEG32

32 simultaneously sampling 24-bit channels of pure EEG goodness! The software is plug-and-play and the device enjoys growing support within BCI-community projects. Comes pre-flashed with the latest firmware. Includes two USB cables and an STM32F103 blue pill with CMSIS-DAP firmware pre-loaded for flashing your own EEG firmware.


$870

Custom 2-Channel Headset, FreeEEG32 Board, and Accessories

A 2-channel headset—custom manufactured in Europe by Bernard Markus—and a FreeEEG32 board that has been optimized to work with it. The board includes spring-loaded connectors (pre-soldered), a 3D-printed enclosure, a USB cable assembly, a marker button, two USB cables, and an STM32F103 Blue Pill for flashing. The headset comes with a protective case, thumb nuts, spare Florida Research Instruments electrode pads, a tube of One Step abrasive EEG gel, and printed instructions. (Video tutorials are available online.) The 2-channel headset also comes with a shirt clip for the EEG case.


$1,150

Custom 19-Channel Headset, FreeEEG32 Board, and Accessories

A 19-channel headset—custom manufactured in Europe by Bernard Markus—and a FreeEEG32 board that has been optimized to work with it. The board includes spring-loaded connectors (pre-soldered), a 3D-printed enclosure, a USB cable assembly, a marker button, two USB cables, and an STM32F103 Blue Pill for flashing. The headset comes with a protective case, thumb nuts, spare Florida Research Instruments electrode pads, a tube of One Step abrasive EEG gel, and printed instructions. (Video tutorials are available online.) The 19-channel headset also comes with an ear-clip back plate, 40x blue sponges for short hair, 40x yellow sponges for long hair, two meters of spare elastic wire for DIY repair, and a flex-PCB electrode strip with snap connectors and pre-soldered, silicone-coated, gold-plated electrodes.
