FreeEEG32

by NeuroIDSS

Affordable, stackable, open source, 32-channel EEG ADC powered by a Cortex-M7

View all updates Jun 24, 2021

Making Progress on the FreeEEG32

by Joshua Brewster

Since we announced this Crowd Supply campaign back in October, we’ve made quite a bit of progress developing support for the system. We’ve added various demonstrations of its applicabiltiy, research interest, and realtime analysis support to our increasingly fully featured Brains@Play software.

For example, check out Dmitry’s application of 8 channel EEG bandpower data to a Generative Adversarial Network to modify these anime images:

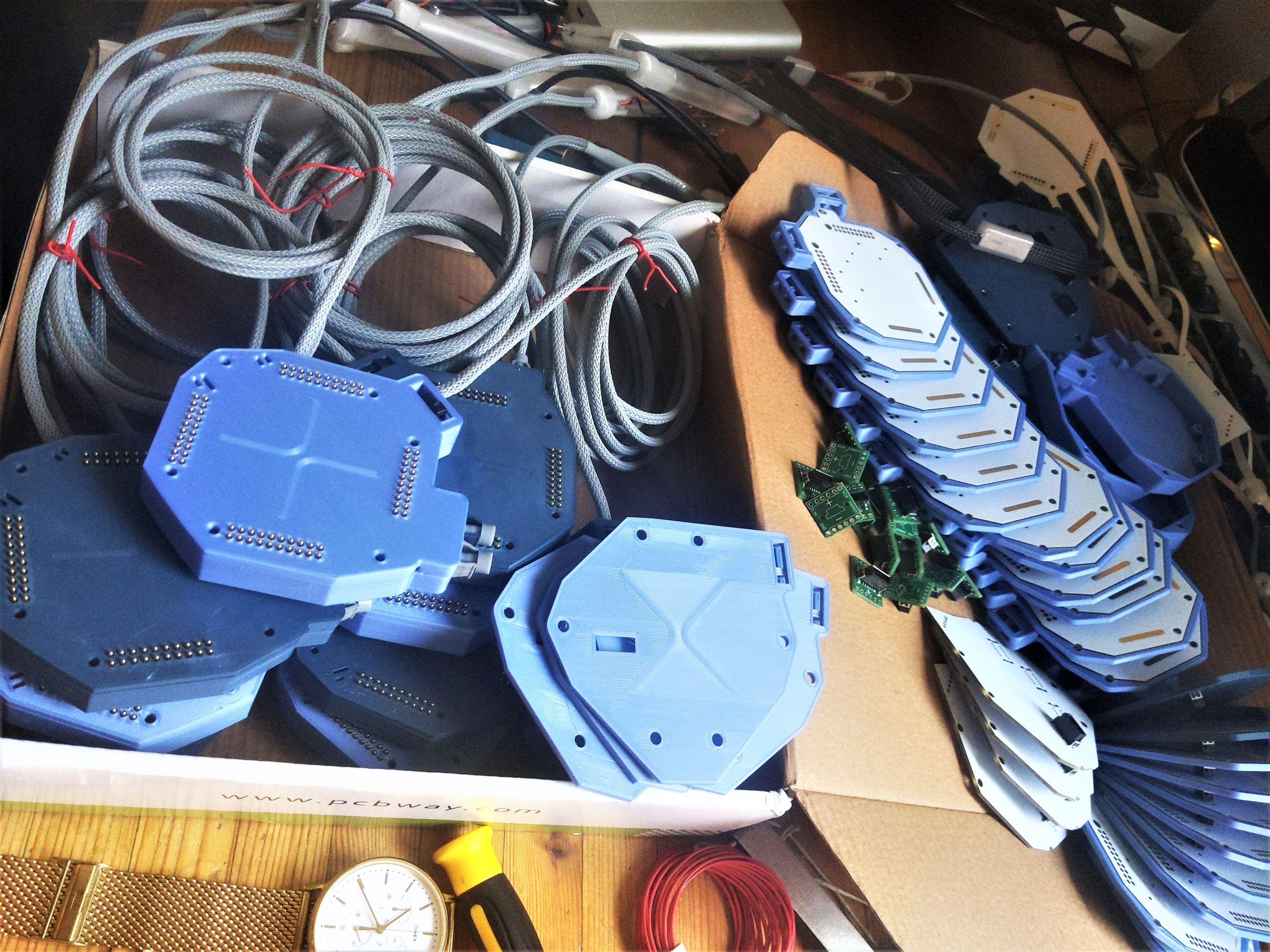

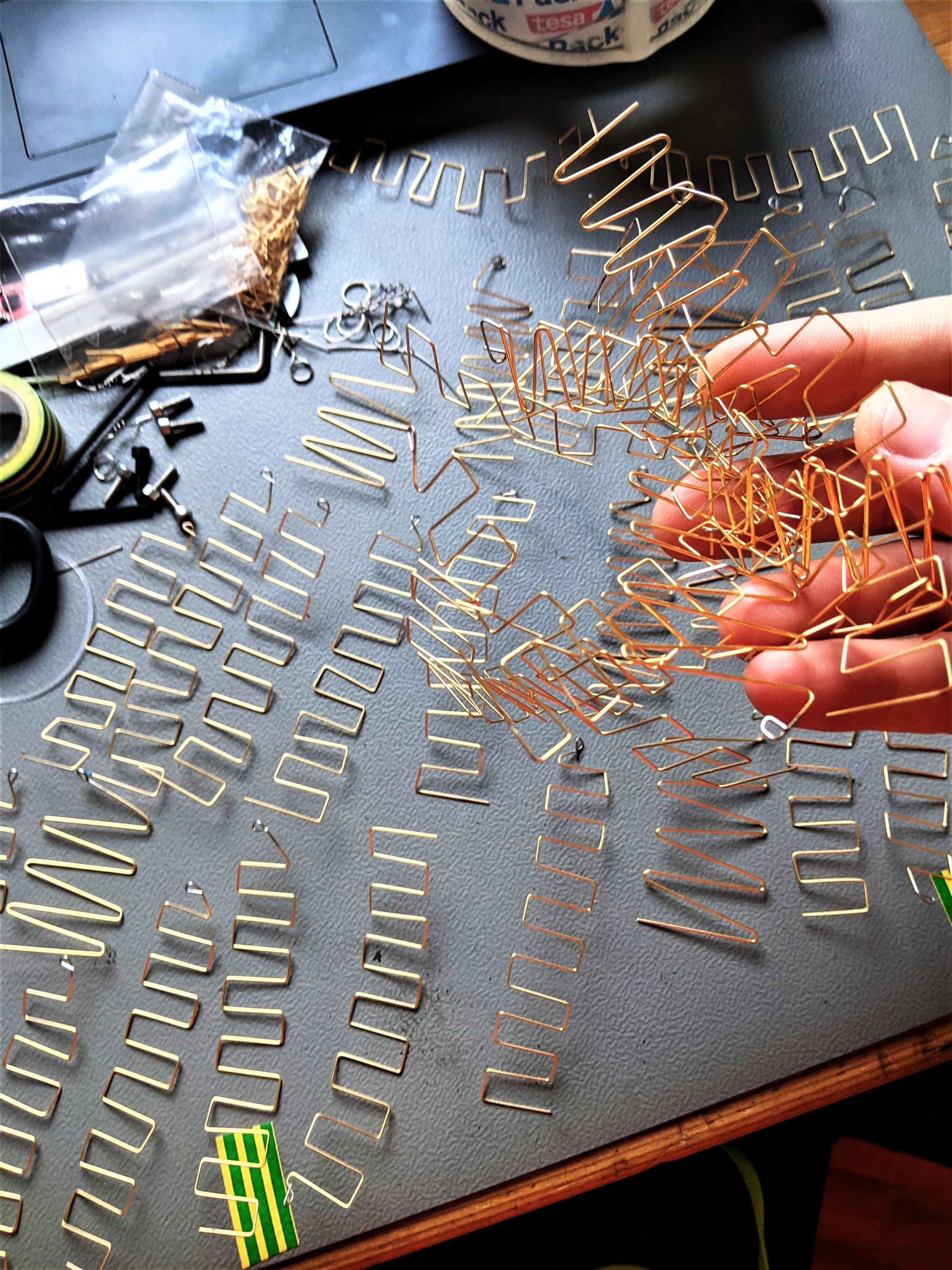

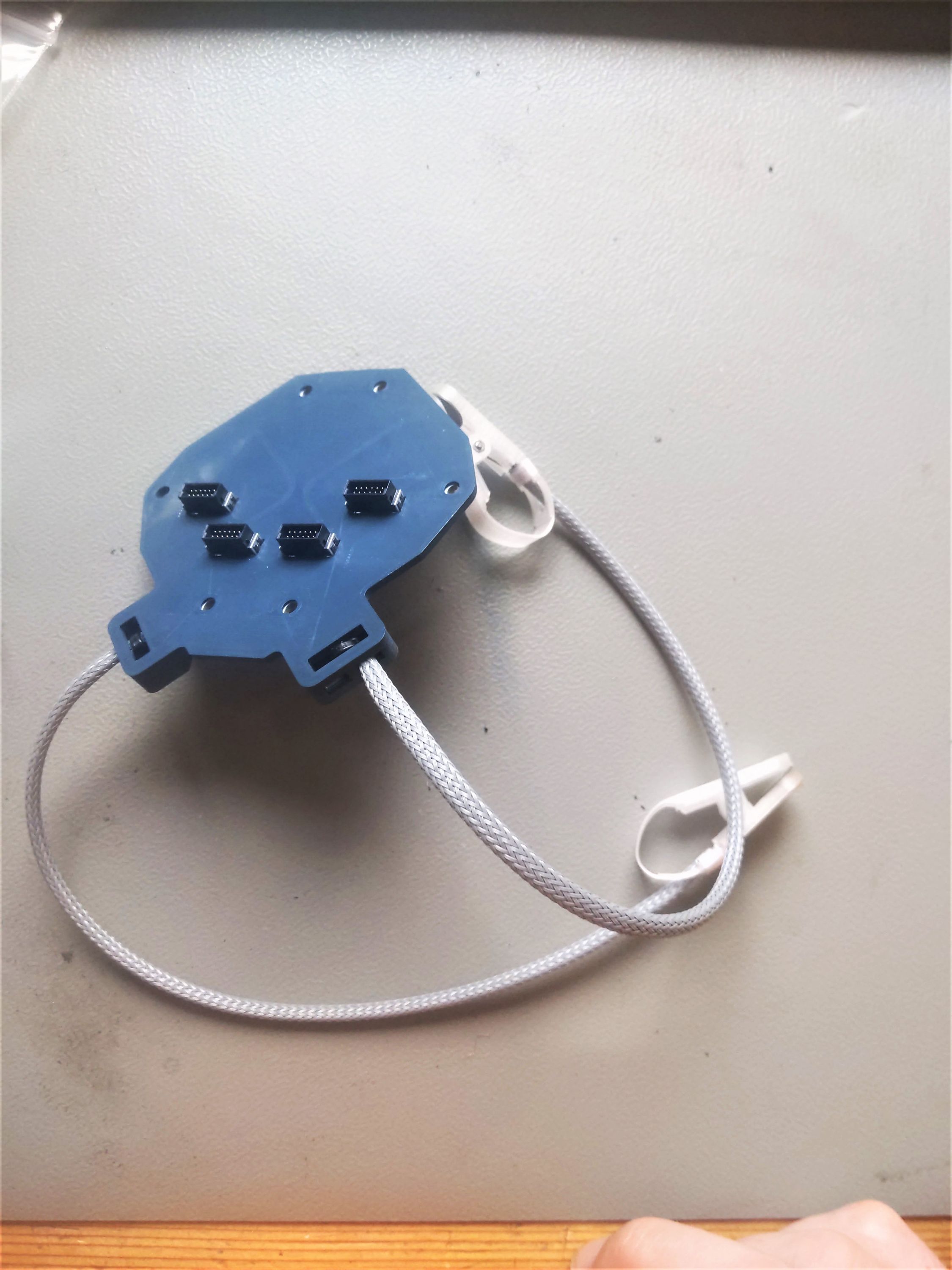

Bernard has also made quite a few advancements in his headset designs, including noise-free optical ports, 14 auxillary ports for the unused channels on the headsets, and continued refinement of the 19 channel net design.

Next week, we’ll show some live 19 channel acquisition with Bernard’s headset.

About the Author

Joshua Brewster

moothyknight  ·   Fairbanks, AK


$10,813 raised

of $10,000 goal

108% Funded! Order Below

Product Choices

$250

FreeEEG32

32 simultaneously sampling 24-bit channels of pure EEG goodness! The software is plug-and-play and the device enjoys growing support within BCI-community projects. Comes pre-flashed with the latest firmware. Includes two USB cables and an STM32F103 blue pill with CMSIS-DAP firmware pre-loaded for flashing your own EEG firmware.


$870

Custom 2-Channel Headset, FreeEEG32 Board, and Accessories

A 2-channel headset—custom manufactured in Europe by Bernard Markus—and a FreeEEG32 board that has been optimized to work with it. The board includes spring-loaded connectors (pre-soldered), a 3D-printed enclosure, a USB cable assembly, a marker button, two USB cables, and an STM32F103 Blue Pill for flashing. The headset comes with a protective case, thumb nuts, spare Florida Research Instruments electrode pads, a tube of One Step abrasive EEG gel, and printed instructions. (Video tutorials are available online.) The 2-channel headset also comes with a shirt clip for the EEG case.


$1,150

Custom 19-Channel Headset, FreeEEG32 Board, and Accessories

A 19-channel headset—custom manufactured in Europe by Bernard Markus—and a FreeEEG32 board that has been optimized to work with it. The board includes spring-loaded connectors (pre-soldered), a 3D-printed enclosure, a USB cable assembly, a marker button, two USB cables, and an STM32F103 Blue Pill for flashing. The headset comes with a protective case, thumb nuts, spare Florida Research Instruments electrode pads, a tube of One Step abrasive EEG gel, and printed instructions. (Video tutorials are available online.) The 19-channel headset also comes with an ear-clip back plate, 40x blue sponges for short hair, 40x yellow sponges for long hair, two meters of spare elastic wire for DIY repair, and a flex-PCB electrode strip with snap connectors and pre-soldered, silicone-coated, gold-plated electrodes.

Credits

NeuroIDSS

Mission of NeuroIDSS: Radical increase of working memory for strategical autonomy


Dmitry Sukhoruchkin

Joshua Brewster

Bernard Markus
