PL1-0 Universal Sensor Interface

by NEWSTEDER

Safely connect your microcontroller to higher-voltage sourcing and sinking industrial sensors

View all updates Jul 21, 2020

GitHub Repository & User Manual

by Harris Newsteder

The PL1-0 user manual has been released and is now available at the project’s GitHub repository.

There, you’ll also find the schematics in PDF form, all of the KiCad files, and mechanical documentation.

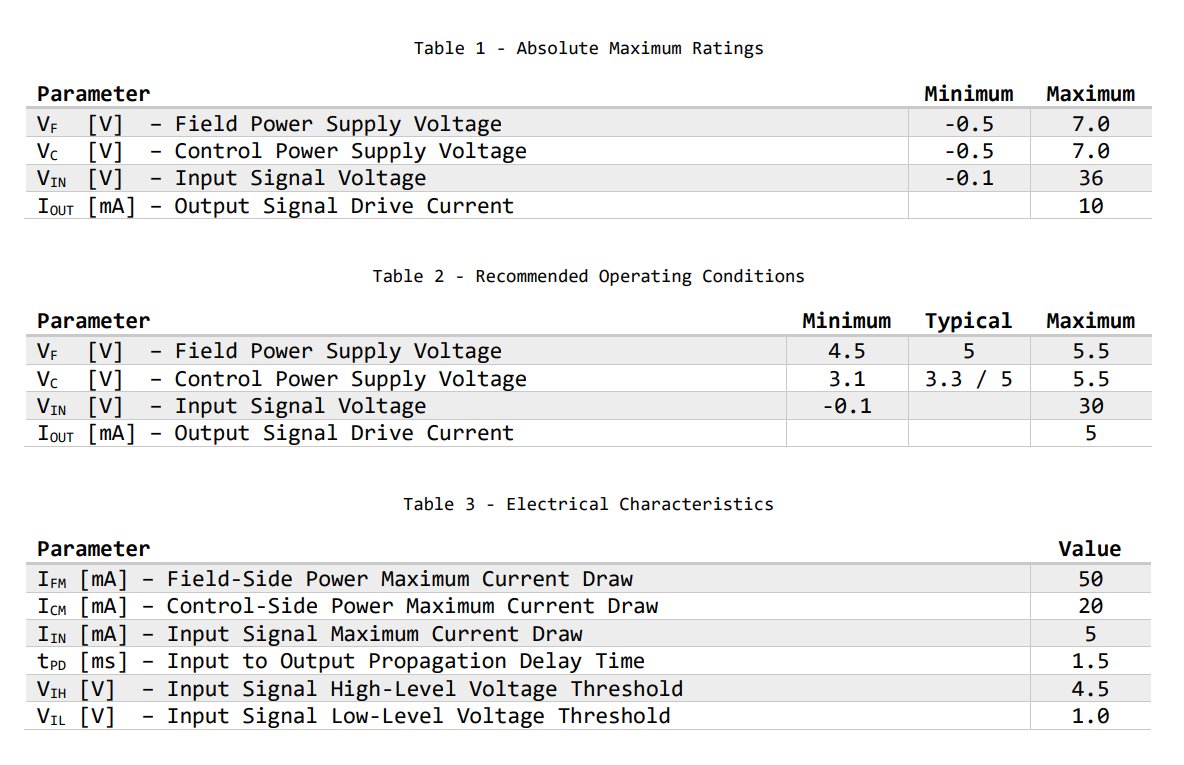

The board has been undergoing testing during the past two weeks to ensure reliable operation and to obtain the electrical characteristics of its operation.

Also be sure to check out the new website!

https://newsteder.com

About the Author

Harris Newsteder

newsteder


$1,428 raised

of $1,000 goal

142% Funded! Order Below

Product Choices

$35

PL1-0

A single PL1-0 sensor interface board.


$42

PL1-0 w/ DIN Rail Mount

A single PL1-0 sensor interface board with snap-on DIN rail mount included.

Credits

NEWSTEDER

Harris Newsteder is a Mechanical Engineer with a strong background in industrial automation and robotics.
