Perfectly sized for your wallet, this small PCB has a beautifully silkscreened resistor color chart on one side, and comprehensive SMT reference on the other.

View all updates Sep 24, 2013

First samples!

The Octopart Pocket PCB campaign continues to do extraordinarily well, thanks to everyone who’s supported us, and for spreading the word so that we’ve pushed well past 150%! The campaign has only 17 days left, so remember to keep spreading the word before the campaign closes.

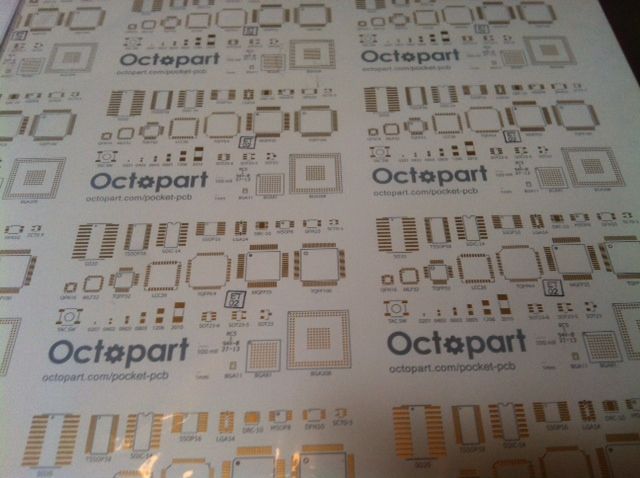

We’re pretty excited behind-the-scenes over here to have been able to place the order for test pieces, and received a sample panel back from our board fab today. They look great! Here’s a photo:

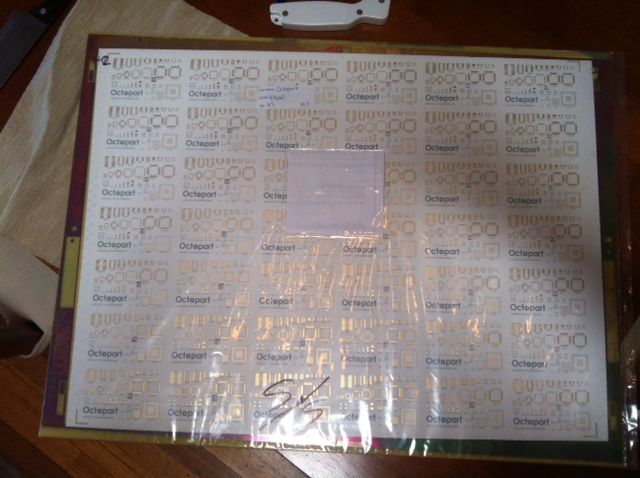

What’s incredible about this shot is that this entire panel is only 30 mils thick — exactly as thin as any card in your wallet but as large in area as more than 42 credit cards!

Looking forward to writing more updates to you soon! And please sign up for the Octopart newsletter to stay updated on other Octopart news.

Sam & Star & Octopart
