Crowdfunding Campaign is Officially Launched

It’s official! The Brain-1 campaign is under way! We have limited volumes for the first round offering, so be sure to pledge quickly. The response rate will help us to determine how many to run for our second round and continued production. Over the length of the campaign, we’ll continue to work on additional peripheral modules, so please contact us on the campaign page to register your input.

The time has come for an approachable peripheral standard for the high performance devices FPGAs work with best. Please help us spread the word and get others on-board! Share the update and the campaign on social media, with your friends, with your associates, and with your local FAEs! Let’s try to rid the world of worthless proprietary semiconductor eval boards and encourage manufacturers to follow a useful, open standard.

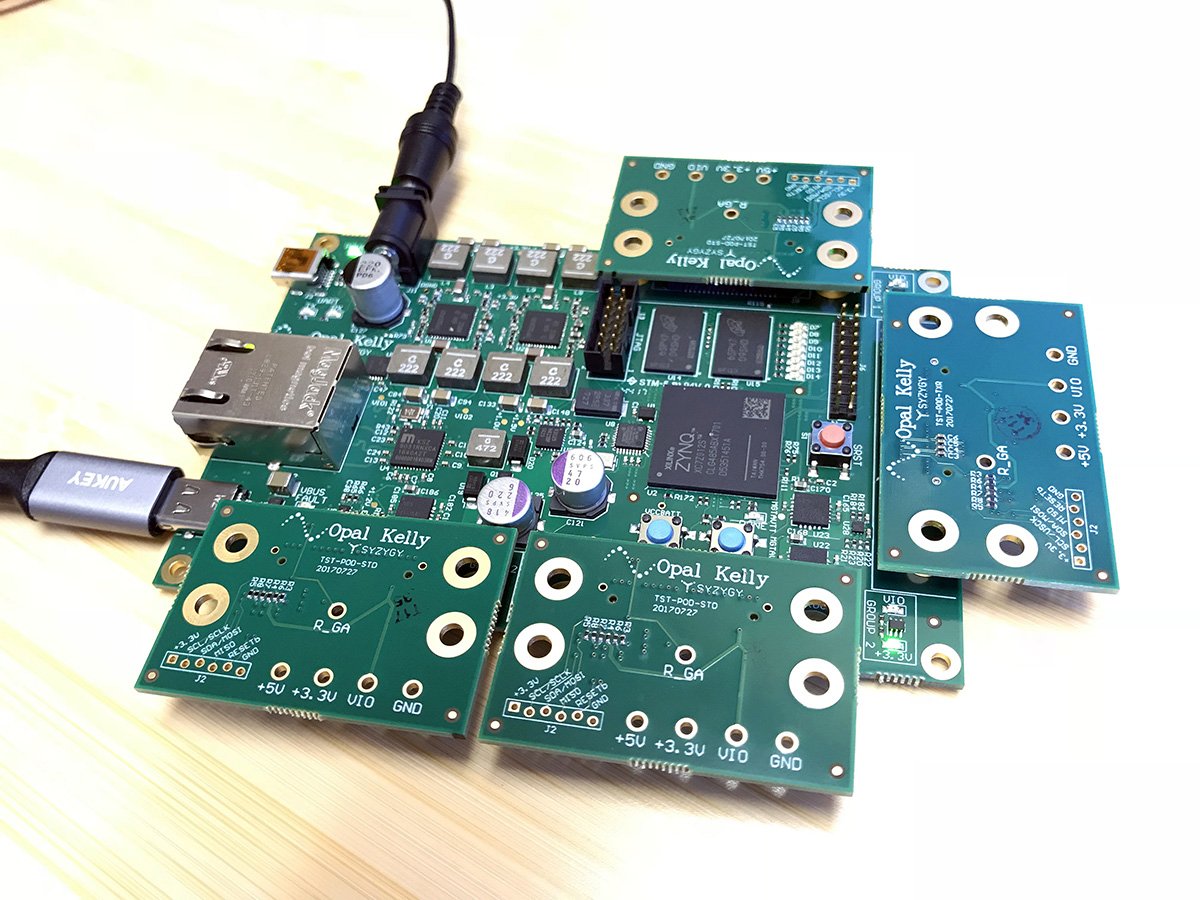

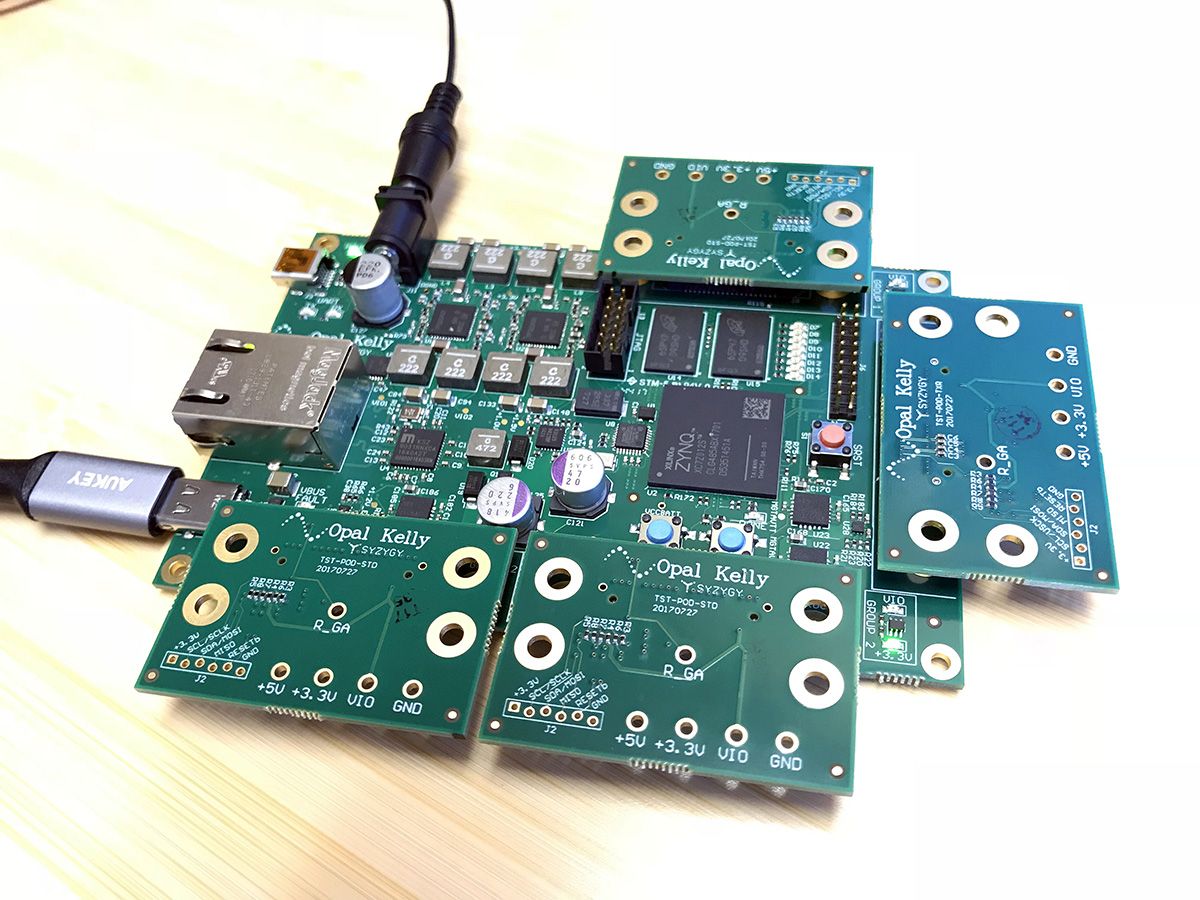

Oh, and by the way… since the pre-launch date, we received our revision 2 copies of the Brain-1 and things look great so far! With any luck, this will be the version moving along to production. Here it is with our test pods attached.

You can download the full specification and read more about SYZYGY on SYZYGYfpga.io.

$2,585 raised

of $1 goal

25

days left

258,500%

funded

20

pledges

Pledge Now

$5

Support SYZYGY

Support and stand behind SYZYGY. Help us encourage manufacturers and vendors to build hardware based on the standard!


$325

Brain-1

Your gateway to high-powered modular FPGA excitement! Thanks for your support! Includes the Brain-1, an 8 GB microSD card, and 12 V, 3 A power supply.


$40

Pmod POD

The POD-PMOD4 module allows you to attach up to four Digilent™ Pmod peripherals to a single SYZYGY Standard port, making dozens of existing Pmod peripherals available to your project!


$100

DAC POD

POD-DAC-AD9116 is a 2-channel, 125 MSPS, 12-bit DAC (Analog Devices AD9116) as a SYZYGY Standard peripheral. The factory default output stage is transformer-isolated ac-coupled 50 Ω to SMA outputs but can be modified with some resistor swaps to an op-amp driver (ADA4857) for higher-impedance loads for lower-frequency reach.


$120

ADC POD

POD-ADC-LTC2264-12 provides dual 40 MSPS, 12-bit ADC (Linear Technology LTC2264-12) SYZYGY Standard peripheral with transformer-isolated 50 Ω SMA inputs.


$150

Camera POD

POD-CAMERA has 3.4 megapixel 1/3 inch color CMOS image sensor (ON Semiconductor AR0330CM1C00SHAA0) that can capture full HD at 60 fps or reduced frame images at up to 215 fps over the HiSPI data interface. The camera comes with a plastic lens mount and high quality glass lens. This is a SYZYGY Standard peripheral.


$70

Dual SFP+ POD

The POD-DUALSFP peripheral attaches to a SYZYGY Transceiver port and you can populate one or both cages with any module compatible with the Xilinx gigabit transceivers. Price does not include any transceiver modules. A fiber optic SFP module we have used successfully with Xilinx Aurora is the Finisar FTLF8524P2BNV which is available from Digi-Key, Mouser, Arrow, and Avnet.


$30

6" SYZYGY Standard Cable

One CABLE-STD-6INCH 6 inch SYZYGY Standard cable to extend the reach of your peripheral to PODs or your own board. These are high quality Samtec cables that are also available direct from Samtec with part number: EQCD-020-6.00-TBL-STL-1-B


$60

6" SYZYGY Transceiver Cable

One CABLE-XCVR-6INCH 6 inch SYZYGY Transceiver cable to extend the reach of your peripheralto PODs or your own board. These are high quality Samtec cables that are also available direct from Samtec with part number: HQDP-020-6.00-TBL-STL-1-B
