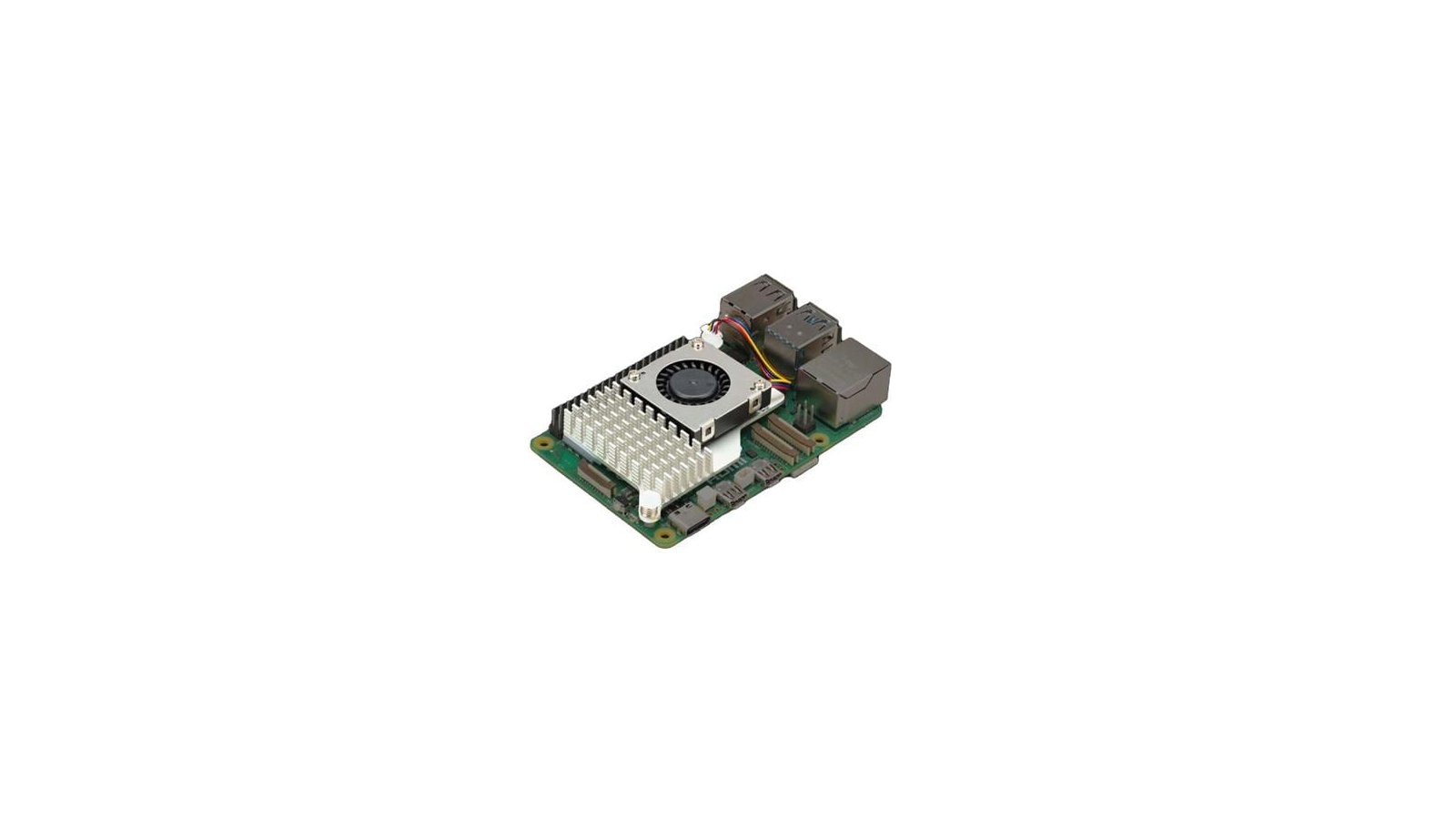

The Raspberry Pi 5 Single Board Computer offers two to three times the speed of other generations. Pi 5 is a full-size Raspberry Pi computer developed with in-house silicon. The device delivers faster transfer speed to external UAS drives and other high-speed peripherals. Two four-lane MIPI interfaces support any combination of up to two cameras or displays. Meanwhile, peak SD card performance is doubled via support for the SD104 high-speed mode. The Pi 5 Single Board Computer enables a single-lane PCI Express 2.0 interface, which permits connection of higher-bandwidth peripherals.

The Raspberry Pi 5 is offered in 4 GB and 8 GB variants and features dual-band 802.11ac Wi-Fi® and BLUETOOTH® 5.0 / Bluetooth Low Energy (BLE) connectivity.

Features

• Broadcom BCM2712 2.4 GHz quad-core 64-bit Arm® Cortex®-A76 CPU, with cryptography extensions, 512 KB per-core L2 caches, and a 2 MB shared L3 cache
• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
• Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM (4 GB and 8 GB SKUs available at launch)
• Dual-band 802.11ac Wi-Fi
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• microSD card slot, with support for high-speed SDR104 mode
• 2x USB 3.0 ports, supporting simultaneous 5 Gbps operation
• 2x USB 2.0 ports
• Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
• 2× four-lane MIPI camera/display transceivers
• PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
• 5 VDC / 5 A DC power via USB-C™, with Power Delivery support
• Raspberry Pi standard 40-pin header

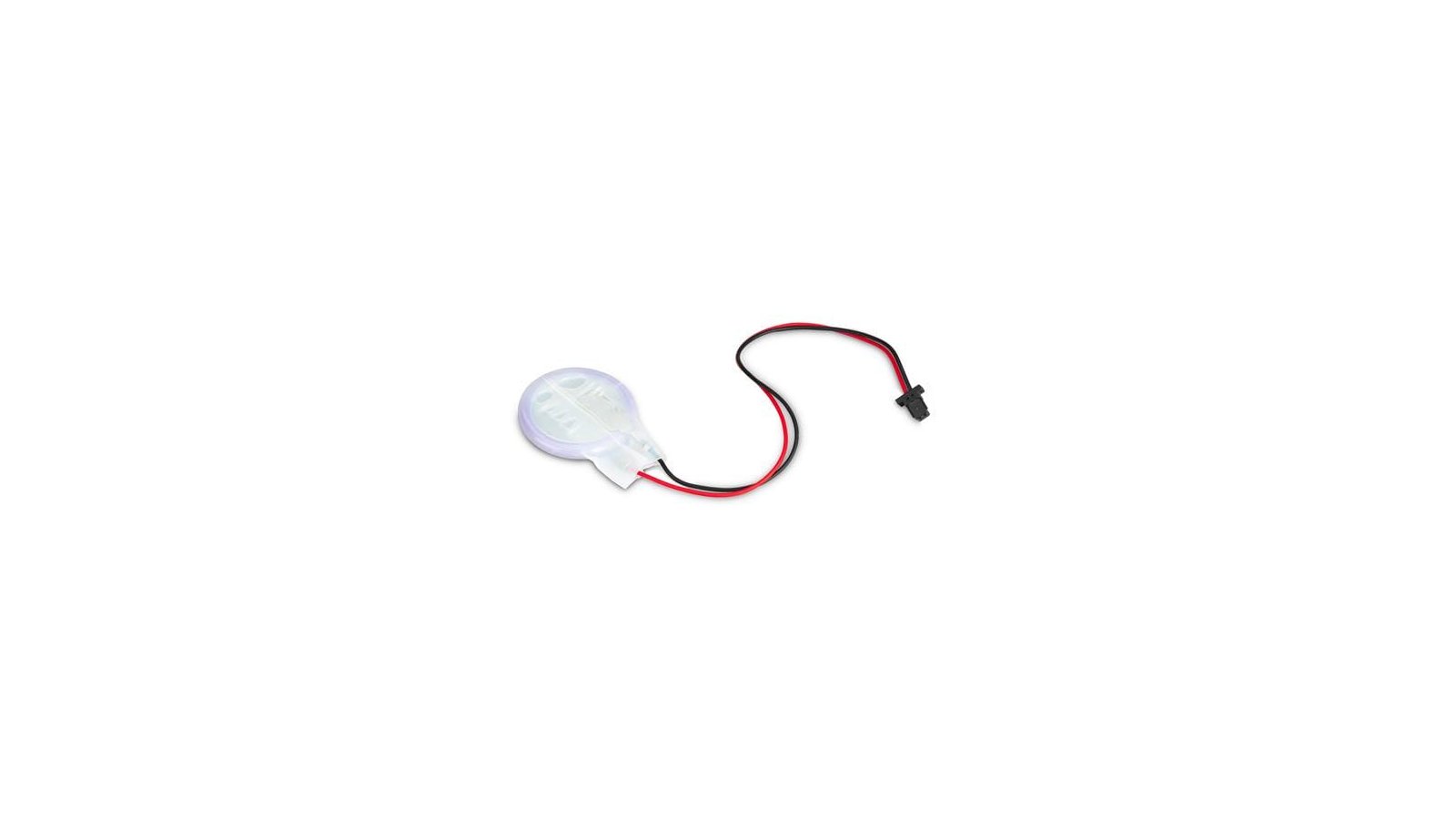

• Real-time clock (RTC), powered by an external battery
• Power button
