ProxmarkPro

by Rysc Corp

A handheld RFID & NFC test instrument optimized for untethered use in the field

View all updates Jun 11, 2019

Unchained Mode and Interface Features

Unchained Mode

When the ProxmarkPro first boots, it will try to enumerate as a CDC modem over USB to allow the user to issue commands through the client software. The ProxmarkPro is primarily designed for use in the field without a PC.

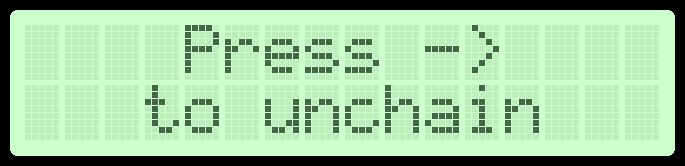

To unchain your ProxmarkPro, place the power switch in battery mode and follow the instructions on-screen.

Once unchained, use the friendly on-screen menu to perform various tag operations. The menu is hierarchical and can be navigated using the up (↑), down (↓), left (←), and right (→) buttons.

Note: When you enter "Unchained mode", USB communication will not be permitted and the device will not longer show up as connected to your computer. To get USB communication back, all you need to do is exit unchained mode by pressing the left (←) until you get back to the boot menu.

More information on Unchained mode can be found here.

Extra Stand-alone Features

In addition to ProxmarkPro’s primary functions, you can make several settings selections and perform tests while still in the field.

  • Backlight - allows you to turn on or off the LCD backlight
  • Battery status - shows the battery percentage
  • Storage - displays the amounts of used and available storage on the microSD
  • Button test - tests the buttons for functionality
  • HF antenna voltage - displays the antenna voltage at 13.56 MHz in mV

$45,752 raised

of $25,000 goal

183% Funded! Order Below

Product Choices

$400

ProxmarkPro Kit

Everything you need get started with your NFC and RFID experiments, including a ProxmarkPro main unit with enclosure and 1200 mAh battery, one low-frequency (LF) antenna, one high-frequency (HF) antenna, a bundle of three HF tags, a bundle of three LF tags, one 16 GB microSD card, and a carrying pouch.


$52

ProxMark Pro Dual Band Antenna

The ProxmarkPro Dual Band Antenna includes one High Frequency (HF) and Low Frequency (LF) inductor along with tuning circuitry matched to the ProxmarkPro. The antenna is comprised of an on-board PCB trace HF antenna and a wound-wire LF antenna. The LF antenna is connected to the PCB via a JST 2-Pin connector to the board. The whole antenna is wrapped in black shrink wrap to keep everything solid in the field.
