BES-AFE-1: Analog Front-End Module for ECGs

by Signal Lattice

A fully functional single lead electrocardiograph analog front-end module designed for prototyping and integration in user designs.

View all updates Jan 23, 2017

Thank you

First of all, a big thank you all for those who have pledged thus far. As far as updates, the following changes have been made:

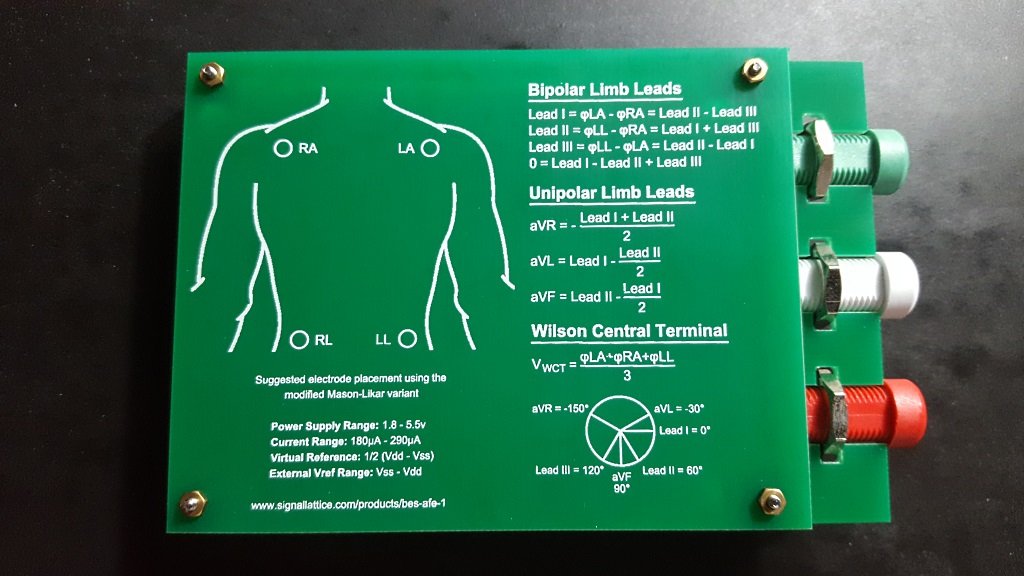

The back cover of the BES-AFE-1 Breakout Board will be similar to what is pictured (font-size will be larger to increase readability of text):

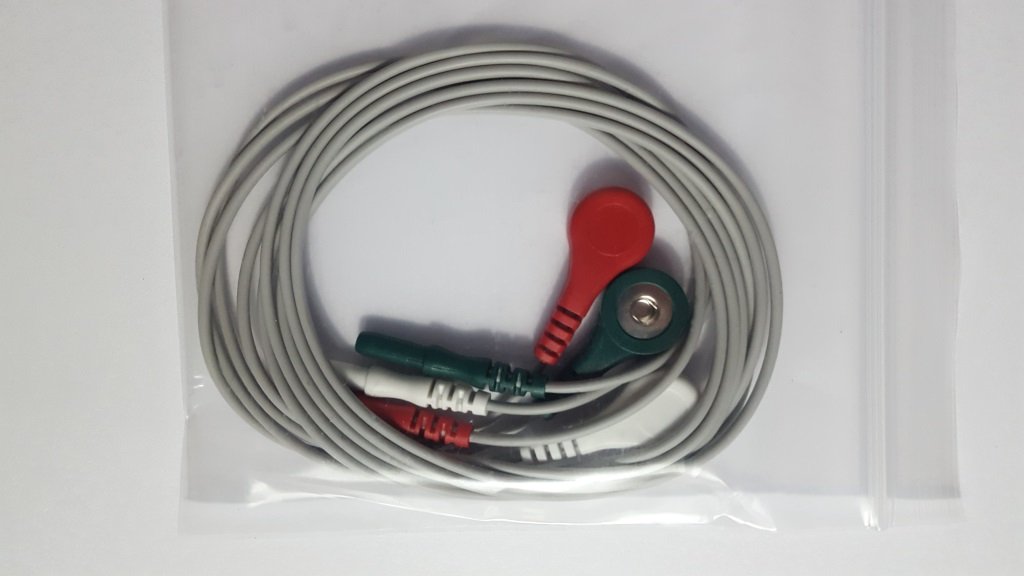

The electrodes for the BES-AFE-1 Breakout Board Quick Start package have been finalized and are as pictured:

As always, please let me know if you have any questions and I will try to answer them as soon as possible.


$11,225 raised

of $9,000 goal

124% Funded! Order Below

Product Choices

$55

BES-AFE-1 Quick Start Kit

This includes one breakout board with a mounted BES-AFE-1 module as well as a set of 3 electrode cables and a few electrode pads to get you up and running in as little as a minute.

Credits

Signal Lattice

We specialize in mixed signal embedded systems and sensors involved in electrophysiology.


Matthew Shieh


Digi-Key

Component provider

Mouser Electronics

Component provider

MVAP Medical Supplies

Component provider

CircuitHub

PCBA manufacturer
