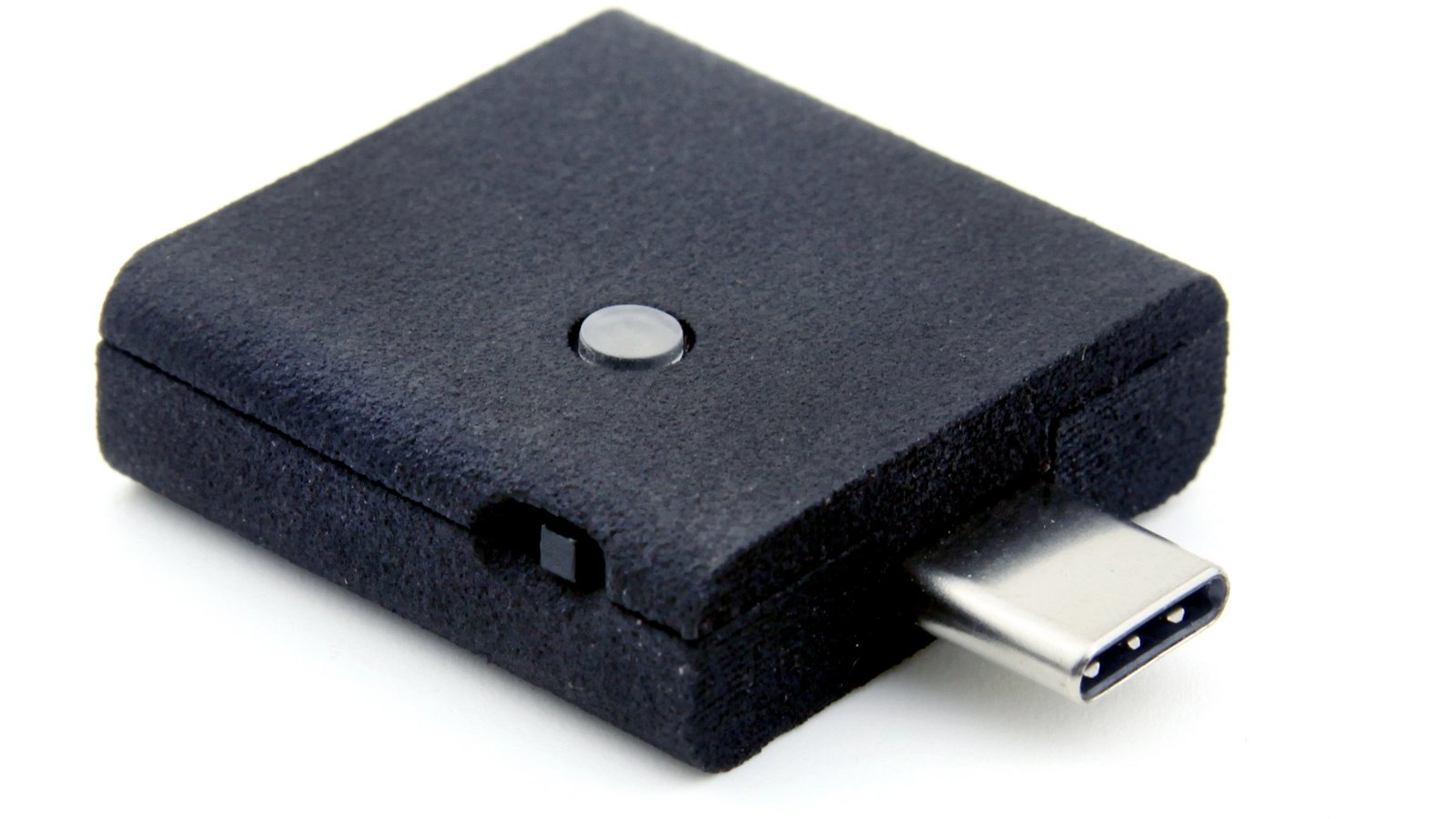

USB-Cereal’s goal is to cut development, debugging, and testing time of USB Type-C devices, while saving on component costs.

The original USB-Cereal was an open source project that originated at Google. It was then forked and improved by 0xDA. That same version is manufactured and made available here by Soldered Electronics.

USB-Cereal Makes Hardware Development Easier

USB-Cereal can perform a number of useful development tasks that make working with USB Type-C capable devices much more manageable. It can perform general closed-case debugging, testing, and data capture on devices with USB Type-C and doesn’t require a USB stack to be brought up. USB-Cereal can do low-level debugging with USB drivers not yet fully loaded. This is useful when debugging low level features, when USB logs are not accessible. It can be handy in performing closed-case firmware update procedures.

Features & Specifications

• Development logs can be captured with the device under test (DUT) closed up, without any jumper wires hanging around, and no extra connectors.
• No USB drivers on the DUT need to be brought up or booted to get communication running back and forth, so the lowest level log capture is possible with minimal effort.
• Another USB Type-C accessory supported by the DUT can be connected via the pass-through port, which makes it easier to pinpoint issues that occur only when that accessory is attached.
• No extra DUT costs are incurred as no extra components or mechanical considerations are needed.
• No extra components on the DUT board means maximum space savings for denser designs.
• Up to 3-Mbps rates are supported for both 1.8 V and 3.3 V signal levels. The selection is completed with the on-board side-facing slide switch.
• No auto-level detection means that not fully UART compliant devices (custom implementation, TX only, etc.) can still be probed. Caution must be used when connecting for the first time, not to overvoltage the DUT!
• To keep the device as simple as possible, no orientation detection is implmented, so the connection to the DUT is orientation specific, which is important to keep in mind when starting to use the device.
• Both TX and RX operations are indicated using on-board green and orange LEDs.
• Major OS distributions support the FT232RNQ which replaced out-of-stock and NRND FT232RQ used in the previous versions of the device.
• Supply problems with FTDI chips have shown to be a real pain, so we have designed a complete fork of the device with CP2102N! If the FT232R* ICs are not available, the subsitute part will be used, as to not to incur any order delays.
• USB-Cereal is extremely portable!
• USB-C plug is mechanically supported by the PCB and by the enclosure as well, so it is robust to accidental wire pulls or bends.

Comparisons

¹ USB-Cereal is not compatible with Suzy Q
² TC2030-FTDI-TTL-232RG-VIP relies on external reference
³ Requires a secondary USB interface

Block Diagram

Support & Documentation

For open source information, including hardware design files, see the original GitHub repo. For technical questions and support, contact Soldered directly.
