Power Consumption & More

We’re funded and still going strong! Woohoo! A huge thank you again to all the backers that made this project come to life. Your attention and support has definitely gotten the attention of Pervasive Displays, the E-paper manufacturer I chose to supply the displays. After the campaign is complete and all the rewards have been shipped, we will all be working together to bring even more E-paper designs and concepts to the hands of makers and project builders. To celebrate, I’m releasing the first half of the next update early!

Here is another question I have received:

How little power does your E-paper Shield consume?

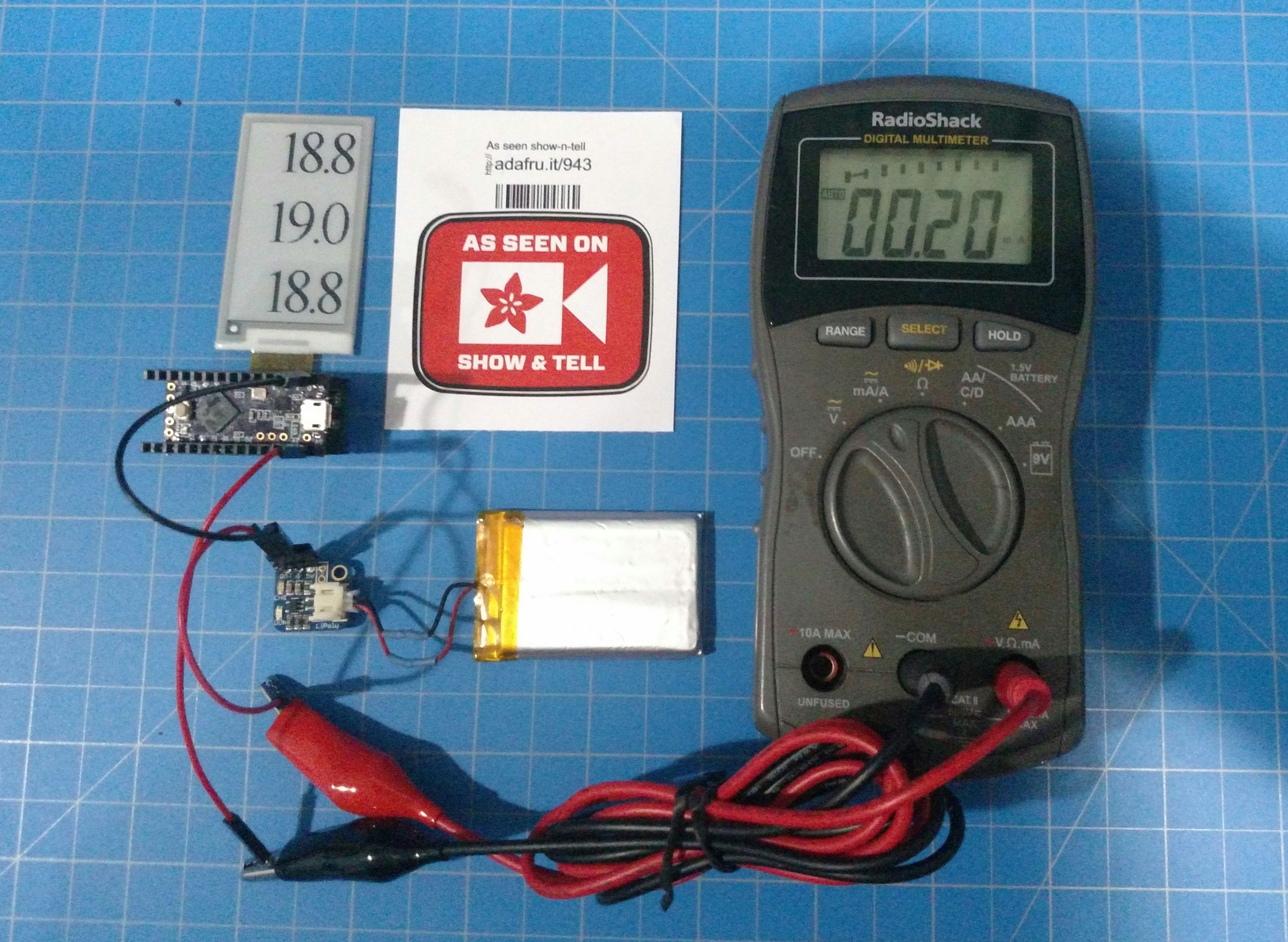

The E-paper Shield Kit uses a unique hibernation capability particular to the Teensy-LC, which powers down the entire board for a specified period of time. This allows the current consumption of the board reach levels as low as 0.2mA. With a 2500mAh battery, your project will last months on a single battery charge! Take that [popular phone manufacturer]!

This example project uses the onboard temperature sensor to monitor the ambient air temperature, and writes it to the display. There is also room on the display for a High and a Low temperature readout. I will be making a case for this soon and publishing the complete set to my project page.

If you want to add a battery and charger to your project as in the picture above, in my example I used an Adafruit Trinket backpack that I had in my parts drawer with great results. Thanks again Adafruit for having me on your Show’n’Tell show!

The next update will contain code and instructions for connecting the E-paper shield to a variety of platforms. Stay tuned!
