View all updates Mar 05, 2021

3D Model Published

by Eugene Pomazov

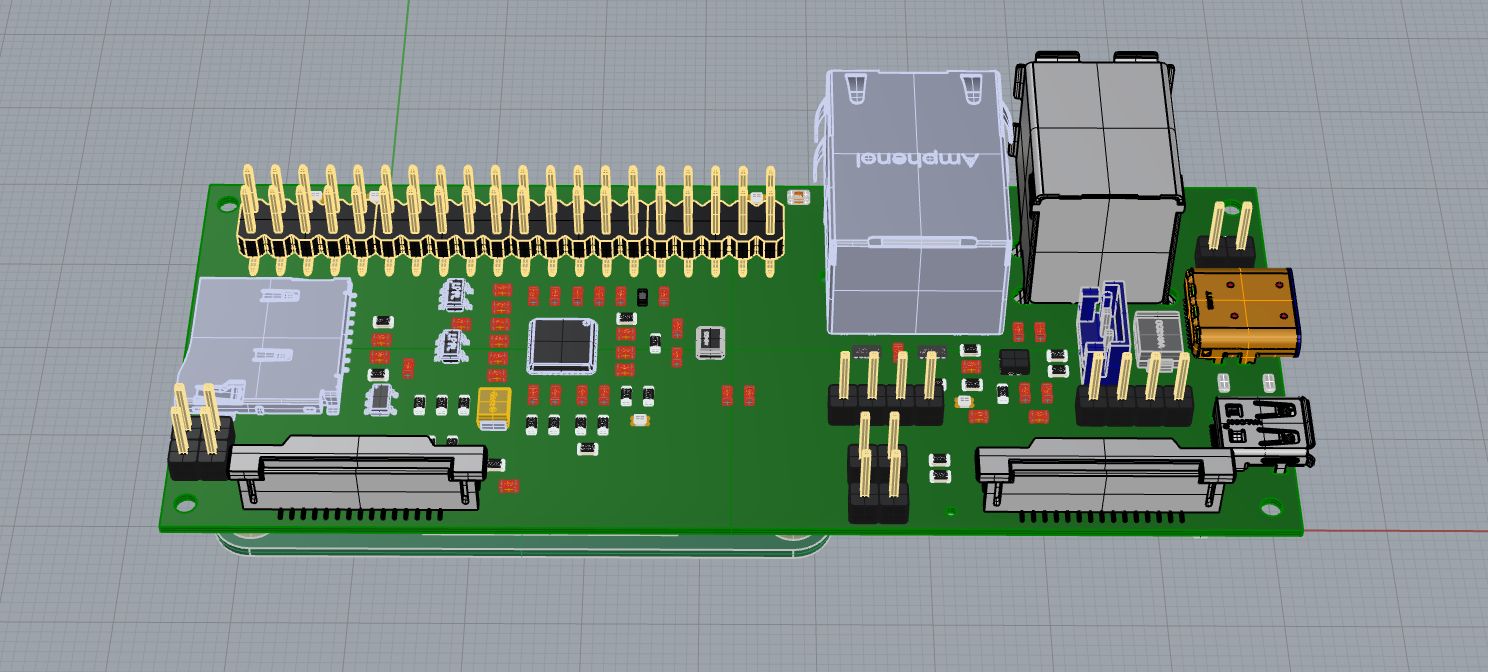

In today’s short Friday update, we’d like to share our 3D model for StereoPi v2. If you are designing your own enclosure—or trying to guess whether or not this new version will fit your robot—here you go! We’ve exported everything to the STEP format and put it up on our wiki.

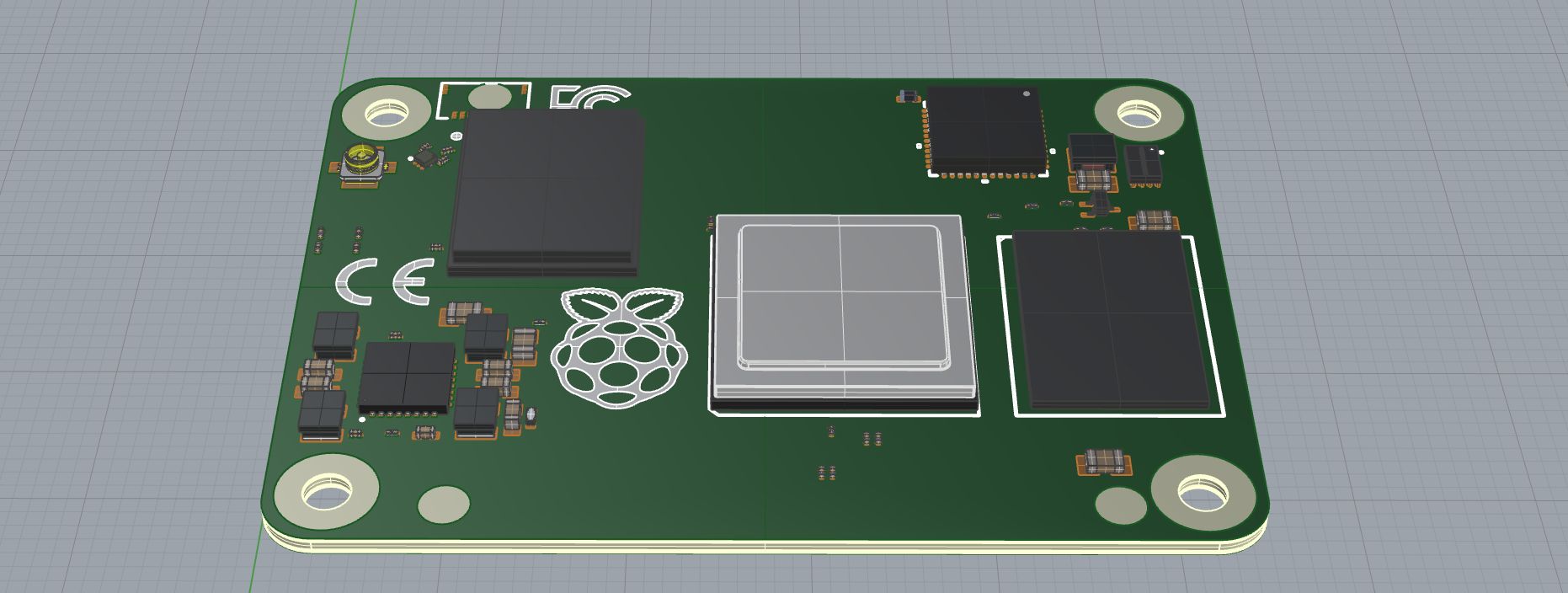

To avoid overloading the model with unnecessary details, we included a simplified version of the Compute Module 4. If you need more detail, you can download full 3D models of the CM4 and the CM4 Lite.

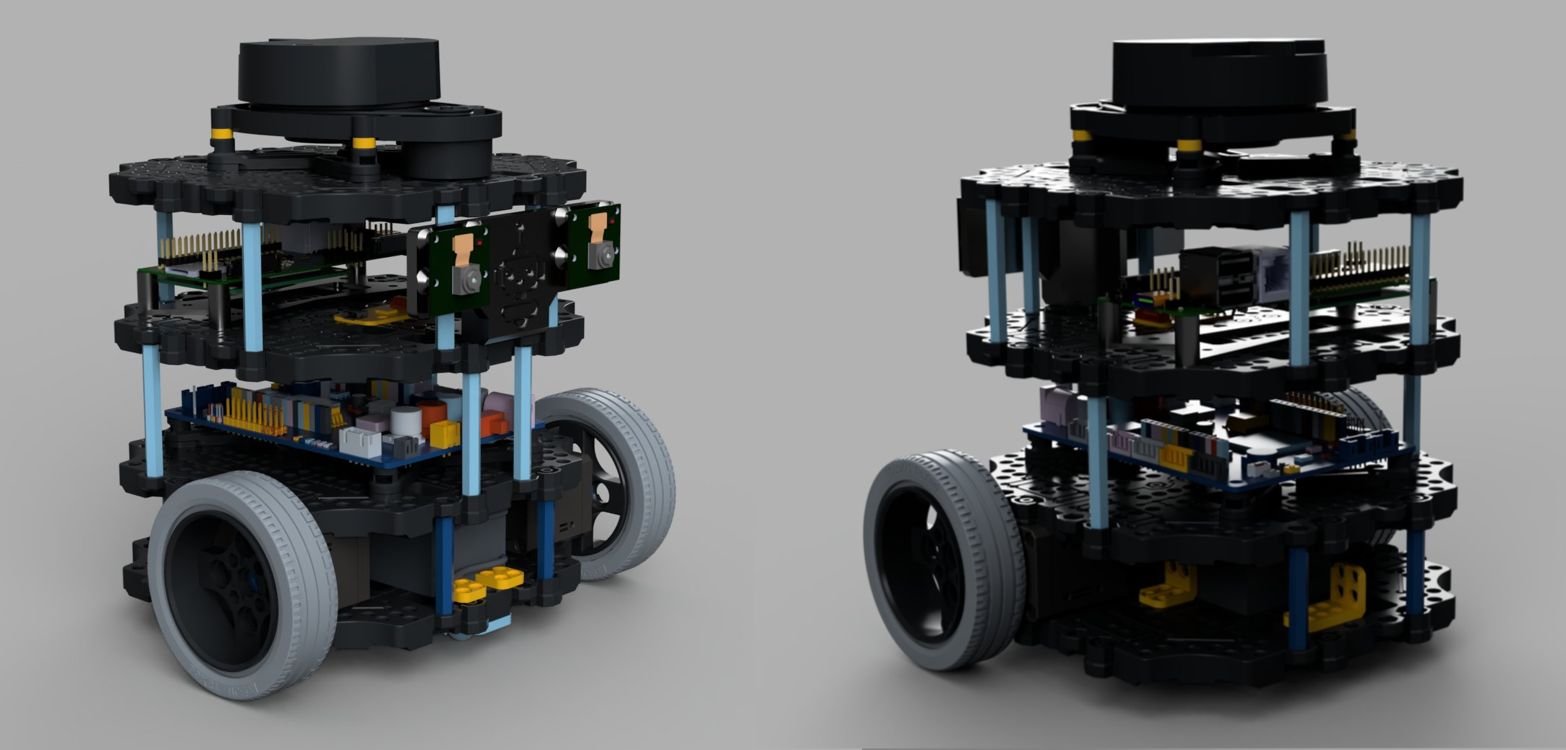

The above image shows Turtlebot3 with StereoPi v2 installed.

(Credits for this design goes to Keegan Neave)

You can find the StereoPi v2 STEP files on our Wiki, in the StereoPi v2 mechanics section.

Happy making!

P.S.: Did you notice that our campaign is already 68% funded? Thank you!

About the Author

Eugene Pomazov

StereoPi  ·  Realizator  ·   St. Petersburg


$90,155 raised

of $35,000 goal

257% Funded! Order Below

Product Choices

$49

StereoPi v2 Slim

Perfect for DIY ninjas and those wanting to embed StereoPi in a tight space. This board is the same as the standard edition, but without all the bulky connectors - the Ethernet RJ45 jack, GPIO header, and dual USB Type-A connector have not been populated. To use this board, you will need your own Raspberry Pi Compute Module, cameras, and camera ribbon cables. Two short power cables and three jumpers already included.


$55

StereoPi v2 Standard

The world of stereoscopic video awaits! This board is the ultimate interface between two cameras and a Raspberry Pi Compute Module. It comes with all the bells and whistles, including Ethernet, dual USB ports, GPIO header, microSD slot, HDMI output, and more. To use this board, you will need your own Raspberry Pi Compute Module, cameras, and camera ribbon cables. Two short power cables and three jumpers already included.


$185

StereoPi v2 Camera Kit

Everything you need to assemble your camera! Includes StereoPi Standard, CM4 + external antenna, 2 cameras (IMX219, 160 FOV), a TFT screen, a shot button, camera-mount plates, nuts & bolts, 3 jumpers, a 15 cm tripod, and 2 microSD cards with pre-written SLP and OpenCV images!


$25

StereoPi PoE HAT

This board adds Power over Ethernet option to your StereoPi


$55

StereoPi HQ Metal Housing

Metal housing for a couple of HQ cameras with advanced adjustments features. Includes StereoPi HQ housing base + carriages, 2 x HOYA CM500 filters (8.9 x 8.9 x 1 mm), a set of nuts/bolts/washers for assembly, and a tripod. To use this kit you need a couple of HQ cameras and a couple of C or CS lenses.
