Obsidian ESP32

by Thomas McKahan

An ESP32 in a Raspberry Pi Form Factor

View all updates Aug 14, 2019


The funding portion of the campaign is finished, now I finish the work and provide the boards!

Where we stand today:

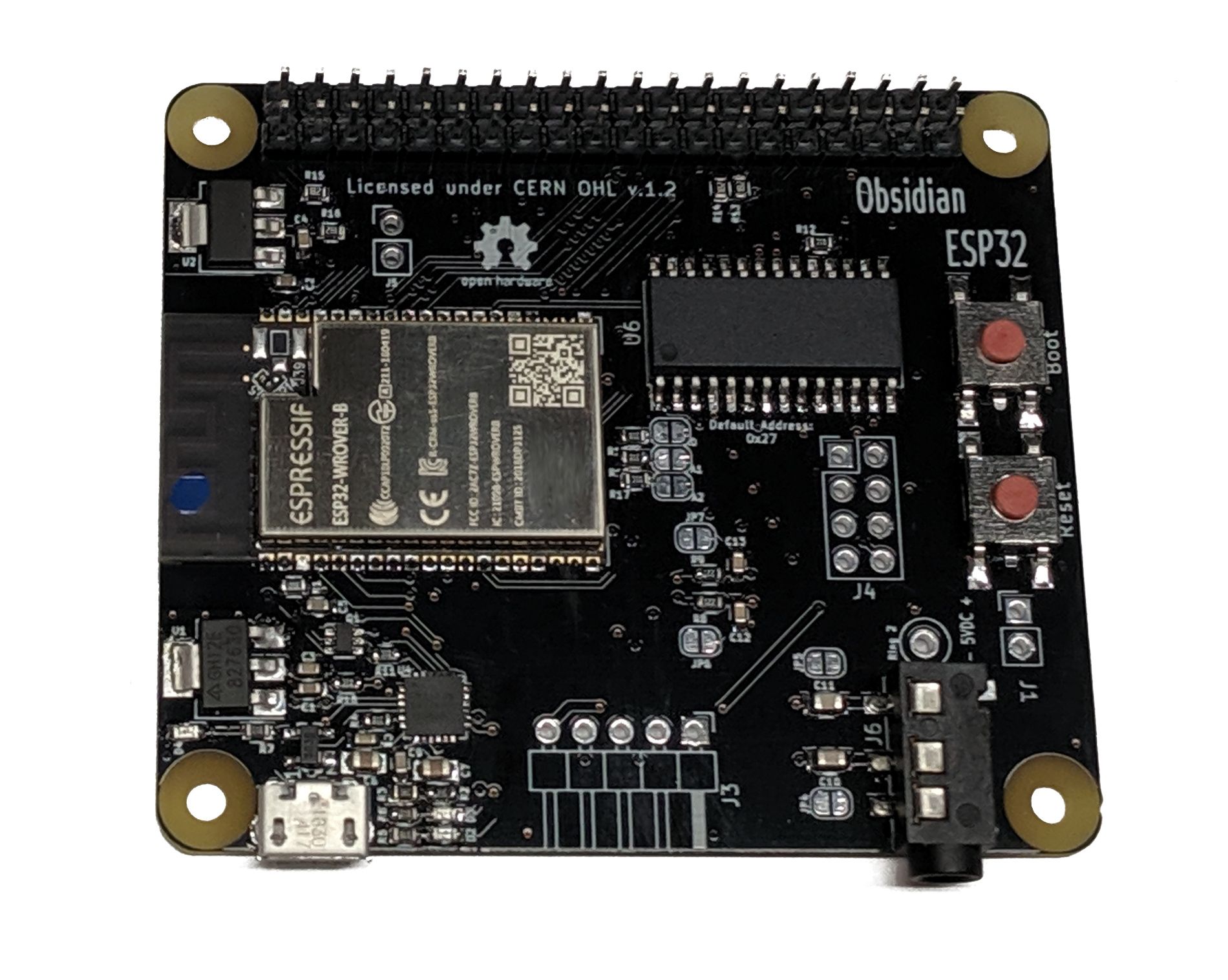

I have received a small group of PCB’s to make one last review of the design/silkscreen/etc before the final order, and a good thing - I had swapped a 3.3 V and ground pin on one of the extra headers, but the silkscreen label was not changed, potentially leading to some confusion. I assembled a board, and it looks good, works well, and am ready to order.

It’s even the proper color! This was entirely my work populating the board, and the PCB’s were HASL instead of ENIG, so none of the joints look quite as nice they will in production.

$2,790 raised

of $1,300 goal

214% Funded! Order Below

Product Choices


Obsidian ESP32 Without Module

Obsidian board without the ESP32 module so you can build the board out to fit your needs.


Obsidian ESP32 With WROVER Module

One Obsidian ESP32 board


Obsidian ESP32 with Case

One Obsidian ESP32 board plus a custom 3D printed carbon fiber reinforced nylon case


Thomas McKahan

Thomas is a long-time software and hardware tinkerer, beginning with Apple BASIC and 555 timers and working up to embedded Linux and system design. Having started out during a time where hardware was more difficult to obtain, the current open-source community is a breath of fresh air.
