An ESP32 in a Raspberry Pi Form Factor

View all updates Sep 09, 2019

Production Status

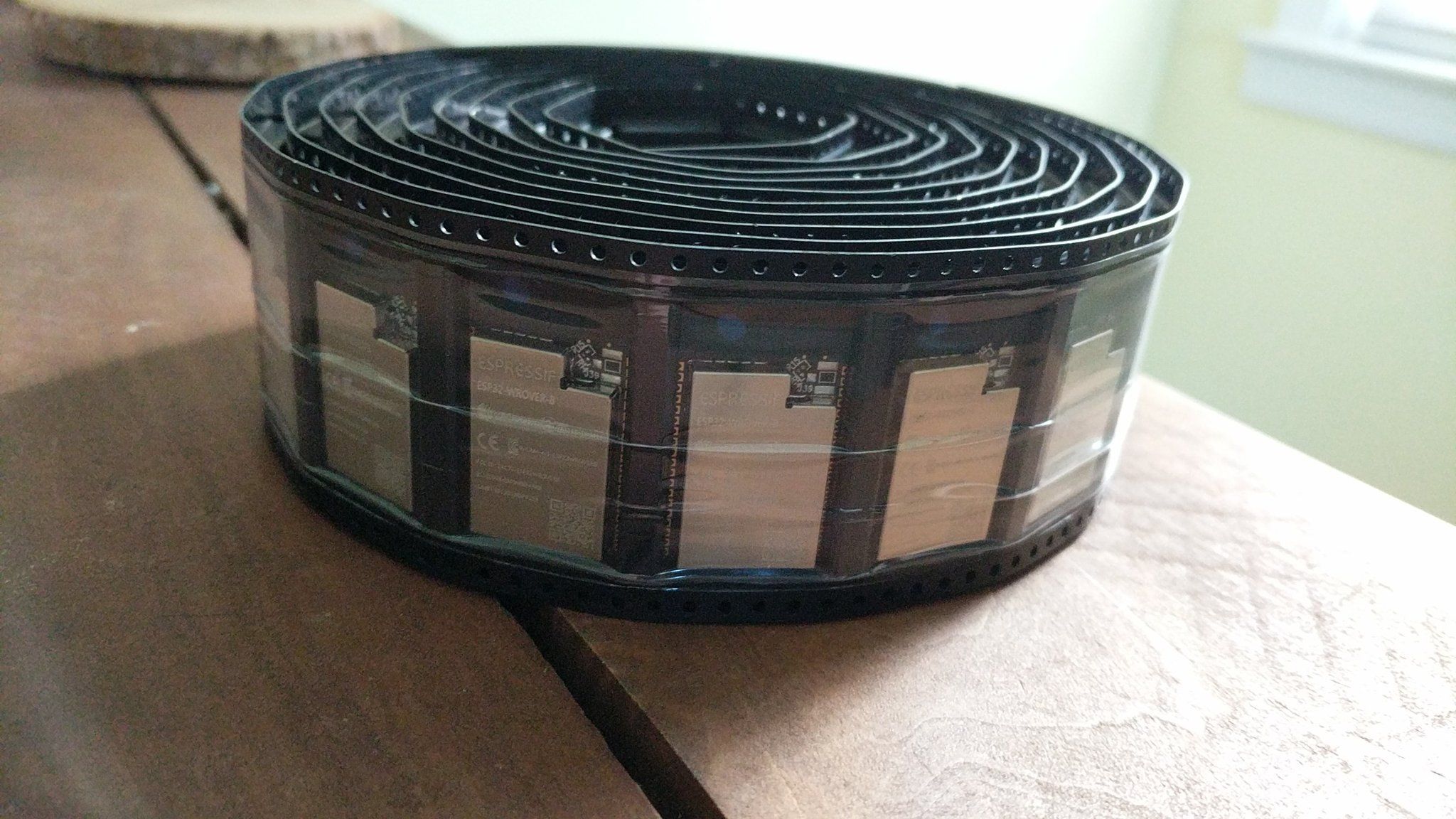

Obsidian ESP32 cases and boards have both been successfully ordered, the cases are nearly complete, and PCB fabrication is underway. I forwarded some components to PCBWay, and kept a nice roll of ESP32-WROVER-B’s for my part:

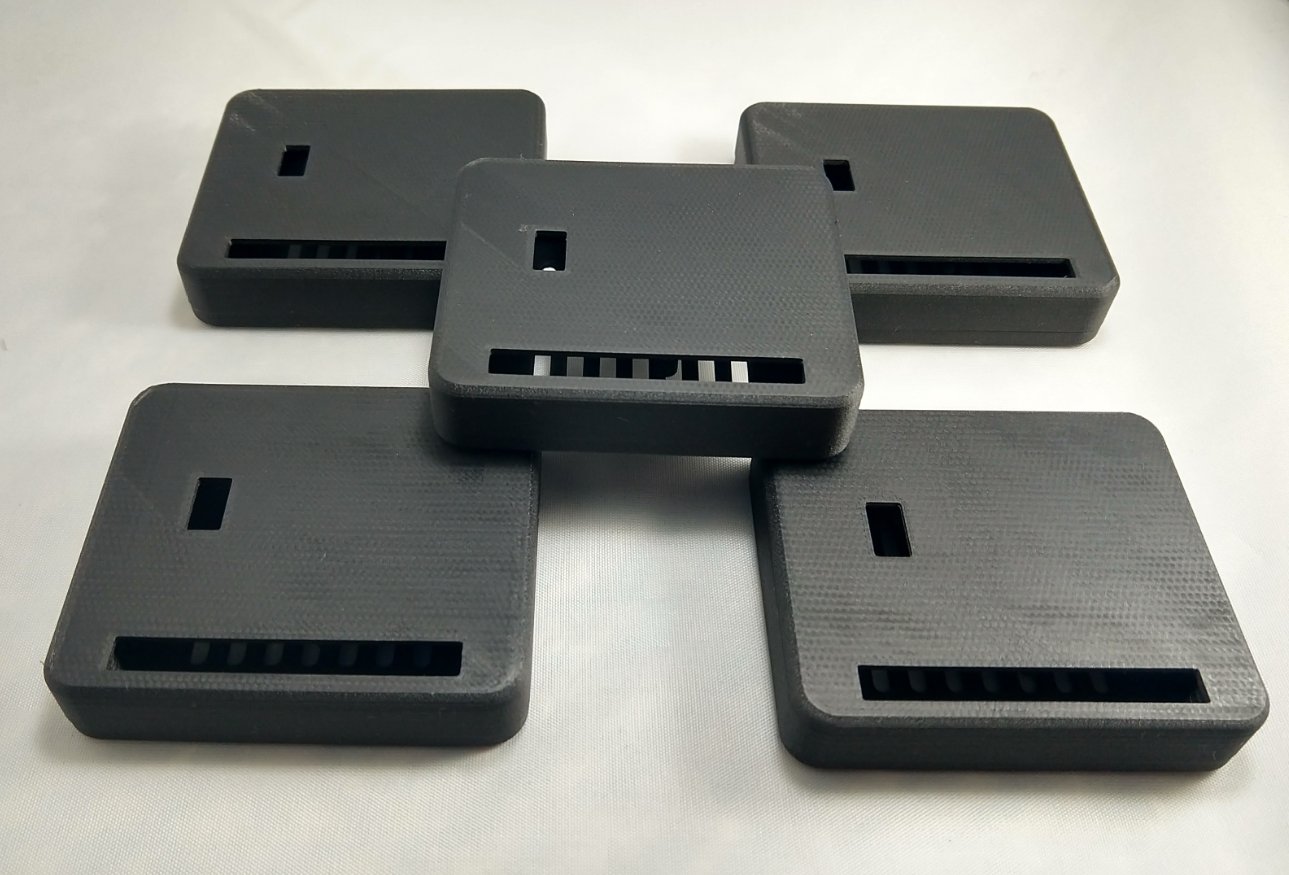

The cases are being printed. They should be completed this week, far in advance of the boards:

I apologize for having been relatively quiet, my wife underwent a spinal tumor surgery last week, leading up to that I was working double time to make sure all of the orders were in place, since then I have been supporting her as best I can, making communication a bit more difficult. So far everything looks like it is progressing on time, I await the boards back from PCBWay for final assembly, flash, and test!

Remember, if you missed backing the project, there is still plenty of time to pre-order!

$2,790 raised

of $1,300 goal

214% Funded! Order Below

Product Choices


Obsidian ESP32 Without Module

Obsidian board without the ESP32 module so you can build the board out to fit your needs.


Obsidian ESP32 With WROVER Module

One Obsidian ESP32 board


Obsidian ESP32 with Case

One Obsidian ESP32 board plus a custom 3D printed carbon fiber reinforced nylon case


Thomas McKahan

Thomas is a long-time software and hardware tinkerer, beginning with Apple BASIC and 555 timers and working up to embedded Linux and system design. Having started out during a time where hardware was more difficult to obtain, the current open-source community is a breath of fresh air.
