Our Test Jigs

by Lali Jayatilleke

Hello all!

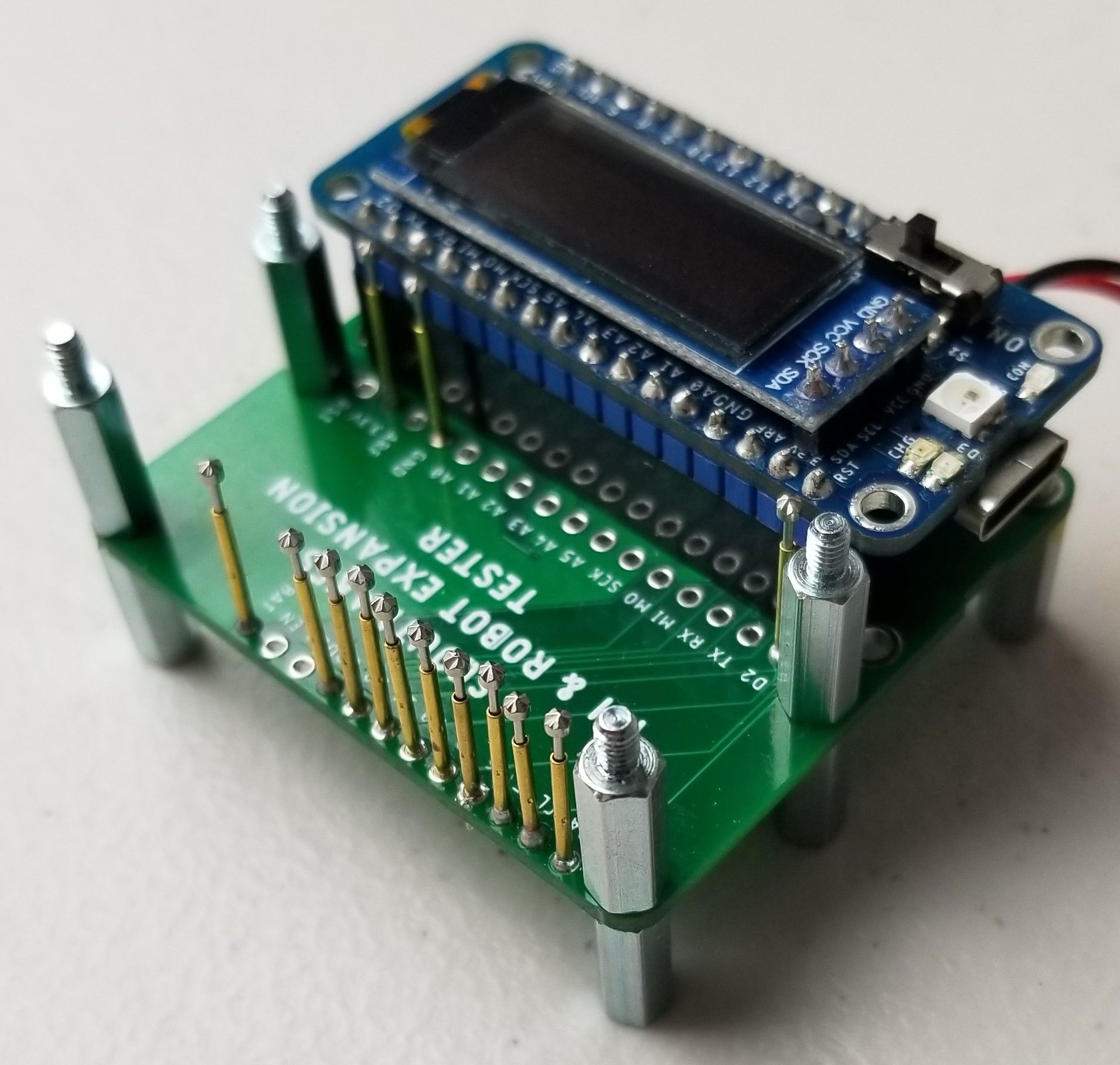

We wanted to provide an update regarding our previously mentioned plans for building a test jig. Well, we received the PCBs and were able to assemble and test them. And the good news is, they work great!

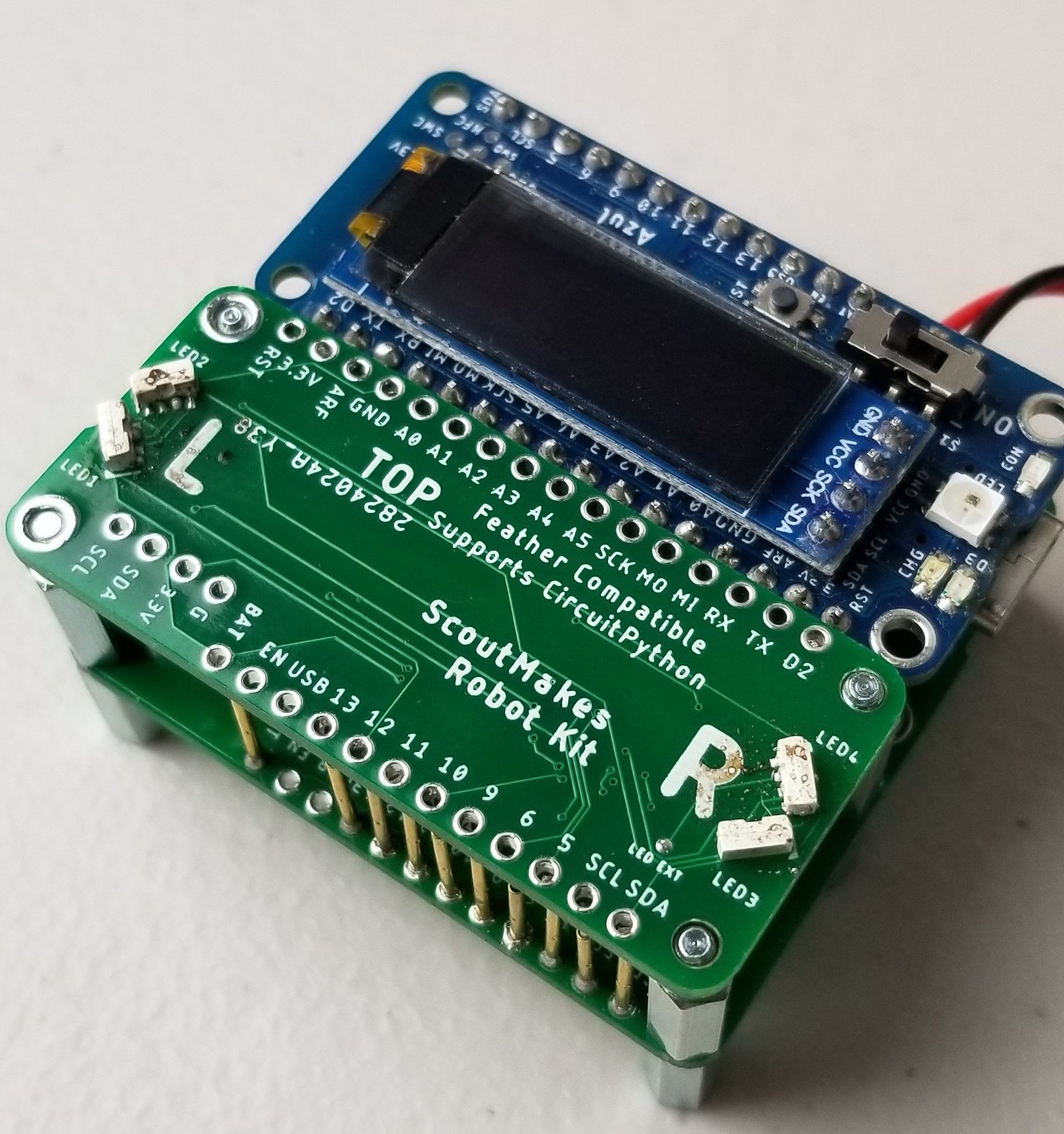

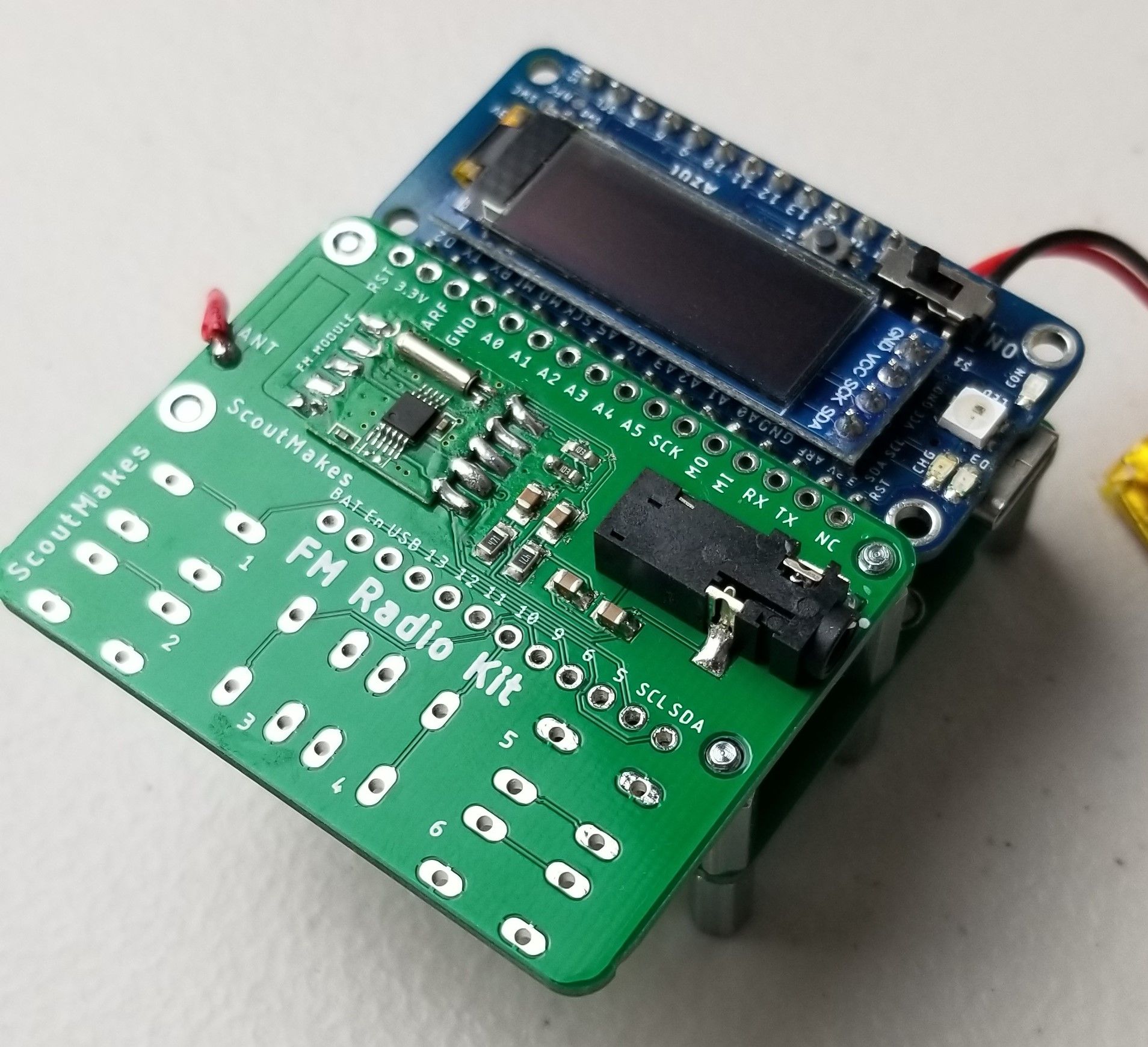

Our test jigs came out really well. One cool thing is that we’re able to use the same jig for both the FM and the Robot expansion boards, which saves time on setup. In order to switch between them, we just need to change the test program on the Azul, which is quite easy to do.

See below for more photos.

Cheers and see you next week for another update!
