TinyFPGA AX & BX

by TinyFPGA

A range of tiny, low-cost, well-supported, and open FPGA dev boards

View all updates Mar 19, 2018

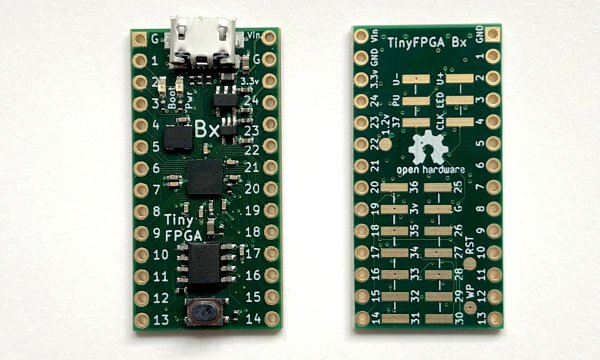

TinyFPGA BX is Now Live

The original TinyFPGA B2 was developed by Luke Valenty in the summer of 2017. The idea was to create a tiny, breadboard-able, open hardware, and low-cost FPGA board for makers. The B2 introduced a novel open-source USB bootloader built into the FPGA fabric itself. The original production run of 250 boards has sold out and the new and improved BX revision is ready to launch!

The new BX retains the features of the B2 and improves upon them in every way. I am excited to get this into maker’s workbenches all around the world. Support the TinyFPGA BX campaign and spread the word!


$56,138 raised

of $1 goal

Funded! Order Below

Product Choices

$38

TinyFPGA BX

The most feature-rich TinyFPGA with the biggest FPGA, most IO, most flash, and programming directly over USB.


$74

TinyFPGA BX Twins

Two TinyFPGA BX boards.


$180

TinyFPGA BX Five-pack

Five TinyFPGA BX boards.


$21

AX2

A bare-bones TinyFPGA using the XO2-1200 FPGA with 1200 logic cells, more RAM, and flash memory.


$15

AX1

The most bare-bones TinyFPGA, with an XO2-256 FPGA featuring 256 logic cells.


$12

TinyFPGA Programmer

A very simple USB-JTAG bridge designed to program bitstreams onto TinyFPGA A1 and A2 boards.

Credits

TinyFPGA

TinyFPGA is a one-man endeavor to bring the incredible capabilities of FPGAs to makers around the world. Luke started TinyFPGA while looking for an FPGA that could be used in a breadboard. When no suitable candidate was found he took it upon himself to develop a tiny FPGA dev board.


Luke Valenty


OSH Park

Prototype PCB Manufacturer

PCBWay

PCBA Manufacturer
