Vision FPGA SoM

by tinyVision.ai

An FPGA-based SoM with integrated vision, audio, and motion-sensing capability

View all updates Mar 18, 2020

SoM Update 1

by Venkat R

Hello potential backers, Thank you for signing up!

We’ve been working on many fronts and spreading the word about the SoM over the past couple of months since you signed up to be potential backers of this project. Heres an update on the many happenings in SoM-land.

tinyML Conference

tinyML is a relatively new, technically oriented conference co-chaired by Google and Qualcomm. We presented the Vision SoM at the tinyML conference in the Bay area on Feb 12th/13th as a poster and also demonstrated keyword detection and human body detection. The idea of an Arduino for embedded Computer Vision was well received and we got some good feedback as well as requests for samples! Besides all the positive feedback, one recurring theme was the need to identify specific use cases where this technology could have a significant impact. We hope that backers like you will take this platform and create amazing devices and applications! Some areas suggested were Education, Security systems, Face/Gesture detection for User Interfaces, Animal spotting in the wild…

Embedded World Conference

The Vision SoM was on display at the Lattice booth as an example of AI on the edge running people detection. This demo uses the Artemis Nano breakout board to host the SoM and is packaged in a jewel case with a battery to showcase a complete system.

More boards!

Breakout board

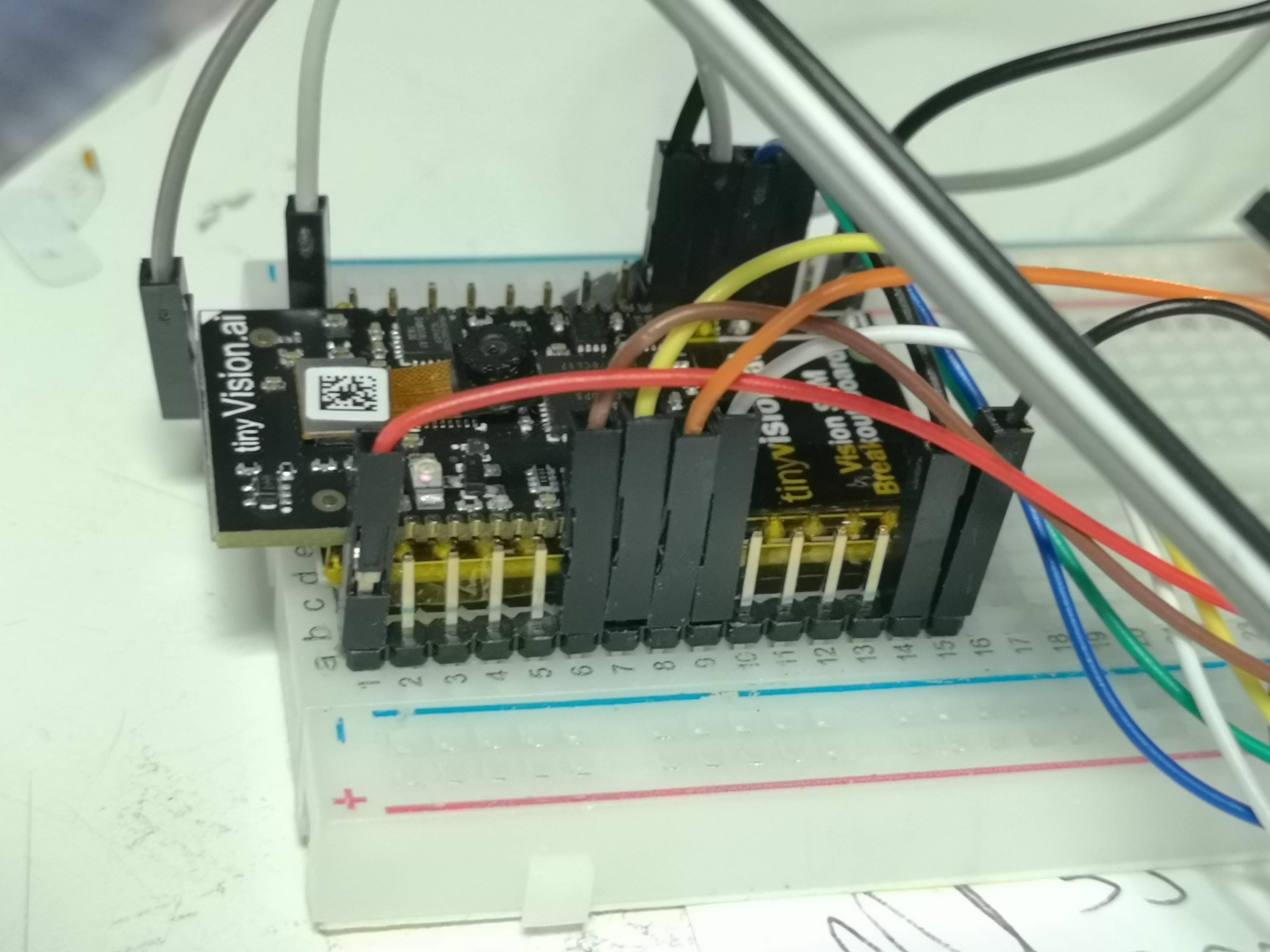

The breakout board is intended for the developer to plug into a breadboard and develop their own application. We prototyped the first version of the breakout board and found some issues. Some of these are:

  • Through hole headers when soldered interfere could short the SoM pins
  • The case of the microphone which is mounted on the bottom side of the SoM could bump into some resistors on the breakout board.
  • Poor mechanical stability when mounted, the SoM rocks a bit as it doesn't have sufficient support.

A second version is in the works that addresses these issues. by moving to surface mount headers as well as clearing all components out from under the SoM. The SoM mechanical stability is being looked into.

Artemis breakout board

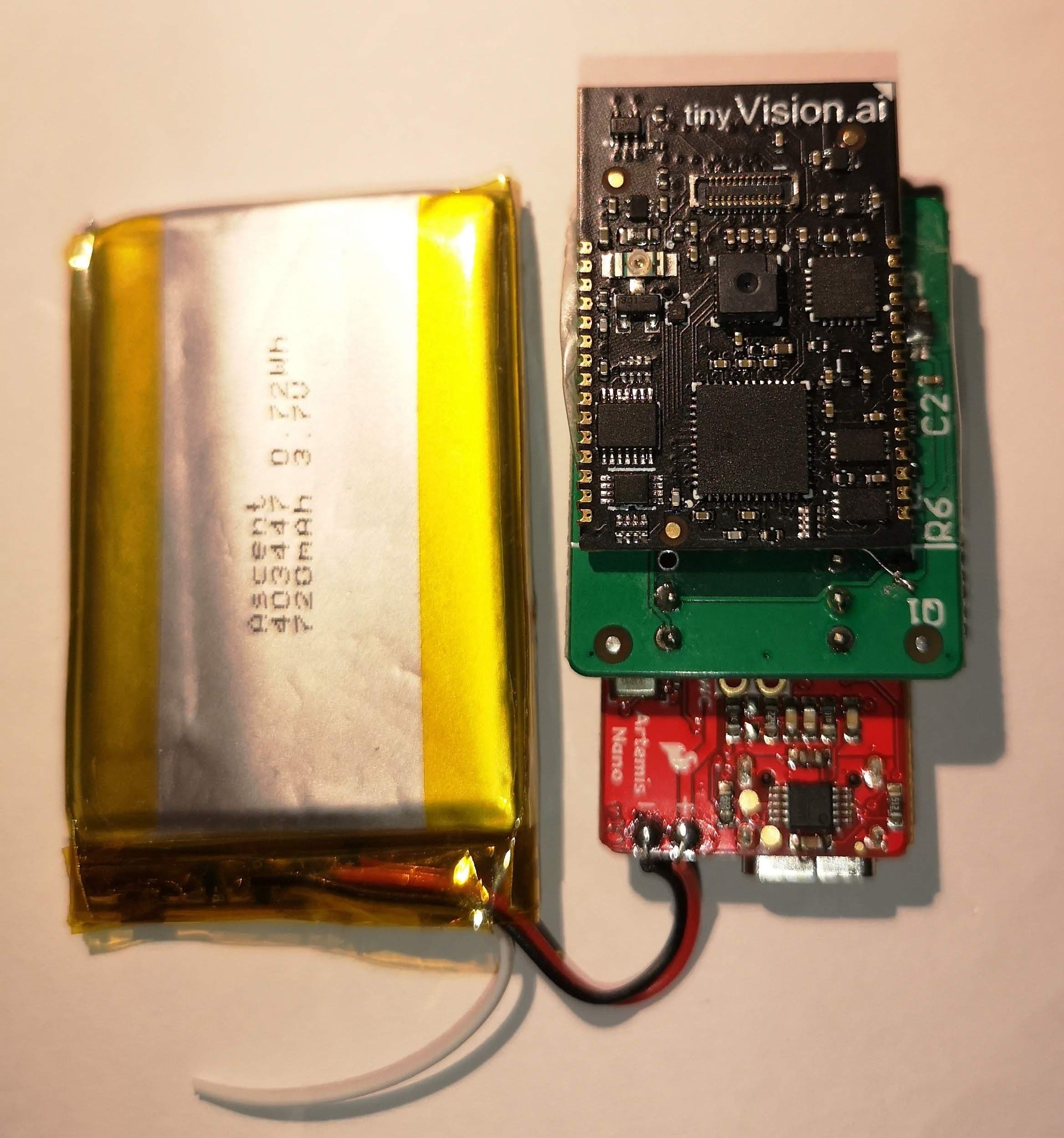

What? An IoT device without connectivity? We created an adapter board with power monitoring and power switches that allows the Artemis Nano board to communicate with the SoM. Most of this board has been verified and is now part of a demo with people detection running on it. Current features of this board are:

  • Hat for the Artemis Nano allows the SoM to be plugged in.
  • INA219 power sensor to monitor dynamic power of the SoM. Sample the SoM power at 500 Hz using Arduino code.
  • MOSFET Power switch: The Artemis board is capable of very low power operation. The SoM on the other hand, is capable of efficient compute at higher power. The switch allows the SoM power to be under control of the Artemis to allow for ultra low system power.

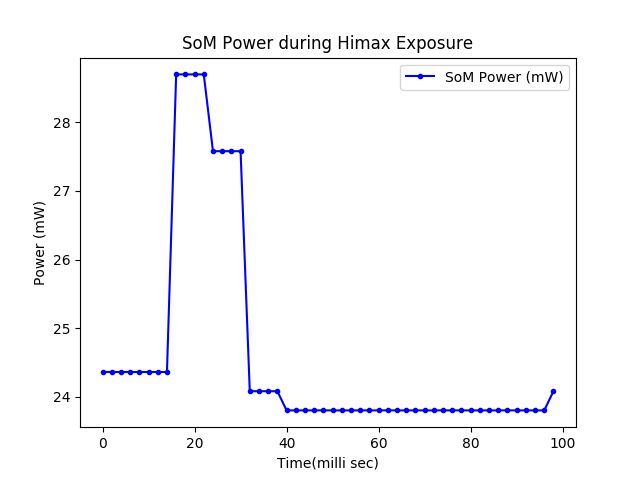

The board is capable of measuring dynamic power with pretty good precision. The plot below shows power consumption on the 3.3V input to the SoM when running object detection with the Himax image sensor.

Neural Networks!

Stay tuned for the next update with more details on this topic including people detection and keyword spotting running on the SoM!

Corona Virus in the supply chain!

The virus has caused widespread issues in not only the human population but also in the electronics supply chain. China is a central resource for PWB manufacturing which we depend on for fast and low cost prototyping. The China shutdown over the Chinese new year and beyond has caused our fast prototyping efforts to slow down.

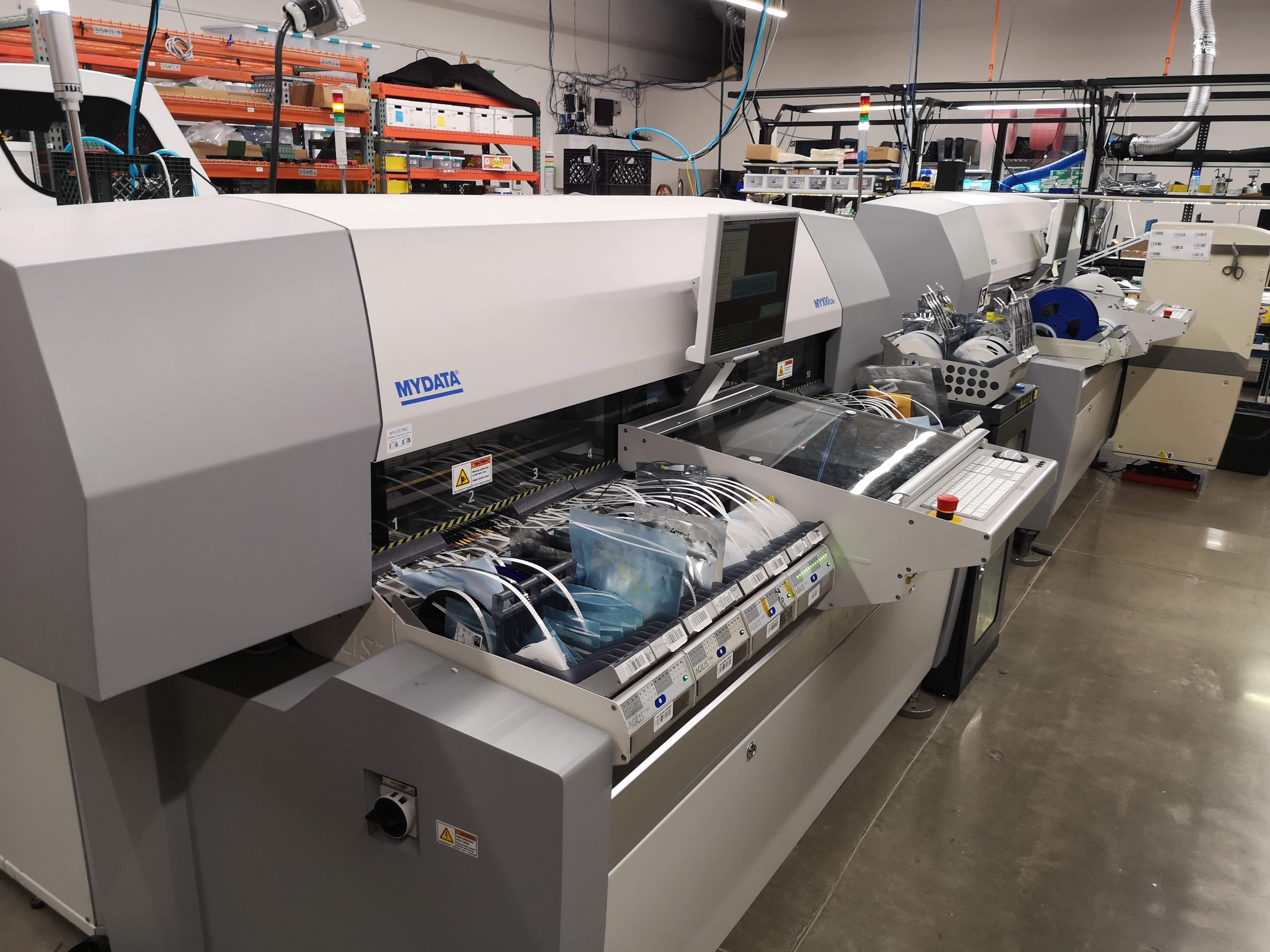

The virus will likely have widespread and long lasting impact on various suppliers. However, since our manufacturing is located in the US, we do not anticipate any longer term impact to this project.

Help define the project’s future!

We invite you to fill out this short survey to help guide us.

The project is not yet buttoned up! A lot of work remains in terms of software, documentation, marketing, training framework, hardware verification and so on. We invite you to collaborate using the Crowd Supply Discord channel and/or the tinyVision Discord channel.
