Traverse Ten64

by Traverse Technologies

An eight-core ARM64 networking platform with mainline Linux support

View all updates Sep 20, 2019

Announcing the Ten64

by Mathew M

Hello everyone,

It has been a while since we last posted an update – but a lot has been happening behind the scenes! The Traverse team has expanded greatly in the last year, and we now have a couple of development projects on-going, including our next generation networking products.

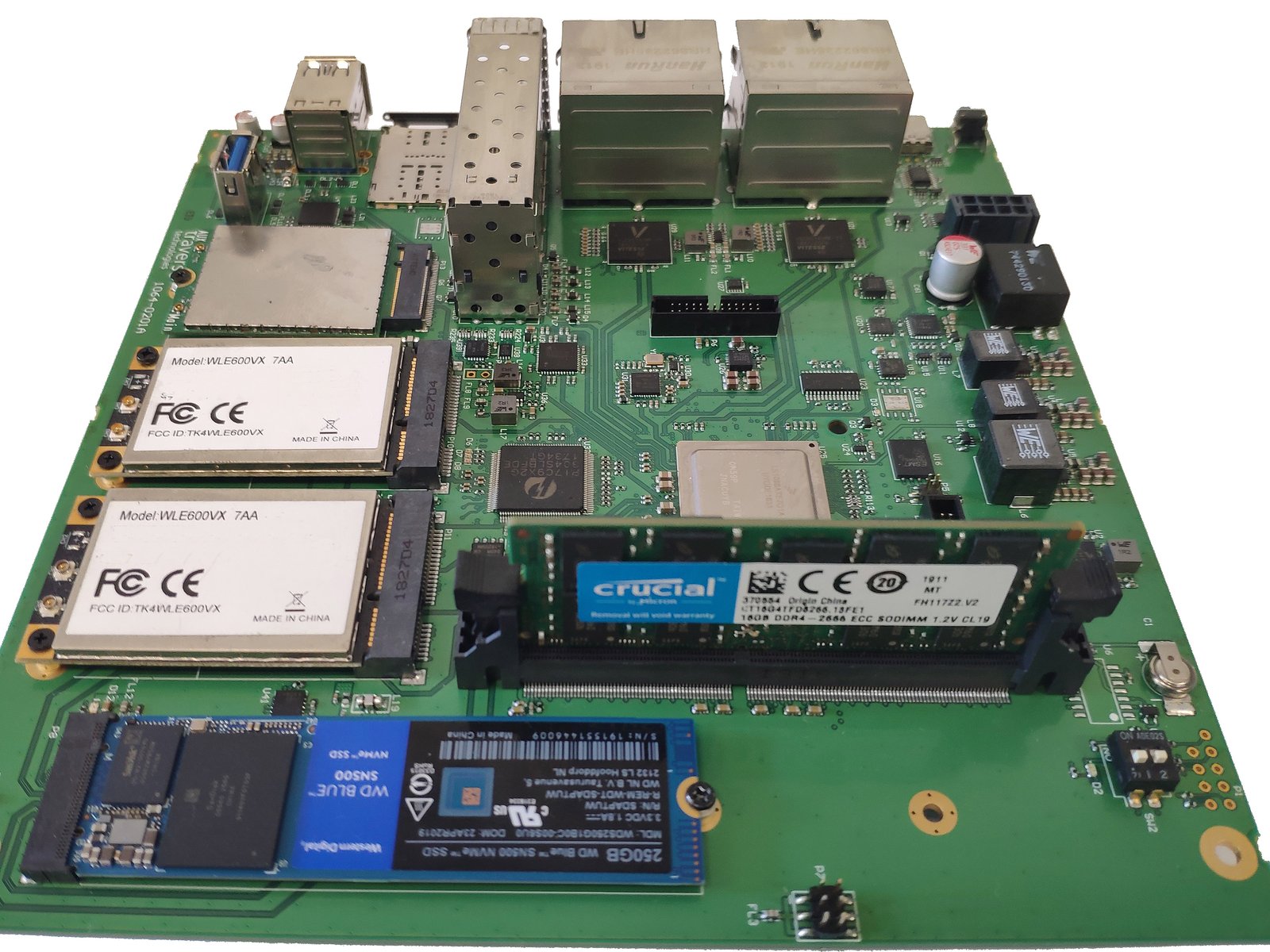

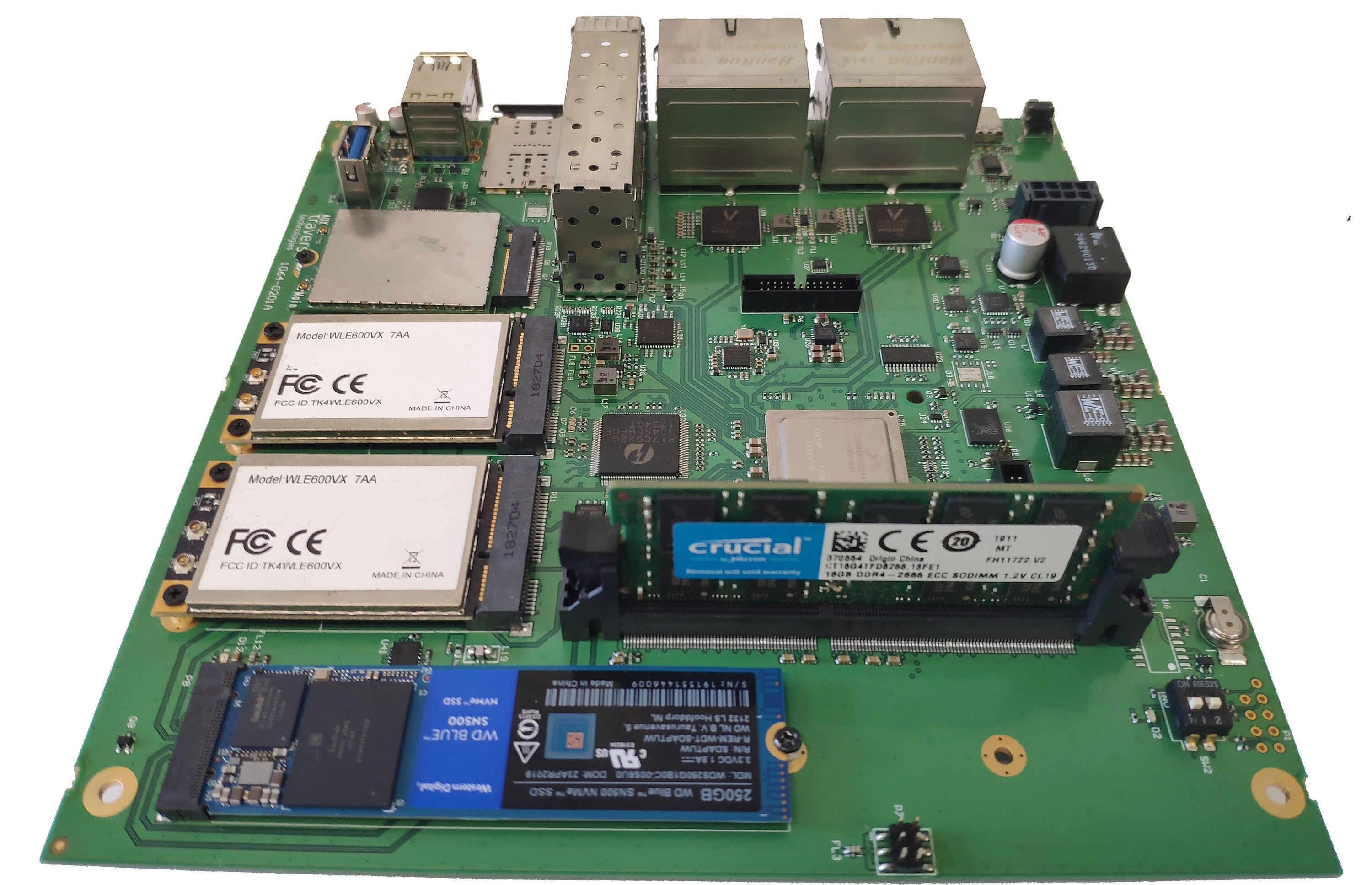

Today we announced the Ten64, a new networking-focused board based on NXP’s Layerscape LS1088A SoC. This replaces the previously-planned LS1043 design (Five64). Due to derivatives of the Ten64 being specified for operator RFQs we haven’t been able to unveil it until now – but the community will be the first to get their hands on the platform!

New Features and Upgrades

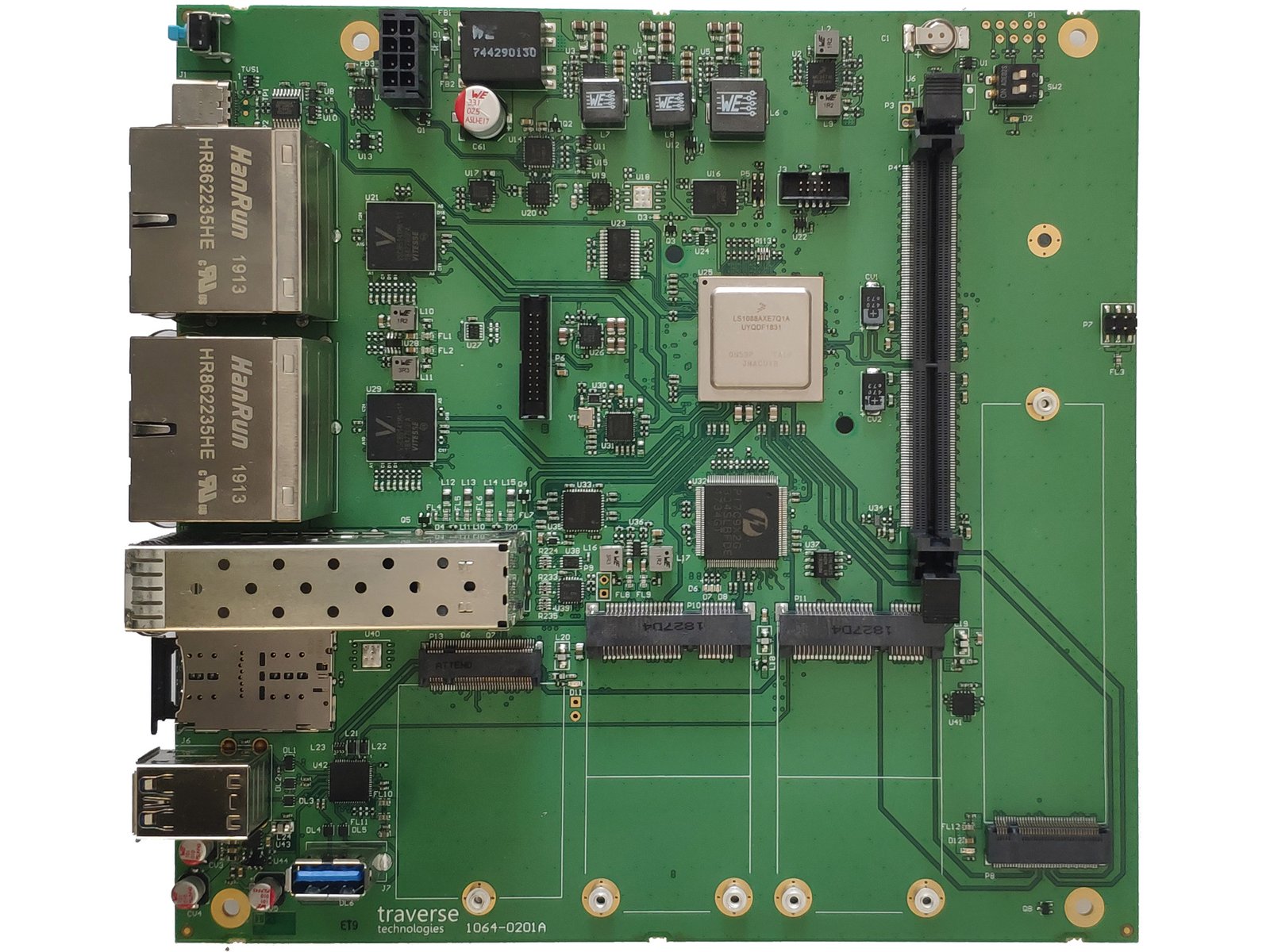

Ten64 is a brand new design, built from the ground up for high-bandwidth wireless and wired networking, Linux development, and modern virtualization and container applications. We have taken feedback on board from NXP, network software vendors, as well as avoiding some ‘pain-points’ of our previous LS1043 design.

With the new design we are bringing some significant advancements in the featureset:

  • DDR4 SODIMM instead of soldered down RAM – this provides more flexibility (from 4 GB to 32 GB) and ECC support using off-the-shelf memory.
  • Eight Gigabit Ethernet ports plus two 10G SFP+ - all can be configured as an independent 'ethX' interfaces.

Some advantages of the LS1088 vs the LS1043 are:

  • DPAA2 Network architecture: "object oriented" networking that allows resources to be dynamically configured
  • More cores: 8xA53 vs 4xA53
  • IOMMU support, for isolation and virtualization passthrough
  • PCI Express 3.0
  • Full DDR4 bus (64-bit) with support for ECC + higher bus rate (2100 MT/s)

Traverse Ten64 Architecture

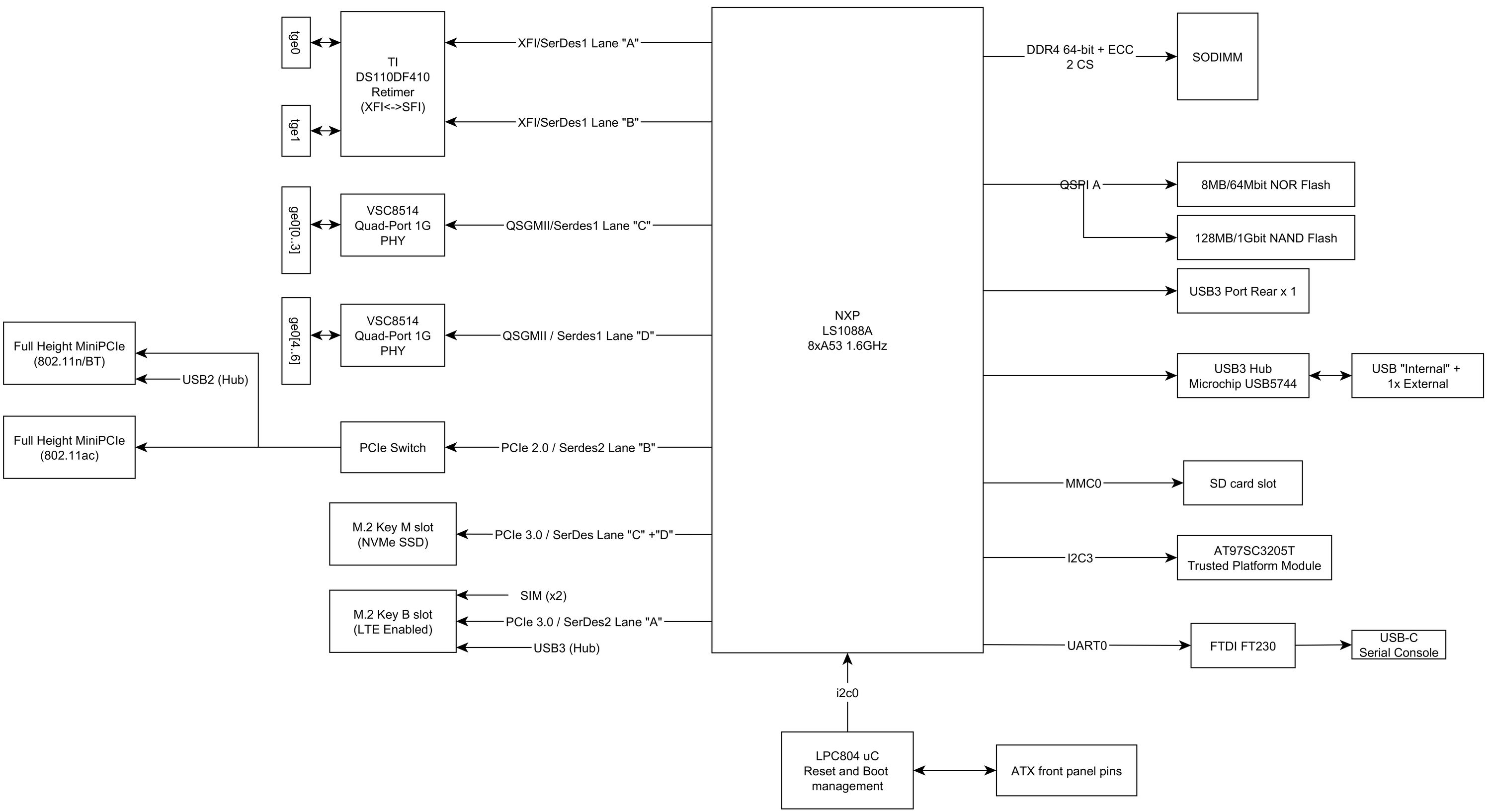

Ten64 block diagram - excludes minor components (e.g., sensors), correct at time of publication

The LS1088 is a very innovative SoC and we ourselves have not even scratched the surface of its full capabilities. In the future, we hope to bring advances such as hardware accelerated routing and virtual switch offloading to the community. In the meantime, we are working hard to provide an excellent platform you can use today.

Enclosure Options

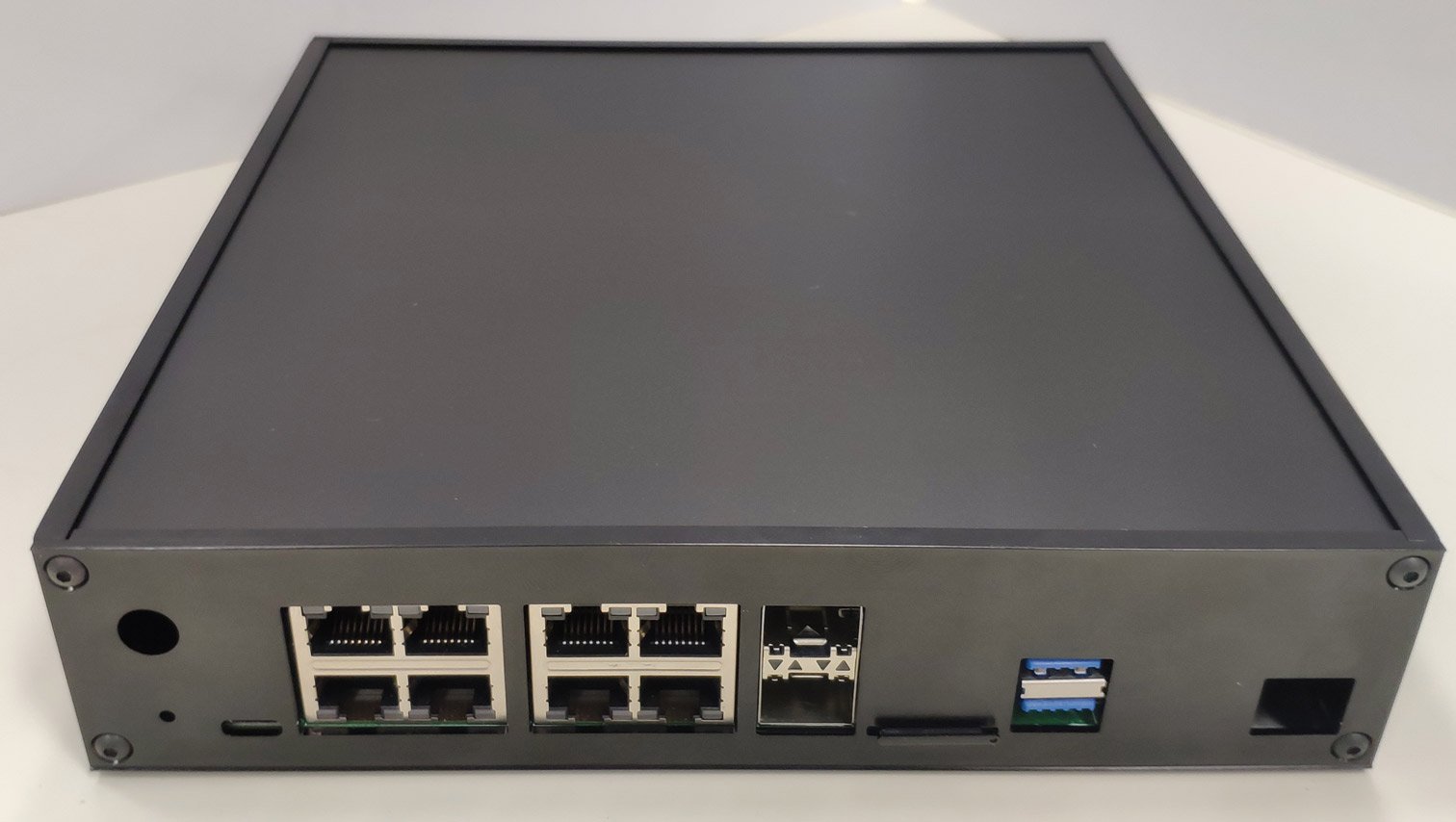

The Ten64 board is Mini-ITX compatible and will work both directly powered from DC and with ATX-style power supplies (via an adaptor). For networking and wireless applications, we have been developing a modular desktop case:

Note this is an initial prototype - changes for the PCB and case are already on the way.

For storage-oriented applications, we are working on qualifying various NAS cases on the market.

Next Steps

The Ten64 campaign is scheduled for October. Until then, we will update the pre-launch page on Crowd Supply as we finalize our manufacturing, enclosures, and software plans.

About the Author

Mathew M

mcbridematt  ·   Melbourne, Australia


$36,541 raised

of $60,000 goal

61% Funded

Pledge Now

$499

Ten64 Bare Board

This discounted, fully assembled, and tested mainboard comes with an ATX power adapter, heatsink fan, I/O faceplate, USB-C console cable, and optional RAM with ECC. Enclosure not included.


$579

Ten64 Complete Kit

This version of Ten64 is deeply discounted for this Crowd Supply campaign. A fully assembled and tested mainboard comes installed in a custom metal enclosure with a fan and optional RAM with ECC. Also included are a 60 W power supply with regional power cord, a USB-C console cable, a recovery microSD card, a SIM eject tool, and a hex key, as you'd expect with any good piece of hardware.


$850

Ten64 Turnkey NAS Bundle Optimized for HDD Bulk Storage

Looking for an HDD NAS? Other than the bulk storage drives themselves, this bundle includes everything you need for an HDD-bulk-storage NAS: tested and assembled Ten64 mainboard (with your choice of RAM), ATX power adapter, heatsink fan, I/O faceplate, USB-C console cable, four-port M.2 Key B SATA controller, four flexible SATA cables, NVMe SSD boot drive (with your choice of capacity), and InWin MS04-01 NAS enclosure, which features four 3.5" drive bays, 265 W power supply, and 6 Gb/s SATA backplane. Assembly required. Everything but the InWin enclosure is available separately.


$850

Ten64 Turnkey NAS Bundle Optimized for SSD Bulk Storage

Looking for an SSD NAS? Other than the bulk storage drives themselves, this bundle includes everything you need for an SSD-bulk-storage NAS: tested and assembled Ten64 mainboard (with your choice of RAM), ATX power adapter, heatsink fan, I/O faceplate, USB-C console cable, five-port M.2 Key M SATA controller, five flexible SATA cables,128 GB NVMe SSD boot drive, and InWin MS04-01 NAS enclosure, which features four 3.5" drive bays, 265 W power supply, and 6 Gb/s SATA backplane. Assembly required. Everything but the InWin enclosure is available separately.


$56

NVMe SSD

This SanDisk solid-state drive (SSD) fits inside the standard Ten64 enclosure and interfaces to the mainboard via NVMe. The 128 GB drive (P/N SDAPMUW-128G-1022) is compatible with both the M.2 Key M and M.2 Key B slots on Ten64's mainboard, whereas the 256 GB drive (P/N SDBPNPZ-256G) and 512 GB drive (P/N SDBPNPZ-512G) are only compatible with the M.2 Key M slot. These drives are only available when purchased with a Ten64. User installation required.


$70

NAS-grade SATA 2.5" SSD

These NAS-grade solid state drives (SSDs) are rated to last much longer than consumer models, so are perfect for NAS bulk storage. Choose from 256 GB (AP256GPPSS25-R), 512 GB (AP512GPPSS25-R), and 1 TB (AP1TPPSS25-R) capacities. These drives are only available when purchased with a Ten64. User installation required.


$55

Five-port M.2 Key M SATA Controller

We recommend this SATA controller for Ten64 NAS configurations using Apacer NAS-grade SSDs for bulk storage and a smaller 22 mm x 42 mm NVMe SSD for boot storage. This controller fits in the Ten64's M.2 Key M slot and uses two lanes of PCIe 3.0.


$55

Four-port M.2 Key B SATA Controller

We recommend this SATA controller for Ten64 NAS configurations using CMR HDDs for bulk storage and a standard 22 mm x 80 mm NVMe SSD for boot storage. This controller fits in the Ten64's M.2 Key B slot and uses one lane of PCIe 2.0.


$4

Flexible SATA Cable

One flexible cable (3M part number 5602-44-0142A-300) for connecting a SATA drive to a SATA controller board. You will need one cable per drive. Free shipping only available when shipped with another Ten64 product.
