StereoPi

by virt2real

An open source stereoscopic camera based on Raspberry Pi

View all updates Jun 14, 2019

The Art of Stereoscopic Photography, livestreaming additions, and GPIO pinout

The Art of Stereoscopic Photography, Part 2

StereoPi Stereomii L-R-L photo

We’ve put out the second article in our series of guides to stereoscopic photography. The first part of this series concerned some theory and basics, but second article is focused on practice. This is a step-by-step guide, and covers these topics:

  • Simple DIY stereoscopic camera assembly
  • Tuning of the updated S.L.P. Raspbian image settings
  • Setting your phone as a viewfinder
  • Capturing your first stereoscopic photos in the field
  • Improving your stereoscopic photos with StereoPhoto Maker software
  • Tips for advanced users
  • A bit of holy war: “Wall-eyed or cross-eyed stereo photos viewing?”

You can read full article in our blog.

S.L.P. Raspbian Image Update

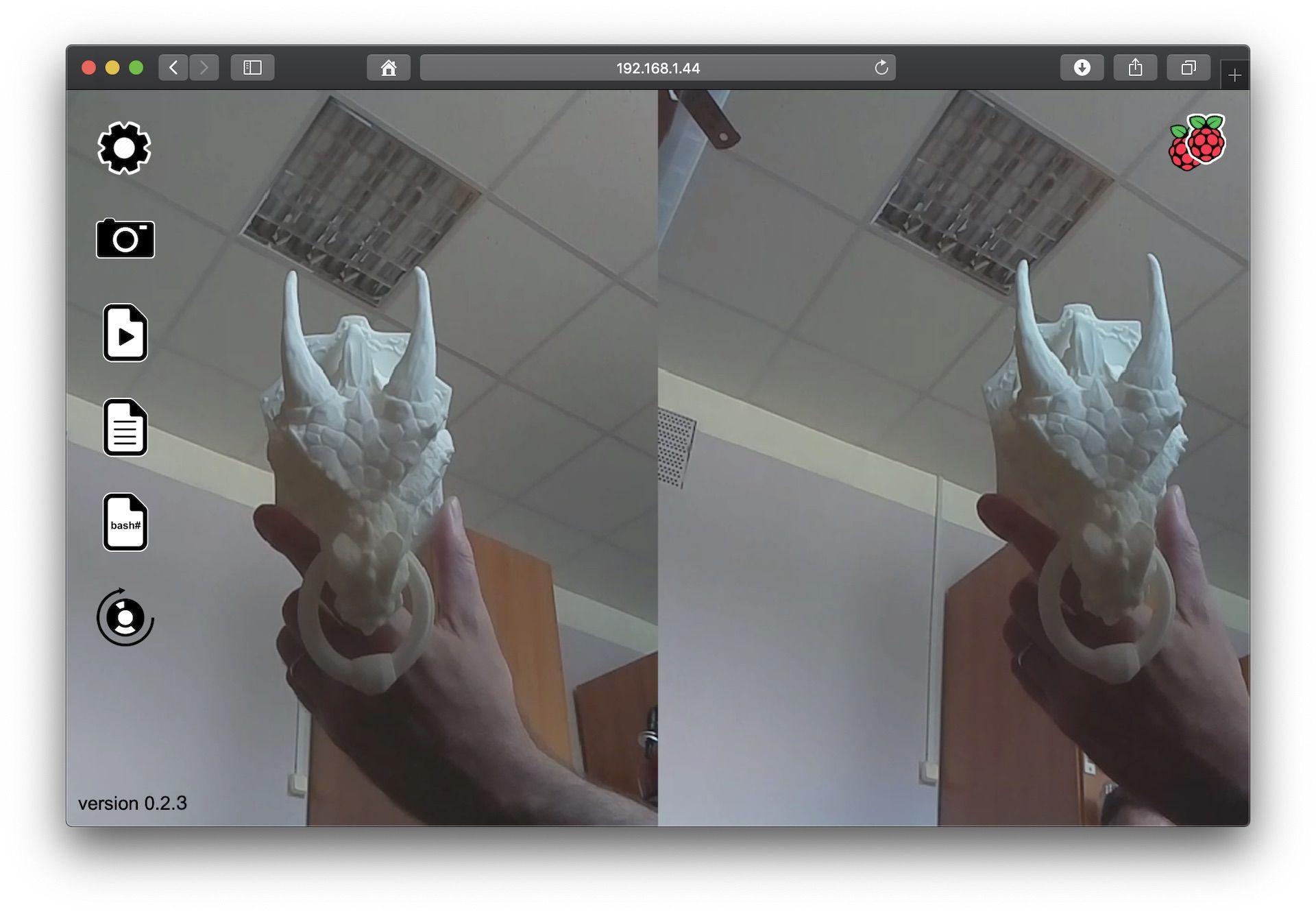

S.L.P. Raspbian image update, v0.2.3

Our Raspbian image for livestreaming stereoscopic photo experiments has been updated. We added a lot of features for comfortable use of StereoPi as a portable stereoscopic camera. See the changelog.

You can download the updated file (~2 Mb) here, or the full updated Raspbian image here from our Wiki.

Some Wiki Updates

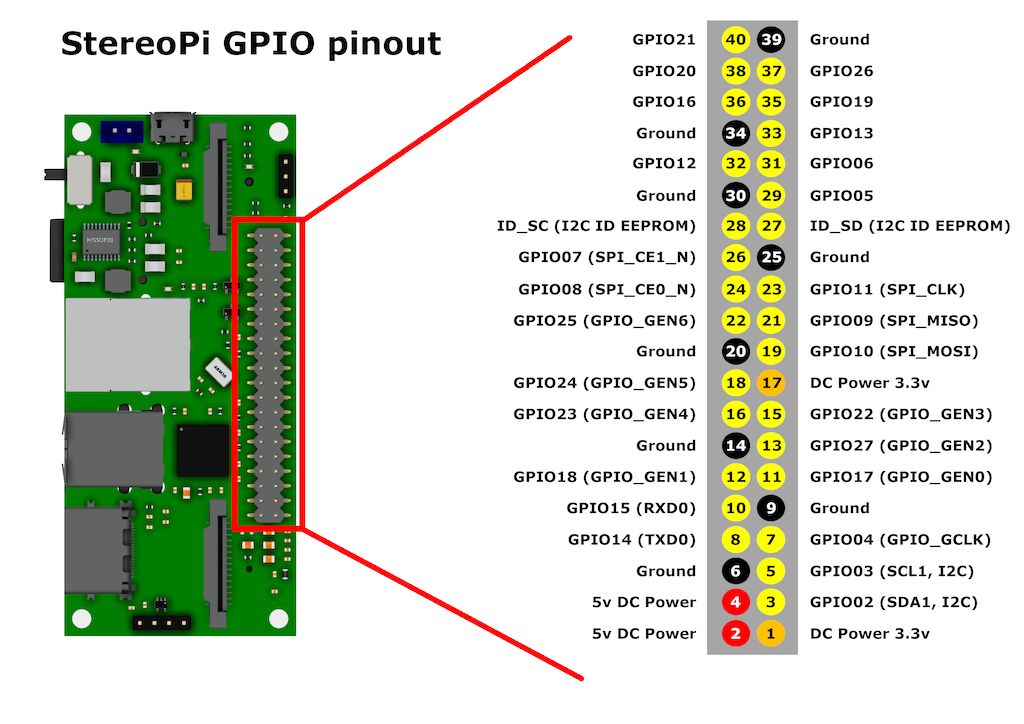

StereoPi GPIO pinout

Just want to point out that in our Wiki you can now find:


$90,444 raised

of $35,000 goal

258% Funded! Order Below

Product Choices

$69

StereoPi Slim Edition

Perfect for DIY ninjas and those wanting to embed StereoPi in a tight space. This board is the same as the standard edition, but without all the bulky connectors - the Ethernet RJ45 jack, GPIO header, and dual USB Type-A connector have not been populated. To use this board, you will need your own Raspberry Pi Compute Module, cameras, camera ribbon cables, and power cable.


$89

StereoPi Standard Edition

The world of stereoscopic video awaits! This board is the ultimate interface between two cameras and a Raspberry Pi Compute Module. It comes with all the bells and whistles, including Ethernet, dual USB ports, GPIO header, microSD slot, HDMI output, and more. To use this board, you will need your own Raspberry Pi Compute Module, cameras, camera ribbon cables, and power cable.


$125

StereoPi Starter Kit

This kit has everything you need to get started right away. The kit includes one StereoPi Standard Edition board, two V1 cameras (w/ ~20 cm ribbon cables), one Raspberry Pi Compute Module 3 Lite, and everything in the StereoPi Accessories Kit (two short ribbon cables, one USB power cable, two power cables, one V1/V2 dual-camera mounting plate, and one wide-angle dual-camera mounting plate). We've also included a microSD card pre-imaged with Raspbian and all the stereoscopic video and image demos you see on this project page.


$199

StereoPi Deluxe Kit

This kit includes everything in the StereoPi Starter Kit and adds two wide-angle (160°) cameras (w/ ~20 cm ribbon cables). With this kit, you'll be able to run all of the demos shown on this project page and start experimenting on your own. You will reign supreme over your stereoscopic domain.


$25

StereoPi Accessories Kit

This bundle will help you mount and connect your two cameras, and supply power to the whole setup. Included are two short (5 cm) ribbon cables to connect your cameras to your StereoPi (most cameras come with cumbersome 10-20 cm cables), one USB power cable for powering your setup from a standard USB Type-A power source, two power cables with bare leads for using in screw terminals or soldering to a non-USB power source, a laser-cut acrylic plate for mounting two V1/V2 cameras, and a laser-cut acrylic plate for mounting two wide-angle cameras. Both camera mounting plates are compatible with the freely available plans for our 3D-printed enclosure. StereoPi and cameras not included.

Credits

virt2real

We are a small team of geeks who have been making remote-controlled things with livestreaming video since 2010. We've done everything from boats and planes, to robots, copters, and VR helmets. If we can't find the right tools for our projects, we build them ourselves.


Eugene Pomazov

Sergey Serov

Kirill Shiryaev
