ATM90E26 Single-Phase Energy Monitor Dev Kits

by whatnick

An open, affordable, and accurate energy monitor using ATM90E26.

View all updates Jan 05, 2018

Manufacturing and Shipping Update

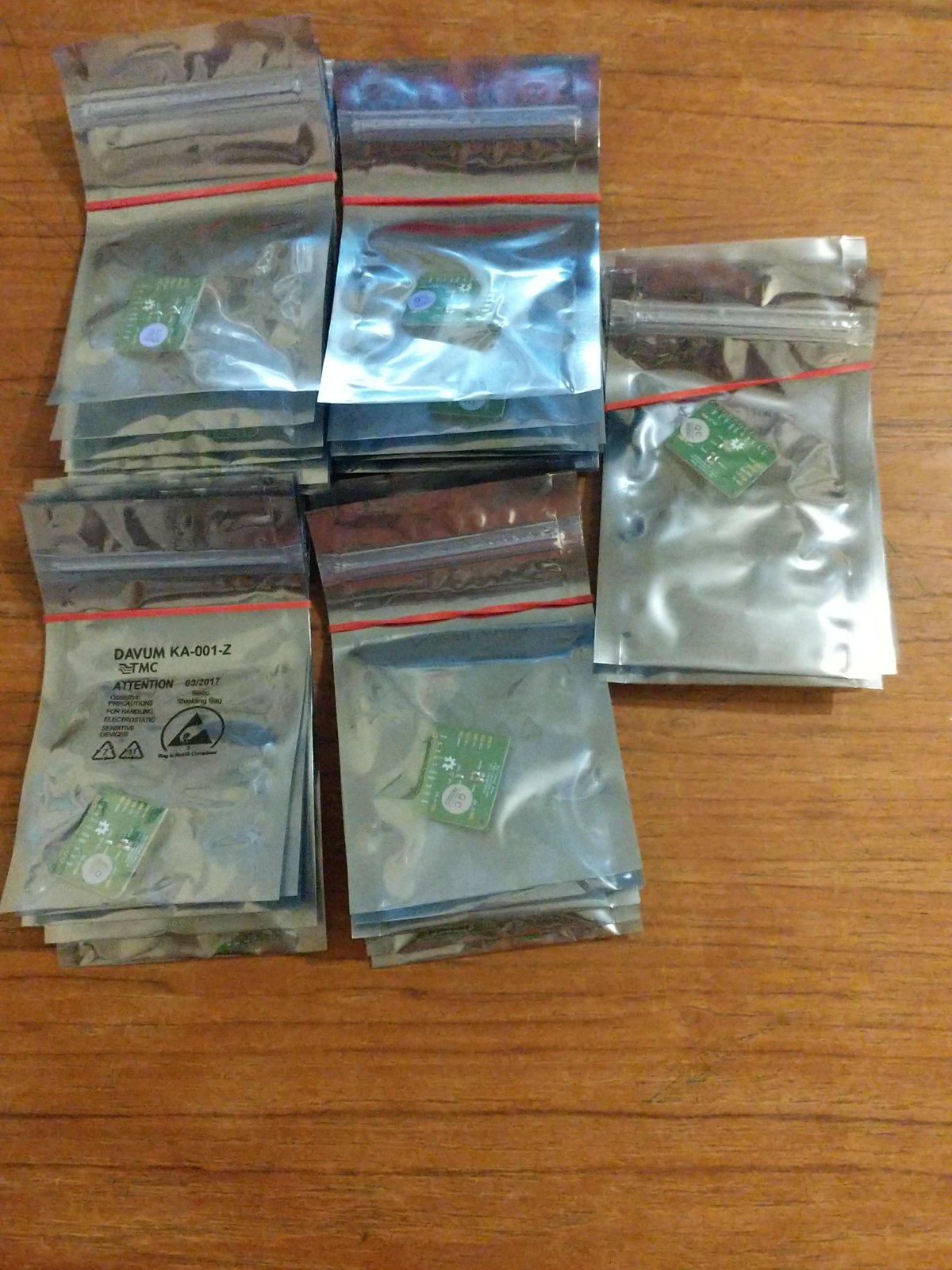

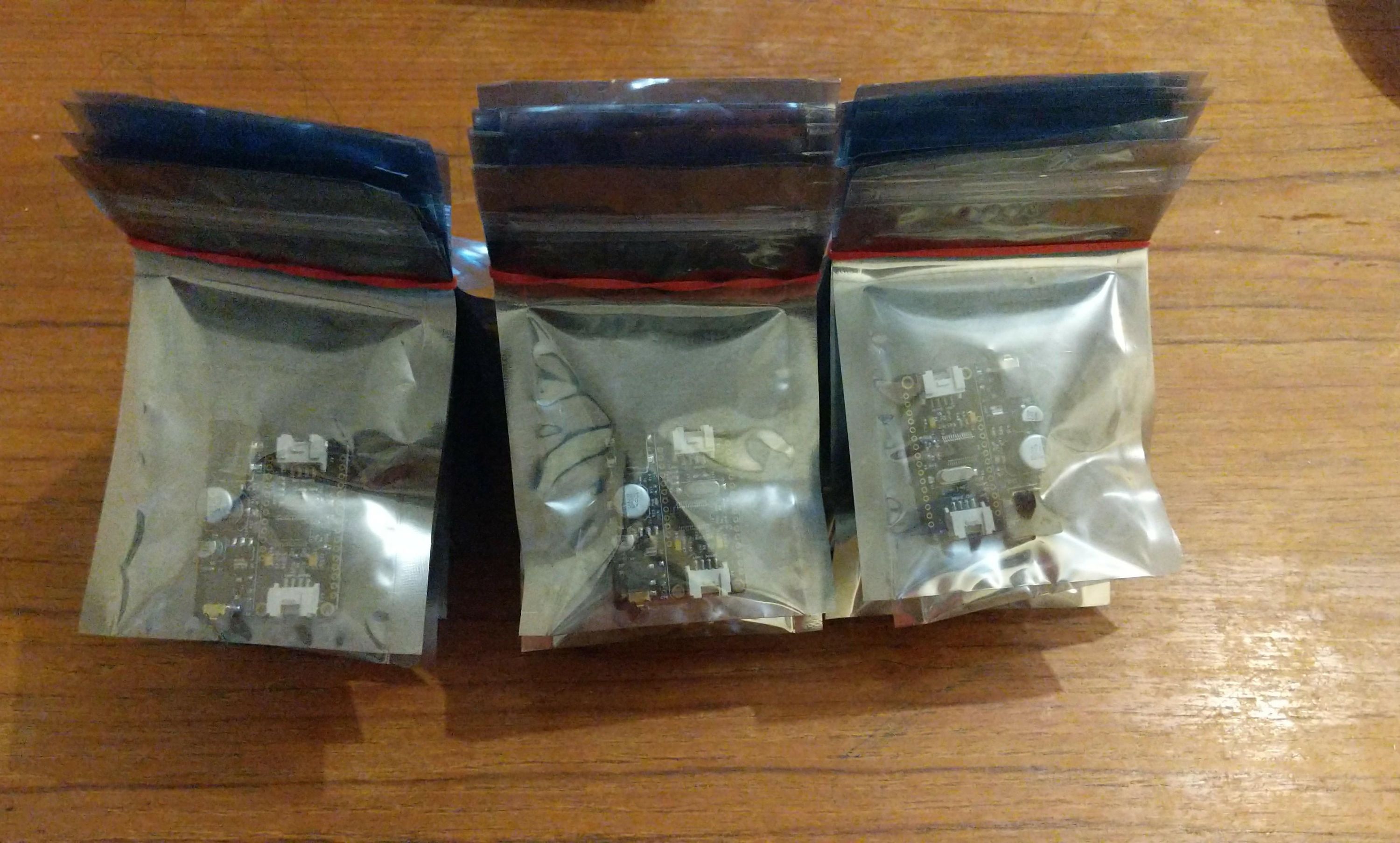

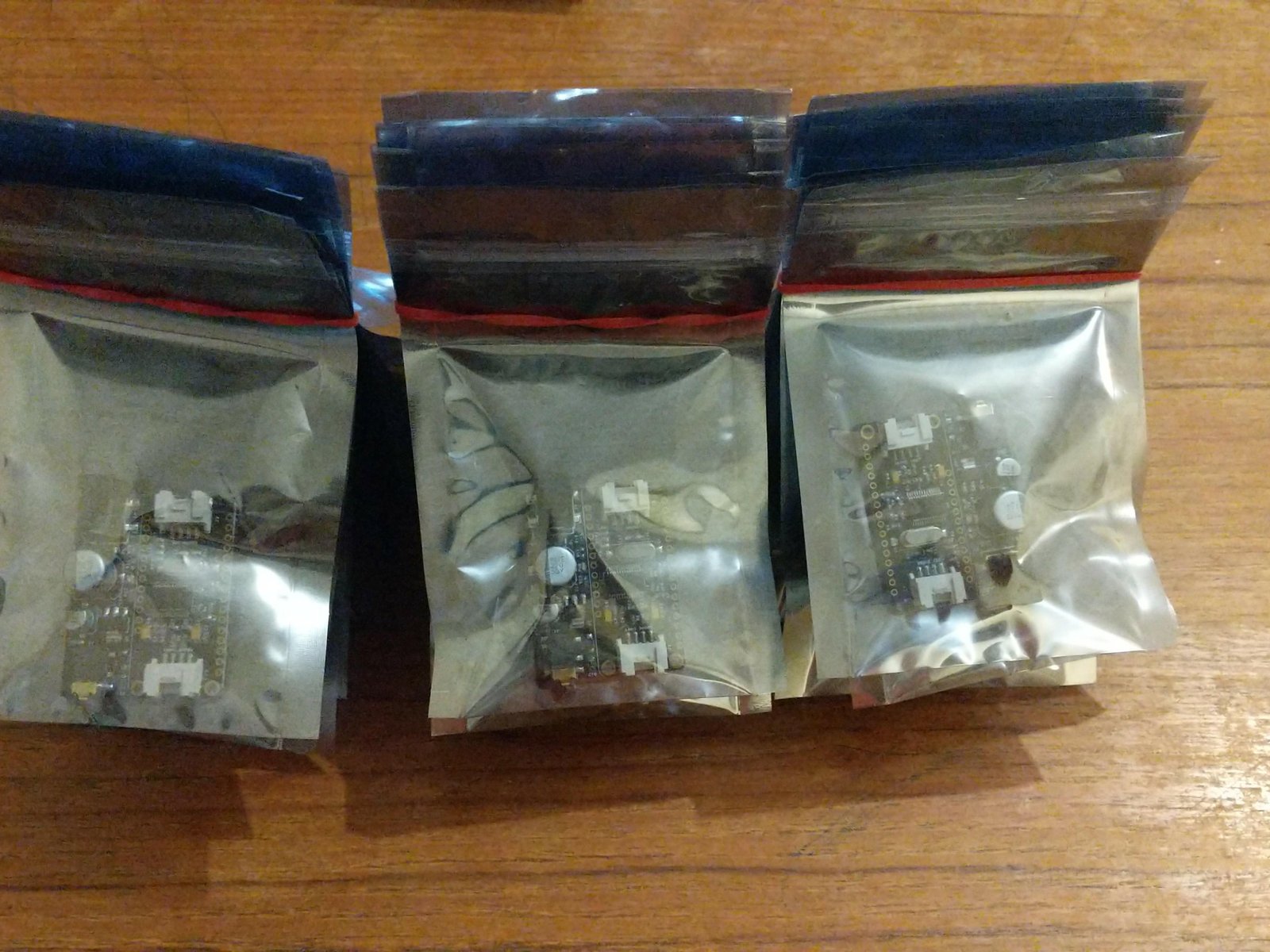

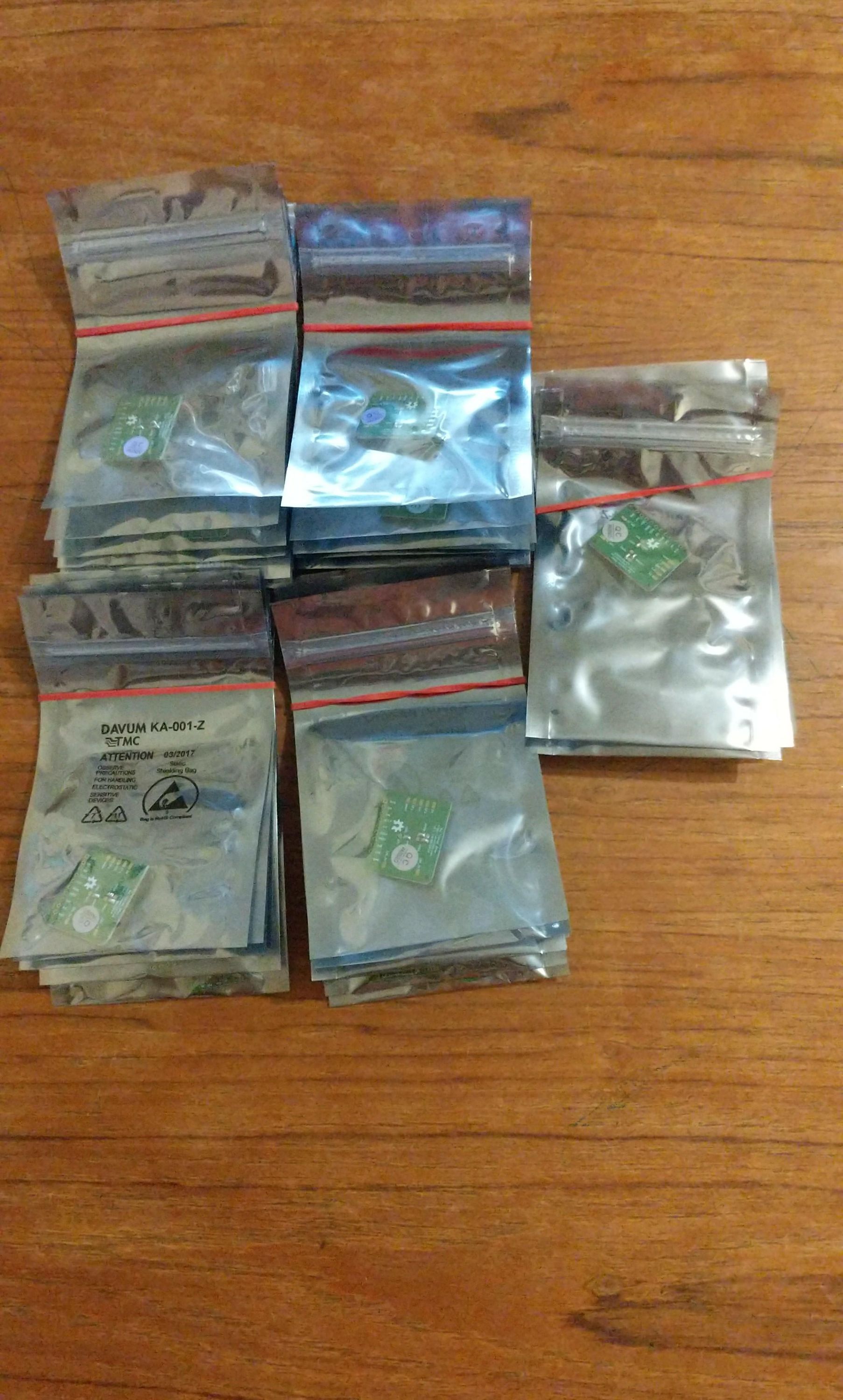

Christmas is usually a slow time for shipping. However, I have been working away at getting things ready as soon as possible. I have put together the ATM90E26 Breakouts and Featherwings; these will ship to Crowd Supply next week. There was a slight delay in these due to ESD bags being held up over Christmas break.

I have also mobilized the local hackerspace in Adelaide for DIN Rail energy monitor assembly. It was a huge success, all energy monitor PCB’s have been assembled and are now being tested. I am aiming to ship these out late-January.

Thank you for your patience and support.

Regards,

Tisham


$5,145 raised

of $1,800 goal

285% Funded! Order Below

Product Choices

$35

Energy Monitor FeatherWing

A hacker-friendly, low-voltage dev kit for the ATM90E26. Compatible with most Adafruit Feather-series boards and accessible via SPI or UART. Two can be stacked in SPI mode for grid + solar single-phase monitoring.


$60

DIN Rail Energy Monitor (Single ATM90E26)

Something your electrician will feel good about installing. A fully featured DIN rail module with options to install two ATM90E26 monitoring boards for grid + solar. Can be interfaced with Wemos (ESP8266) footprint boards to add Wi-Fi, BLE, LoRa, and other forms of network connectivity.


$20

ATM90E26 Secondary Module for DIN Rail Use

Secondary module for the DIN Rail Energy Monitor above which will add another phase into the monitoring setup. Essentially the same as the breadboard version but with isolated SPI bus making it suitable for use with high-voltage inputs. This module can be used to measure a second phase or single phase solar output after the inverter. You can also use it to design your own isolated high-voltage monitoring system.
