NeTV2

by Alphamax

An open video development board in a PCI express form factor that supports overlaying content on encrypted video signals. Let's bring open video to the digital age!

View all updates Jun 05, 2018

Developing Apps for Your TV the Easy and Open Way

The biggest screen in your house would seem a logical place to integrate cloud apps, but TVs are walled gardens. While it’s easy enough to hook up a laptop or PC and pop open a browser, there’s no simple, open framework for integrating all that wonderful data over the TV’s other inputs.

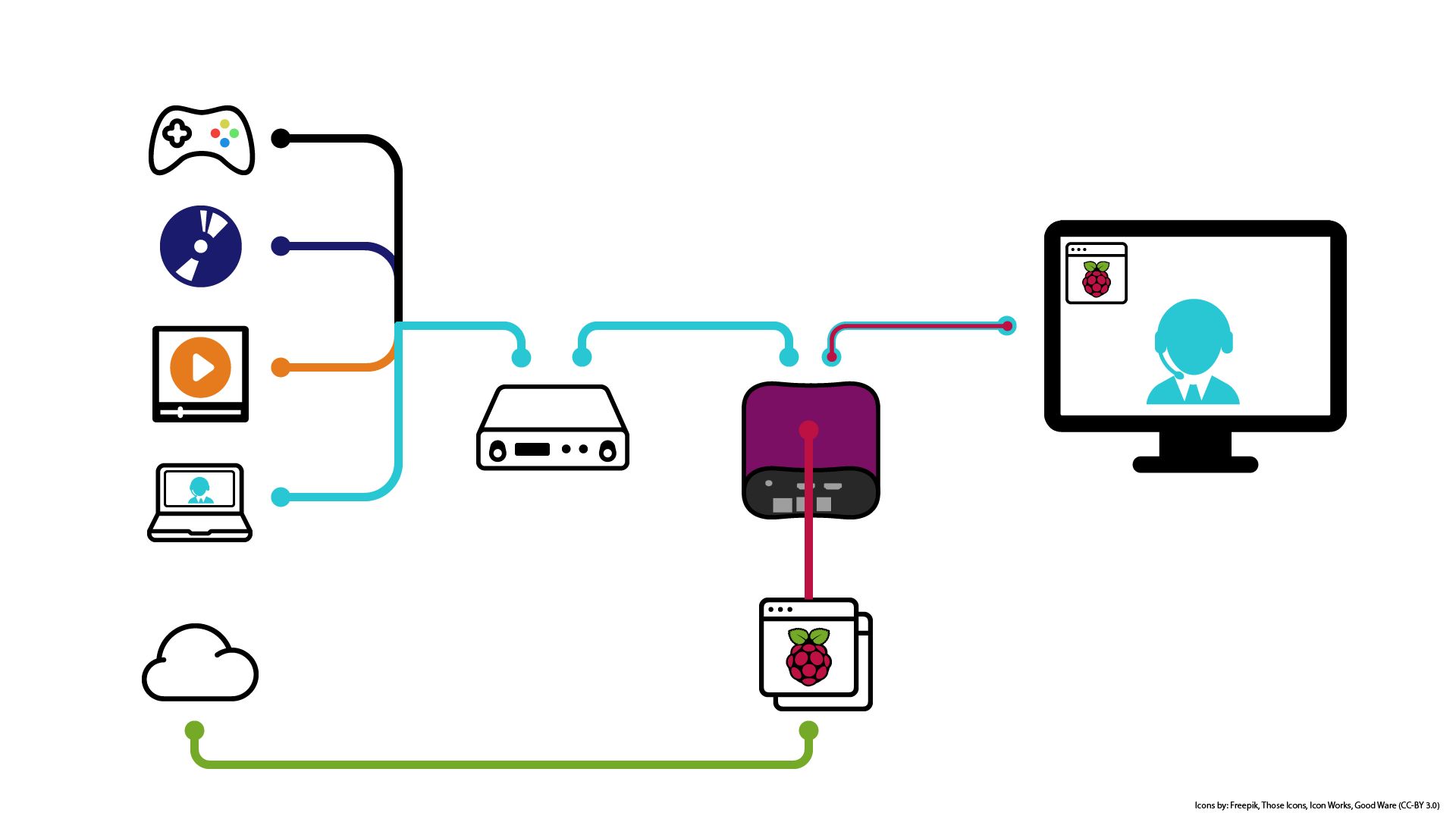

Until now. Out of the box, NeTV2’s “NeTV Classic Mode” makes short work of overlaying graphics on top of any video feed. And thanks to the Raspberry Pi bundled in the Quickstart version, NeTV2 app developers get to choose from a diverse and well-supported ecosystem of app frameworks to install over the base Raspbian image shipped with every device.

For example, Alasdair Allan’s article on using the Raspberry Pi with Magic Mirror and Google AIY contains everything you need to get started on turning your TV into a voice-activated personal assistant.

I gave it a whirl, and in just one evening I was able to concoct the demo featured above. Magic Mirror is a great match for NeTV2, because all the widgets are formatted to run on a black background. Once loaded, I just had to set the NeTV2’s chroma key color to black and the compositing works perfectly. Also, Google AIY’s Voicekit framework “just worked” out of the box. The only fussy bit was configuring it to work with my USB microphone, but thankfully there’s a nice Hackaday article detailing exactly how to do that.

Personally, I find listening to long-form replies from digital assistants like Alexa or Google Home a bit time consuming. As you can see from this demo, NeTV2 lets you build a digital assistant that pops up data and notifications over the biggest screen in your house using rich visual formats. And the best part is, when you want privacy, you can just unplug the microphone.

If you can develop an app that runs on a Raspberry Pi, you already know everything you need to integrate apps into any TV. Thanks to NeTV2, there’s never been an easier or more open way to make the biggest screen in your house the smartest screen.

The NeTV2 is crowdfunding now at CrowdSupply.com, and we’re just shy of our first stretch goal: a free Tomu bundled with every board. Tomu is a tiny open-source computer that fits in a USB Type-A port, and it’s the easiest way to add an extra pair of status LEDs to an NeTV2. Back now and help spread the word!


$77,895 raised

of $15,000 goal

519% Funded! Order Below

Product Choices

$215

NeTV2 - Just the Board

Just the NeTV2 open video development board plus a 12V power supply. For the power developer who has their own JTAG box or the hobbyist who enjoys spending an afternoon provisioning a Raspberry Pi with the NeTV2 dev tools.


$345

NeTV2 Quickstart Package

For developers and users who want to skip the screwdrivers and go straight to a SSH prompt. The Quickstart Package is a turnkey solution for open video, optimized for video overlay. It's an NeTV2 dev board bundled with a Raspberry Pi 3 B+, 8 GiB SD card with pre-loaded base firmware package, power supply, and our custom HDMI Jumper, all assembled into a case and fully tested. Ready for you to SSH in and load your application code!


$445

100T NeTV2 Quickstart Package - Limited

This is a limited-availability configuration of the Quickstart Package that has the super-beefy 100T FPGA (a $170+ value) rather than the 35T. This gives you about a 3x boost in logic and RAM capacity - plenty of power for even machine learning/artificial intelligence implementations.


$25

NeTV2 - Just the Case

All the plastic parts necessary to protect and mount your NeTV2 dev board: case top and bottom, front bezel, light pipes, standoffs, and screws. If you plan to mate this with your own Raspberry Pi as a video source, you'll also want to get the Custom HDMI Jumper.


$25

Thermal Management Kit

Keep your NeTV2 cool with this thermal management kit that includes 30 mm fan with pre-crimped cable, mounting bracket, and a set of screws for attaching the fan to the bracket, and the bracket to the Peek Array in the NeTV2 enclosure.


$15

Custom HDMI Jumper

Even the shortest HDMI cables don't quite fit inside the NeTV2 case, so we built a custom PCB that provides impedance-controlled differential pairs to bridge between the Raspberry Pi overlay video source and the NeTV2 open video dev board. Make sure to select the correct FPGA image when using this cable, as it leverages the pinout flexibility of the FPGA to optimize signal routing.
