AMD Kria™ K24 SOM & Kits

A motor control and DSP platform based on the AMD Zynq™ UltraScale+™ MPSoC

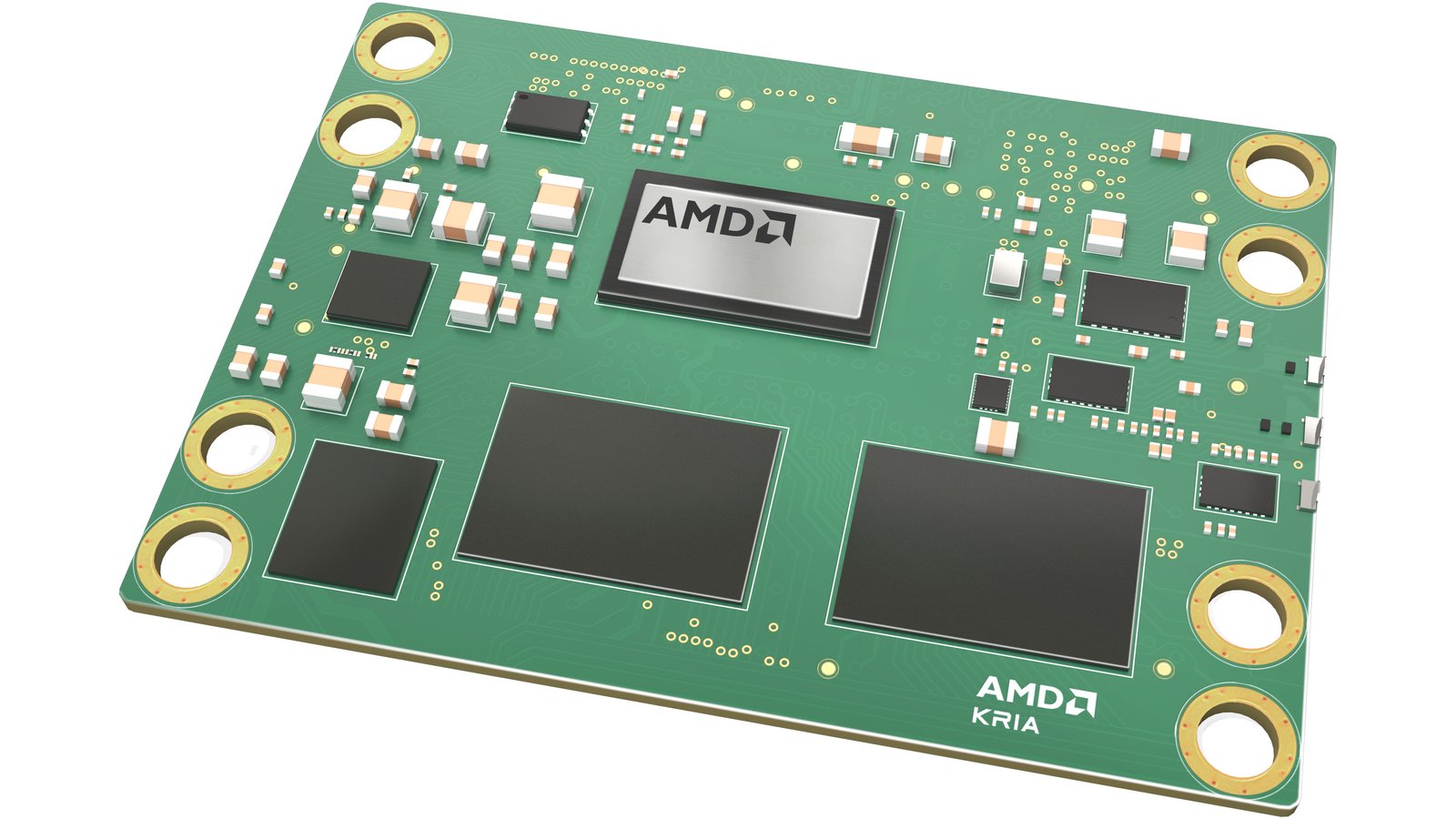

Kria K24 SOM

A system-on-module based on the AMD Zynq™ UltraScale+™ MPSoC architecture, optimized for power-efficient motor control and DSP applications. The Kria K24 SOM has the same footprint as and is connector-compatible with the K26 SOM.

$325 $8 US Shipping / $18 Worldwide

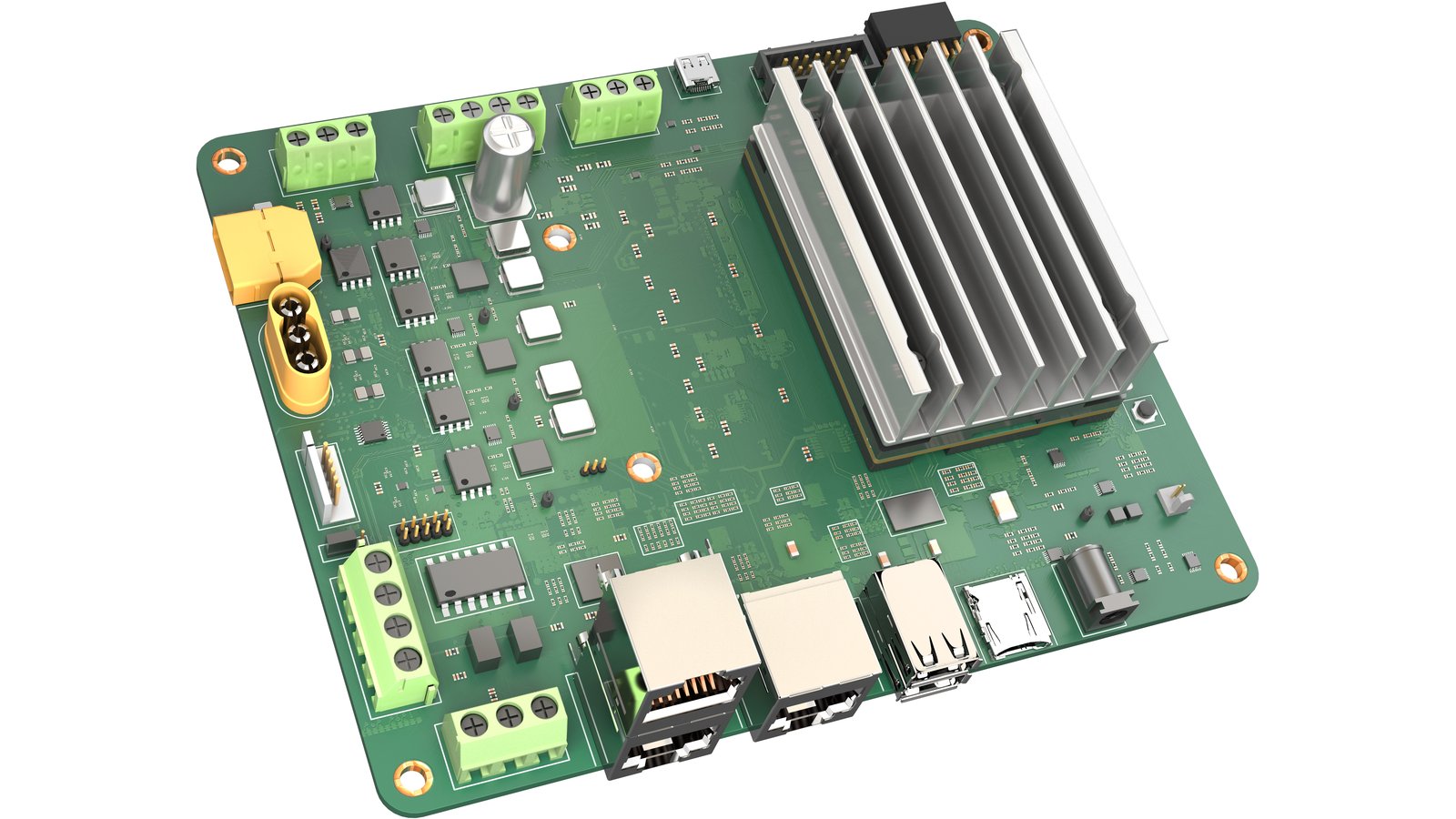

AMD Kria™ KD240 Drives Starter Kit

A development board for the AMD Kria K24 SOM that is ready out of the box for motor control and DSP applications. Embedded software developers without FPGA expertise can easily get started by running accelerated applications using multiple workflows, including Python, MATLAB® Simulink®, and more. Includes a non-production version of the Kria K24 SOM and a heat sink, both preinstalled.

$475 $8 US Shipping / $18 Worldwide

The Kria K24 is a highly adaptable system-on-module (SOM) that enables quick development of motor control and DSP applications with hardware and software that helps future proof against evolving standards, algorithms, and sensor requirements. The associated Kria KD240 Drives Starter Kit gives developers an easy out-of-the-box experience that doesn’t require any FPGA programming, using familiar tools such as Python, and MATLAB Simulink. The SOM comes with pre-built AMD Vitis™ hardware acceleration libraries for motor control.

Kria KD240 Drives Starter Kit Features

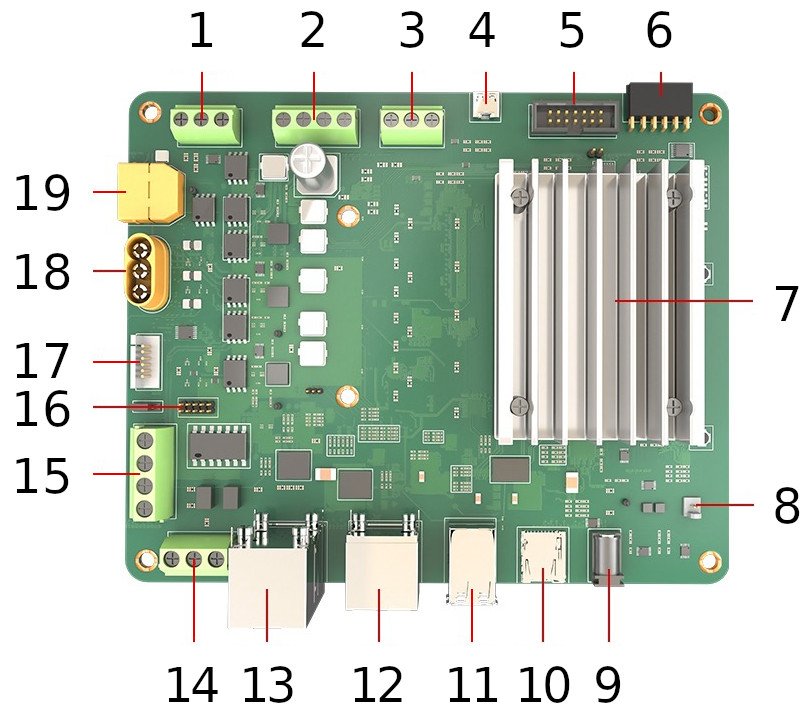

KD240 Block Diagram

1. Brake control connector8. Fan power15. RS-485
2. Torque sensor connector9. DC jack16. Differential QEI connector
3. 1-wire interface10. microSD card slot17 Single-ended QEI connector
4. Micro USB UART/JTAG11. 2 x USB 3.0/2.018. 3-phase invertor connector
5. JTAG12. RJ-45 PS Ethernet19. DC link connector
6. Pmod connector13. 2 x RJ-45 PL Ethernet
7. SOM and heat sink14. CAN

Kria K24 SOM Coming Soon

The Kria KD240 Drives Starter Kit is available to order now. The Kria K24 SOM itself, in both commercial and industrial grades, will be available to order soon.

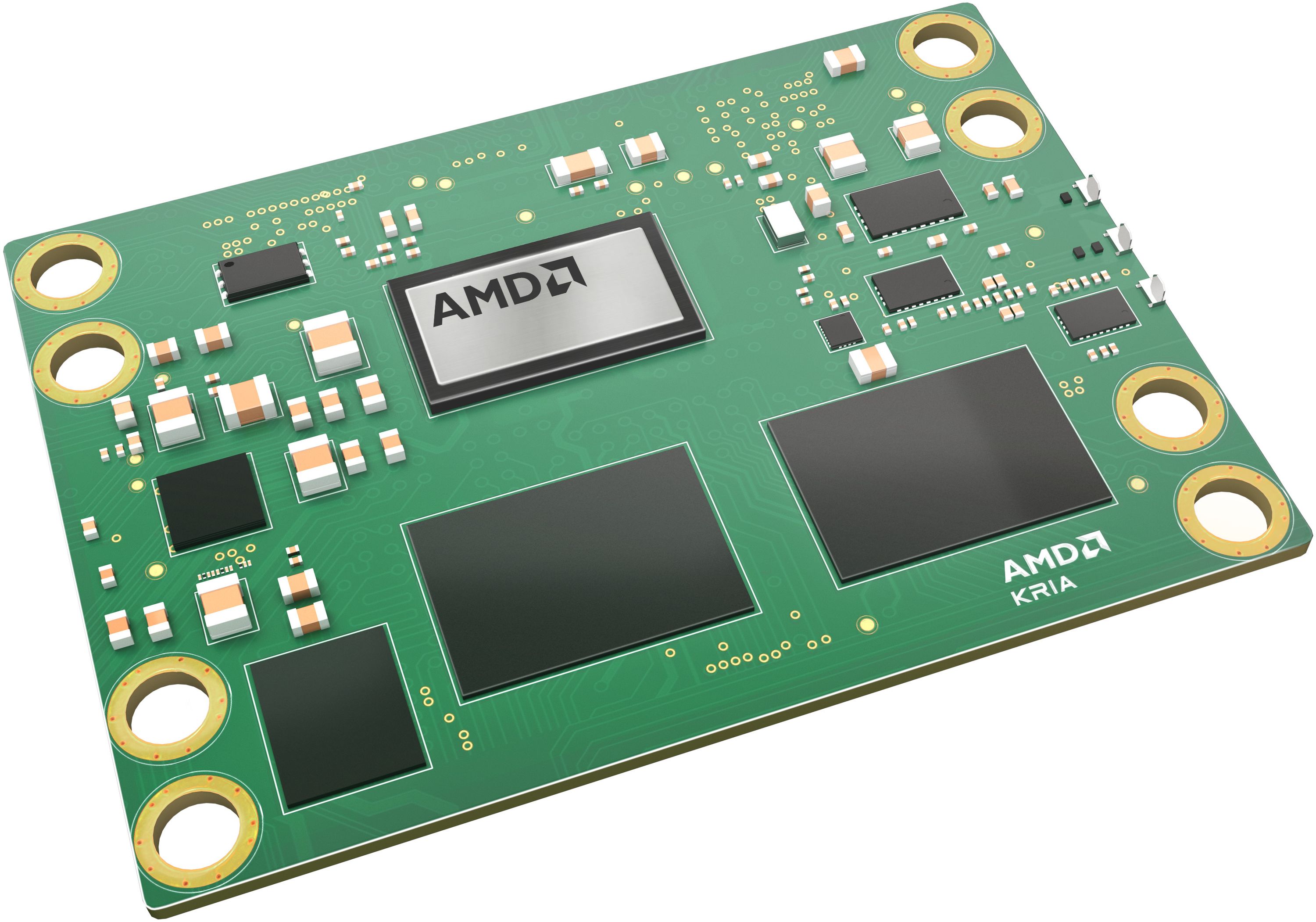

AMD Kria K24 SOM

Support & Documentation

Manufacturer AMD
Introduced Sep 19, 2023
Lifecycle Status Active
