View all updates May 27, 2021

OSHWA Certification and Open Source Tools for Open Source Projects

by ANAVI Technology

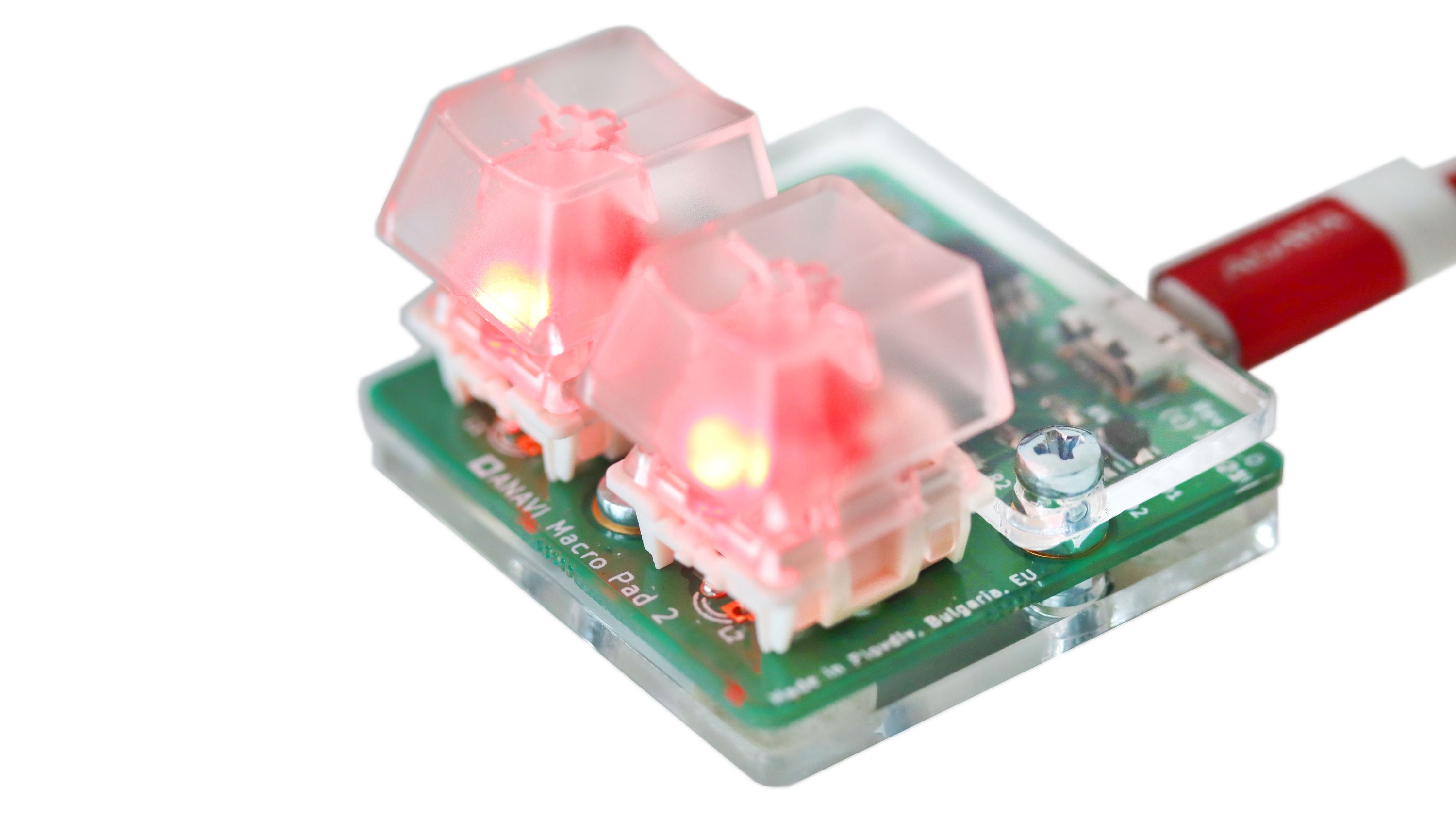

ANAVI Macro Pad 2 was Certified by OSHWA!

On May 12th, the Open Source Hardware Association certified the ANAVI Macro Pad 2 with UID BG000077.

The Open Source Hardware Association (OSHWA) aims to foster technological knowledge and encourage research that is accessible, collaborative, and respects user freedom. As part of these efforts it also maintains an open source hardware certification registry. The OSHWA certification guarantees ANAVI Macro Pad 2 is an entirely open source project.

So, does it make any sense to make open source hardware using expensive proprietary software tools? Of course not!

ANAVI Macro Pad 2, just like our other open source hardware products, including the bigger brother ANAVI Macro Pad 8, was designed with free and open source tools such as KiCad and OpenSCAD. All schematics and resources for the hardware are available at GitHub under Creative Commons Attribution-ShareAlike 4.0 International (CC BY-SA 4.0). It is powered by the open source QMK Firmware available in GitHub under GNU General Public License v2.0.

Let’s quickly explore all these open source tools.

KiCad

KiCad is a free, open source software suite for electronic design automation (EDA). It is written in C++ and works on MS Windows, Mac OS X and GNU/Linux distributions. The majority of KiCad’s source code is available under GNU GPLv3 (or later) and third party code included in KiCad falls under GNU AGPLv3 (or later).

KiCad was started long ago. The initial releases date back to 1992. However, its popularity rapidly increased in 2013 because The European Organization for Nuclear Research (CERN) started using and contributing to it. After that a lot of companies switched to KiCad. Most notably Olimex, my friends and open source hardware neighbors in Plovdiv, Bulgaria. Encouraged by these successful examples, four or five years ago, I also started designing printed circuit boards with KiCad. The first open source hardware board I designed in KiCad on my own was ANAVI Infrared pHAT in 2017 which was also crowdfunded through Crowd Supply.

OpenSCAD

OpenSCAD is a free and open source software software for creating 2D or 3D models. It is written in C++ and runs on MS Windows, Mac OS X, BSD and GNU/Linux distributions.

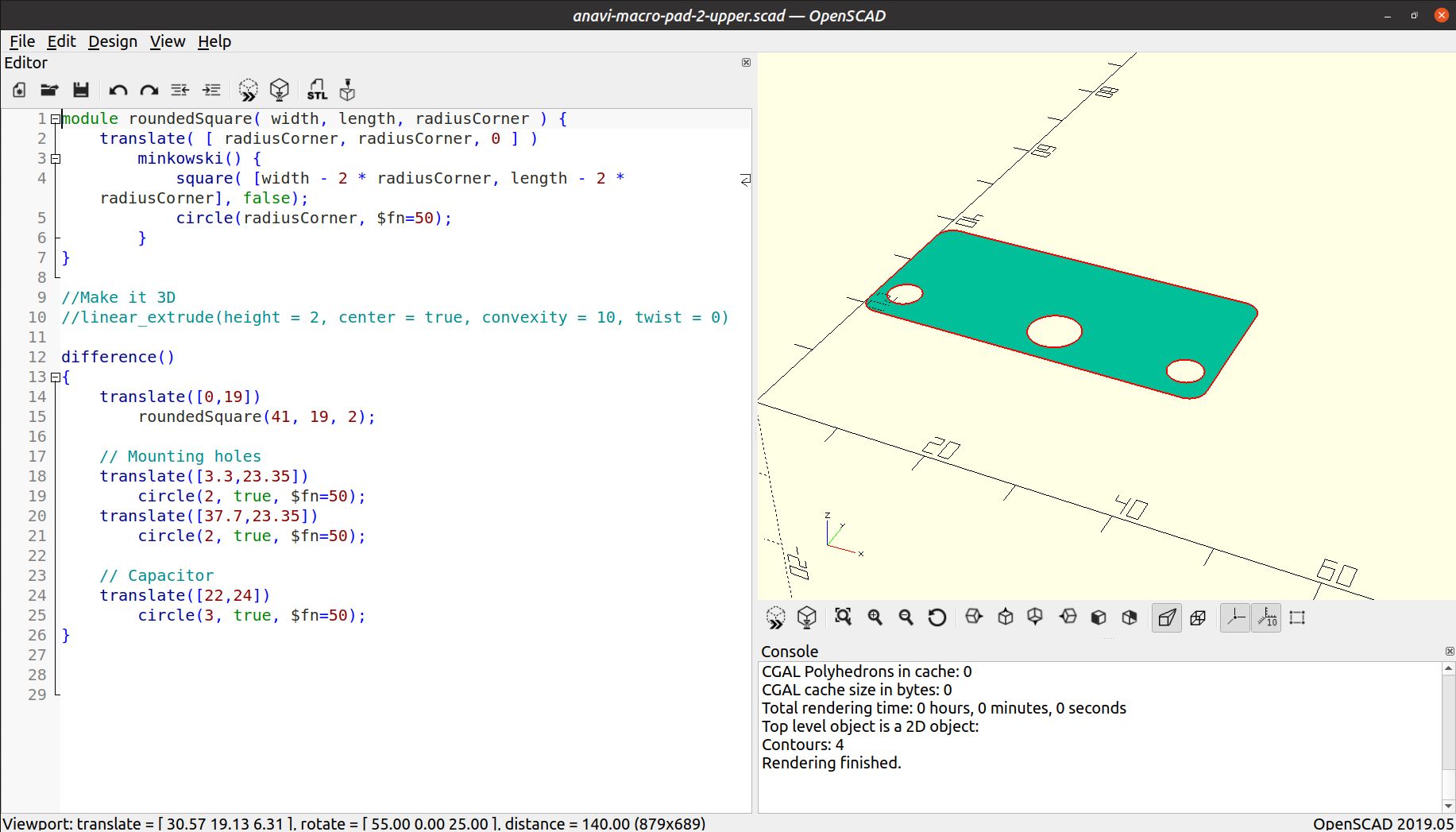

OpenSCAD uses its own description language. The graphical user interface is super simple. Basically, you write source code on the left side and a 2D/3D model is rendered on the right. Models designed with OpenSCAD can be exported to various formats, including STL for 3D printing or SVG for laser cutting.

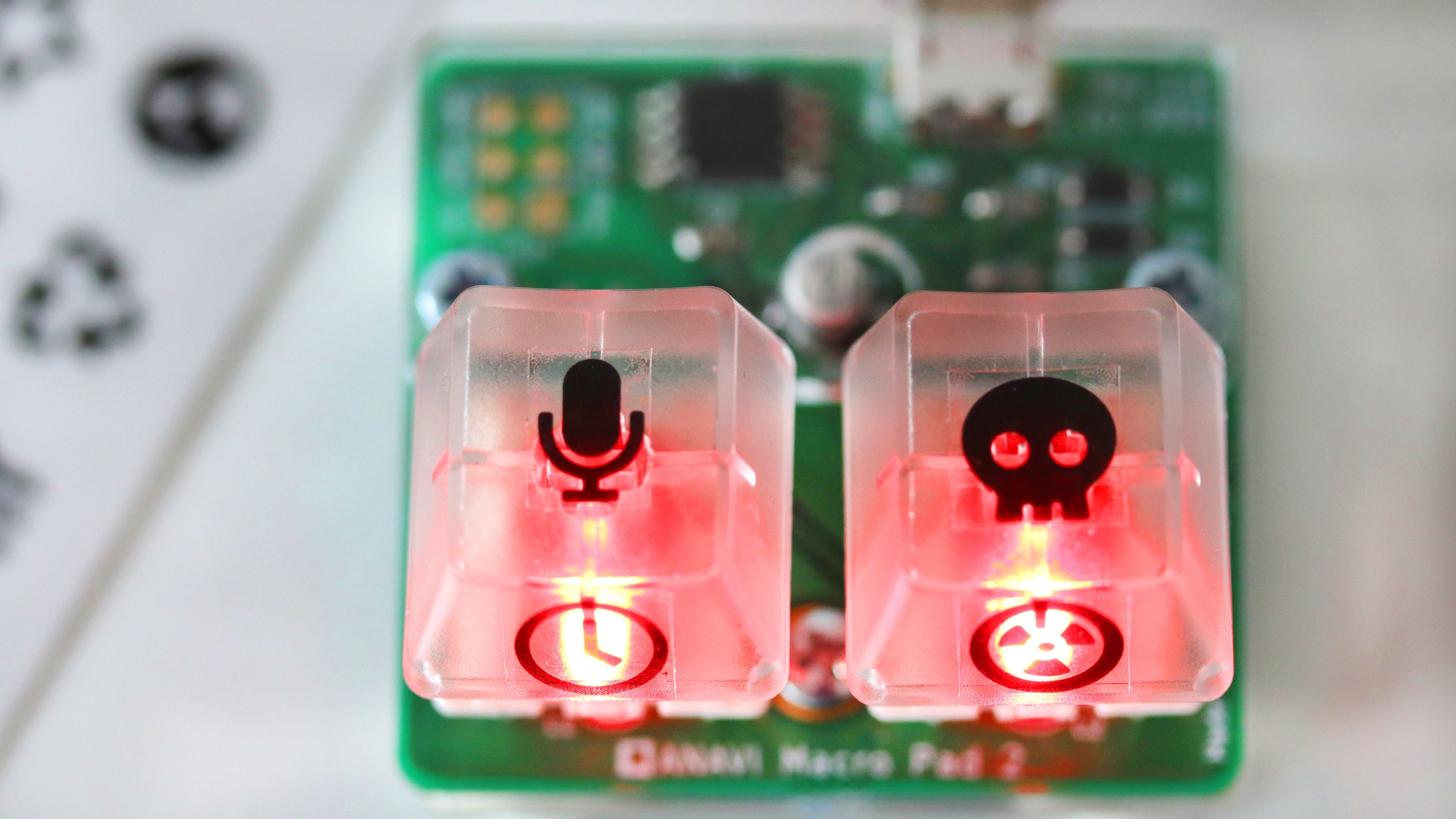

The acrylic enclosures of ANAVI Macro Pad 2 were designed with OpenSCAD. After that, we polished and converted them from SVG to PDF using another open source tool, InkScape. The stickers with transparent Emoji icons from [Font Awesome] (https://github.com/AnaviTechnology/Font-Awesome) (available under CC BY 4.0 License in GitHub) were also further processed and arranged using InkScape.

QMK

QMK stands for Quantum Mechanical Keyboard. It is an open source community centered around developing computer input devices. QMK Firmware is keyboard firmware based on the tmk_keyboard firmware plus some useful features for AVR and ARM controllers.

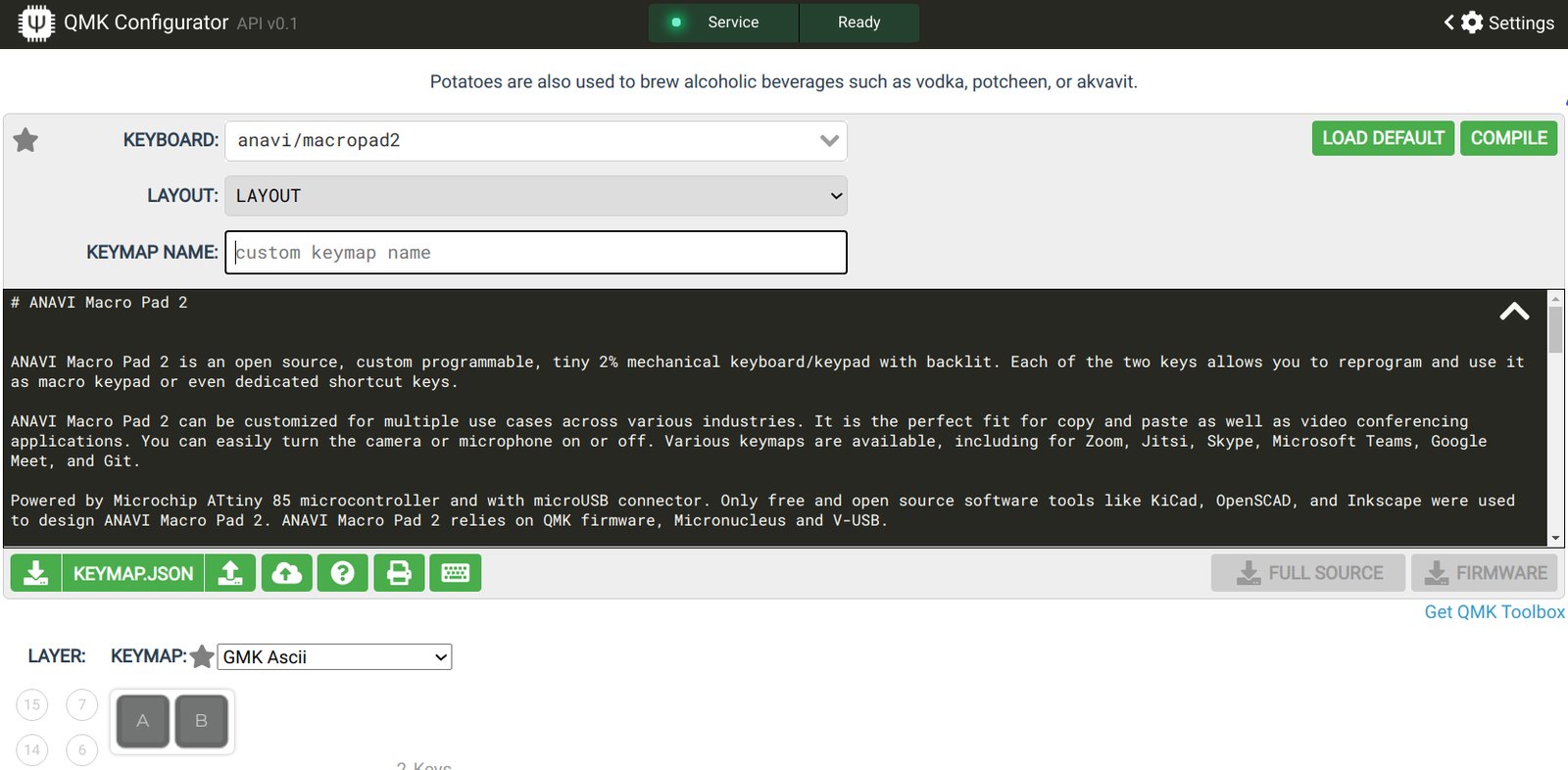

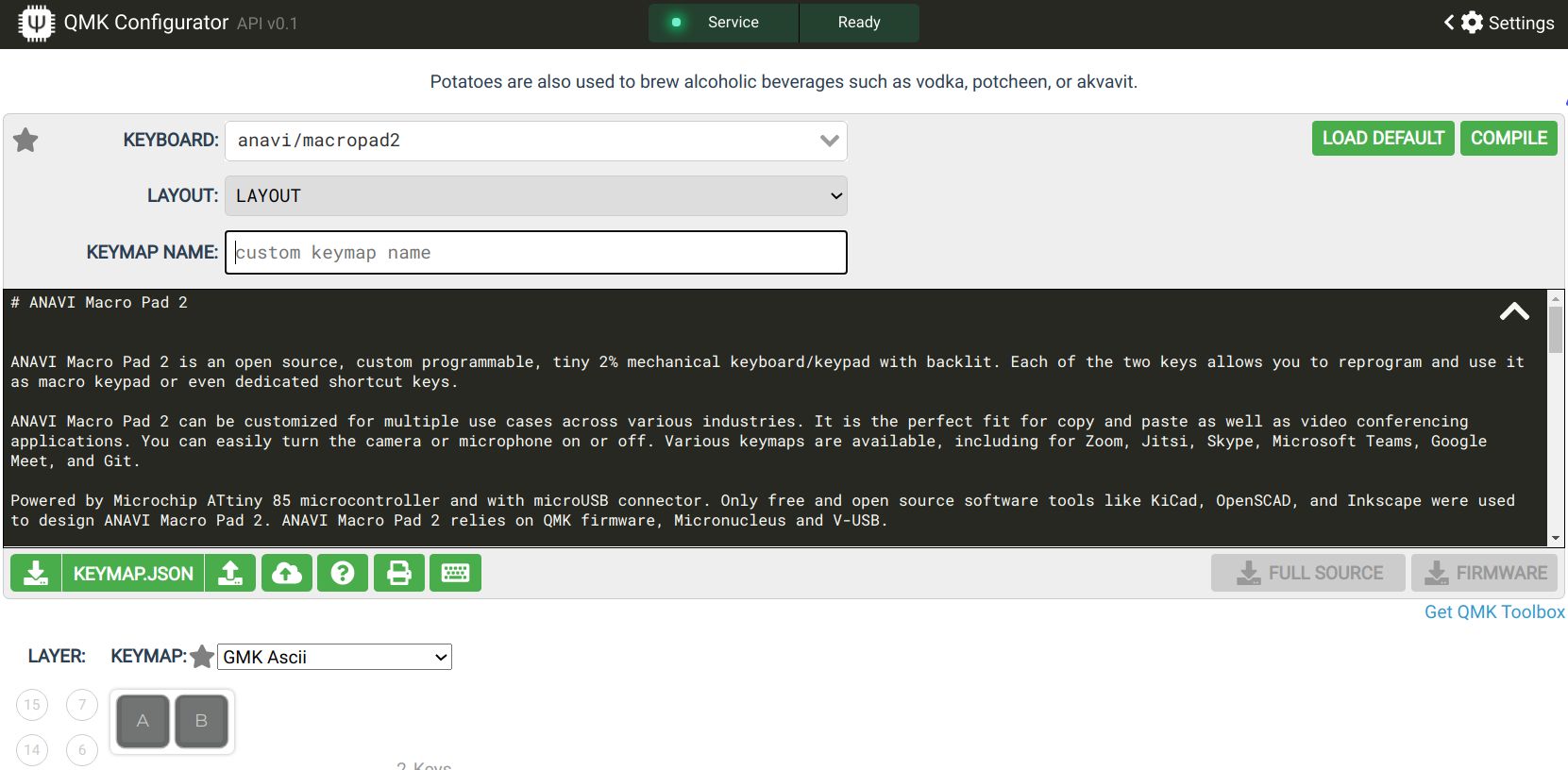

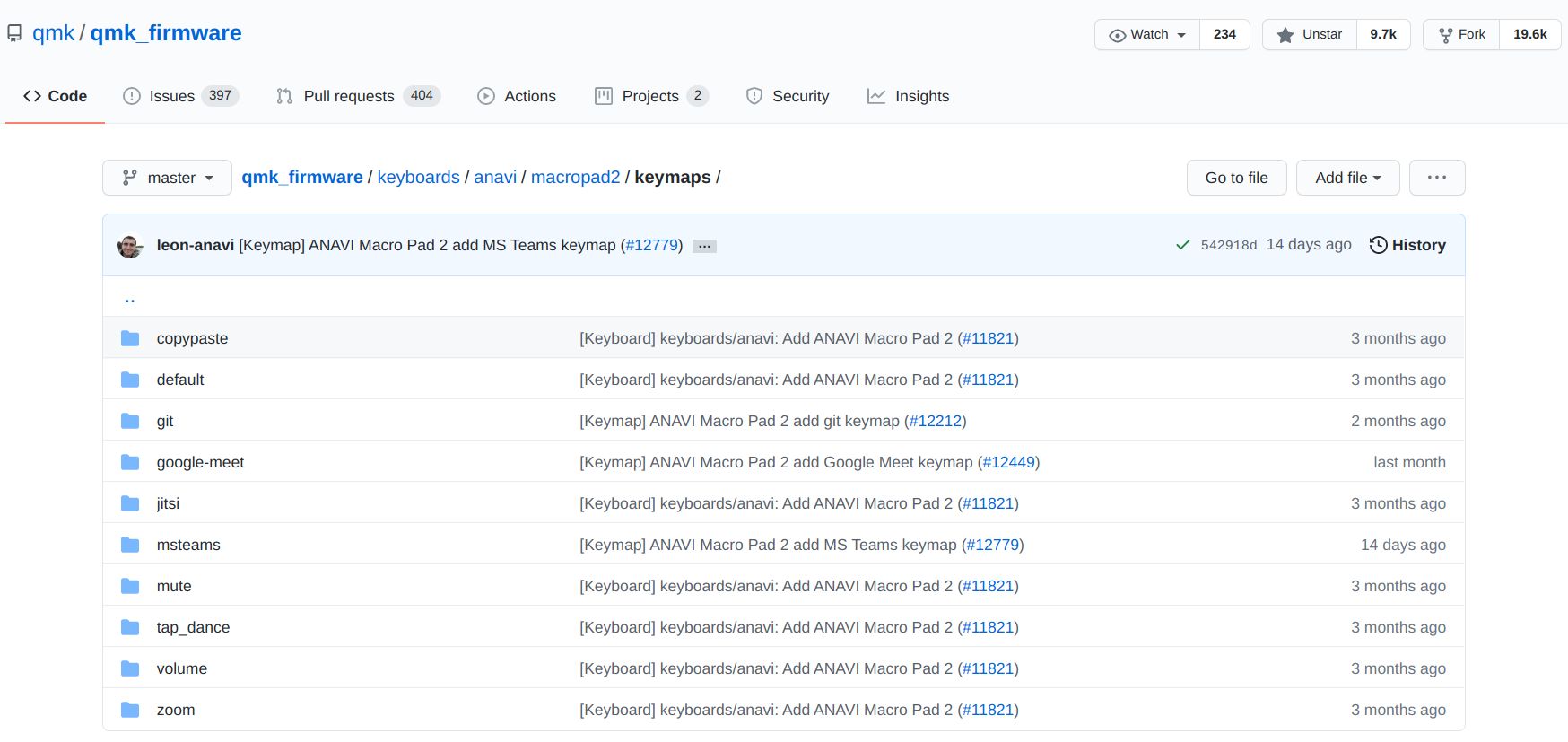

I have already added upstream support of ANAVI Macro Pad 2 with a couple of different keymaps in the QMK firmware. Hopefully, in future we will add more keymaps and of course with the QMK Configurator you can create and share a custom keymap of your own at any time directly in your web browser.

All these amazing open source tools work on well GNU/Linux distributions; I run them on Ubuntu.

Thank you for supporting ANAVI Macro Pad 2!

Thanks,
Leon
