ANAVI Fume Extractor

by Anavi Technology

The open source smart solder smoke absorber

View all updates May 05, 2020

Ready To Launch!

by ANAVI Technology

(Not) Yet Another Fume Extractor

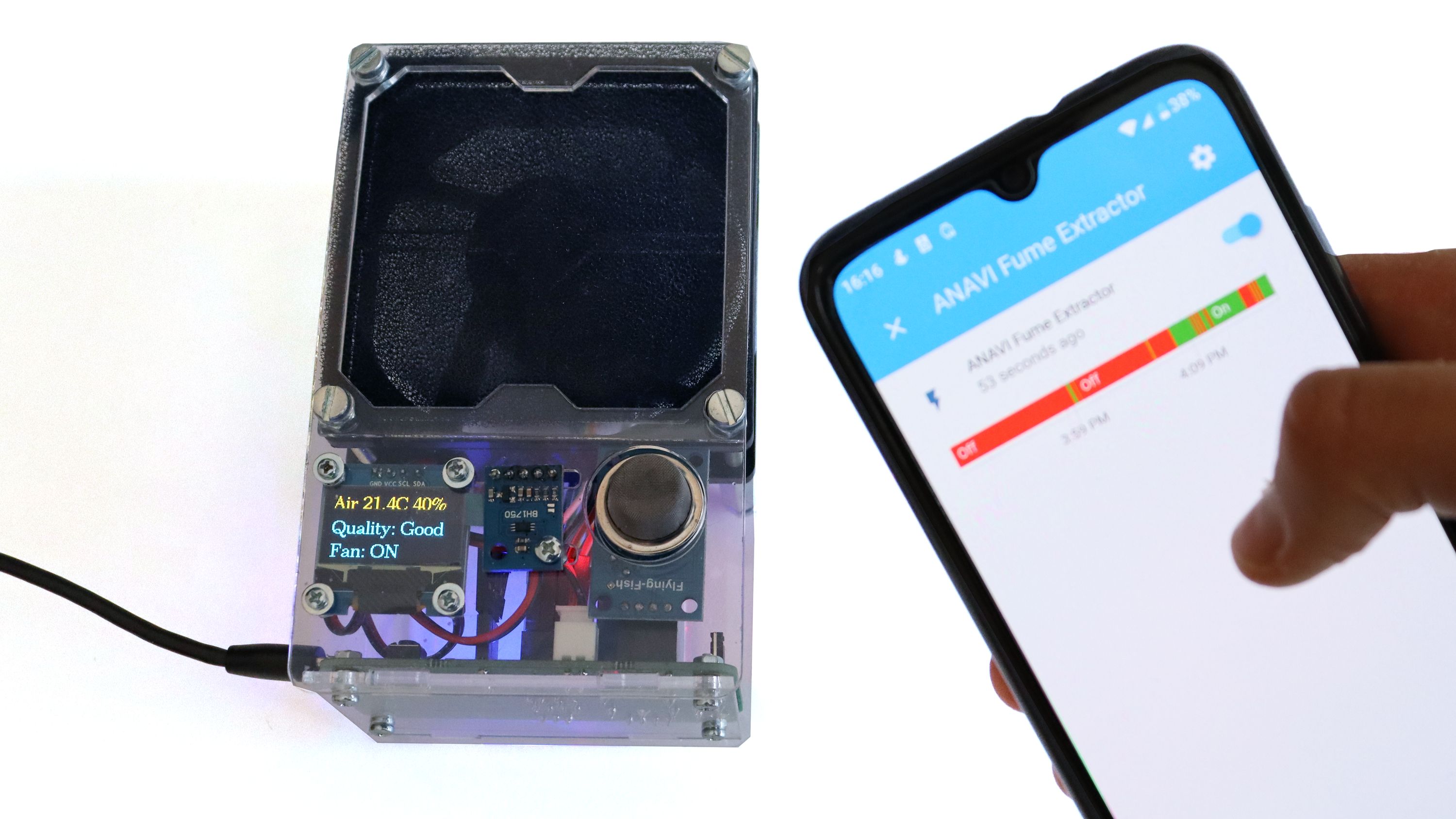

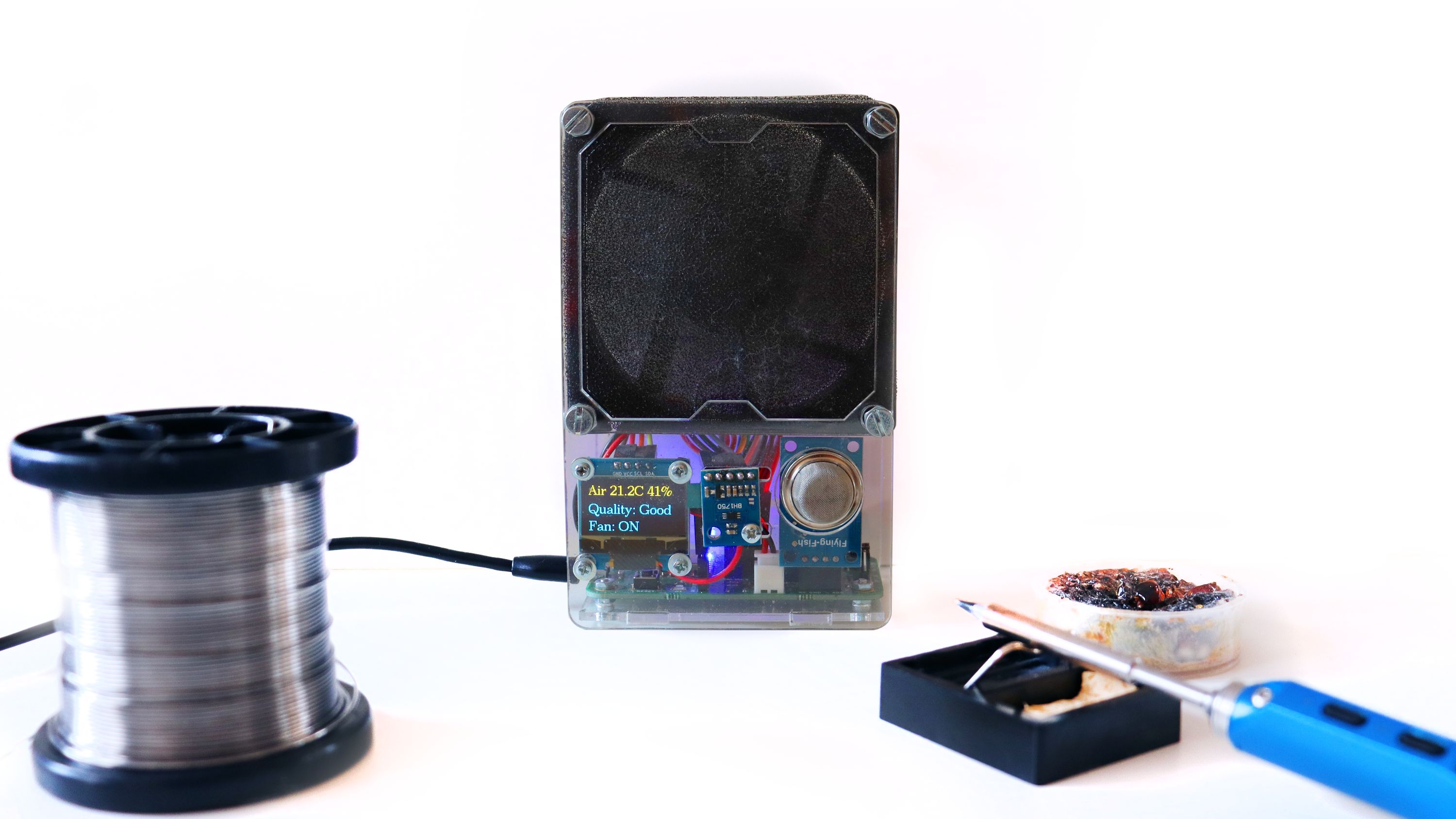

ANAVI Fume Extractor is here! It is an open source smart smoke absorber for makers at an affordable price.

There are literary hundreds of projects for solder fume extractors on the market. ANAVI Fume Extractor stands out with several key features:

  • Support for various peripherals: mini OLED display, air quality, temperature, humidity and barometric pressure sensor modules.
  • Wi-Fi
  • Compatibility with the popular IoT platforms like Home Assistant through the real-time communication protocol MQTT.
  • Entirely open source product, made with free and open source tools only, certified by the Open Source Hardware Association (OSHWA).

Due to COVID-19 outbreak, we had to slightly postpone the launch of the campaign and extend the estimated shipping dates. So far with Crowd Supply we have successfully completed seven crowdfunding campaigns, some of them even shipped ahead of schedule. However this time the challenges are bigger: ANAVI Fume Extractor comes as a sophisticated do-it-yourself kit with numerous components and manufacturing during the pandemic is slower. In the unlikely case of a complete inability to deliver, or with some kind of shipping failure, Crowd Supply will offer backers full refunds. If any delays occur, backers will be notified promptly through regular updates.

We rely on trusted factories in Bulgaria, EU for making ANAVI Fume Extractor printed circuit boards, the laser cut enclosures and the eco-friendly packaging from recyclable cardboard boxes. All units of ANAVI Fume Extractor will be shipped to the backers using Crowd Supply’s fulfillment services.

After almost ten months of development, we are ready for manufacturing and now we need your support. We hope you’ll jump in and help us bring this entirely open source project to life!

Thanks,
Leon

About the Author

ANAVI Technology

AnaviTechnology  ·  AnaviTechnology  ·   Plovdiv, Bulgaria


$6,600 raised

of $1 goal

Funded! Order Below

Product Choices

$49

Starter Kit

The perfect kit for getting started. Includes ANAVI Fume Extractor PCB (1), 5 V DC 80x80 mm fan (1), acrylic enclosure (1), filters (2), 0.96" OLED display (1), and USB-to-serial debug cable (1).


$59

Advanced Kit

The kit for makers. Includes ANAVI Fume Extractor PCB (1), 5 V DC 80x80 mm fan (1), acrylic enclosure (1), filters (2), 0.96" OLED display (1), USB-to-serial debug cable (1), HTU21D temperature, and humidity sensor (1) and MQ-135 gas sensor (1).


$69

Developer Kit

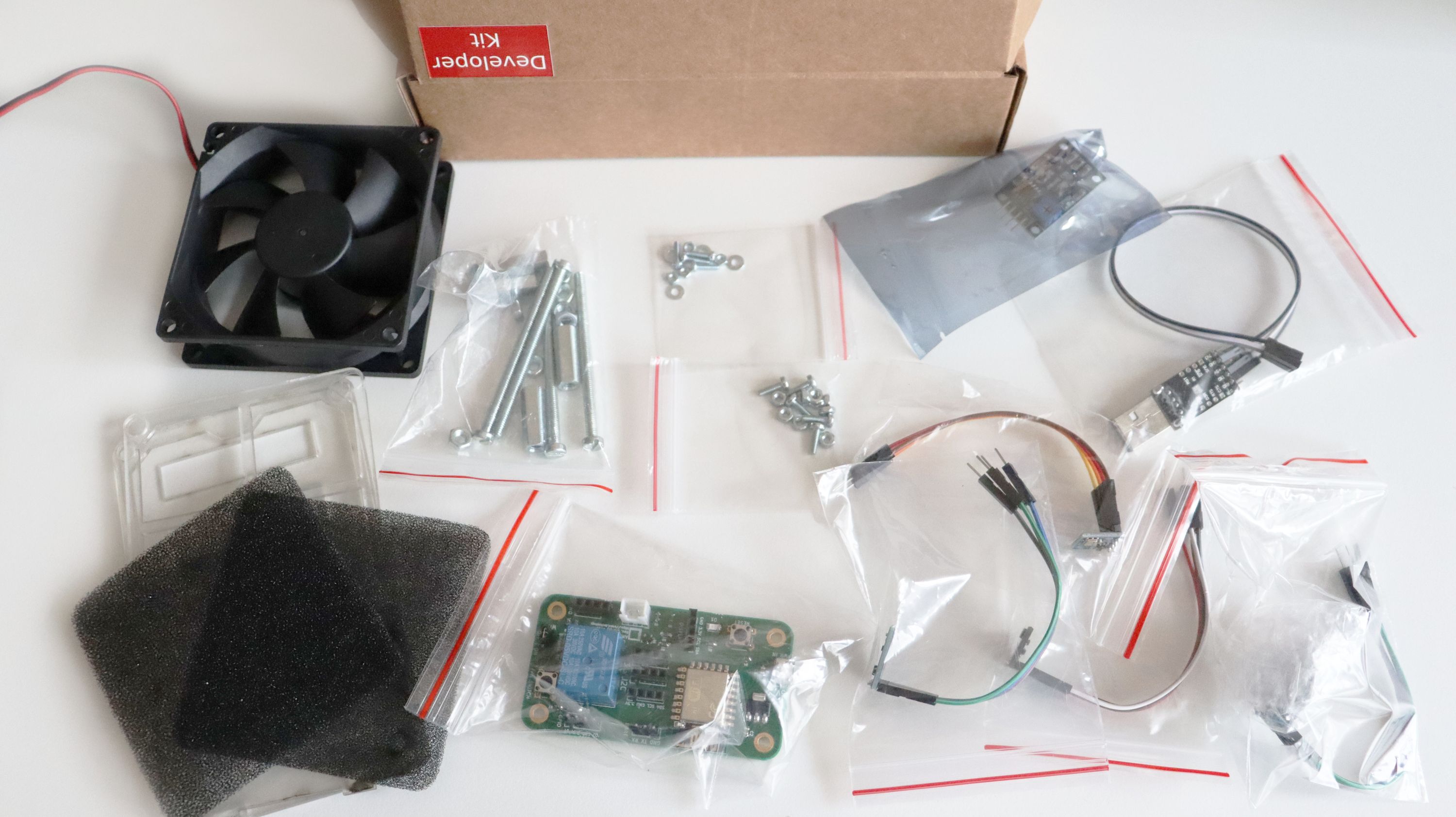

Everything a developer needs! Includes ANAVI Fume Extractor PCB (1), 5 V DC 80x80 mm fan (1), acrylic enclosure (1), filters (2), 0.96" OLED display (1), USB-to-serial debug cable (1) and all sensor modules: HTU21D temperature and humidity sensor (1), MQ-135 gas sensor (1), BH1750 light sensor (1), and BMP180 temperature and barometric pressure sensor (1).


$219

Family Kit

The ultimate solution that features a developer kit and three advanced kits.
