Haasoscope

by Andy Haas

Cheap, flexible, data acquisition for all!

View all updates Nov 20, 2018

Board v9.0 Coming Soon

Hi all,

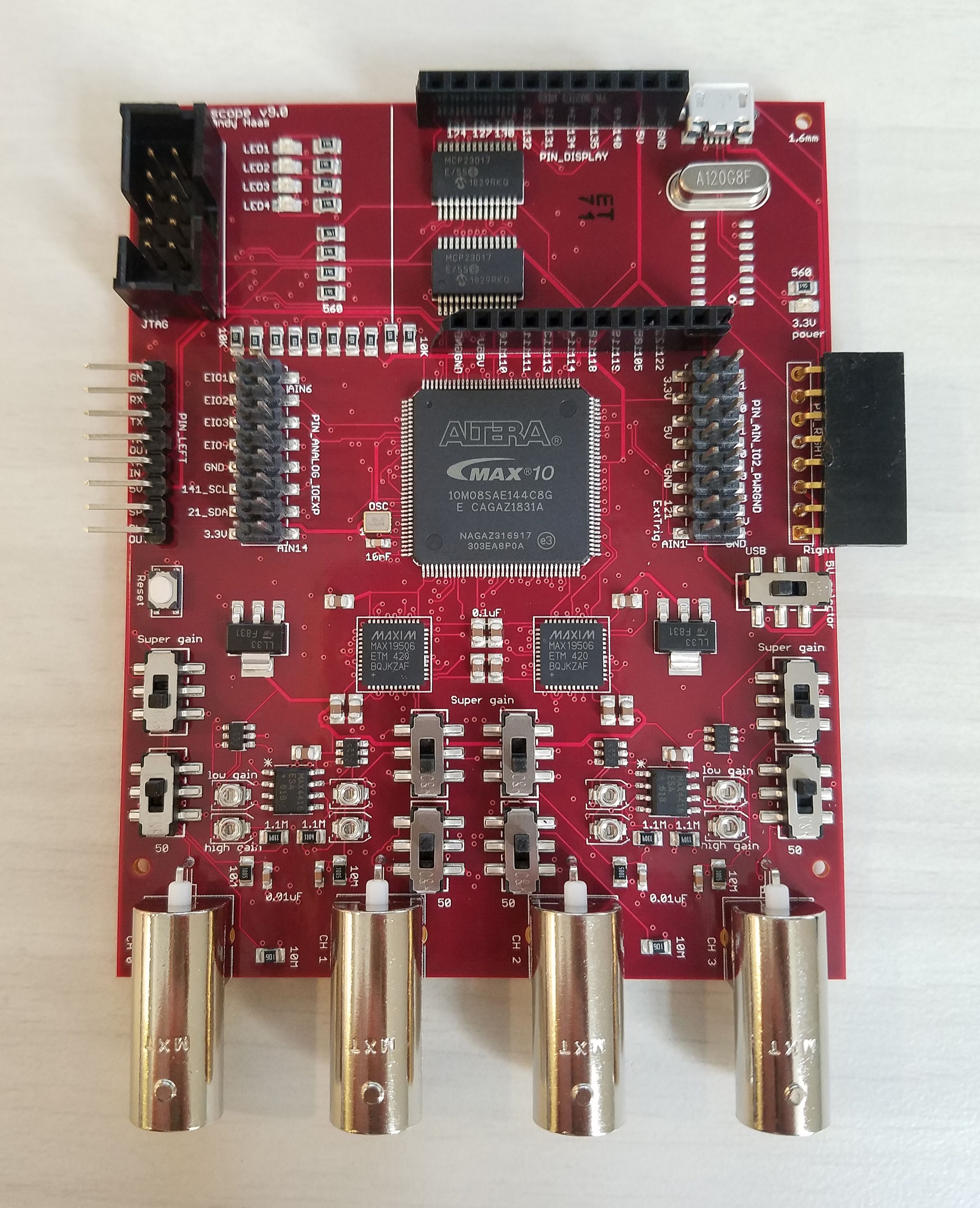

I’ve gotten some feedback on how to improve Haasoscope. Here’s a picture of the new haasoscope v9 board! It fixes a number of small issues from the original board:

  • BNC inputs farther apart
  • Detect positions of gain and termination switches automatically
  • Correct 1M input impedance, for correct 10x probe gain
  • Other minor fixes

We’ll be manufacturing a new batch of these soon… Should be available in a few months!

Best,
Andy


$18,733 raised

of $10,000 goal

187% Funded! Order Below

Product Choices

$119

Your very own Haasoscope!

A fully assembled Haasoscope, preloaded with firmware and ready for data-taking! You also might want to grab a USB-serial adapter (for interfacing to a computer) and/or a USB-blaster (for reprogramming the firmware).


$9

USB-blaster

This lets you reprogram the Haasoscope FPGA firmware from either Windows or Linux using the free Altera Quartus II software via the JTAG connector.


$9

A Cool Screen!

This is a 0.96" 128X64 pixel white OLED screen. It communicates with the Haasoscope over an SPI interface, and can show ADC data from a selected channel, or whatever you tell it to! It can plug directly into the header above the FPGA.


$16

Oscilloscope Probes

Two passive 100 MHz bandwidth oscilloscope probes for connecting to Haasoscope 100 MHz ADC inputs using BNC.


$15

High-speed USB Readout Board

In case 1.5 Mb/s is not enough bandwidth for you, grab one of these boards and have high-speed USB2 output from a Haasoscope! Using just 8+2 digital outputs on the Haasoscope, you can get about 4 MB/s, about 20x faster than serial, and still use the same python readout code. It's supported in the stock firmware too! Using 8+4 digital outputs, you could in theory even get up to 40 MB/s using C++ readout code and the free FTDI USB libraries.

Credits

Andy Haas

I teach physics at NYU. I use electronics for research, in teaching, and as a hobby.
