Latest Prototype is In

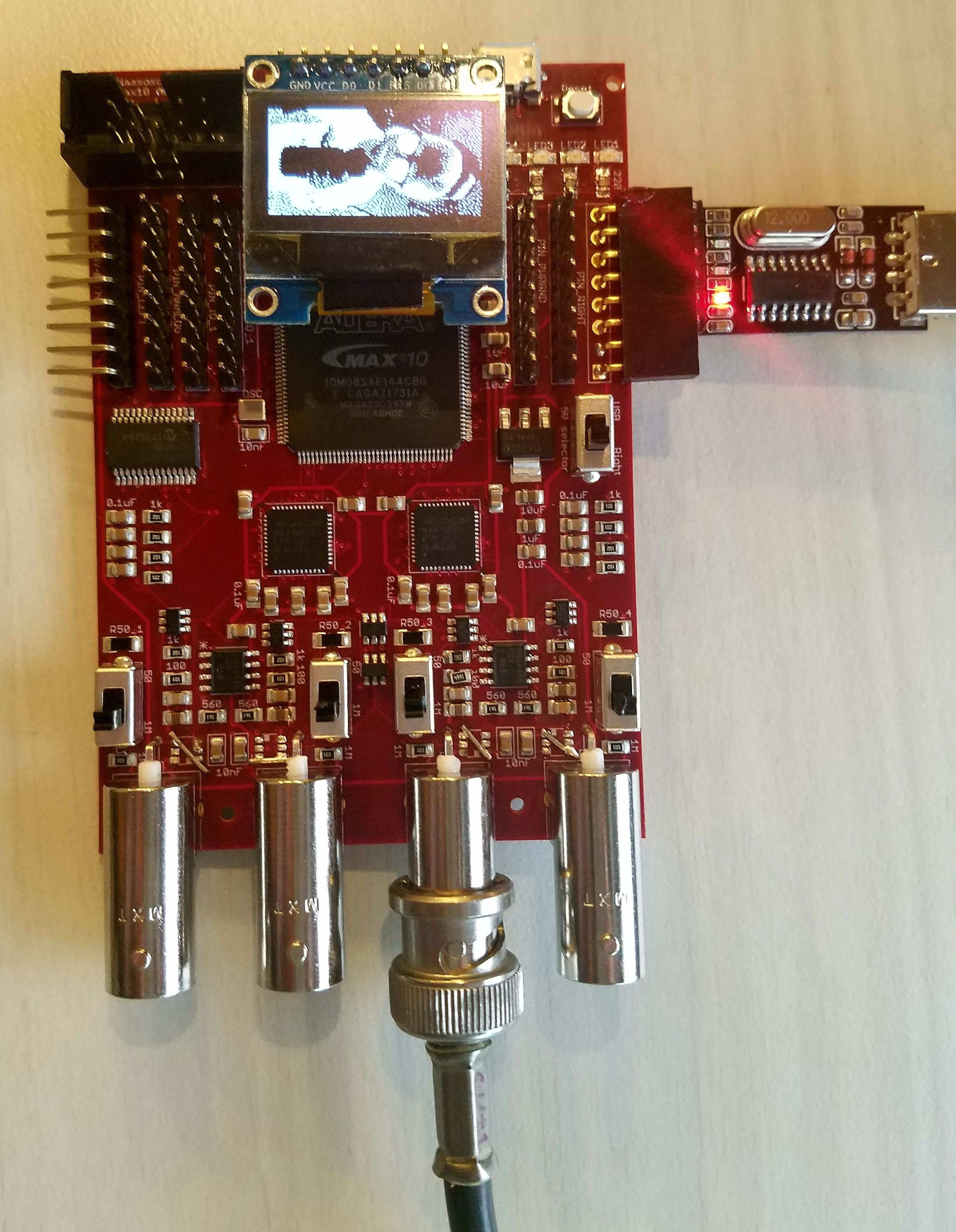

Latest prototype is in, and it works great! (Well, there’s always some issue - hence the little wires hacked on near the BNC inputs in the picture!)

One new feature is switchable “super high gain mode”, for when your signals are smaller than +-300 mV. There’s some limitations, such as 10k input impedance, and bandwidth is reduced to ~2 MHz in this mode (gain bandwidth product is a killer!). But now you can see signals down to +-3 mV full scale. That’s 20 uV per bit!

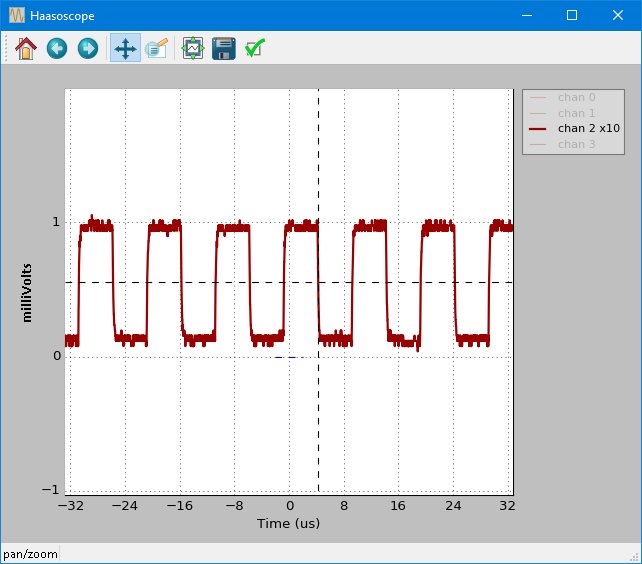

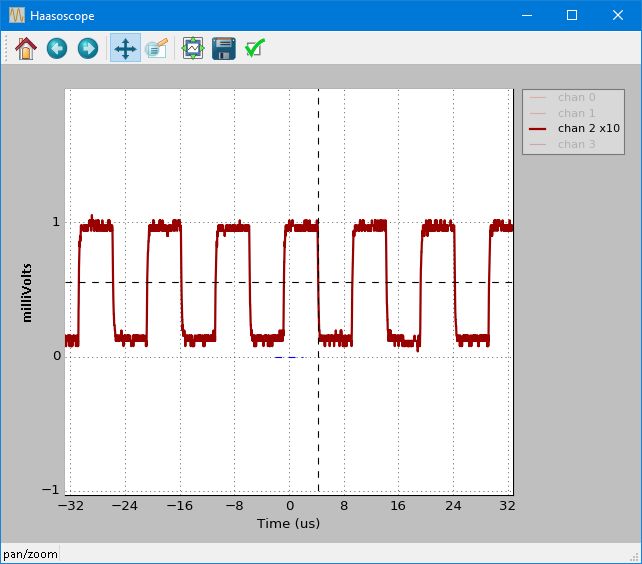

Here's a 1 mV 100 kHz square wave. Not bad!

$18,733 raised

of $10,000 goal

Funded! Order Now

Dec 14 2017

funded on

187%

funded

268

pledges

Product Choices

$119

Your very own Haasoscope!

A fully assembled Haasoscope, preloaded with firmware and ready for data-taking! You also might want to grab a USB-serial adapter (for interfacing to a computer) and/or a USB-blaster (for reprogramming the firmware).


$9

USB-blaster

This lets you reprogram the Haasoscope FPGA firmware from either Windows or Linux using the free Altera Quartus II software via the JTAG connector.


$9

A Cool Screen!

This is a 0.96" 128X64 pixel white OLED screen. It communicates with the Haasoscope over an SPI interface, and can show ADC data from a selected channel, or whatever you tell it to! It can plug directly into the header above the FPGA.


$16

Oscilloscope Probes

Two passive 100 MHz bandwidth oscilloscope probes for connecting to Haasoscope 100 MHz ADC inputs using BNC.


$15

High-speed USB Readout Board

In case 1.5 Mb/s is not enough bandwidth for you, grab one of these boards and have high-speed USB2 output from a Haasoscope! Using just 8+2 digital outputs on the Haasoscope, you can get about 4 MB/s, about 20x faster than serial, and still use the same python readout code. It's supported in the stock firmware too! Using 8+4 digital outputs, you could in theory even get up to 40 MB/s using C++ readout code and the free FTDI USB libraries.
