ATM90E26 Single-Phase Energy Monitor Dev Kits

← View All Updates
Aug 14, 2017

Progress on DIN rail power/sampling board

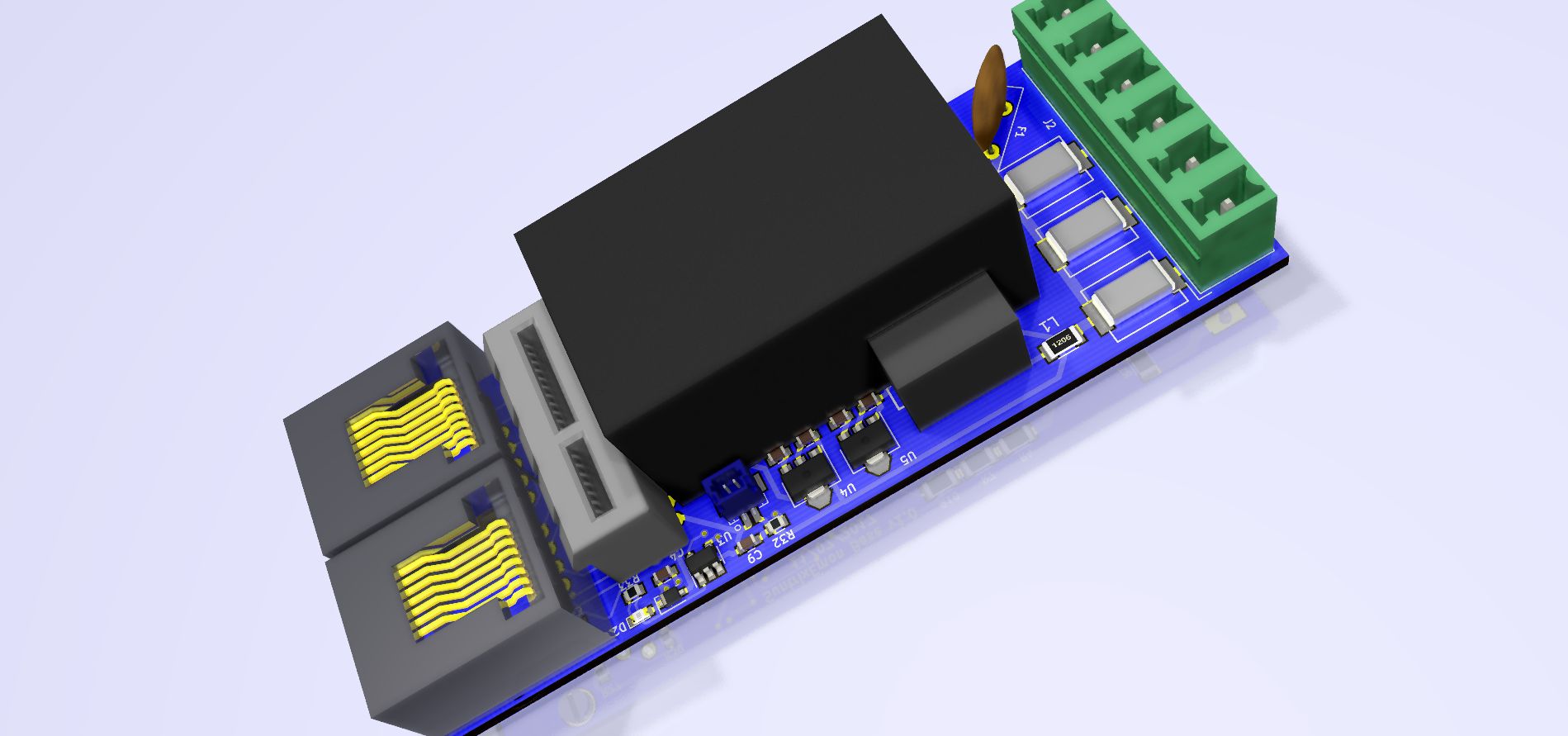

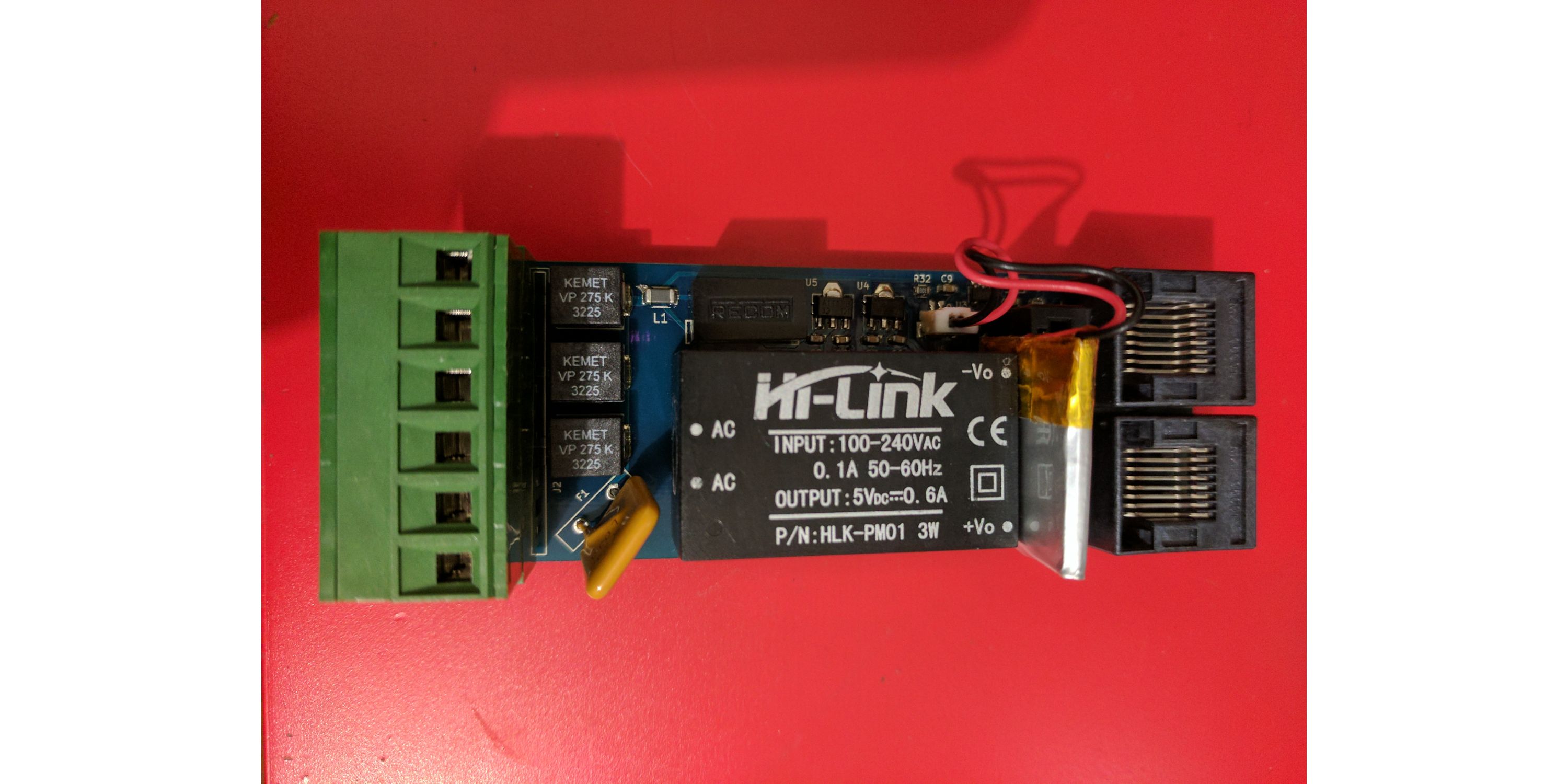

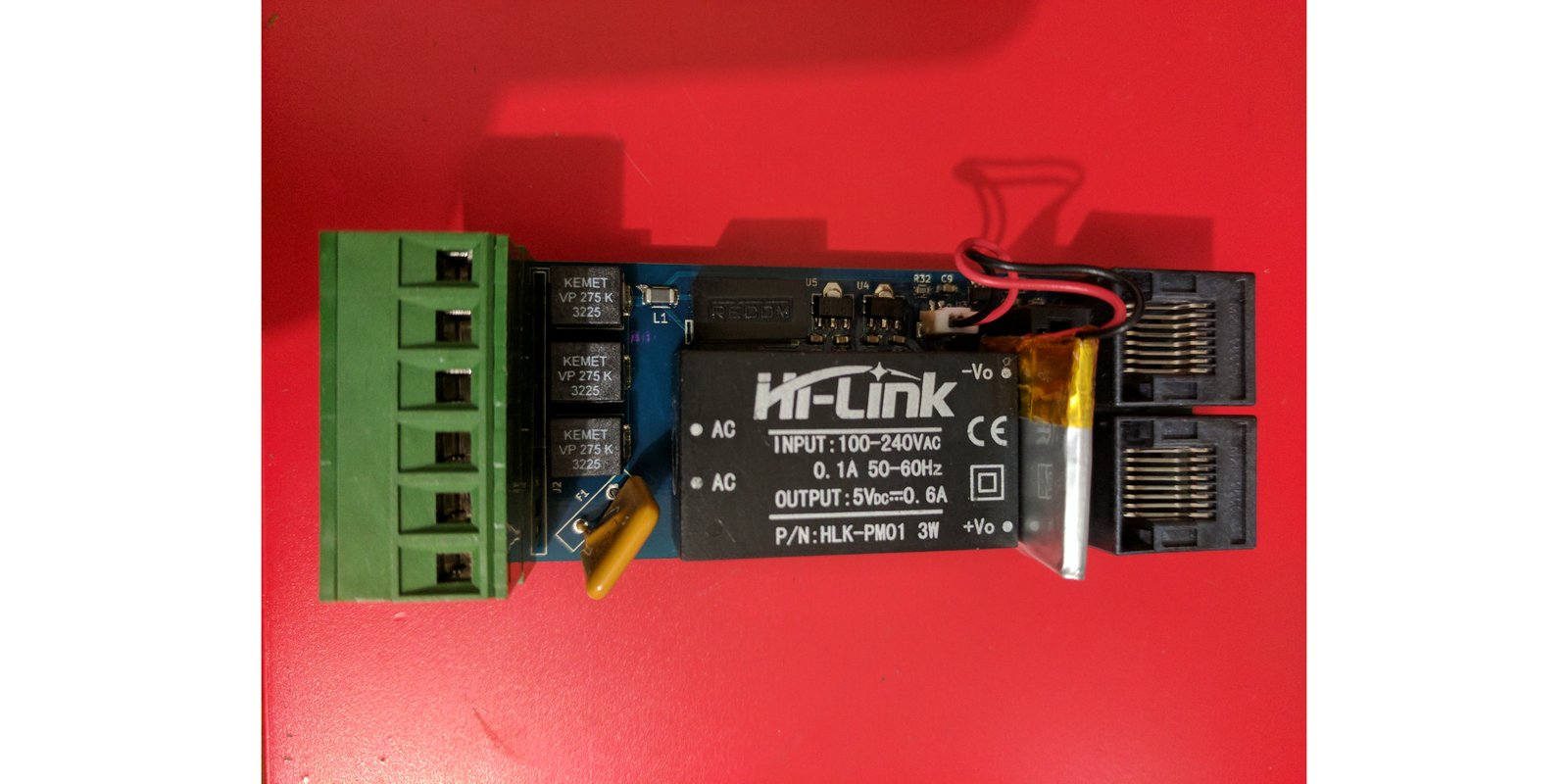

I have been receiving a few questions regarding the 3-phase supplies and the DIN rail module. The DIN rail base-board is slightly over engineered and can handle 3-phases and 6-current transformers (+2 neutrals). Please see the below images for a first prototype under test. The metering module will sit in the PCI-E x1 slot and currently is specified to contain 1 or 2 ATM90E26 according to reward level, however it can be upgraded to a module with 1 or 2 ATM90E36 to handle 3-phases in the future.


Whatnick Inc

$5,075 raised

of $1,800 goal

Funded! Order Now

Sep 14 2017

funded on





Product Choices


ATM90E26 Breakout Board

A breadboard-compatible ATM90E26 module I made to save myself hundreds of dollars, which earned me a mention on Hackaday. Now it can help you get started with energy monitoring as well.


ATM90E26 Breakout Kit

All the parts you will need to use the ATM90E26 on a breadboard to build a self-powering energy monitor with Wi-Fi connectivity. A NodeMCU and a 100 A YHDC current clamp will be included as part of the kit. Voltage sampling transformer is the only other part the user has to supply.


Energy Monitor FeatherWing

A hacker-friendly, low-voltage dev kit for the ATM90E26. Compatible with most Adafruit Feather-series boards and accessible via SPI or UART. Two can be stacked in SPI mode for grid + solar single-phase monitoring.


Energy Monitor FeatherWing Kit

An Energy Monitor Featherwing with some essentials to get you going. The Adafruit Feather and a 100 A YHDC current clamp will be included as part of the kit. Voltage sampling transformer is the only other part the user has to supply.


DIN Rail Energy Monitor (Single ATM90E26)

Something your electrician will feel good about installing. A fully featured DIN rail module with options to install two ATM90E26 monitoring boards for grid + solar. Can be interfaced with Wemos (ESP8266) footprint boards to add Wi-Fi, BLE, LoRa, and other forms of network connectivity.


ATM90E26 Secondary Module for DIN Rail Use

Secondary module for the DIN Rail Energy Monitor above which will add another phase into the monitoring setup. Essentially the same as the breadboard version but with isolated SPI bus making it suitable for use with high-voltage inputs. This module can be used to measure a second phase or single phase solar output after the inverter. You can also use it to design your own isolated high-voltage monitoring system.
