SimplePnP

by Citrus CNC

Your personal open hardware PCB assembly machine

View all updates Dec 12, 2019

Crowdfunding Begins!

by Gino Magarotto

CitrusCNC is proud to announce the launch of the crowdfunding campaign for SimplePnP: your personal open-hardware PCB assembly machine. Our documentation and design files will be made available on GitHub in the coming days. Meanwhile, please feel free to contact us if you have any questions or if you need more detailed information.

And stay tuned for more updates!

About the Author

Gino Magarotto

citruscnc  ·  ottoragam  ·   Mexico City


$33,642 raised

of $6,500 goal

517% Funded! Order Below

Product Choices

$800

Dual Head SimplePnP with Bottom Vision

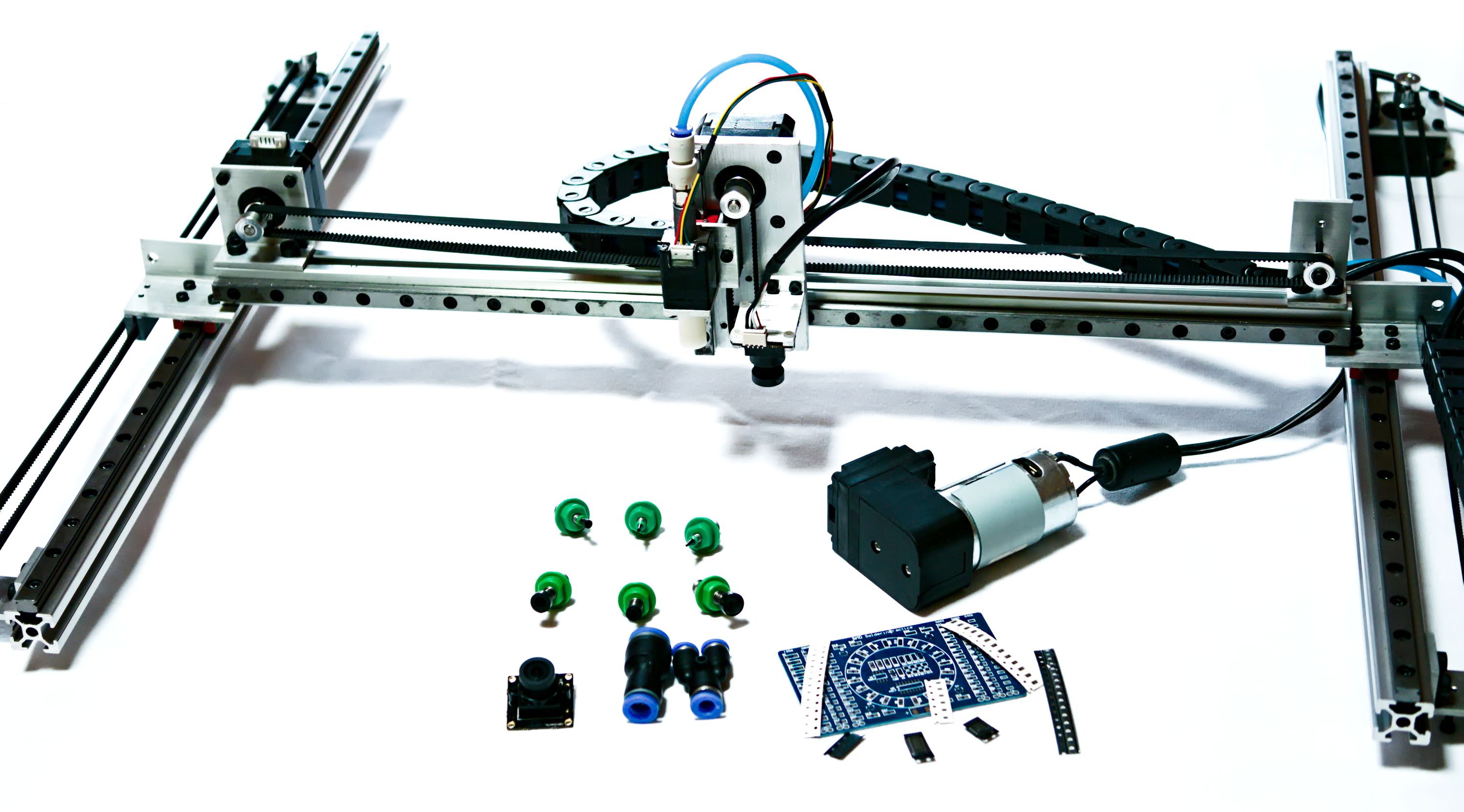

A partially assembled Cartesian frame with extrusions, motors, rails, mounting hardware, pulleys, and belts. An assembled vacuum head with one nozzle holder, a top-vision camera, a bottom-vision camera (including mounting hardware and a USB cable), one rotation motor, one linear rail, and pneumatic components. Adds an additional nozzle holder, rotation motor, and linear rail (including mounting hardware). Includes a vacuum pump, a power supply, motion control electronics, and three Juki nozzles (sizes 503, 504, and 505).


$26

Strip Feeder
