Dreamweaver 4N

by Cyber City Circuits

A four note sequencer for making unique music in real time

Crowdfunding Page History

This page is an archive of the original crowdfunding campaign for this project. It may not be up-to-date with the latest updates and product availability. Return to the current project page.

$1,064 raised

of $1 goal

Funded! Order Below

Pledge Now

$65

Dreamweaver 4N Unit

One Dreamweaver 4N and a USB cable.


$75

Dreamweaver 4N - Producer

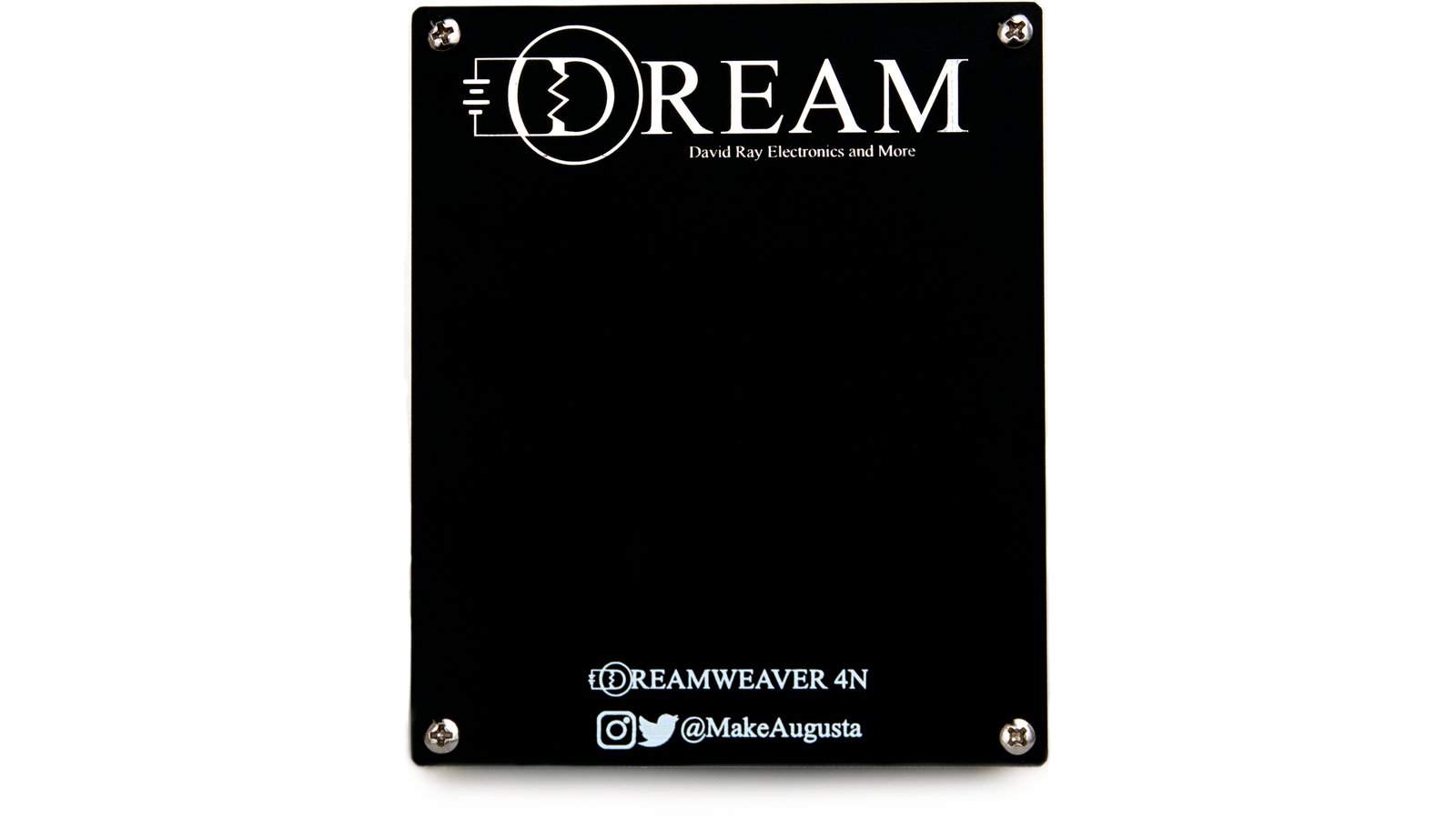

One Dreamweaver 4N and a USB cable. PLUS your name (or the name of your choice) will be silkscreened on the back of every Dreamweaver 4N. This means that every single unit made will have your name on it to say thank you for helping with this project.


$110

Dreamweaver 4N - Bundle

Two Dreamweaver 4Ns with USB cables.


$100

Dreamweaver 4N - Beta Tester

Get a beta unit and give us your feedback! You'll get the beta unit after the campaign ends, and a production model when they're complete - along with USB cables. You will also get your name on the back of every production model. LIMITED QUANTITY AVAILABLE.

Details

Recent Updates


Music in Real Time

Dreamweaver 4N is a four note sequencer with potentiometers that allow the user to make their own unique music.

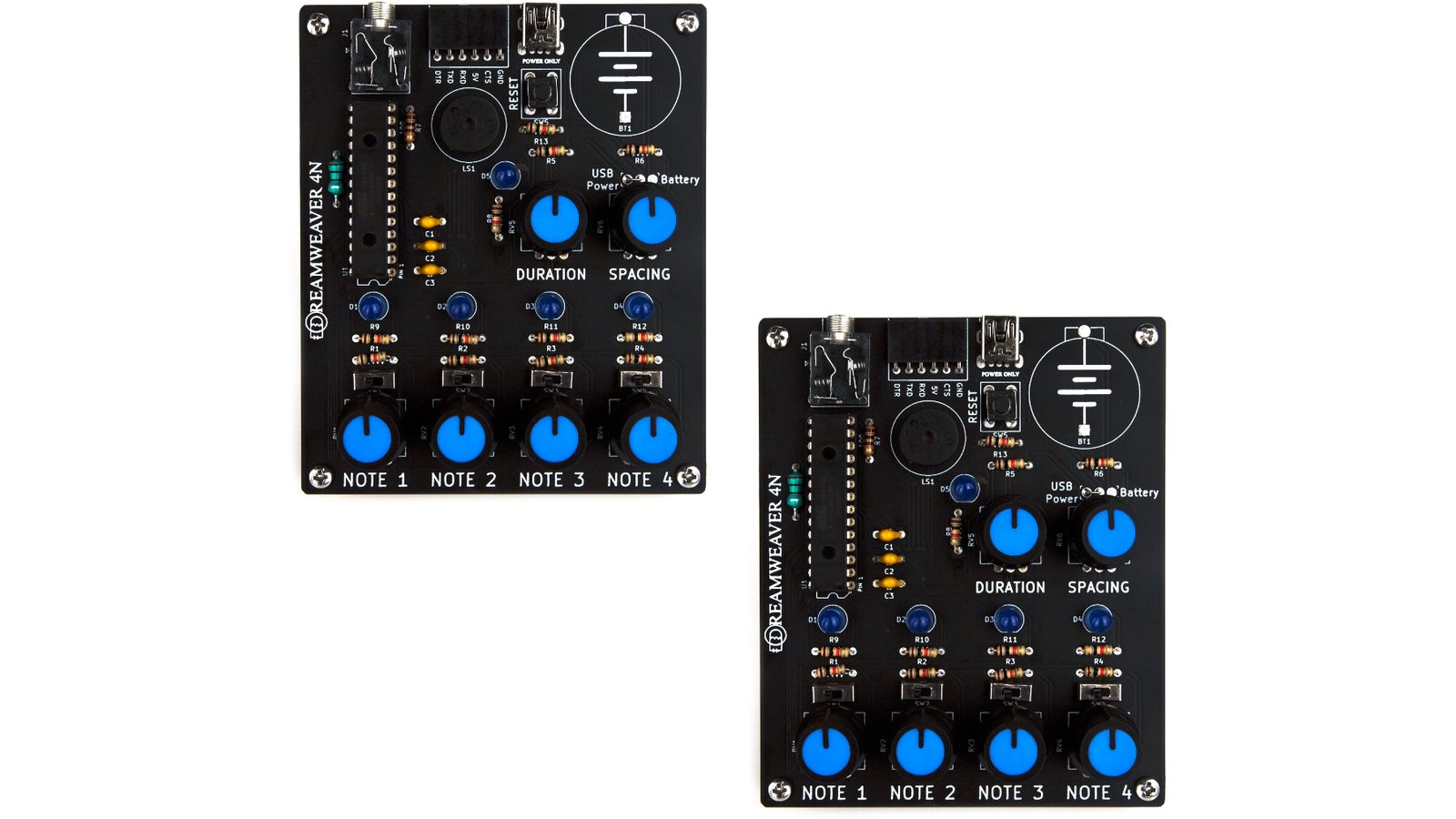

Dreamweaver 4N - early revision shown here.

Control Everything with Knobs and Switches

There are six control knobs. Four knobs control up to four different notes, the fifth one controls how long the notes play, and the sixth controls the spacing between the notes. Each note can be turned on and off with a latching button.

On-board Buzzer and Headphone Jack

While Dreamweaver 4N has a small piezo-buzzer you can listen to, but its true sound comes out when you connect it to your sound system through the on-board headphone jack.

Features & Specifications:

  • Dimensions: 82 mm x 100 mm (3.25 x 4 in)
  • Weight: 100 grams (~4 oz.)
  • Knobs: Six (6)
    • Note control: four (4)
    • Duration: one (1)
    • Spacing: one (1)
  • LEDs: four RGB WS2812B (fully programmable)
  • Microcontroller:* ATmega328P
  • Power: Via USB Micro
  • Audio output options: Piezo-buzzer & headphone jack
  • Reset button: Yes
  • Programming software: Arduino IDE
  • Programmer: On-board CH340

Note: Many images used here feature an older revision of the Dreamweaver. Updates to the version shown are as follows:

  • There will be no on-board CR2032 battery holder/battery. The units will be USB-powered instead.
  • Sliding switches will be replaced by buttons.
  • Rather than programming via an external FTDI board, an on-board CH340 will handle programming directly over USB.
  • The single-color LEDs will be replaced with RGB WS2812Bs.
  • All components will be SMD rather than through-hole

A more recent prototype is shown below:

Dreamweaver 4N - most recent revision shown here, with battery holder removed.

Support & Documentation

This project is proudly open source - hardware and software. We want you to be able to share what you can create with your Dreamweaver 4N. We’ll add more resources as they become available. Hardware files will be uploaded when they are complete, and we’re working on a guide for programming that will be published during this campaign.

Dreamweaver 4N Demo

Stretch Goals

If there is a lot of interest, we can make some modifications to the Dreamweaver board. See details on stretch goals below:

$13,000 USD - Rechargeable Battery: We will add a bonus rechargeable USB 2200 mah battery pack to the Dreamweaver 4N system so that you can use it in the wild. The battery is similar to the one that charges your phone.

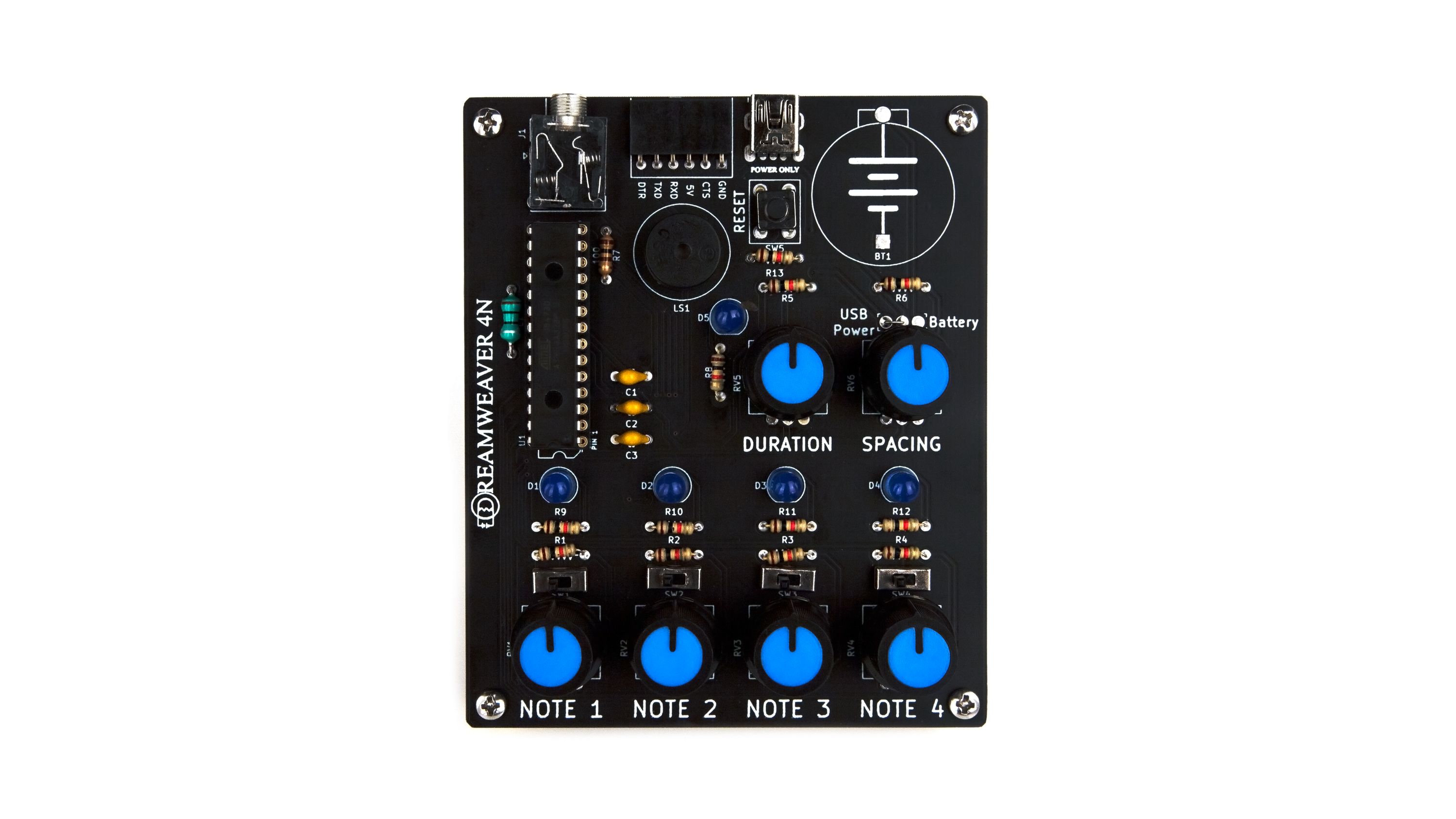

Dreamweaver 4N - early revision shown here.

Manufacturing Plan

We plan on doing all of the manufacturing and assembly in the USA, specifically at our offices in Augusta, Georgia. We have experience doing assembly and production work right in the heart of downtown Augusta. We do this to keep production local, but we also think it is very important to help teach these types of skills to locals who may not have an opportunity to learn them otherwise.

Fulfillment & Logistics

We will complete the manufacturing in Augusta, Georgia. Each unit will be individually tested through a verification and validation process and then wrapped in antistatic foam, packed in individual boxes, and shipped directly to the Crowd Supply fulfillment center for distribution to backers. For more information, please see Crowd Supply’s ordering, paying, and shipping guide.

Risks & Challenges

We already have the majority of the parts needed to build Dreamweaver - we just need you to order yours! If there are any delays with production, or issues during the build, we’ll be sure to communicate these clearly and promptly with project updates.

Dreamweaver 4N Backstory

I started out making small keyboards and synth type devices around the ATmega328P microcontroller so making a small sequencer around the ATmega328P was the next natural step. When I came up with the idea, I was showing a friend of mine a three-octave keyboard I made out of the microcontroller and he asked if I had ever made a sequencer. At the time, I hadn’t, but I decided that I would design one to add to my next order from my PCB manufacturer. Once I got it I could not put it down. The next day I took it to an electronic music festival and showed everyone. When eight people wanted to buy one right then and there, I knew I had something that people would want. This is why I am now bringing the Dreamweaver 4N to the Crowd Supply market to share it with the world.


Credits


David A Ray

Creator
