Jul 05, 2016

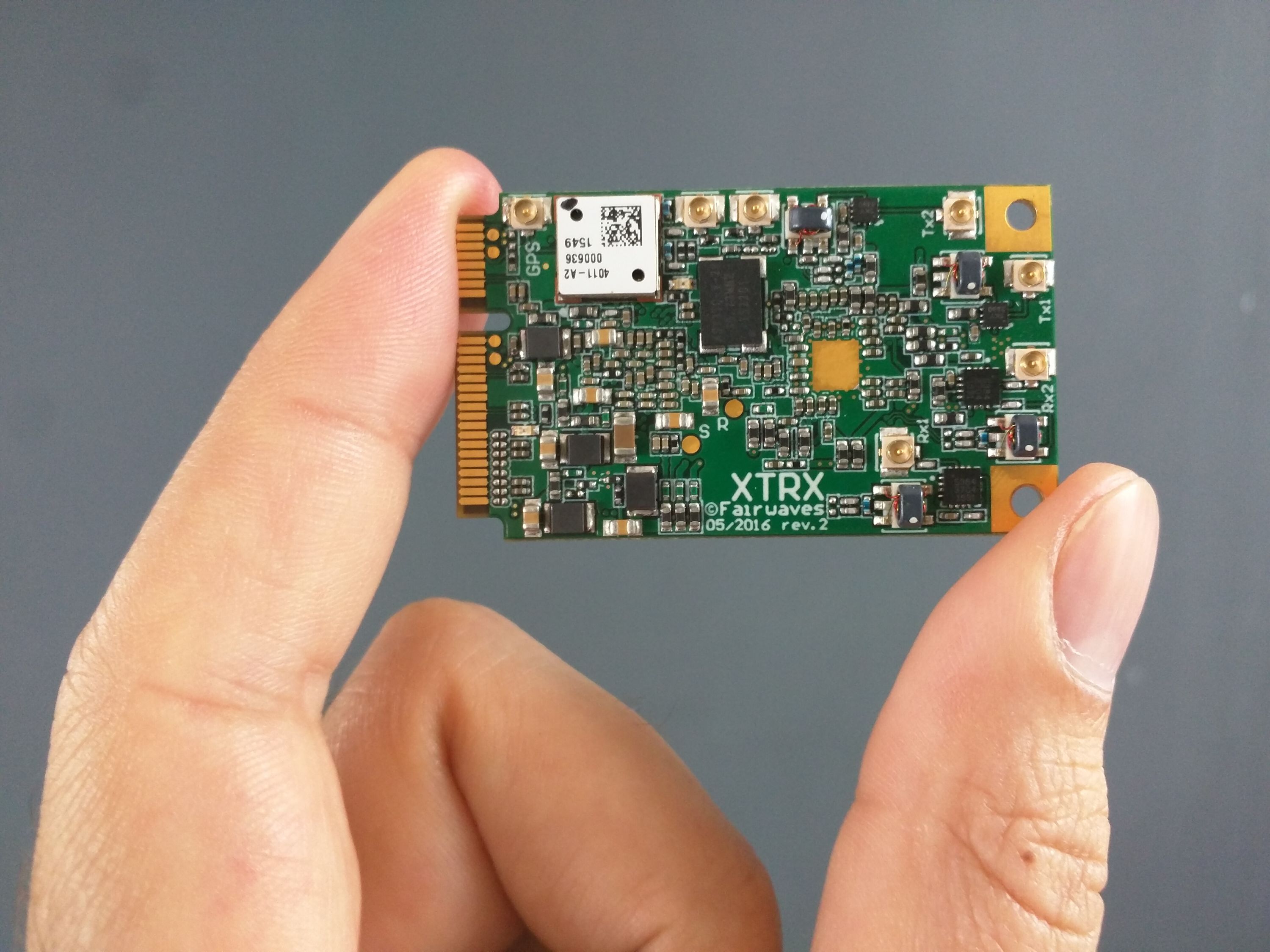

First Prototypes

Just got the first batch of test boards. Feels really good to hold them. Onto the testing.

$208,786 raised

of $90,000 goal

Funded! Order Now

Jan 15 2018

funded on

231%

funded

856

pledges

Product Choices

$260

XTRX

Get an XTRX revision 4 board. Does not include any cables, antennas, or adapter boards.

Orders placed now ship Dec 31, 2018.

Free US Shipping / $10 Worldwide

$515

XTRX Deluxe Bundle

Get an XTRX revision 4 board as well as an Antennas + Cables set, a PCIe x2 + Front End Adapter, and a USB 3 Adapter with Aluminum Enclosure (see below for details). Also comes with four extra U.FL-to-U.FL cables and four extra U.FL-to-SMA-male cables.

Orders placed now ship Dec 31, 2018.

Free US Shipping / $15 Worldwide

$59

Antennas + Cables

A full complement of cables and antennas for your XTRX, including four RF antennas (95 mm, 2 dBi, SMA male, GSM/3G/LTE 880 - 960 MHz, 1710 - 1990 MHz), one GPS antenna, and five cables.

Orders placed now ship Aug 31, 2018.

Free US Shipping / $10 Worldwide

$79

USB 3 Adapter with Aluminum Enclosure

This adapter converts your XTRX from Mini PCIe to USB 3 and comes with an aluminum enclosure designed specifically for XTRX. The adapter has three status LEDs, a micro USB 3 port, one SMA connector for the GPS antenna, four SMA connectors for the MIMO Tx/Rx antenna pairs, a micro SIM card slot, and a slot for a GPIO FPC cable. Comes with a USB cable and all RF cables for internally connecting an XTRX to the SMA connectors. Does not include an XTRX, antennas, or FPC cable.

Orders placed now ship Aug 31, 2018.

Free US Shipping / $10 Worldwide

$99

PCIe x2 + Front End Adapter

This PCIe card securely holds an XTRX board (not included) so it can be used in a standard PCIe x4 slot. It includes an RF front end with a LNA and PA for up to 100 mW output on each channel. A TDD switch is incorporated for applications like TDD LTE. You can bypass the front end by attaching cables directly to XTRX. This adapter achieves the full 10 Gbit/s raw bus bandwidth and can be plugged into x4/x8/x16 PCIe slots. A six-pin JTAG connector makes it easy to program and debug the FPGA. A micro SIM card slot is also present.

Orders placed now ship Aug 31, 2018.

Free US Shipping / $10 Worldwide

$2,900

XTRX PCIe Octopack

This single PCIe card comes loaded with eight (8!) removable XTRX boards, metal installation brackets, enough cables for all GPS and MIMO Tx/Rx ports, and a special board for synchronizing all eight XTRX boards.

Orders placed now ship Dec 31, 2018.

Free Worldwide Shipping

$1,900

XTRX Beta Tester

Here's your chance to get an XTRX board as soon as possible. We'll send you an XTRX revision 3 board as soon as the campaign reaches its funding goal and we'll follow up with a production version (revision 4) as soon as they come off the assembly line.

No longer available

Free Worldwide Shipping

Ask a Question

Have a question not answered in the description above or in the Updates?

Ask Fairwaves a Question or Browse the Crowd Supply Guide

Credits

Fairwaves

We are a vertically integrated vendor of cellular equipment focused on the needs of emerging markets. We are developing, manufacturing, deploying, and operating turn-key cellular network solutions including radio equipment, towers, power and backhaul all the way to a core network and SS7 interconnect. Our team has been building software-defined radios and systems based on them since 2009 and is well known for its ClockTamer, UmTRX, and UmSITE products.

 Boston, USA and London, UK  ·  fairwaves.co

Alexander Chemeris

CTO

Sergey Kostanbaev

Software & Firmware Development

Andrey Sviyazov

Hardware Design

Albert Gardiner

CEO

Andrey Bakhmat

Marketing

Andy Avtushenko

Manufacturing
